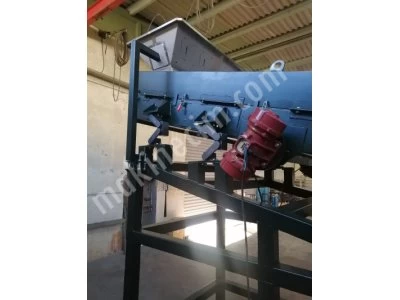

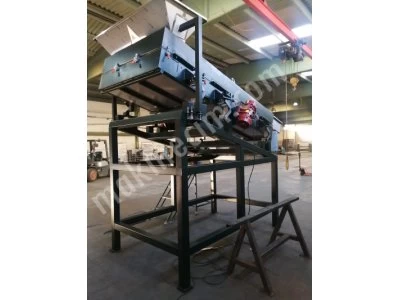

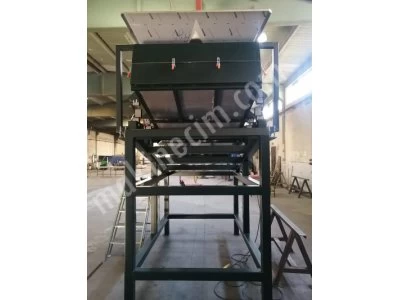

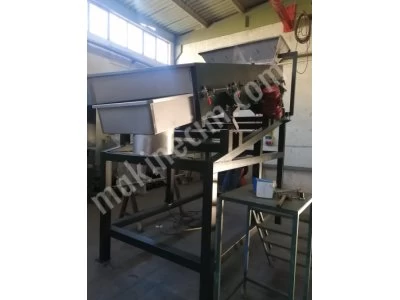

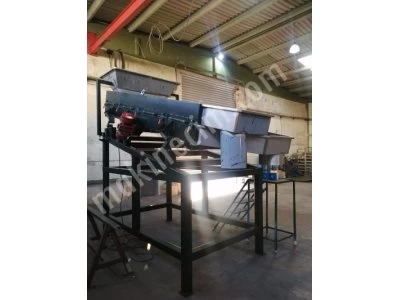

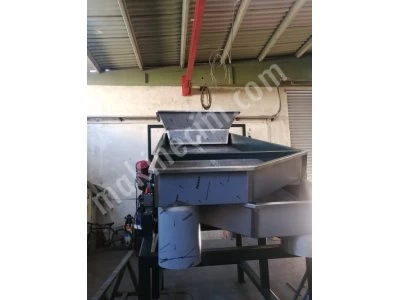

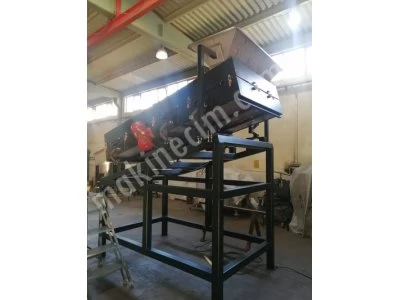

Vibratory Sieve

Technical details

∙ Sieve Size: 1250x3000mm – sieve holes Ø6mm

∙ Sub-floor cover sheet material thickness 2,5mm (base sheet)

∙ Big-bag Filling Dump Height: 1500mm

∙ Side walls, feet and sub-chassis material is carbon steel

∙ Material of sieve, acceptance and pouring hoppers is 304 quality stainless steel

∙ Angled mounting, 25° degrees

∙ Lower and upper floors can be easily disassembled/mounted with tension locks

∙ It works with 2 3000 rpm walker motors mounted on the right and left parts of the body.

∙ It works with a total of 4 original swing legs, the total weight on the sieve is designed to be 750kg.

∙ Total height 3860mm

Production is made in special capacities and sizes.
