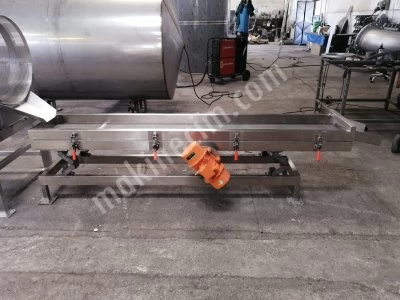

Stainless Steel Vibratory Screen

∙ AISI 304L quality certified stainless steel material
∙ Body material 40x80x3mm box profile
Sieve sheet material thickness 2mm
Sieve plate hole diameter Ø5mm
Sieve inner width 450mm, outer width 550mm
Sieve length 2500mm
Sieve chamber total depth 160mm, sieve plate assembly in the center
∙ Bottom chassis height 150mm, with 50mm height adjustable shoes
∙ Chassis material 60x80x3mm box profile
∙ Oscillation equipment height 200mm
∙ Vibration motor 0.37KW - 1000d / d x 2 units
Oscillation equipment brand VIB - Model: DE 40 R
Sieve assembly is with clamp connection.
∙ Electric panel is not included in our price.
