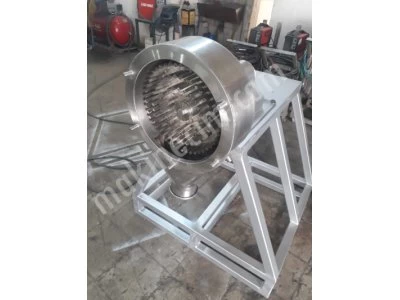

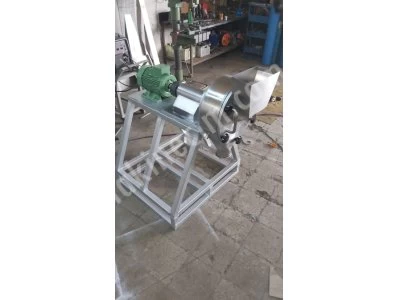

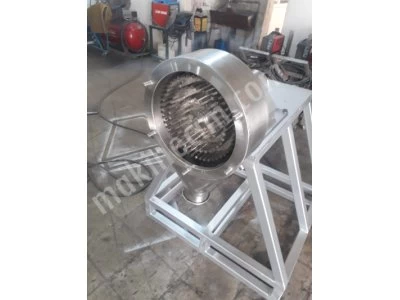

Stainless Steel Hammer Mill

AISI304L Pin Grinder Mill
500kg/h Capacity

∙ AISI304L prime quality, certified stainless steel material
∙ High oxidation resistance up to 450C° thanks to its low carbon level.
∙ EN2B surface quality, LaserFilm PVC coating
∙ All of them are made of AISI304L quality stainless steel material.
∙ It will work with 15KW – 3000 rpm Three Phase Electric Motor. Power transmission will be provided by belt and pulley.
∙ It will be controlled via the control panel with the speed controller.
∙ It has a capacity of 500kg/hour.
∙ The electric motor will be additionally cooled by the fan. Fan motor is 0.37KW.
∙ Micronization capacity is 30micron.
∙ There is an emergency-stop button in an easily accessible position for the operator.
∙ The conical product collection hopper at the bottom will be easily detachable.
