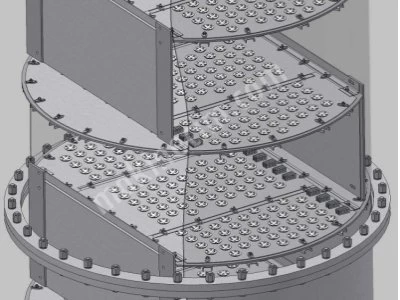

Distillation Column

All 304L quality stainless steel

Inner body sheet 3mm

Body insulation sheet 1.5mm

50mm wired Rockwool insulation

Lower & upper curved sheet 4mm

3mm draw pipe steam distribution / discharge wheel at the bottom

Screen plate at the bottom, 2mm thickness Ø5mm hole diameter – removable

Upper camber flange 8mm, tightening with 10 wing nuts

Analogue thermometer on body, manometer included

It has legs from the body and can be tilted manually.

Ø800mm inner diameter, Ø910mm outer diameter

Body height 2000mm

Including intervention platform, column base, stairs, railing, hoist NPI

Carbon steel materials End. Including primer and topcoat application.
