Ultrasonic Atomization Aluminum Metal Powder Production Facility

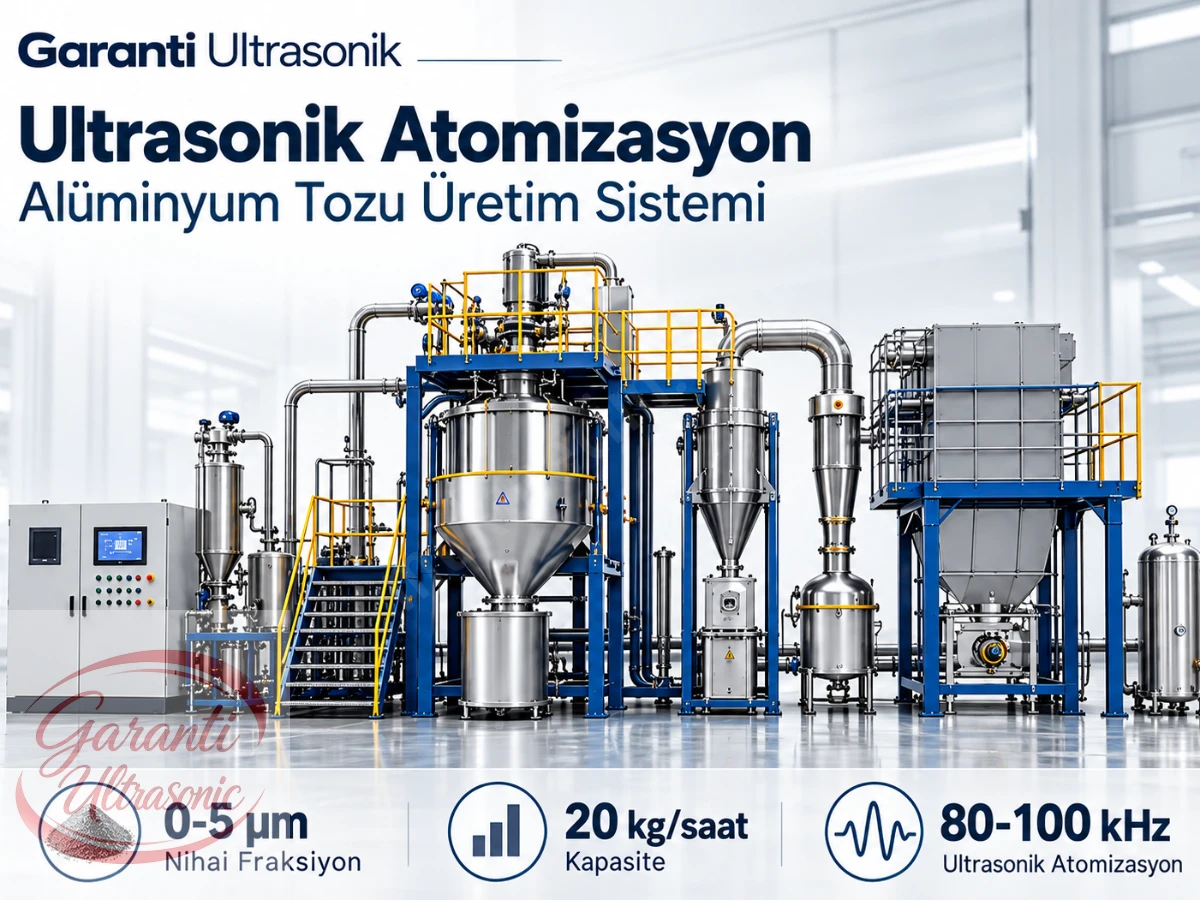

The ultrasonic atomization aluminum metal powder production system developed by Garanti Ultrasonik is an industrial production facility designed to produce aluminum powder in fine particle sizes and spherical shape using high-frequency ultrasonic technology. The system integrates metal melting, ultrasonic atomization, rapid cooling with nitrogen gas, powder recovery, HEPA filtration, ultrasonic sieving, and automation stages into a single production line. The target is to produce 20 kg per hour of spherical aluminum powder in the 0-5 micron range. The ultrasonic atomization unit is expected to operate in the 80-100 kHz frequency range, focusing on fine particle production at around 100 kHz.

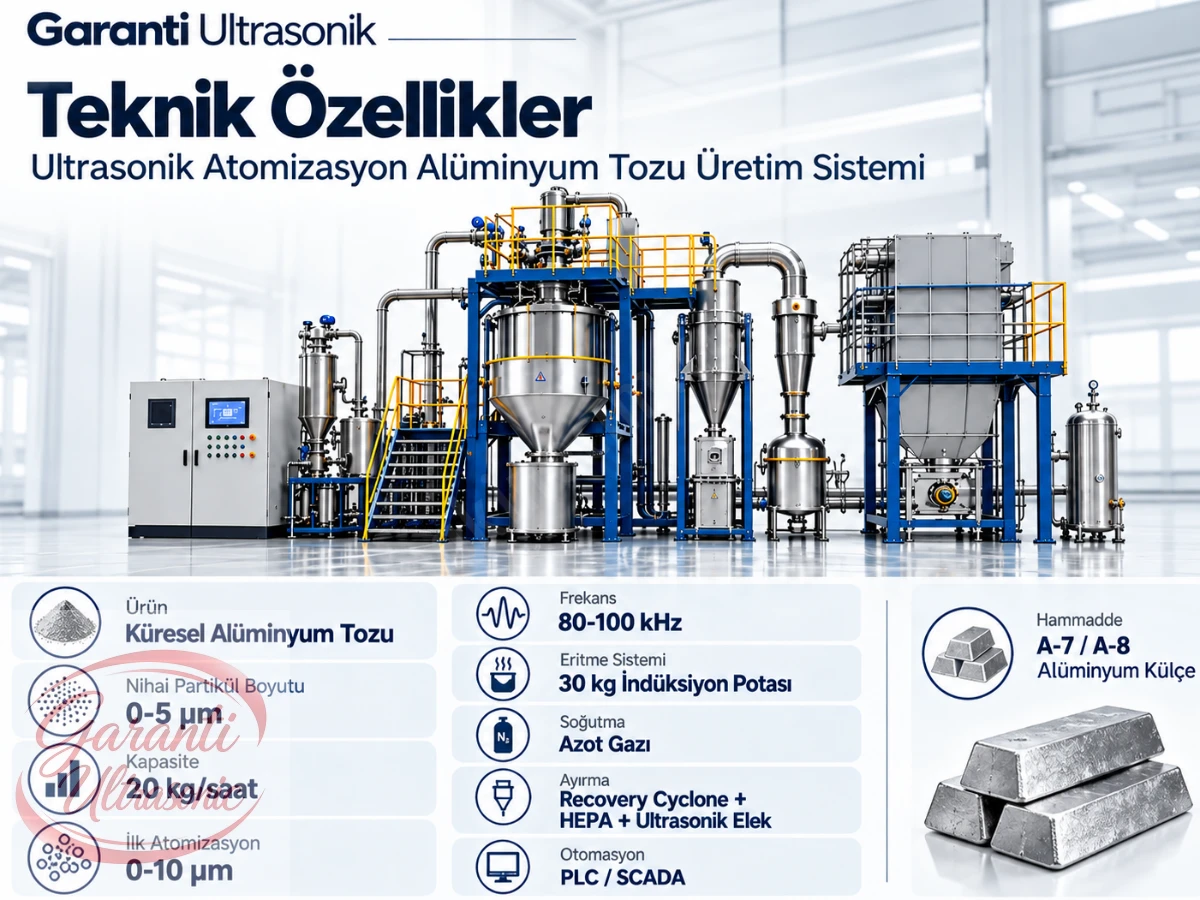

Technical Specifications

• Production technology: Ultrasonic atomization
• Product to be produced: Spherical aluminum metal powder
• Final particle size: 0-5 microns (µm)
• Target final production capacity: 20 kg/hour
• Initial atomization particle range: 0-10 microns
• Initial atomization capacity: 20-40 kg/hour (specified gross range)
• Ultrasonic operating frequency: 80-100 kHz
• Melting unit: 30 kg induction crucible
• Plasma system: 20 kW RF/DC Plasma Torch
• Cooling system: Rapid cooling with nitrogen gas
• Powder recovery: Recovery Cyclone
• Filtration: Closed HEPA filter system
• Particle separation: Specially designed ultrasonic sieve
• Automation: PLC / SCADA
• Quality control: Spectrometer
• Raw material: A-7 and A-8 grade aluminum ingots
• Production type: Project-specific integrated system manufacturing

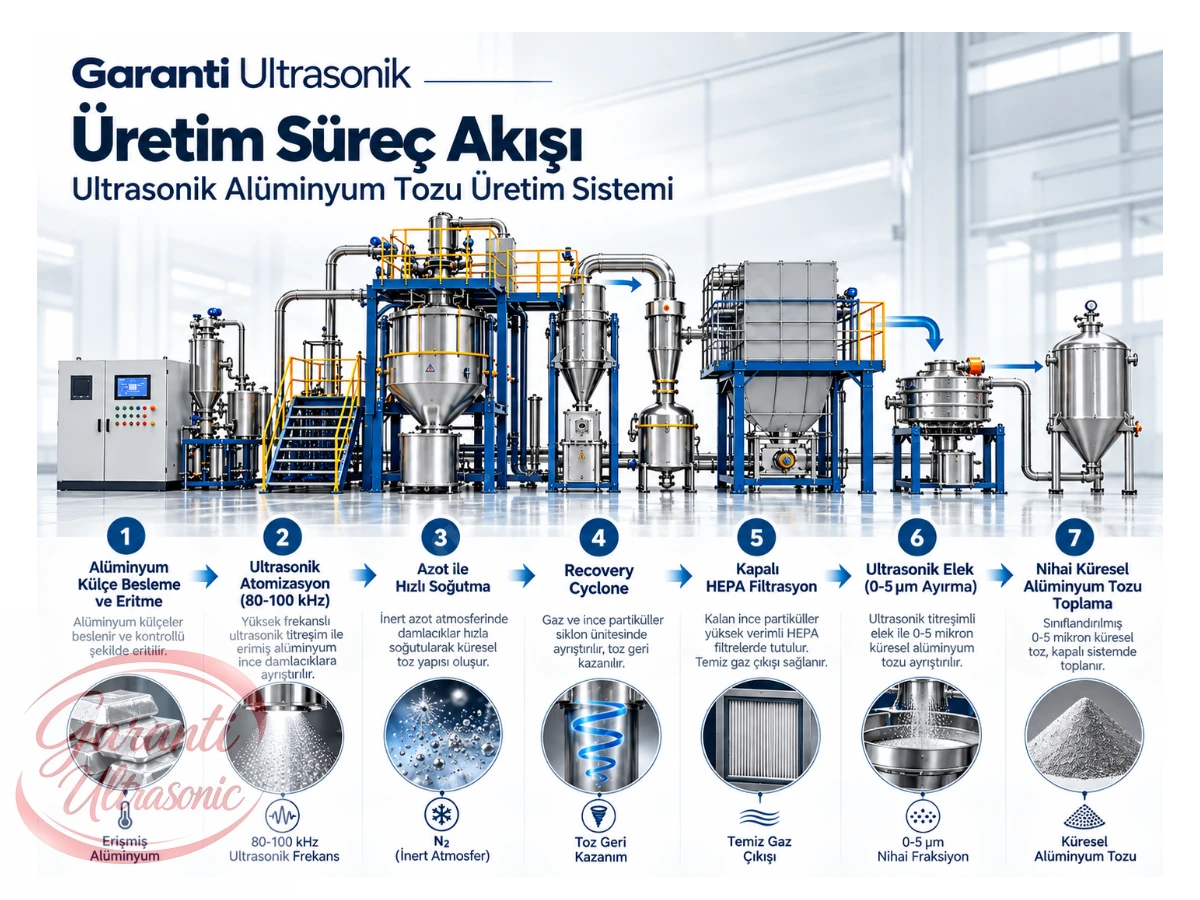

Operating Principle

Aluminum ingots are melted into liquid metal using an induction melting system. The molten metal is transferred to the high-frequency ultrasonic atomization unit. Ultrasonic vibrations break the liquid metal into small droplets. These droplets rapidly solidify into spherical metal powder particles under a controlled nitrogen gas atmosphere. The produced metal powders are collected through a recovery cyclone and a closed HEPA filtration system. In the final stage, a specially designed ultrasonic sieving system is used to separate fine particles in the 0-5 micron range.

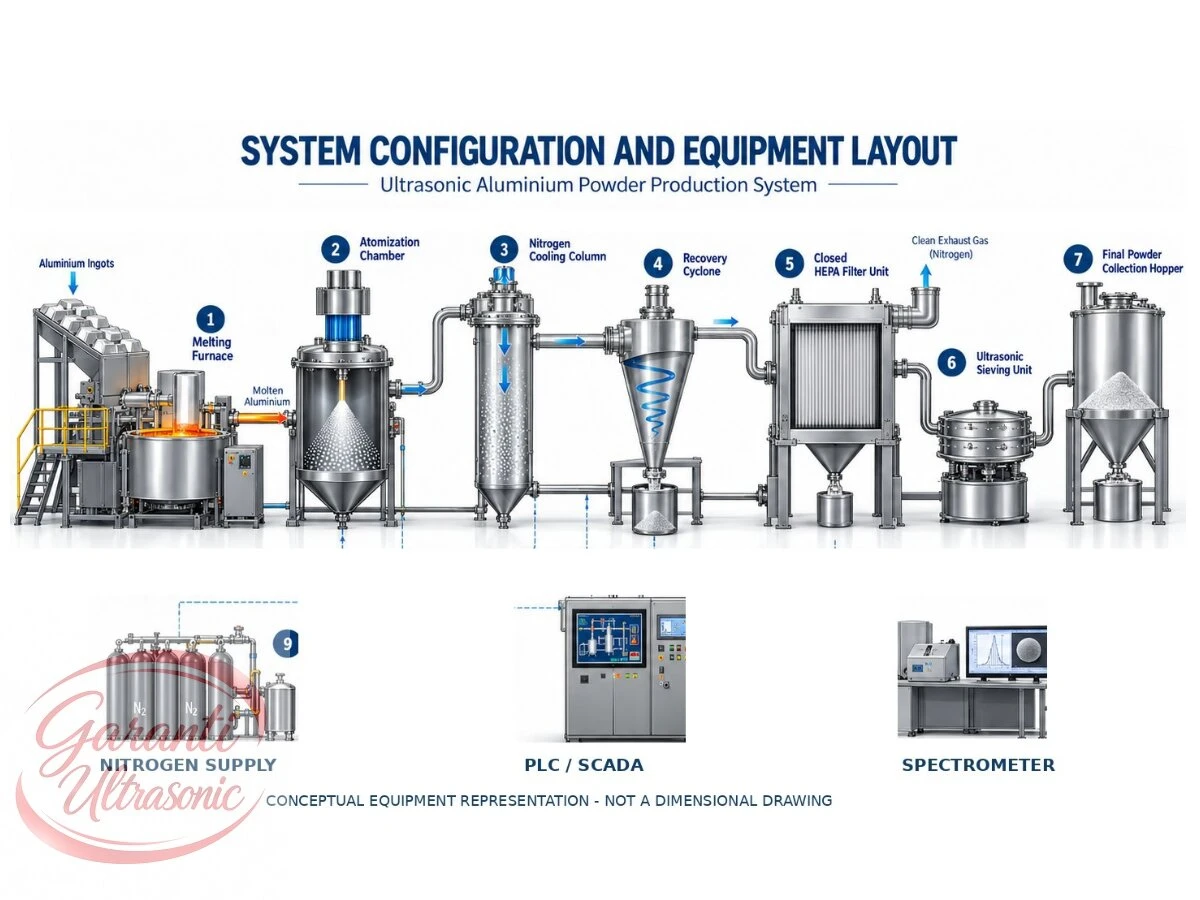

System Components

• Induction metal melting unit
• High-frequency ultrasonic atomization system
• RF/DC plasma unit and processing chamber

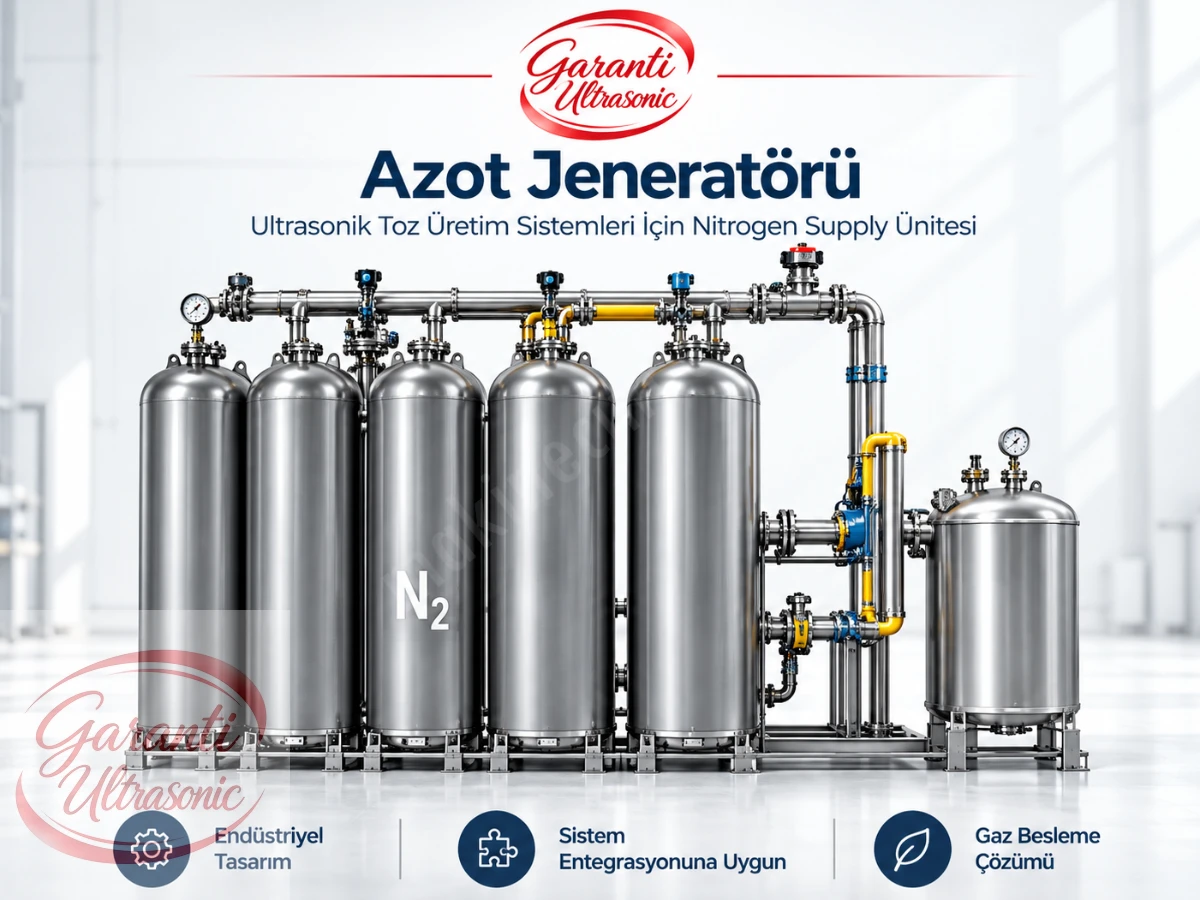

• Rapid cooling unit with nitrogen gas
• Metal powder recovery cyclone
• Closed HEPA filtration unit
• Ultrasonic metal powder sieving system
• PLC and SCADA control system
• Quality control equipment with spectrometer

Production and Project Planning

Garanti Ultrasonik offers design, manufacturing, and integration solutions for metal powder production systems based on industrial ultrasonic technologies. Systems are planned according to project requirements and supported with factory tests, commissioning, and operator training after production.

Manufacturer: Garanti Ultrasonik – Turkey
