Planet Type Concrete Mixer

Planetary Concrete Mixer For Sale - Call Us 24/7

The Constmach brand's planetary type concrete mixer series stands out in the industry by offering solutions suitable for projects of every scale. The CPLN series is available in a wide range from 0.5 to 2, with various loading capacities designed to meet every need. These mixers are equipped with high-quality motor options and durable materials, ensuring impressive performance even under long-term and challenging conditions.

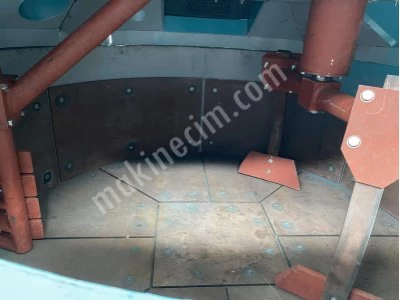

Each model in the CPLN series offers maximum durability with specially designed Hardox 450 side wear plates and ST 52 bottom wear plates. The mixing arms are equipped with Ni-Hard wear plates ranging from 25mm to 30mm, ensuring excellent resistance even under continuous operation. The CPLN series has been developed to provide excellent mixing and durability, even under tough conditions.

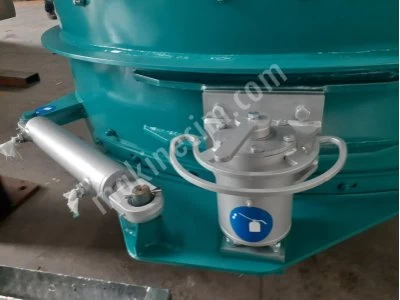

User-friendly features like the hydraulic discharge gate and safety sensor-equipped maintenance cover enhance work safety and ease of use. These features maximize operational efficiency while simplifying maintenance processes. Constmach's planetary type concrete mixer series sets a new standard in the industry in terms of durability, efficiency, and user safety.

The CPLN series combines technology and innovation to provide reliable and efficient performance for all your projects. Each meticulously designed mixer offers ideal solutions for long-term investments, contributing to the success of your projects.

CPLN - 0.5 Model Planetary Concrete Mixer Technical Specifications

• Loading Volume: 750 liters
• Fresh Concrete Volume: 625 liters
• Compacted Concrete Volume: 500 liters
• Motor Power: 15.5 kW
• Side Body Wear Plates: 10 mm Hardox 450
• Bottom Wear Plates: 10 mm ST 52
• Mixing Arm Wear Plates: 25 mm Ni-Hard
• Hydraulic Discharge Gate: Available
• Safety Sensor-Equipped Maintenance Cover: Available

CPLN - 0.75 Model Planetary Concrete Mixer Technical Specifications

• Loading Volume: 1,000 liters
• Fresh Concrete Volume: 875 liters
• Compacted Concrete Volume: 750 liters
• Motor Power: 30 kW
• Side Body Wear Plates: 10 mm Hardox 450
• Bottom Wear Plates: 10 mm ST 52
• Mixing Arm Wear Plates: 25 mm Ni-Hard
• Hydraulic Discharge Gate: Available
• Safety Sensor-Equipped Maintenance Cover: Available

CPLN - 1 Model Planetary Concrete Mixer Technical Specifications

• Loading Volume: 1,500 liters
• Fresh Concrete Volume: 1,250 liters
• Compacted Concrete Volume: 1,000 liters
• Motor Power: 45 kW
• Side Body Wear Plates: 15 mm Hardox 450
• Bottom Wear Plates: 10 mm ST 52
• Mixing Arm Wear Plates: 25 mm Ni-Hard
• Hydraulic Discharge Gate: Available
• Safety Sensor-Equipped Maintenance Cover: Available

CPLN - 1.5 Model Planetary Concrete Mixer Technical Specifications

• Loading Volume: 2,250 liters
• Fresh Concrete Volume: 2,000 liters
• Compacted Concrete Volume: 1,500 liters
• Motor Power: 2 x 30 kW
• Side Body Wear Plates: 10 mm Hardox 450
• Bottom Wear Plates: 10 mm ST 52
• Mixing Arm Wear Plates: 25 mm Ni-Hard
• Hydraulic Discharge Gate: Available
• Safety Sensor-Equipped Maintenance Cover: Available

CPLN - 2 Model Planetary Concrete Mixer Technical Specifications

• Loading Volume: 3,000 liters
• Fresh Concrete Volume: 2,500 liters
• Compacted Concrete Volume: 2,000 liters
• Motor Power: 2 x 37 kW
• Side Body Wear Plates: 15 mm Hardox 450
• Bottom Wear Plates: 12 mm ST 52
• Mixing Arm Wear Plates: 30 mm Ni-Hard
• Hydraulic Discharge Gate: Available
• Safety Sensor-Equipped Maintenance Cover: Available
