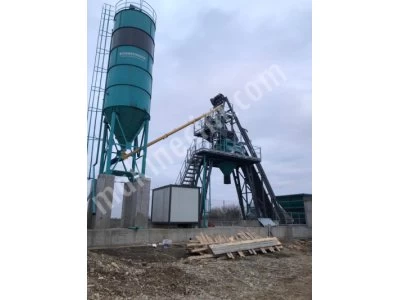

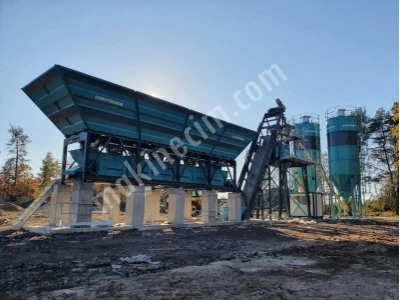

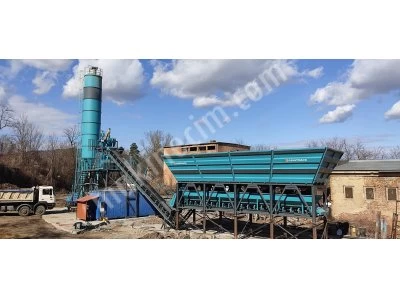

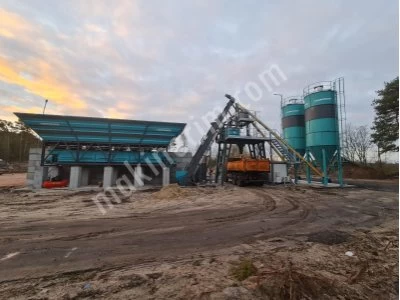

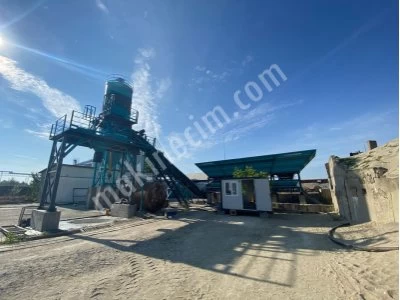

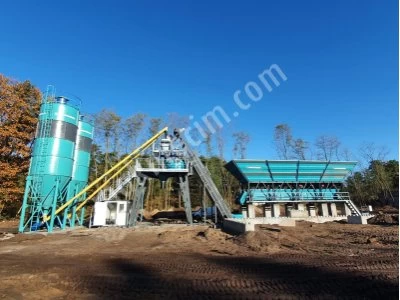

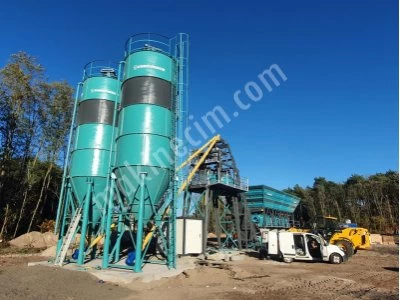

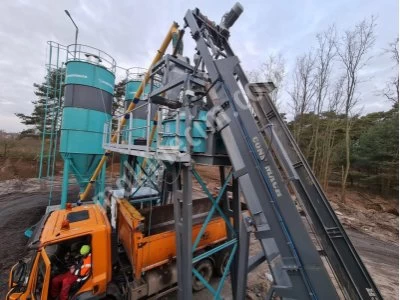

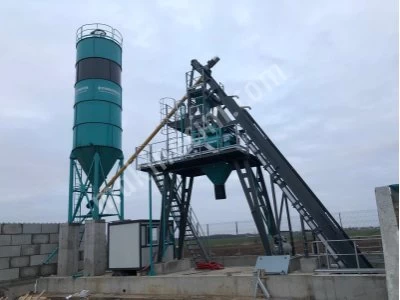

60 M3 Capacity Compact Concrete Batching Plant Bucket Type

Price : Ask For Price
Ad Code : M-445601
Ad Type : For Sale - New
Views : 10
Date Updated : 17 Jul 2024
Production Type : Special Production
Brand : Constmach
Model : Compact 60
Production Year : 2024
1
year
CONSTMACH Konkasör Tesisi ve Beton Santrali
Türkiye - İzmir - Kemalpaşa
Halilbeyli Bayosb Anadolu Cad. No:1 Bağyurdu Organize Sanayi Bölgesi Kemalpaşa / İzmir / TÜRKİYE
Ad Description

Compact Concrete Batching Plant For Sale - Call Us 24/7

Discover the next generation of production power: the Kovalı Kompakt 60 Concrete Batching Plant. Designed to deliver superior performance in every project, this plant enables you to achieve your goals faster with an impressive production capacity of 60 m³/h. Its transport dimensions of 13 x 2.3 x 2.3 meters allow for easy transportation and placement, fitting into a 300 m² area, enabling you to undertake significant projects even in small spaces.

This model features a robust structure weighing 28 tons and a total motor power of 105 kW, ensuring durability to handle any workload. The required 125 kVA electrical generator provides a continuous and reliable energy flow, so your production never halts.

With four different mixer options (Pan, Single Shaft, Double Shaft, Planetary), it has the capability to produce the right mix for any requirement. Cement silos ranging from 50 to 500 tons offer perfect solutions for long-term and extensive projects.

Thanks to its fully automatic control system, your operations are more efficient with less labor. The Kovalı Kompakt 60, with its user-friendly interface, is a machine that operators at all levels can easily manage.

The Kovalı Kompakt 60 concrete batching plant is an ideal choice for professionals looking to push their limits, with its durability, portability, and high capacity. Its advanced features and strong performance ensure maximum efficiency with every use. Invest in the Kovalı Kompakt 60 to grow your business and achieve more effective results. Elevate your projects to a new level with this high-quality and powerful plant, and capture excellence at every opportunity.

Technical Specifications for the 60 m3 Capacity Compact Concrete Batching Plant

GENERAL FEATURES

  • Production Capacity: 60 m³/h
  • Transport Dimensions: 13 (L) x 2.3 (W) x 2.3 (H) meters (when square type bunker is used)
  • Weight: 28 tons
  • Total Motor Power: 105 kW
  • Required Electrical Generator: 125 kVA
  • Mixer Options: Pan, Single Shaft, Double Shaft, Planetary
  • Space Required for Operation: 300 m²

TECHNICAL SPECIFICATIONS

  • Aggregate Storage Bunker: 4 x 15 m³
  • Aggregate Weighing Bunker: 1.5 m³
  • Aggregate Weighing Conveyor: 800 x 11,100 mm
  • Aggregate Weighing Bucket Volume: 1.5 m³
  • Mixer Fresh Concrete Volume: 1 m³
  • Cement Weighing Bunker: 600 kg
  • Water Weighing Bunker: 300 liters
  • Additive Weighing Bunker: 20 liters
  • Air Compressor: 300 liters, 5.54 kW
  • Cement Silo: Capacity options from 50 to 500 tons
  • Control Type: FULLY AUTOMATIC
