120 M3 Concrete Batching Plant Compact Type 2 Years Warranty

Price : Ask For Price
Ad Code : M-445603
Ad Type : For Sale - New
Views : 7
Date Updated : 12 Jul 2024
Production Type : Special Production
Brand : Constmach
Model : Compact 120
Production Year : 2024
1
year
CONSTMACH Konkasör Tesisi ve Beton Santrali
Türkiye - İzmir - Kemalpaşa
Halilbeyli Bayosb Anadolu Cad. No:1 Bağyurdu Organize Sanayi Bölgesi Kemalpaşa / İzmir / TÜRKİYE
Ad Description

Compact Concrete Batching Plant For Sale - Call Us 24/7

With its compact, powerful, and innovative design, the Kovalı Kompakt 120 concrete batching plant under the CONSTMACH brand offers high performance and efficiency together. This model, with a production capacity of 120 m³/h, ensures that large projects are completed quickly and effectively. Weighing 35 tons and equipped with a 175 kW motor, the plant promises energy efficiency and long-term durability.

Easily set up in a 300 m² area, the Kovalı Kompakt 120 is designed to provide maximum efficiency even in confined spaces. It offers solutions suitable for all your concrete needs with four different mixer options (Pan, Single Shaft, Double Shaft, Planetary). The requirement for a 250 kVA electrical generator ensures uninterrupted operation under all conditions.

Advanced weighing systems for aggregates, water, and additives facilitate achieving the ideal balance in each mix. Cement silo capacity offers flexible options ranging from 50 to 500 tons, adjustable according to the scale of your projects. The bucket transfer system enables fast and efficient material transport, optimizing your workflow.

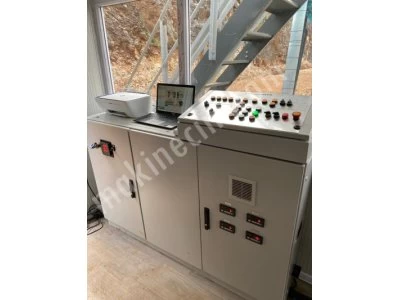

Thanks to its fully automatic control system, your operations will be simplified and time-saving. The Kovalı Kompakt 120 is not just a machine, but a power center that will ease and accelerate your tasks.

Choose the CONSTMACH Kovalı Kompakt 120 concrete batching plant to add value to your projects and elevate your construction processes to the next level. With this product aiming for perfection in every detail, you will achieve excellent results in your operations.

Kovalı Kompakt 120 Concrete Batching Plant Technical Specifications

GENERAL FEATURES

  • Production Capacity: 120 m³/h
  • Weight: 35 tons
  • Total Motor Power: 175 kW
  • Electrical Generator Requirement: 250 kVA
  • Mixer Options: Pan, Single Shaft, Double Shaft, Planetary
  • Space Required for Operation: 300 m²

TECHNICAL SPECIFICATIONS

  • Aggregate Storage Bunker: 4 x 20 m³
  • Aggregate Weighing Bunker: 2 m³
  • Aggregate Weighing Conveyor: 800 x 13,000 mm

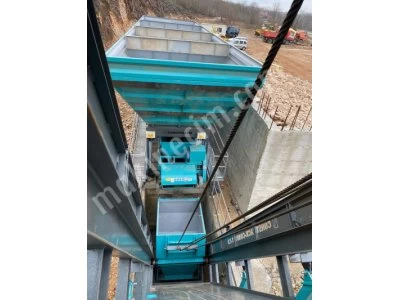

  • Aggregate Transfer Bucket Volume: 4 m³
  • Mixer Fresh Concrete Volume: 2 m³
  • Cement Weighing Bunker: 1,200 kg
  • Water Weighing Bunker: 600 liters
  • Additive Weighing Bunker: 30 liters
  • Air Compressor: 500 liters, 7.5 kW

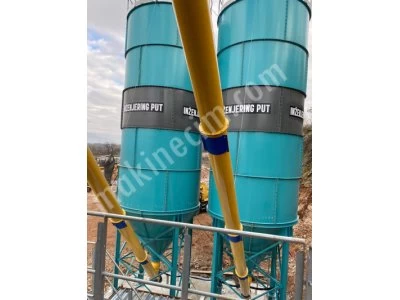

  • Cement Silo: Capacity options from 50 to 500 tons
  • Control Type: FULLY AUTOMATIC
