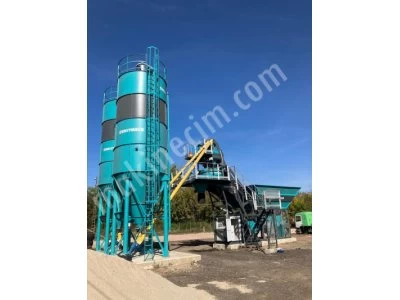

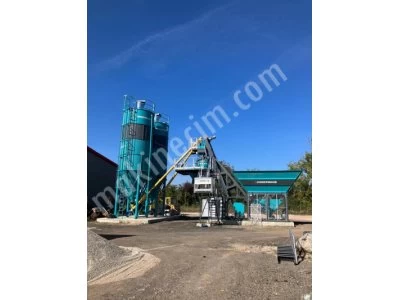

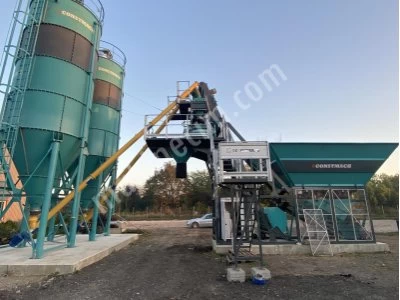

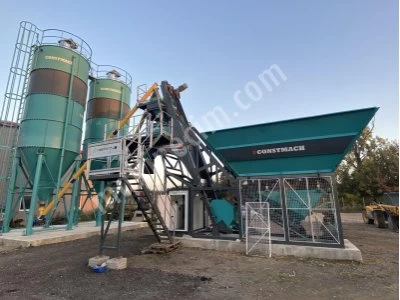

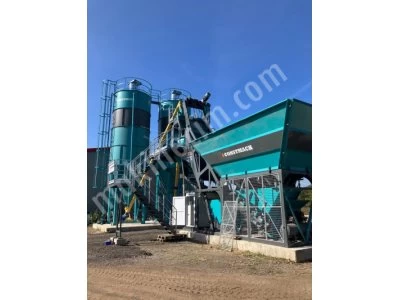

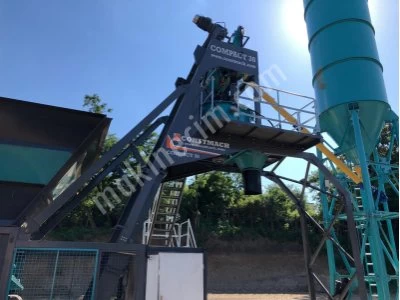

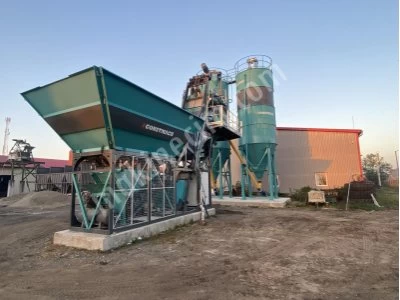

Compact Concrete Batching Plant 30 M3 Capacity Bucket Type

Price : Ask For Price
Ad Code : M-445600
Ad Type : For Sale - New
Views : 8
Date Updated : 12 Jul 2024
Production Type : Special Production
Brand : Constmach
Model : Compact 30
Production Year : 2024
1
year
CONSTMACH Konkasör Tesisi ve Beton Santrali
Türkiye - İzmir - Kemalpaşa
Halilbeyli Bayosb Anadolu Cad. No:1 Bağyurdu Organize Sanayi Bölgesi Kemalpaşa / İzmir / TÜRKİYE
Ad Description

Compact Concrete Batching Plant For Sale - Call Us 24/7

Designed to enhance your business and simplify your application process, the CONSTMACH KOMPAKT 30 stands out with its advanced features. Weighing only 13 tons and measuring 12 x 2.2 x 2.2 meters in its transport position, the KOMPAKT 30 offers exceptional portability. It requires only the most suitable operational space and makes installation quick and seamless. It can be easily set up and operated even in limited spaces, thus allowing your projects to start more quickly and efficiently.

Its fully automatic control system provides perfect precision and consistency at every stage, while various mixer options (Pan, Single Shaft, Planetary) offer the flexibility to meet your needs. With a production capacity of 30 m³/h, it is powerful enough to meet the requirements of large projects and delivers effective performance even in major jobs despite its compact size.

Additionally, this system requires minimal infrastructure investment, which is a major reason for its economic preference. The KOMPAKT 30 operates effectively on a small area of 200 m², helping you save time and costs in your projects. Optimized for energy needs with a required 80 kVA electrical generator and 50 kW total motor power, this unit offers a strategic investment opportunity for you with low initial costs, reduced operating expenses, and sustainability features.

The fully automatic system, providing superior control in dosing cement, water, and additives, creates flawless mixes with each use, thereby guaranteeing the best results for each project. The KOMPAKT 30 promises reliability and longevity even under tough conditions, ensuring your projects are always completed on time and within budget.

Kovalı Kompakt 30 Compact Concrete Batching Plant Technical Specifications

GENERAL FEATURES

  • Production Capacity: 30 m³/h
  • Transport Dimensions: 12 (L) x 2.2 (W) x 2.2 (H) meters
  • Weight: 13 tons
  • Total Motor Power: 50 kW
  • Required Electrical Generator: 80 kVA
  • Mixer Options: Pan, Single Shaft, Planetary
  • Space Required for Operation: 200 m²

TECHNICAL SPECIFICATIONS

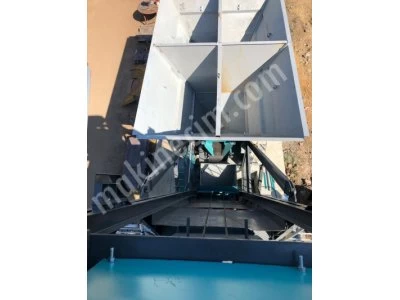

  • Aggregate Storage Bunker: 4 x 6 m³
  • Aggregate Weighing Bunker: 0.75 m³
  • Aggregate Weighing Conveyor: 600 x 4,000 mm
  • Aggregate Transfer Bucket Volume: 0.75 m³
  • Mixer Fresh Concrete Volume: 0.5 m³
  • Cement Weighing Bunker: 300 kg
  • Water Weighing Bunker: 200 liters
  • Additive Weighing Bunker: 20 liters
  • Air Compressor: 300 liters, 4 kW

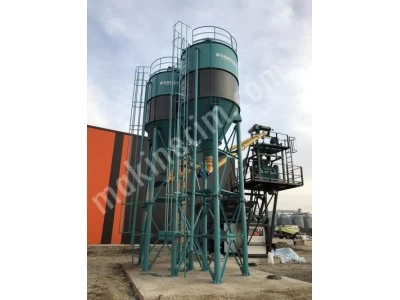

  • Cement Silo: Capacity options from 50 to 500 tons
  • Control Type: FULLY AUTOMATIC
