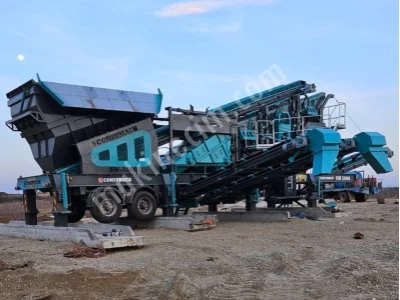

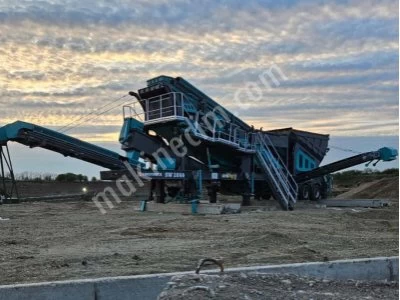

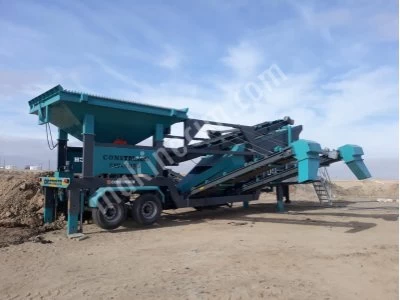

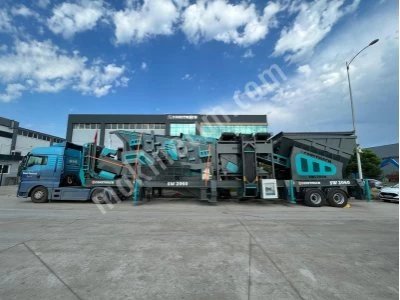

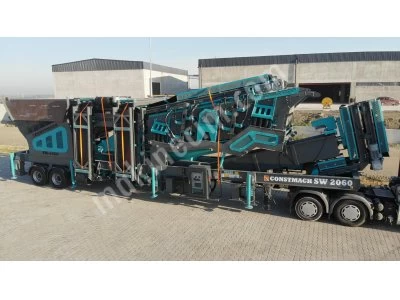

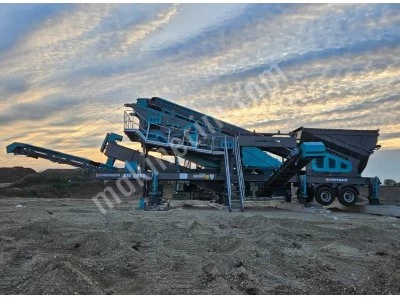

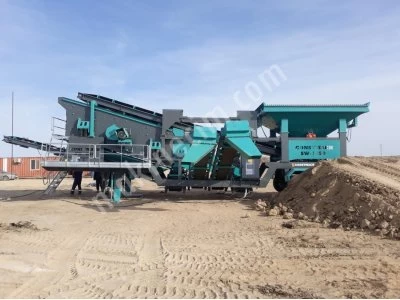

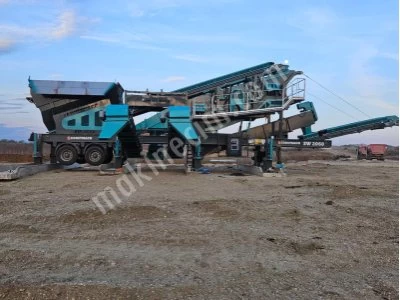

Mobile Sand Screening Washing Plant Between 60-200 T/H Capacity

For Sale: Mobile Screening and Washing Plant - Contact Us 24/7

The CONSTMACH SW Series Mobile Washing and Screening plants offer superior performance in sand screening and washing as well as gravel and crushed stone washing and screening processes. These modern technology-equipped plants provide easy transportability and rapid setup, saving both time and cost. Offering high efficiency and durability, these plants are perfect for various scale projects.

Produced with the reliability of the CONSTMACH brand, the SW Series combines components such as a vibrating feeder bunker, vibrating screen, spiral washer, and a hydraulic legged wheeled mobile chassis. With foldable stock belts and a remote-controlled automation system, these plants guarantee easy operation and high performance. Supported by electronic components from world-renowned brands such as SIEMENS and SCHNEIDER, these plants can be managed with a tablet through a PLC automation system.

CONSTMACH Mobile Washing and Screening plants are offered in various models based on production capacity. For instance, the SW-1240 model has a capacity of 60 tons/hour, while the SW-2060 model can reach a capacity of up to 200 tons/hour. The flexible structure of the plants allows for the addition of an electric generator to the plant chassis when needed or the removal of the washer to use the plant solely for screening purposes.

For those seeking a mobile sand screening and washing machine, the CONSTMACH SW Series is an ideal choice due to its high performance and durability. With easy portability, quick setup, and superior technological features, these plants ensure maximum efficiency in all types of projects. Take your projects a step further with CONSTMACH.

SW-1240 Mobile Screening and Washing Plant Technical Specifications

• Production Capacity: 60 tons/hour
• Screen Dimensions: 1.2 x 4 meters
• Screen Mesh Dimensions: 400 x 4,000 mm
• Feeding Height: 3.2 meters
• Electric Generator Requirement: 50 kVA
• Weight: 14 tons

SW-1640 Mobile Screening and Washing Plant Technical Specifications

• Production Capacity: 80 tons/hour
• Screen Dimensions: 1.6 x 4 meters
• Screen Mesh Dimensions: 500 x 5,000 mm
• Feeding Height: 3.2 meters
• Electric Generator Requirement: 60 kVA
• Weight: 17 tons

SW-1850 Mobile Screening and Washing Plant Technical Specifications

• Production Capacity: 150 tons/hour
• Screen Dimensions: 1.8 x 5 meters
• Screen Mesh Dimensions: 600 x 6,000 mm
• Feeding Height: 3.4 meters
• Electric Generator Requirement: 80 kVA
• Weight: 22 tons

SW-2060 Mobile Screening and Washing Plant Technical Specifications

• Production Capacity: 200 tons/hour
• Screen Dimensions: 2 x 6 meters
• Screen Mesh Dimensions: 700 x 7,000 mm
• Feeding Height: 3.6 meters
• Electric Generator Requirement: 100 kVA
• Weight: 32 tons

For more information and to discuss how our mobile screening and washing plant can meet your specific needs, contact us today. Experience the superior quality and efficiency of CONSTMACH.
