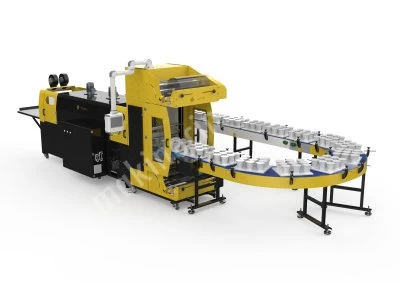

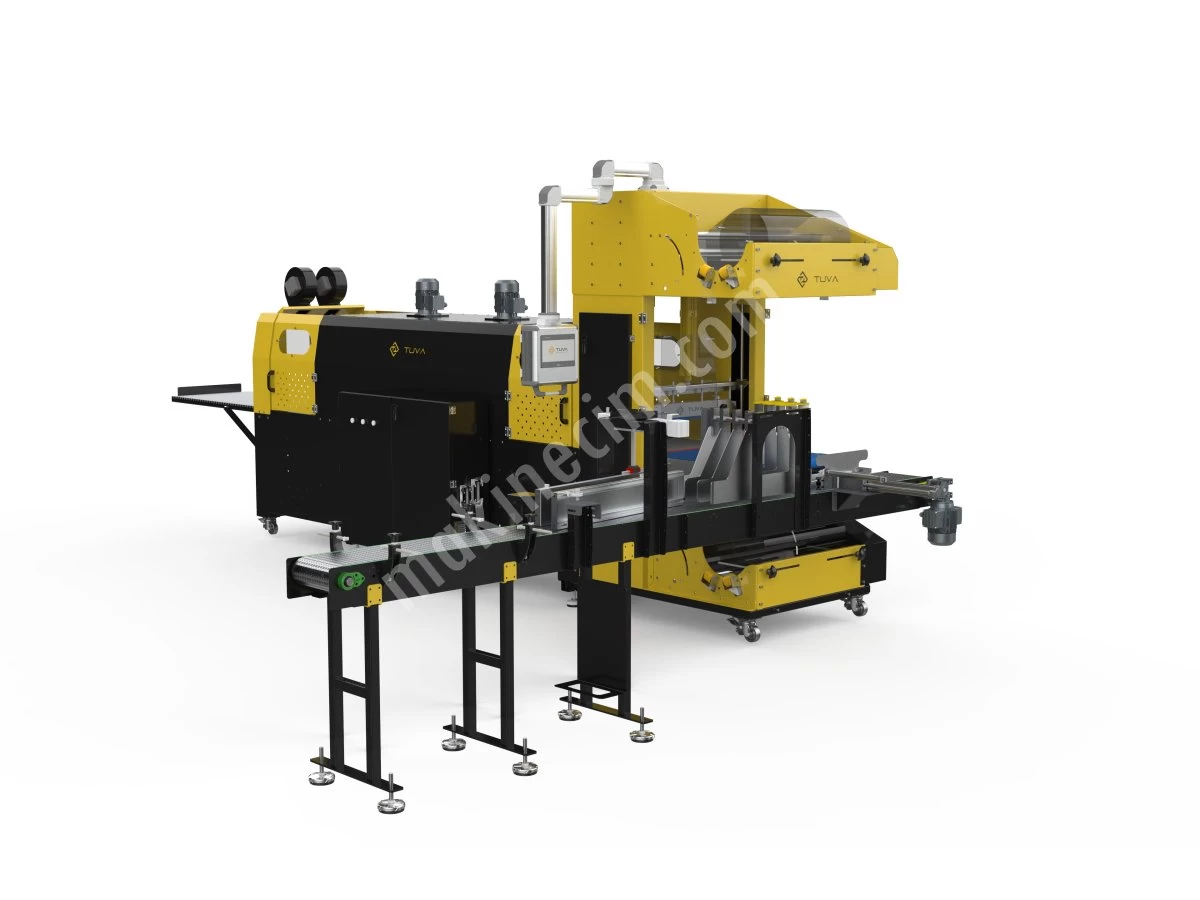

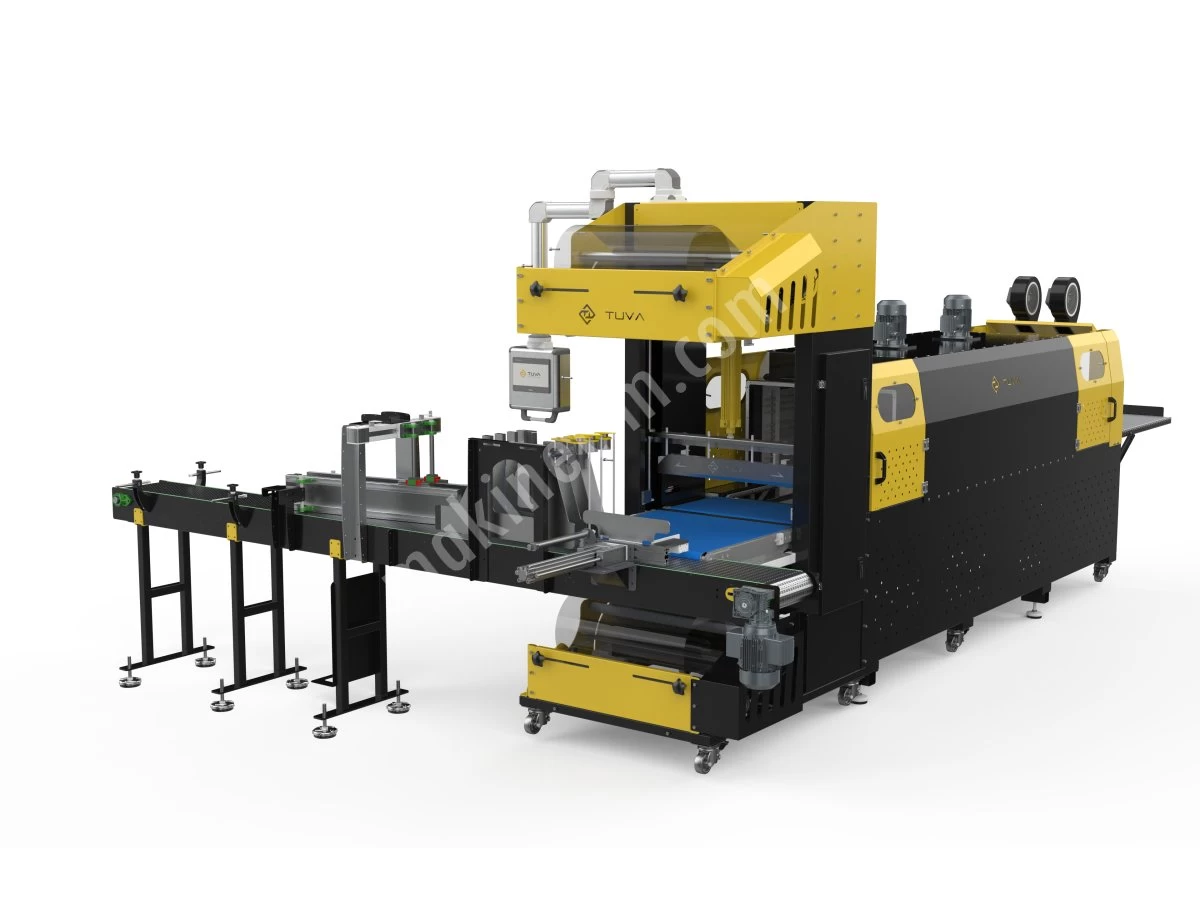

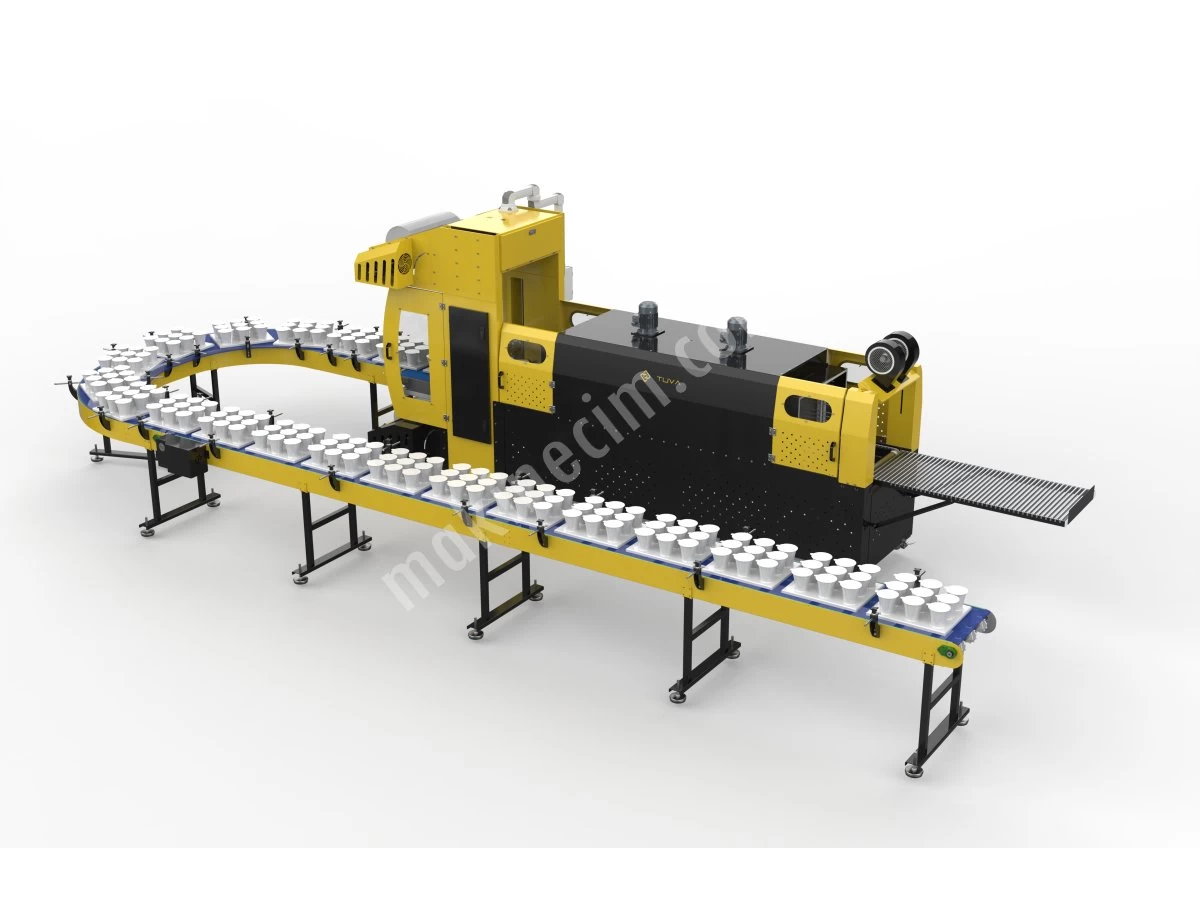

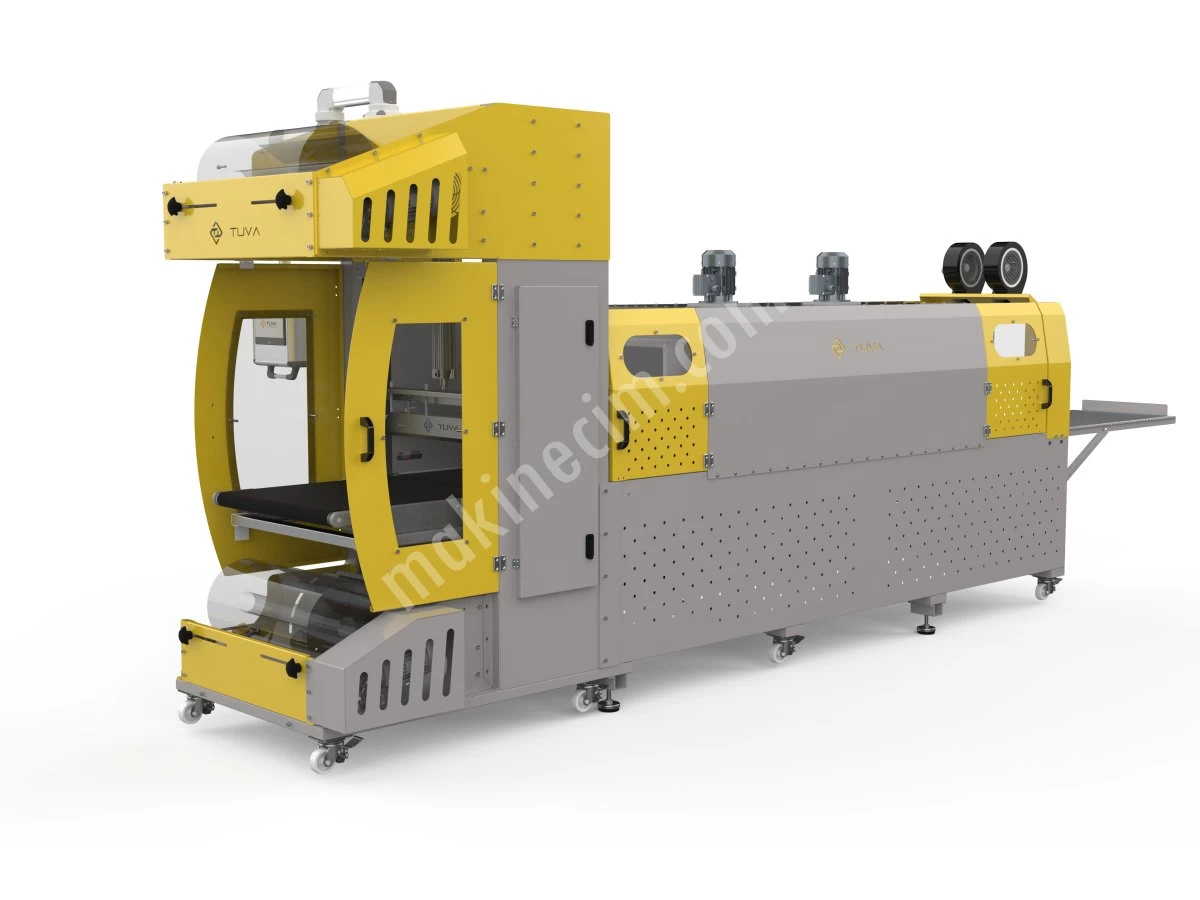

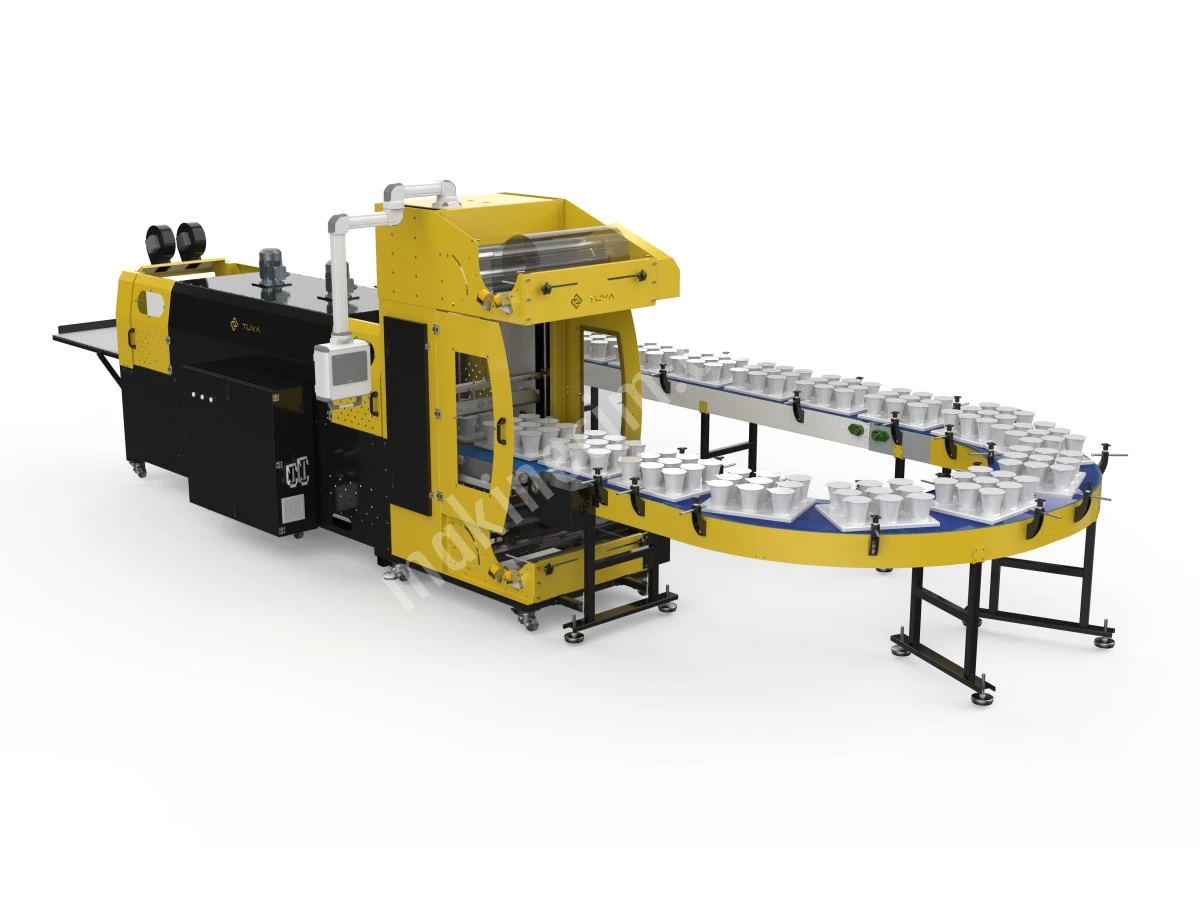

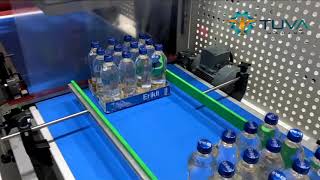

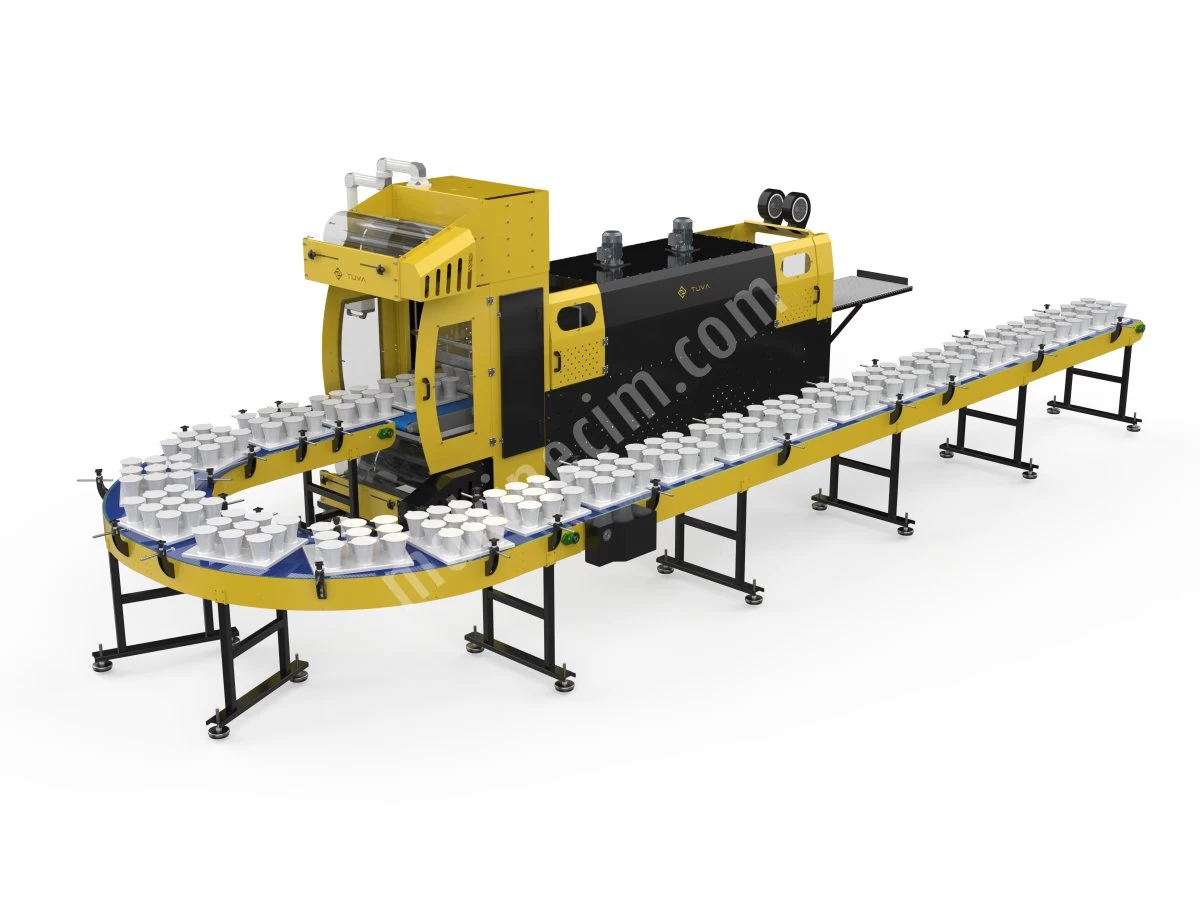

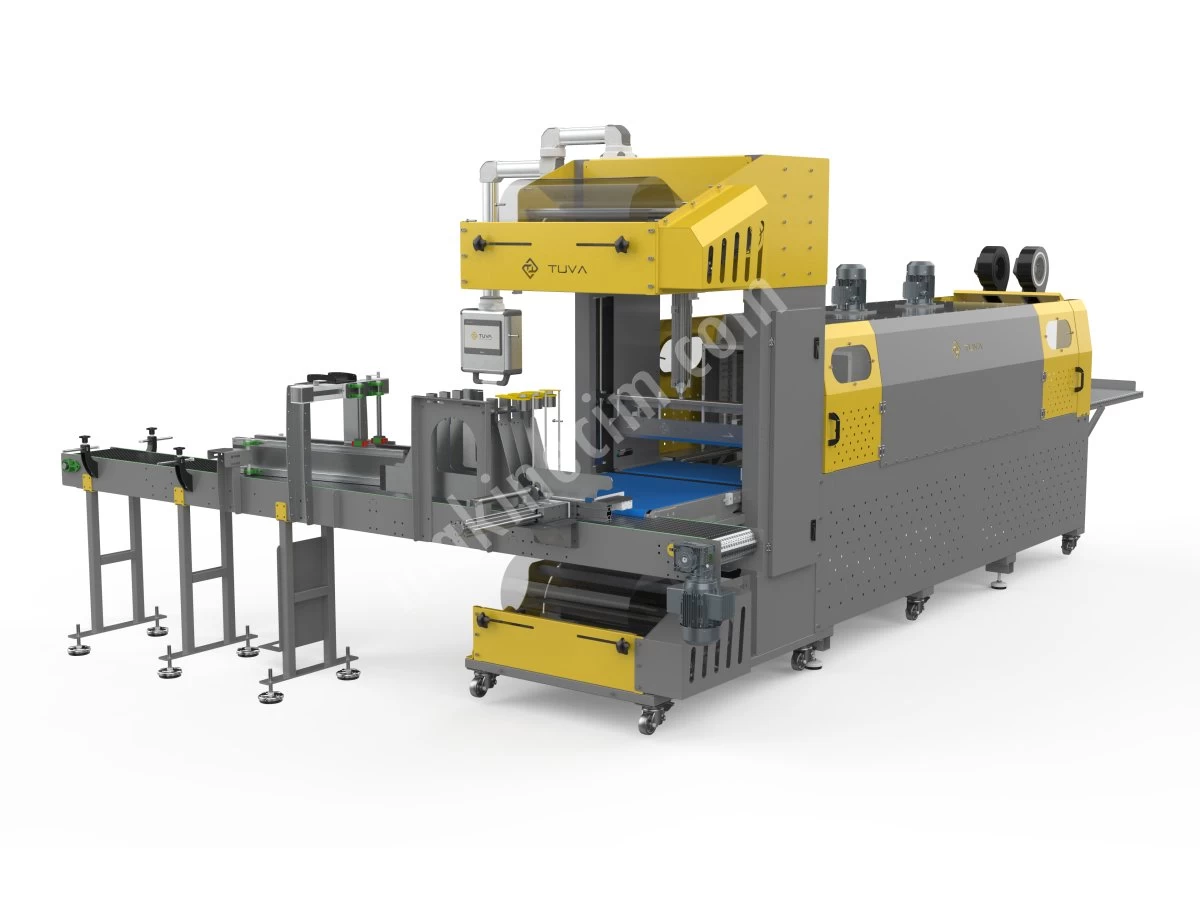

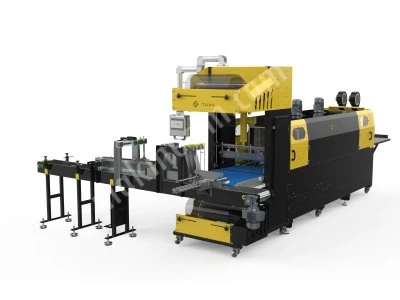

Fully Automatıc Shrınk Packagıng Machıne

www.tuvamakine.com

Operator Control System: 7 ”Touchscreen PLC Screen

P.I.D. Adhesion is provided by the Electronic Temperature Control System.

Has lower and upper motor driven film drive mechanism

· Adjustable front, back and in-tunnel conveyor speed.

Easy adaptation to different packaging sizes and product changes

Automatic working system with sensors

· By combining your products in multiple groups, they make them a single whole, reducing your production cost.

The machine has door safety switches and sensors for work safety.

Technicial Specifications:
Suitable Box Sizes: Width: 100 mm - 550 mm | Length: 100 mm - 600 mm | Height: 100 mm - 500 mm

Capacity: 10-12 Packs / Minute

Required Air Pressure: 5 - 6 Bar

Electricity: 380 V. 50-60 Hz. 1 Ph.

Machine Dimensions: Length: 3800 mm | Width: 900 mm | Height: 2000 mm

Weight: 1100 kg

OPTIONS:
The machine can be produced completely from stainless chrome nickel.

Machines that can be manufactured for large products of 80 cm and 100 cm width.

Additional belt conveyor to its outlet.

Side ironing rolls at the tunnel exit

Soft press plunger for fixing the product during the cutting and pasting process.

Adjustable tunnel conveyor speed.

Tunnel transport system (silicone coated shafts, wire mesh band, teflon mesh band or heat resistant plastic modular band)

--- In addition to adding a good appearance to the product, the obtained packaging is covered with PE packaging to prevent abrasion and damage during storage and transportation; provides protection from friction, scratches and dust. ---

Delivery and Other Details

Machines are covered by a 2-year warranty against manufacturing defects.

Spare parts supply, maintenance and service guarantee for 10 years

· The machine is installed on-site by our assembly team and delivered after training.

· Spare parts lists of machinery and equipment, maintenance and user manual, training video are given together.

· VAT is not included in our prices.
