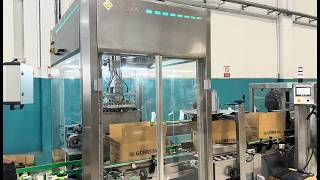

Cartesıan Robot Package Fıllıng Lıne

For the packing process of your products, empty parcels are prepared and transferred to the Parcel Filling Robot with the Fully Automatic Carton Preparation Machine.

Products coming from the production line are automatically grouped in a formation suitable for parcel placement. The products transferred to the Cartesian Robot are held by vacuum, gripper or magnetic gripper systems with a fixture design unique to your products and filled into the parcel. These processes are provided without any damage to your products. Optionally, you can place two or more layers of products in the box and put intermediate separator paper. After your products are packed, the top covers are closed and taped with the Fully Automatic Carton Sealing and Banding Machine.

Main purpose; By preparing your factory for the Industry 4.0 revolution, it is to be able to produce less cost, low energy use, a very high speed of work and double efficiency and a higher quality product. It allows you to make your production plan, healthy, hygienic and untouched by human hands.

We fully match your production line and factory location with our special designs.

Technicial Specifications

Operator control system: 10 ”Touchscreen PLC Screen
Capacity: 6-24 parcel / min. (For single floor) (Varies for single-head, double-head and three-head machines)
Cartesian Robot type 2-axis
Empty box magazine capacity: 120-150 boxes
Door and safety switch sensors for work safety in machines
Communication between machines is available.
Box tape mechanism: 4-6 cm wide parcel tape can be attached
The machine gives a warning in case of parcel and band and separator decrease.
Required air pressure: 5 - 6 bar
Electricity: 380 V. 50-60 Hz. 1 Ph

Options

Production from static painted or complete chrome stainless steel
Separator (intermediate cardboard) system between the products.
Automatic carton size adjustment system; Servo motors and recipe recording system enable automatic and fast transition to different size parcel settings with a single button.
Unique design fixtures for different product sizes.
Double-head or triple-head machines depending on the capacity of the line

Delivery and Other Details

Machines are covered by a 2-year warranty against manufacturing defects.

Spare parts supply, maintenance and service guarantee for 10 years

· The machine is installed on-site by our assembly team and delivered after training.

· Spare parts lists of machinery and equipment, maintenance and user manual, training video are given together.

. VAT is not included in our prices.
