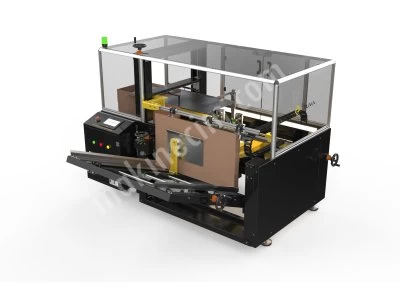

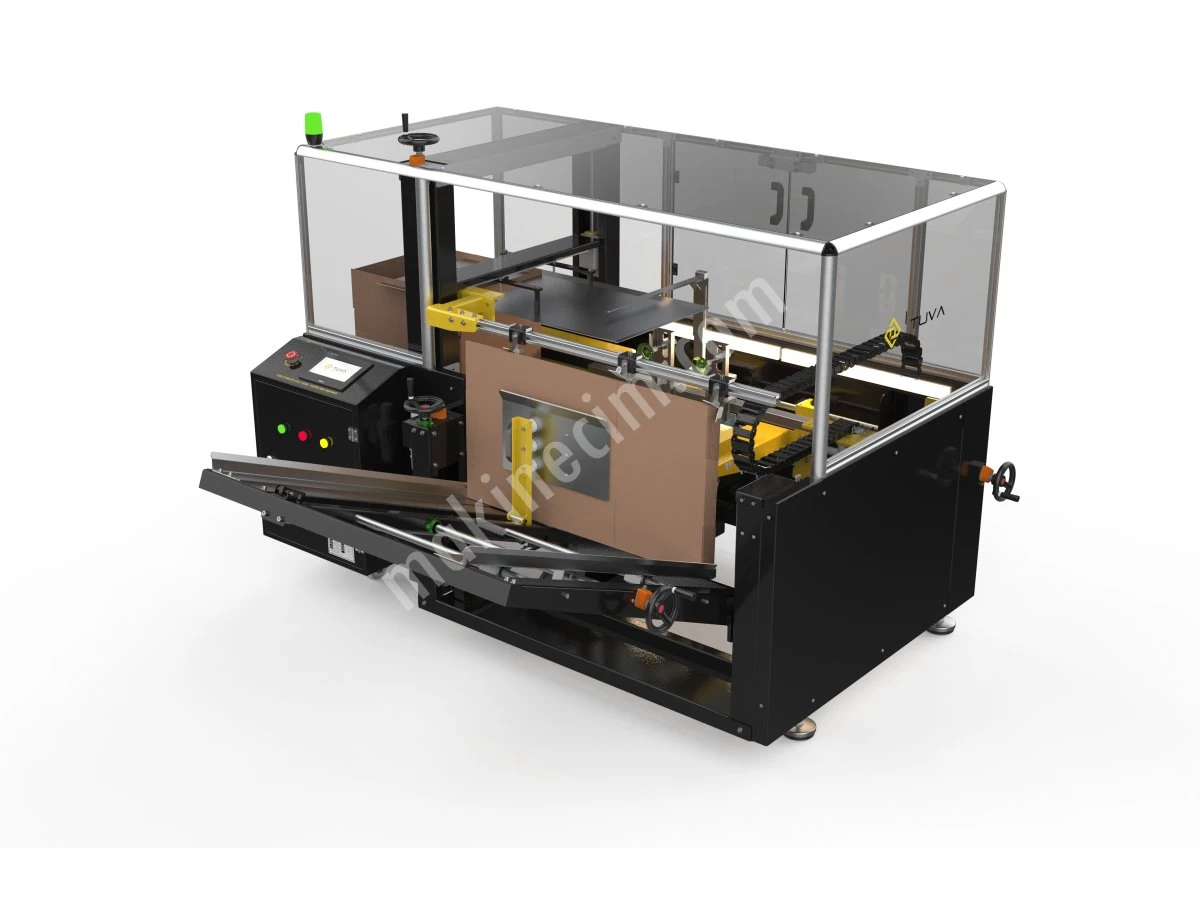

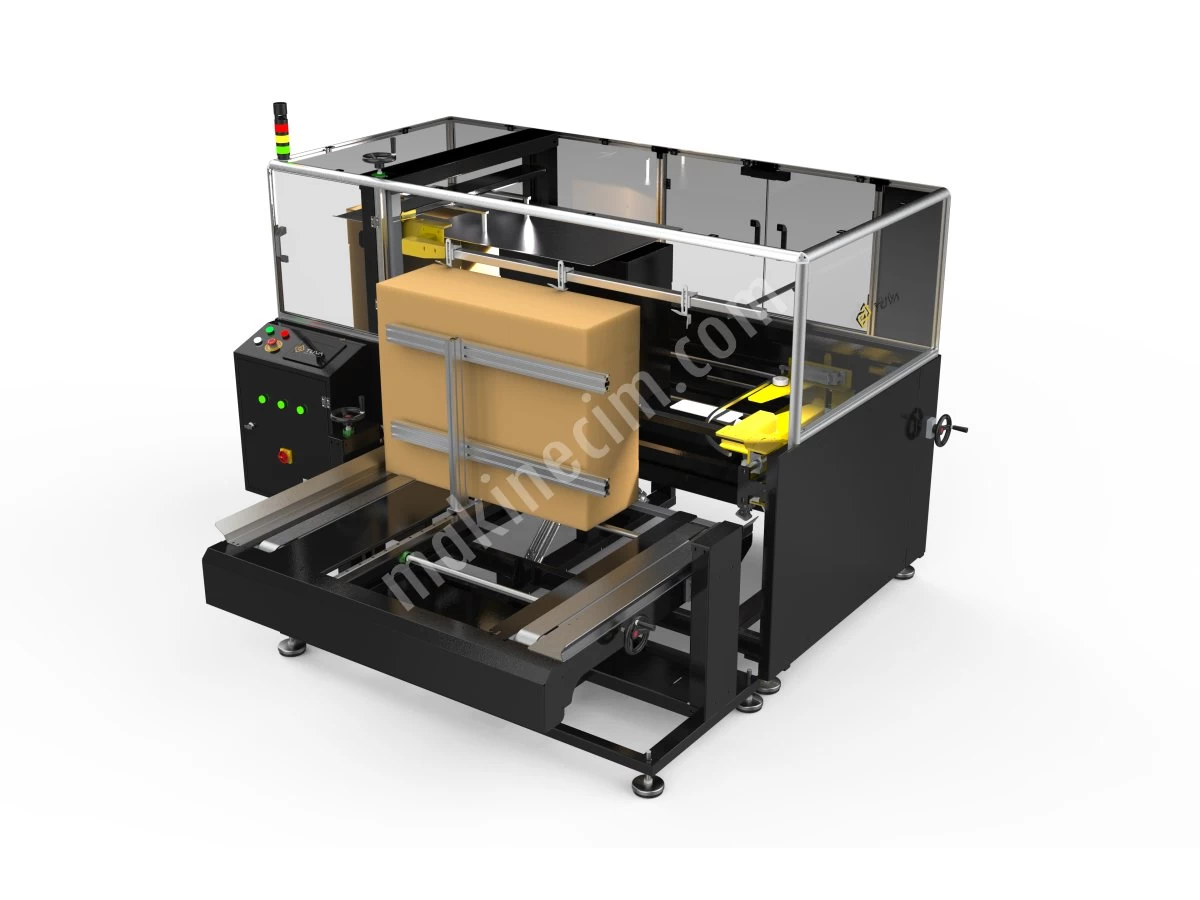

Fully Automatıc Box Openıng - Box Preparıng Machıne

www.tuvamakine.com

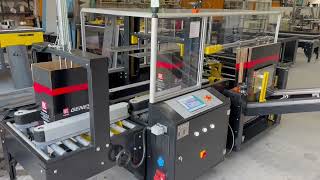

Copy the link below for the Machine Video ..

www.youtube.com/watch?v=mw6IEWLjz-o

Touchscreen 7 "PLC Operator Panel

Machine Automatic Pneumatic (Piston) | Manual Width, Length and Height Adjustment

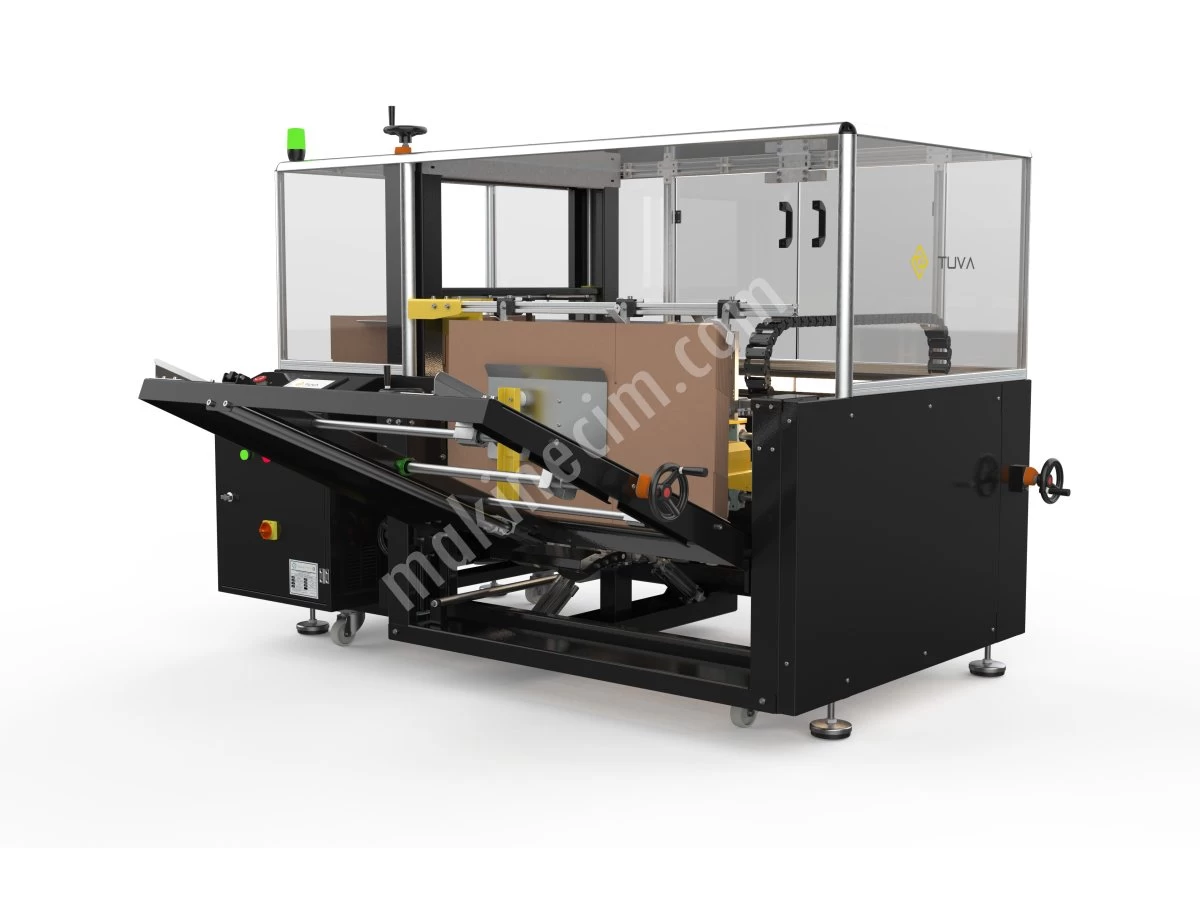

It opens the boxes automatically with the vacuum system, closes the bottom covers and tapes.

It reduces your production cost by making your packing process easier.

180 W Gearmotor | 2 Motorized side conveyor system.

There are job security door safety switches.

Box Opening - Parcel Preparation Machine Options
The machine can be produced completely from stainless chrome nickel.

Motorized or avere conveyor belt additional to its outlet.

Automatic carton size adjustment system; Automatic and fast transition to different size parcel settings with a single button with servo motor, prescription recording system.

Capacity that can be increased up to 20-22 parcel / minute with Servo Motor operating system

Special design and production can be made for very large or very small parcel sizes.

Tuva TM-CE5050 Technical Specifications
Suitable Box Sizes: Length: 150 mm - 500 mm | Width: 200 mm - 550 mm | Height: 100 mm - 500 mm

Capacity: 12-15 Package / Minute

Empty Box Magazine Holder: 120-150 Boxes

Required Air Pressure: 5 - 6 Bar

Electricity: 220 V. 50-60 Hz. 1 Ph.

Band Width: 4-7 cm

Machine Dimensions: Length: 2000 mm | Width: 1900 mm | Height: 1450 mm

Weight: 450 kg

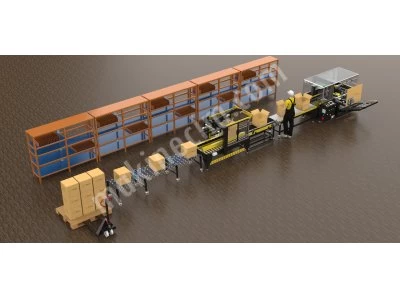

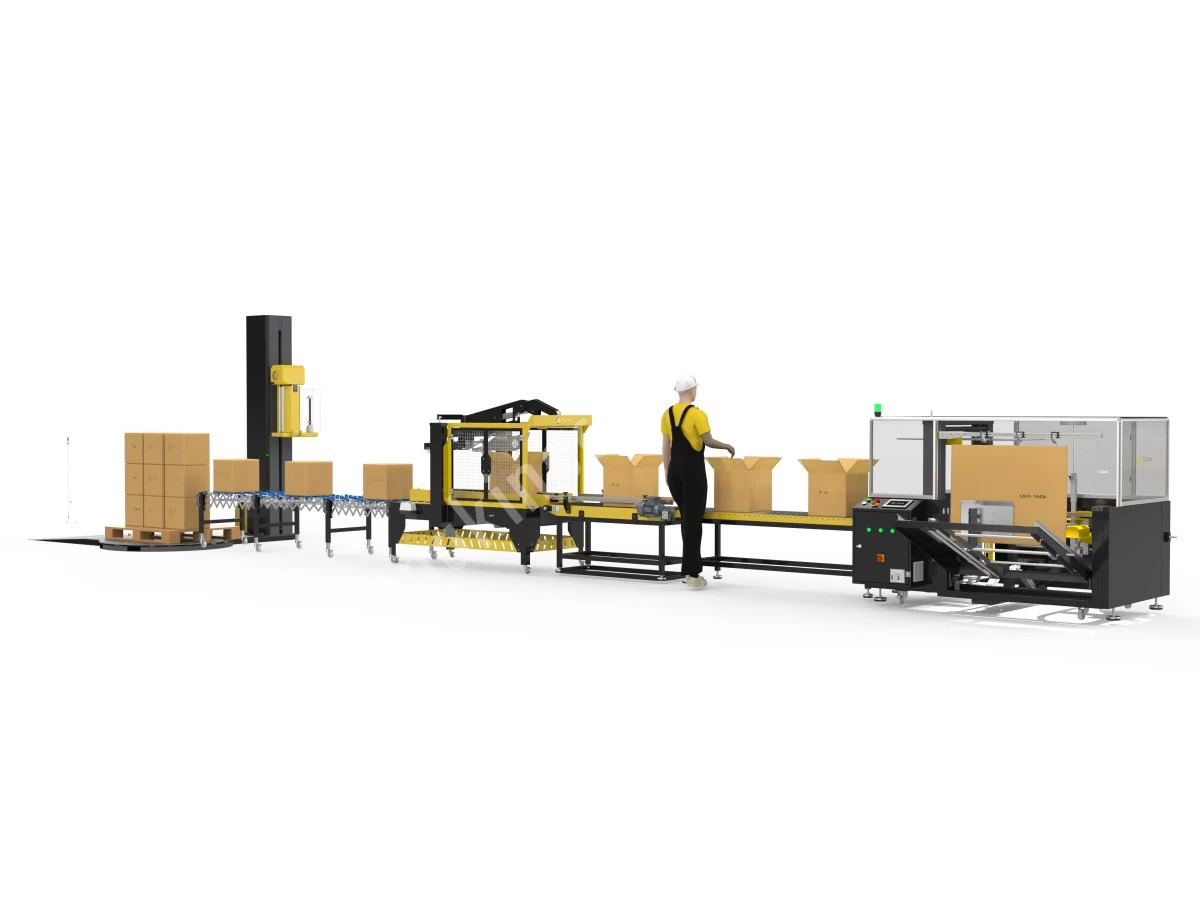

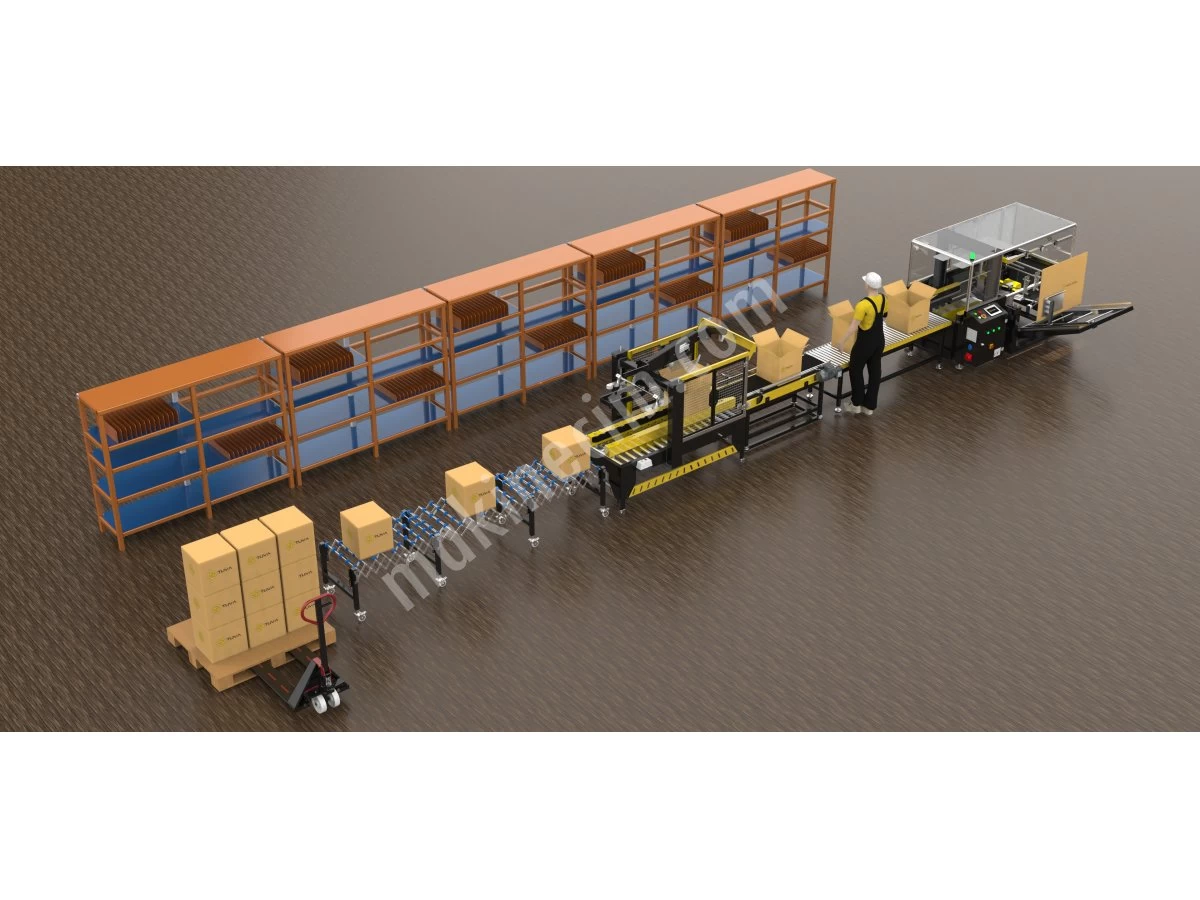

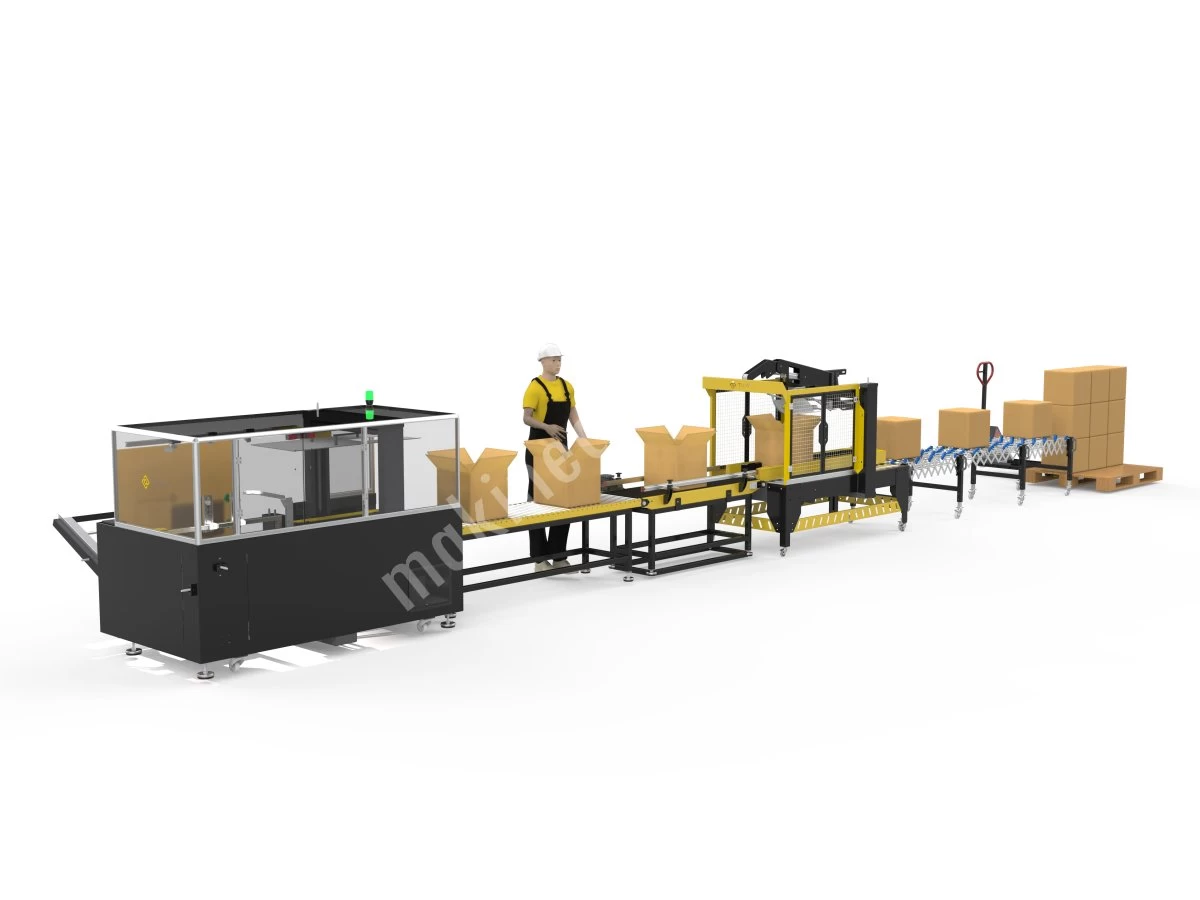

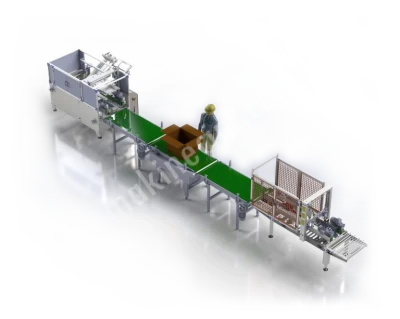

By adding an additional motorized or idler conveyor belt to the Parcel Opening Preparation Machine output, it facilitates the parcel filling process by your staff,

It can be coupled to the Automatic Carton Sealing and Taping Machine.

In this way, you can increase your production and reduce your costs.

Delivery and Other Details
The machines are covered by a 2-year warranty against manufacturing defects.

Spare parts supply, maintenance and service guarantee for 10 years

The machine is tested on the site of the user, the buyer company and delivered after a training of use.

Spare parts lists of machinery and equipment, maintenance and user manual and training video are provided together.

VAT is not included in our prices.
