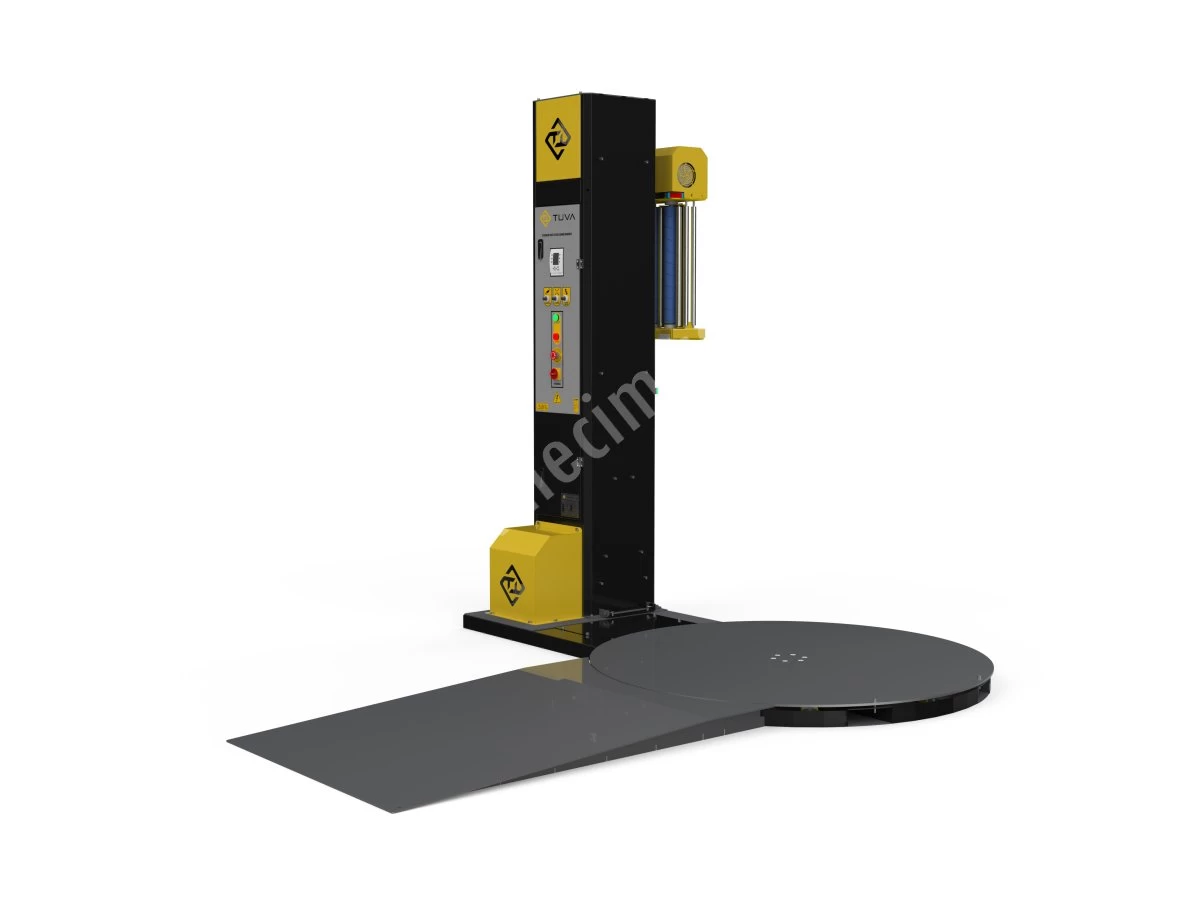

Automatıc Pallet Stretch Wrappıng Machıne (Wıth Mechanıcal Pre-Tensıonıng)

It has a mechanical pretension system. | Thanks to the pre-stretching system, it provides 3 times more use by extending the stretch.

Total 2 Motors and Speed ​​Control Driver

· The operator starts the machine by connecting the stresser manually to the pallet.

· Thanks to the sensor on it, it automatically detects the pallet length.

· After the pallet stretch wrapping work is completed, the stretch is cut with the staff and the pallet is ready for storage.

· Adjustable Number of Bottom-Top winding and Up-Down turn number feature.

Touch PLC operator panel, Recipe (recordable memory) system.

OPTIONS: _ 2,10 meters and 3,10 meters maximum pallet length option.

_ Rotary Table Unit: Ø 1650 mm - 1800 mm - 2000 mm

_ Loading ramp with pallet truck.

_ Mechanical or motorized pretensioning system.

_ Press (top press) unit

Suitable Pallet Dimensions: Weight: max. 2000 kg | Height: 500 mm - 2100 mm

Turntable Speed: 1-10 Turns / Minute

Electricity: 220 V. 50 Hz. 1 Ph.

Stretch Diameter: Inner Diameter: 75mm | Outer Diameter: 200mm (max.) | 17-25 micron

--- It stretches the stretch film on the pallet without damaging your products. Thus, the packaging cost of palletized products is reduced and time is saved. Dust, moisture, tipping, etc. during transportation and storage. protects the product from damage. ---

Delivery and Other Details

Machines are covered by a 2-year warranty against manufacturing defects.

Spare parts supply, maintenance and service guarantee for 10 years

· Spare parts lists of machinery and equipment, maintenance and user manual, training video are given together.

· VAT is not included in our prices.
