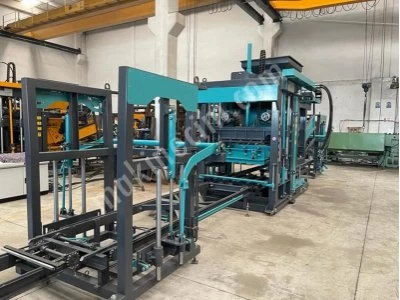

Bs-20 Concrete Block Making Machine 2 Years Warranty

Price : Ask For Price
Ad Code : M-445623
Ad Type : For Sale - New
Views : 12
Date Updated : 12 Jul 2024
Production Type : Special Production
Brand : Constmach
Model : Bs-20 Beton Blok Makinası
Production Year : 2024
1
year
CONSTMACH Konkasör Tesisi ve Beton Santrali
Türkiye - İzmir - Kemalpaşa
Halilbeyli Bayosb Anadolu Cad. No:1 Bağyurdu Organize Sanayi Bölgesi Kemalpaşa / İzmir / TÜRKİYE
Ad Description

Concrete Block Making Machine (Brick Machine) For Sale - Call Us 24/7: +90 546 616 3282

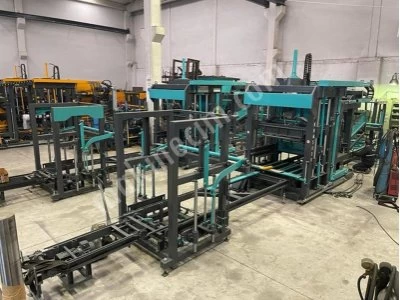

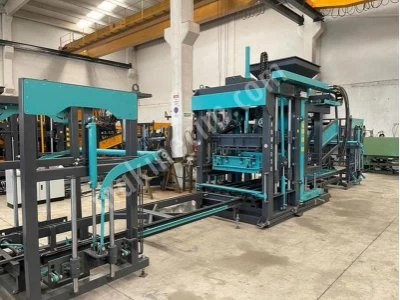

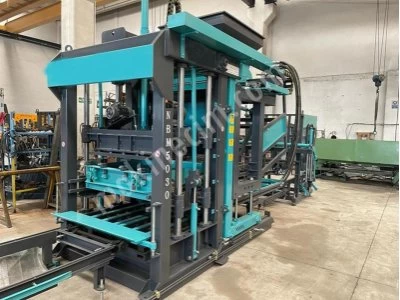

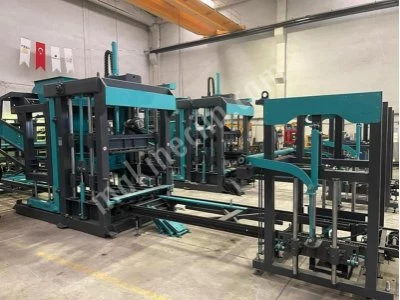

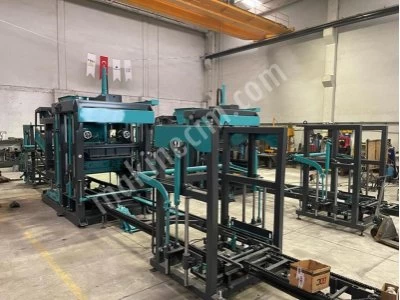

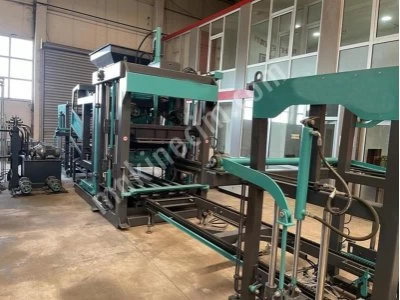

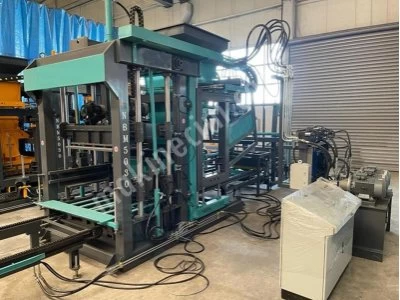

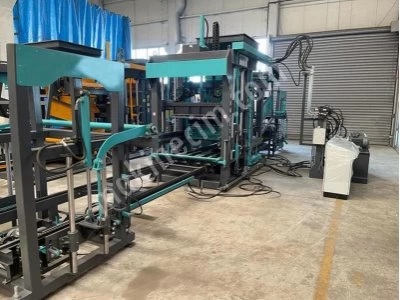

At the intersection of innovation and efficiency, the BS-20 concrete block making machine is designed to add value to projects of every scale. With a production capacity of 100-110 pallets per hour, this machine enables the rapid and effective completion of large-scale projects. With pallet dimensions of 1,000 x 9,400 x 230 mm, the BS-20 meets various needs and offers continuous production with a 1.2 m³ bunker capacity.

The PLC Automation System simplifies the use of the machine while putting full control of your production processes in your hands. This system uses Schneider brand components to promise reliable and precise operations. A 400-liter hydraulic oil capacity provides excellent performance for extended operations. With superior vibration technology, the BS-20 can produce up to 8,000 blocks of 20 x 40 x 20 dimensions and up to 18,000 interlocking blocks per day, providing you with a competitive advantage.

Additionally, the machine’s 5-7 level storage capacity efficiently manages the blocks produced. The dry product pressing robot, operating with 7.5 kW power and 40 lt/min pressure, enhances the durability of your products. The robot applies a gentle and effective pressing force on your products, ensuring quality at every step.

The BS-20 concrete block making machine, with its durable chassis structure and impressive vibration system, is one of the most reliable machines in the industry. If you want to accelerate your projects, reduce costs, and increase production efficiency, you should meet BS-20. Each feature means more productivity and less maintenance requirement. That's why BS-20 is preferred and recommended by professionals in the industry. Meet the BS-20 concrete block making machine to grow your business and take your projects to a new dimension, and feel the difference.

BS-20 Concrete Block Making Machine Technical Specifications:

GENERAL MACHINE CHARACTERISTICS

  • Production Capacity: 100 - 110 Pallets per Hour
  • Pallet Size: 1,000 x 9,400 x 230 mm
  • Control: PLC Automation System (Schneider)
  • Bunker Volume: 1.2 m³
  • Hydraulic Oil Volume: 400 lt
  • Top Vibration: 3 kW x 2
  • Bottom Vibration: 4 kW x 4
  • Total Electrical Power: 150 kW
  • Total Vibration Power: 30,000
  • Maximum Product Length: 3,000 mm
  • Maximum Product Width: 600 mm
  • Machine Chassis Skeleton: 10 mm
  • Vibration System: Classic Belt and Pulley Vibration
  • Average Number of Blocks Produced in 8 Hours: 20 x 40 x 20 Block – 8,000 units; Interlocking Block – 18,000 units
  • Number of Blocks Produced per Press: 20 x 40 x 20 Block – 8 units; Interlocking Block – 20 units

STORAGE ROBOT

  • Number of Storage Layers: 5 - 7 Layers
  • Cleaning Brush: Available
  • Dry Product: Hydraulic Drive

WOODEN PALLET

  • Pallet Size: 1,400 x 1,150 x 45 mm
  • Square Steel Thickness: 4 mm
  • Leg Thickness: 3.5 mm

DRY PRODUCT PRESSING ROBOT

  • Pressure Power: 7.5 kW, 40 lt/min
  • Pushing Power: 3 kW, 150 rpm
  • Rotation Power: 1.1 kW, 22 rpm
  • Chassis: 100 x 150 x 5 mm
