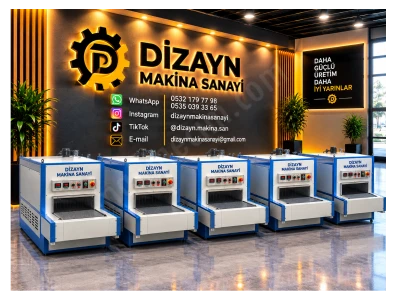

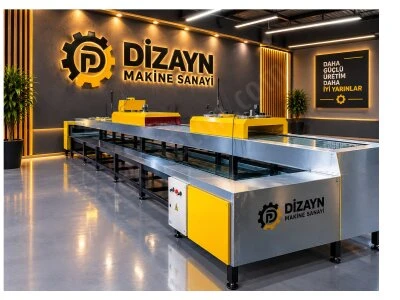

Various Drying Lines

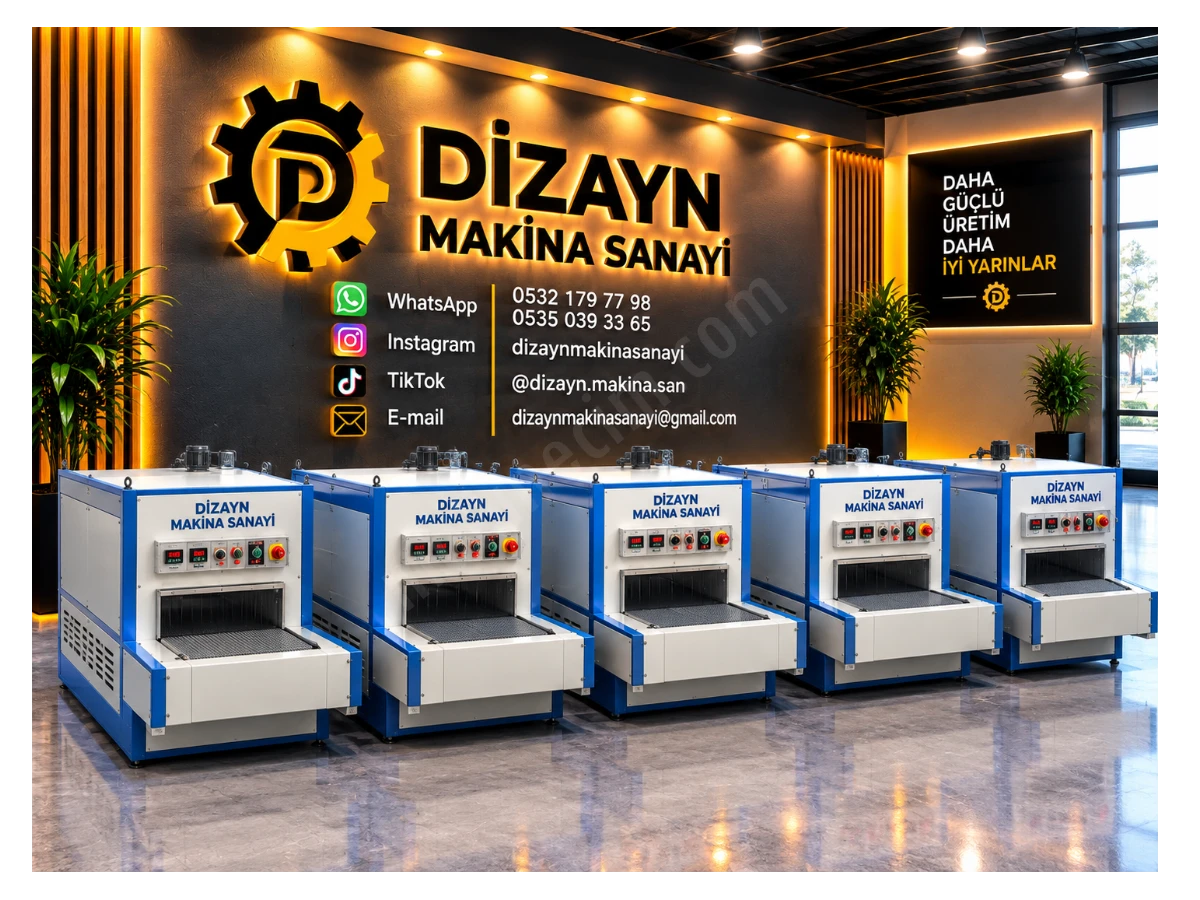

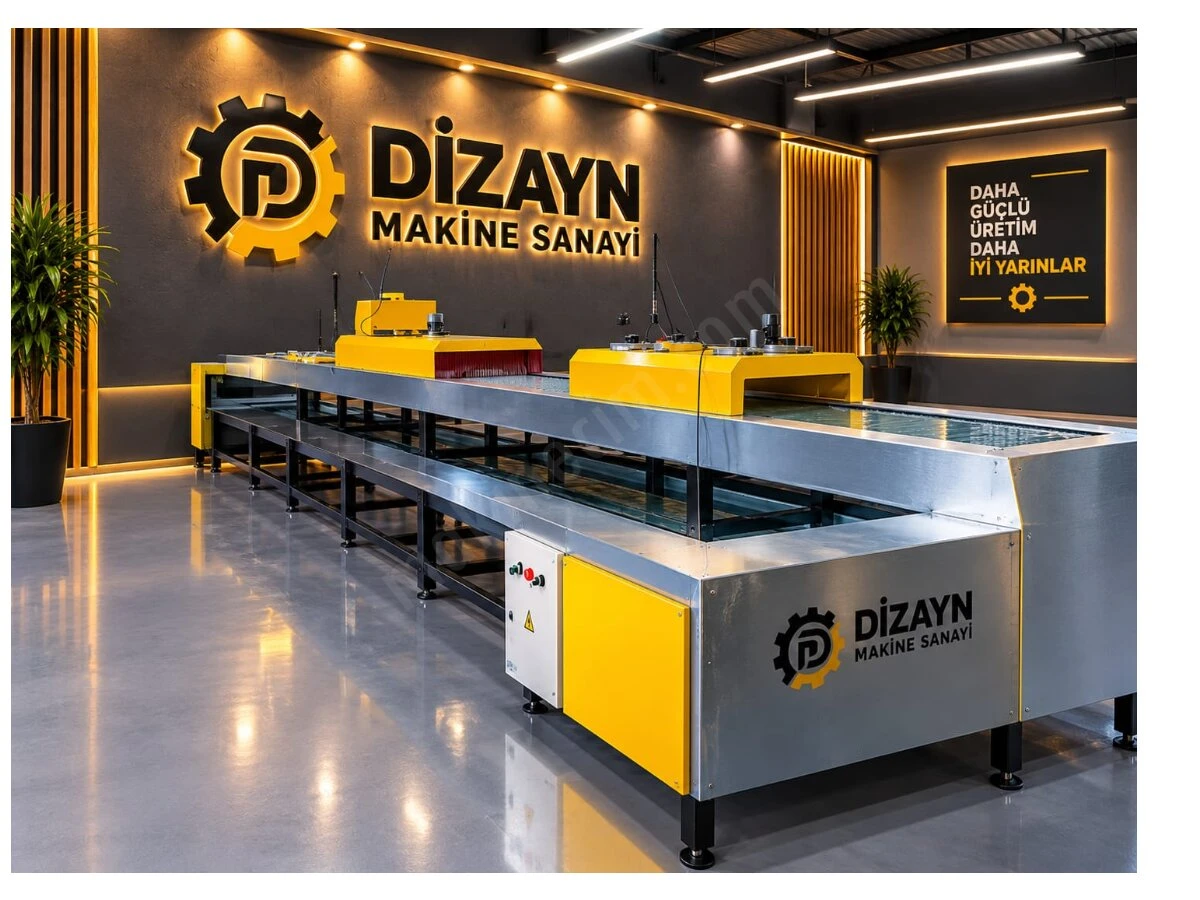

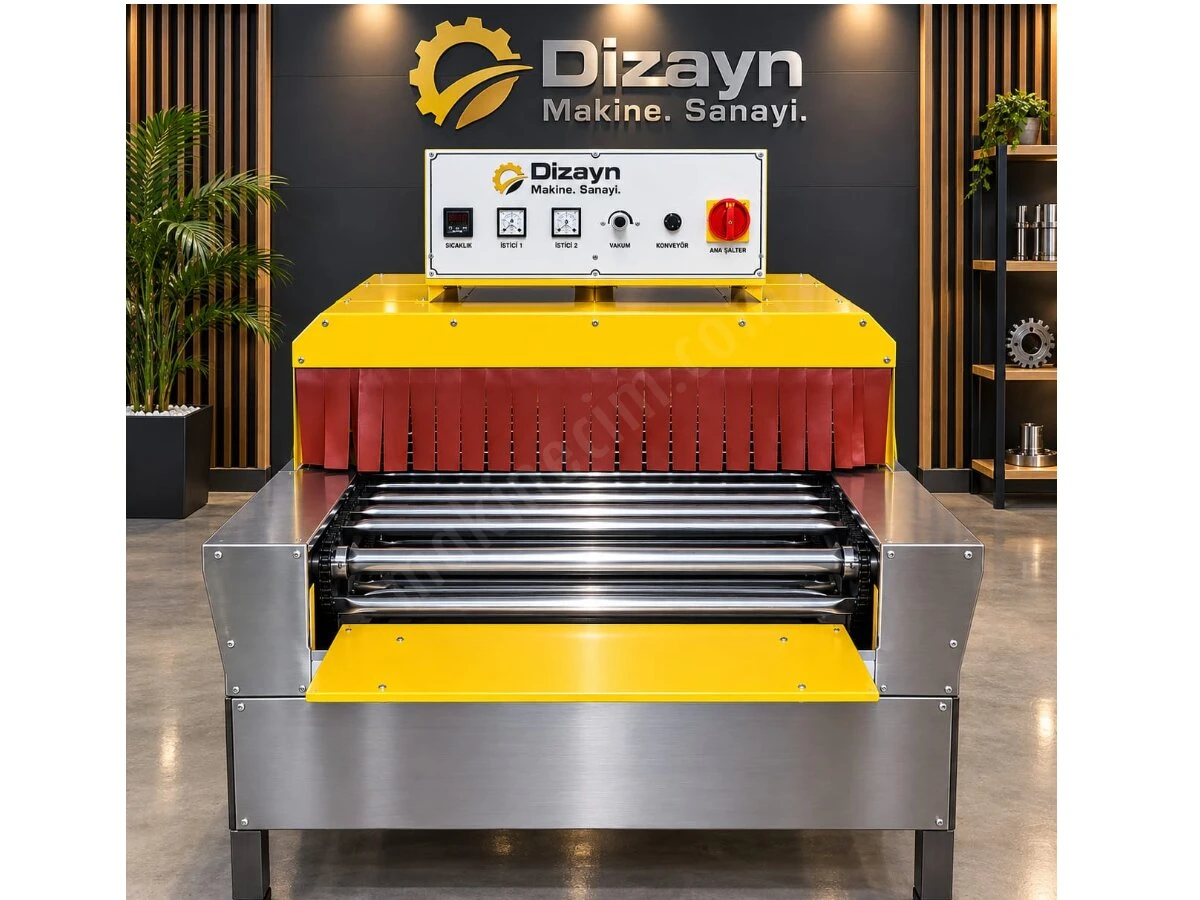

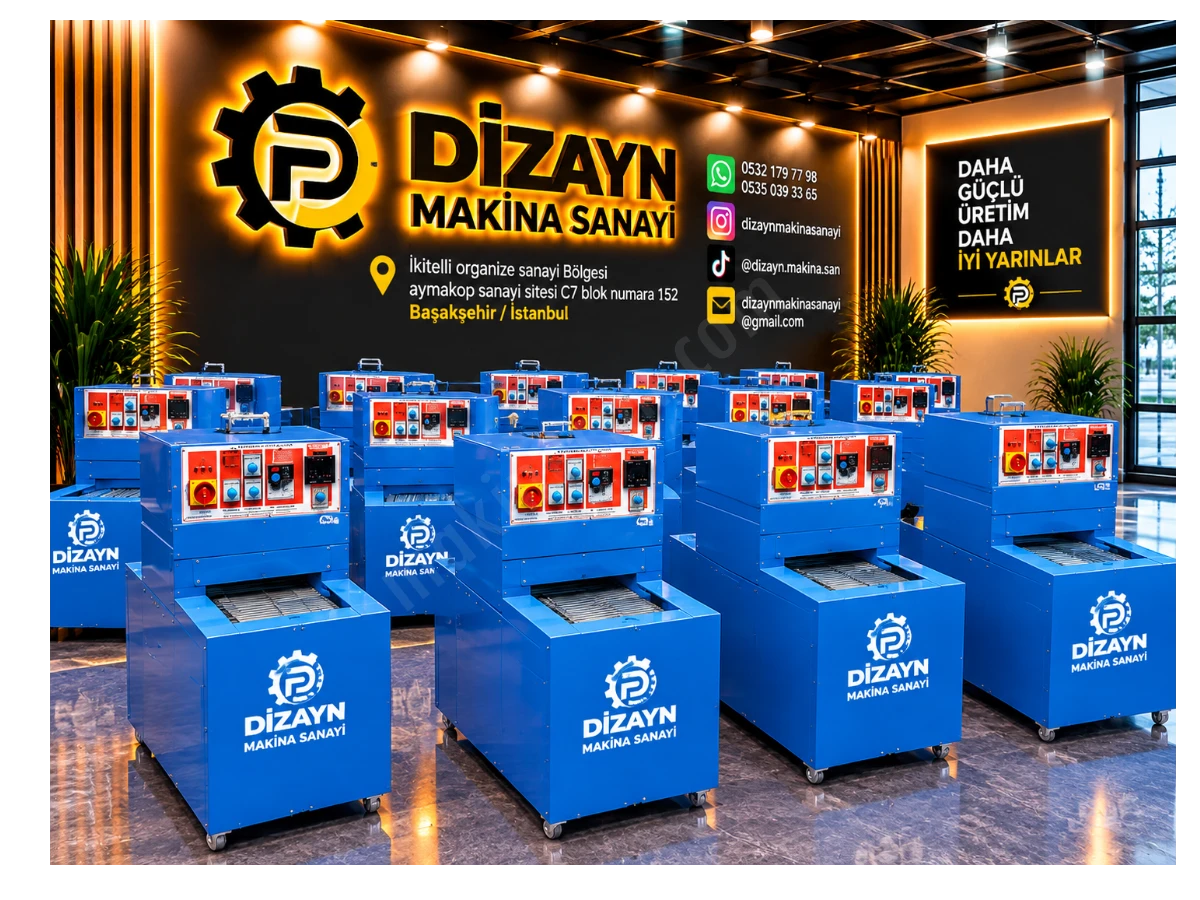

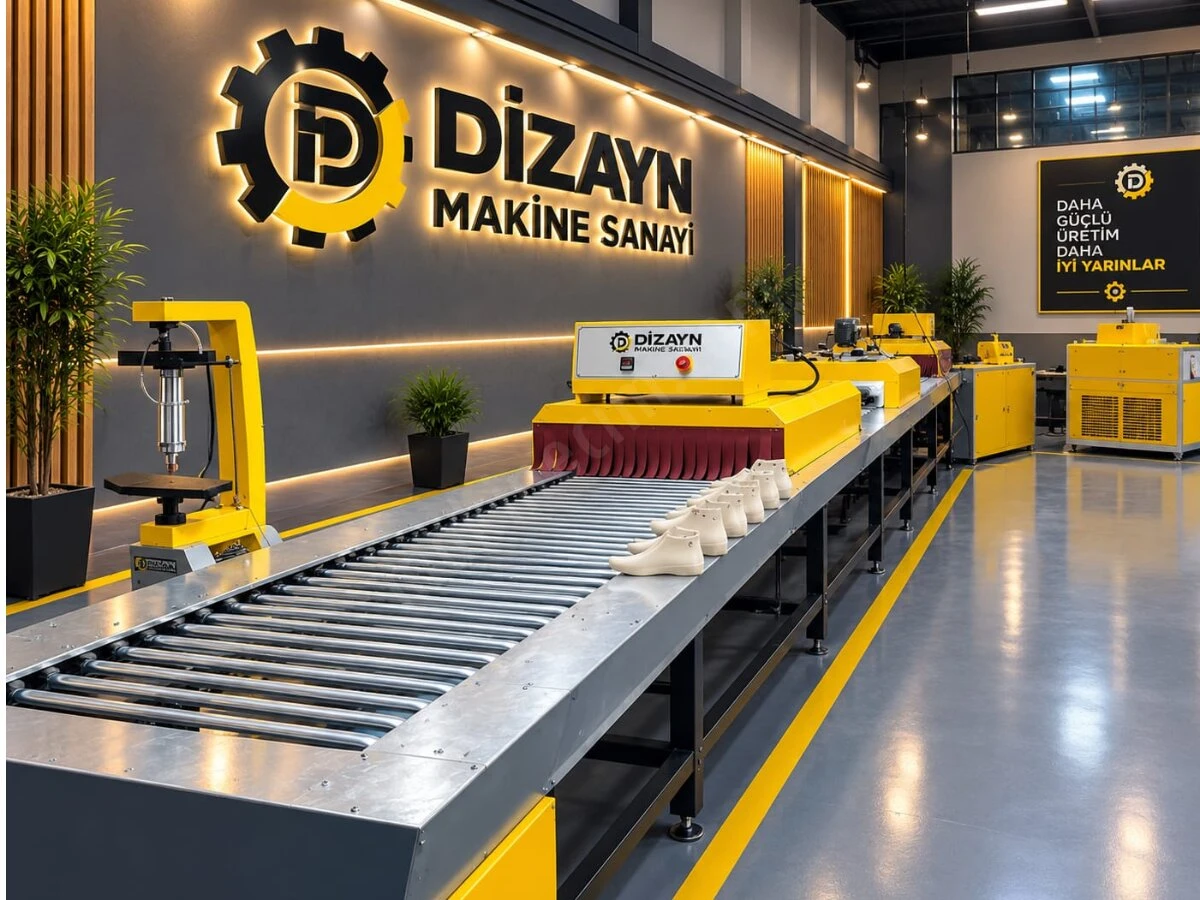

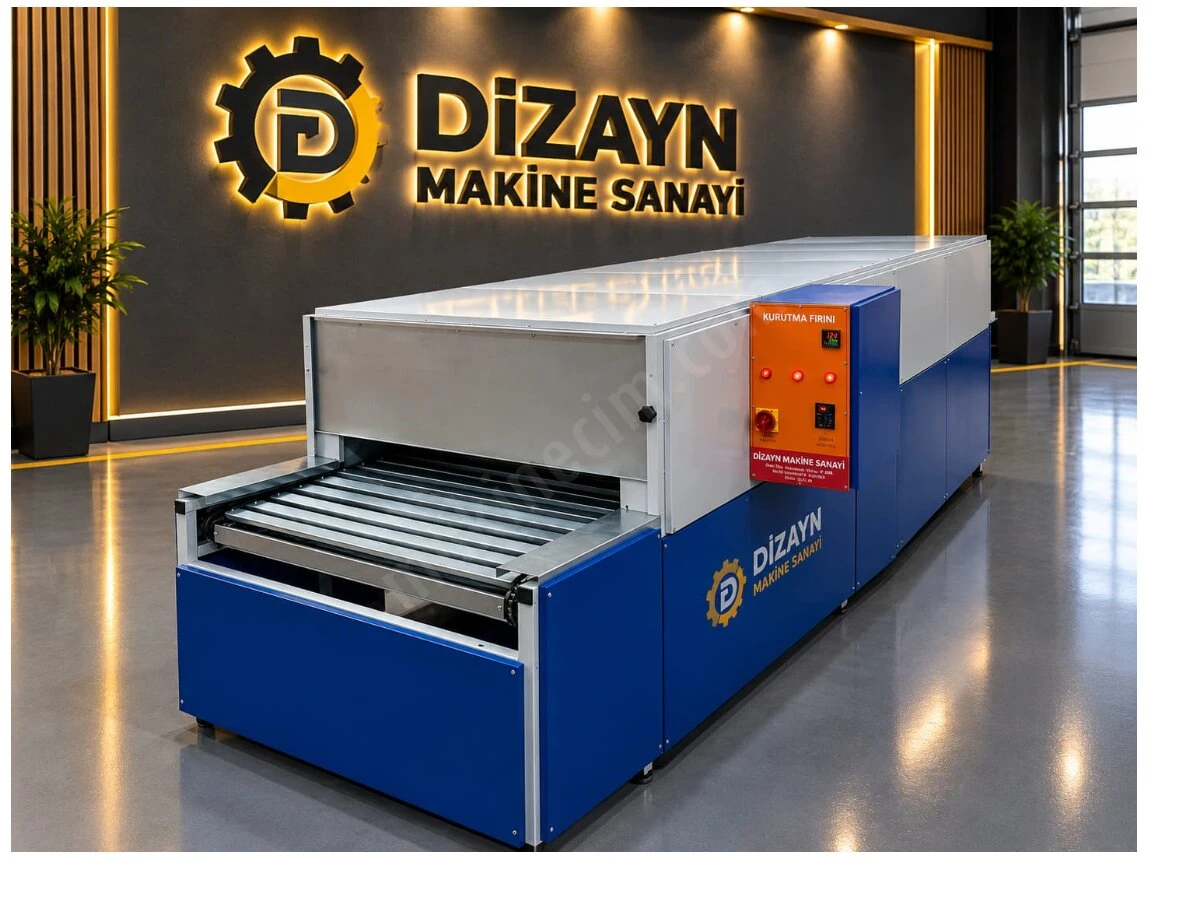

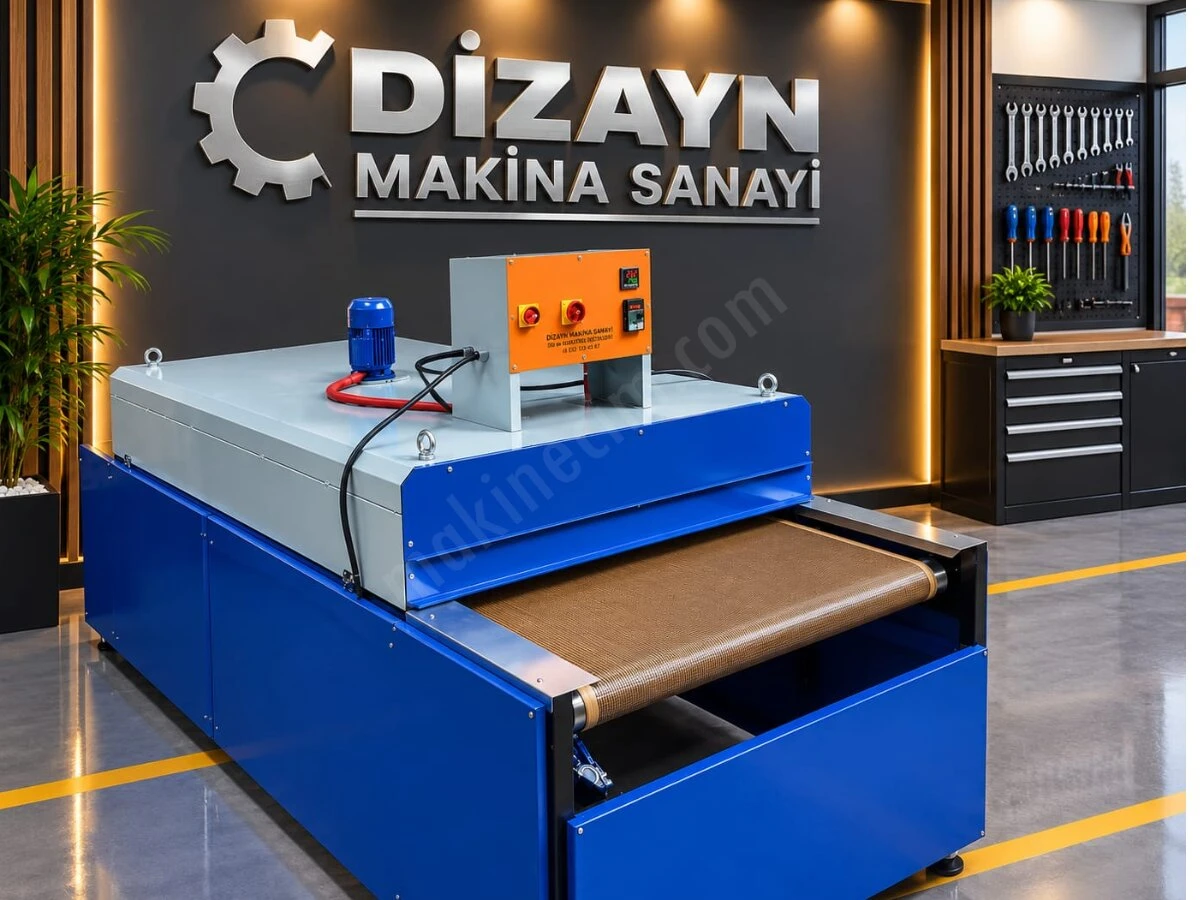

English Description: Dizayn Makina Sanayi Tunnel Type Heater Ovens

Dizayn Makina Sanayi manufactures tunnel-type heater ovens aimed at the heating, drying, baking, and surface treatment needs of various production sectors. These ovens, which can be integrated into continuous production lines, help achieve efficiency and standard quality in production by allowing products to undergo processing under controlled temperatures for a certain period.

What is a Tunnel Type Oven?

Tunnel-type ovens are industrial ovens operating on a continuous working principle where products enter from one point and pass through a controlled temperature environment before exiting from the other side. Products can be moved inside the oven by conveyor belts, chain transport systems, or other transport systems suitable for the production structure of the business.

Working Principle

In Dizayn Makina Sanayi tunnel-type heater ovens, temperature, air circulation, and the product's residence time inside the oven can be controlled.

General working stages:

1. Products are taken to the oven's entry section by the transport system.
2. Products pass through controlled temperature zones.
3. Hot air is circulated evenly inside the oven by fans and air ducts.
4. The product is heated or dried according to the set temperature and time.
5. The processed product is taken from the oven's exit.

Applications

Tunnel-type heater ovens can be used in many sectors:

• Drying after painting and coating
• Heating and drying of metal parts
• Processing of plastic and composite products
• Automotive sub-industry
• Furniture and wood products
• Ceramic and similar industrial products
• Powder coating applications
• Rubber and various industrial parts
• Non-food industrial drying applications
• Continuous heating and drying processes in production lines

Dimensions and Capacity

Tunnel-type ovens are not limited to a single standard size. They are specially designed according to the product size, production capacity, target temperature, and desired residence time inside the oven.

For example, in design:

• Oven width
• Oven height
• Total tunnel length
• Conveyor length and speed
• Operating temperature
• Heating capacity
• Fan and air circulation capacity
• Number of zones
• Energy options such as electricity or natural gas/LPG

Production can be made in different sizes ranging from compact systems for small parts to large tunnel ovens integrated into long and high-capacity production lines.

Heat Control and Energy Efficiency

Balanced distribution of temperature inside the oven is important for maintaining product quality. Heat insulation, proper positioning of fans, and temperature control systems aim to reduce unnecessary energy losses.

Independent temperature control can also be applied in different zones of the oven according to the production process. Thus, every stage of the product inside the oven can be managed in a controlled manner.

Dizayn Makina Sanayi Difference

Dizayn Makina Sanayi aims to design tunnel-type heater ovens according to the customer's production process. Oven dimensions, transport system, heating capacity, temperature range, automation structure, and energy source can be determined according to production needs.

With a robust body structure, effective insulation, controlled air circulation, and automation options, tunnel-type ovens offer an efficient solution for businesses with continuous production.

Dizayn Makina Sanayi – Industrial Oven and Machinery Solutions

Oven dimensions and technical specifications can be specially prepared according to your production capacity and product dimensions for tunnel-type heater oven design.
