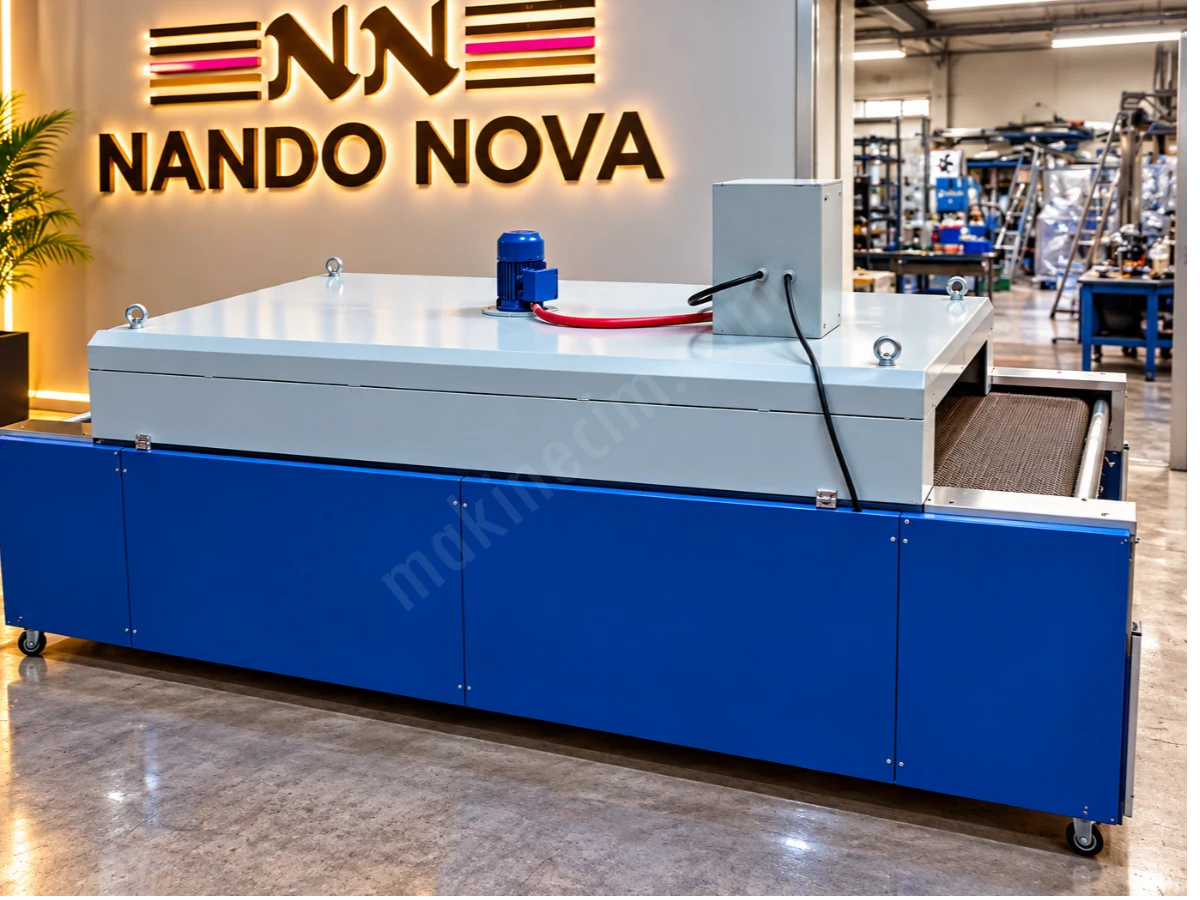

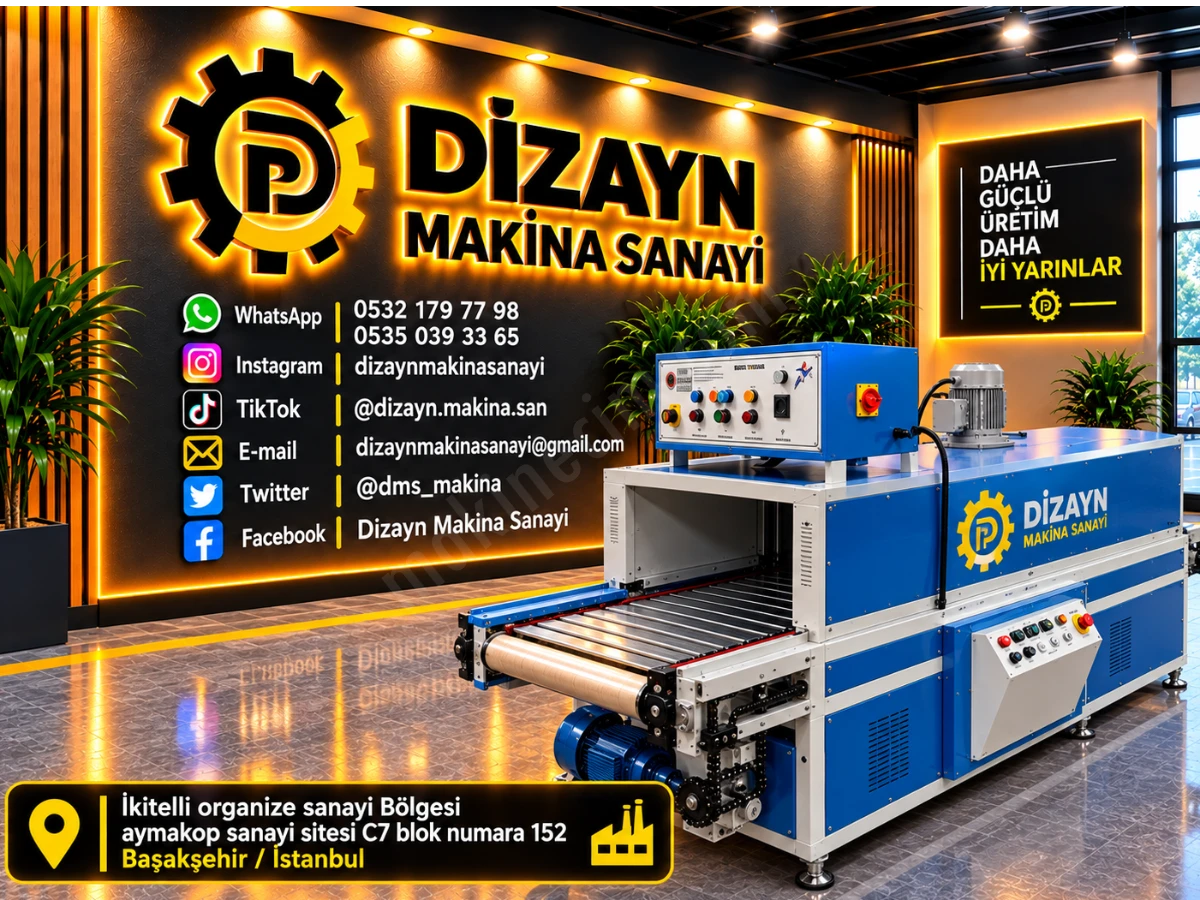

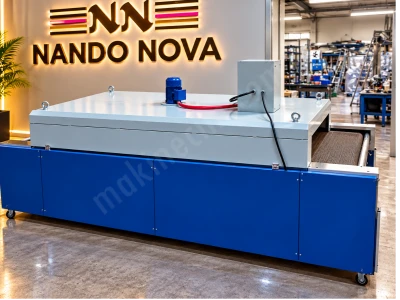

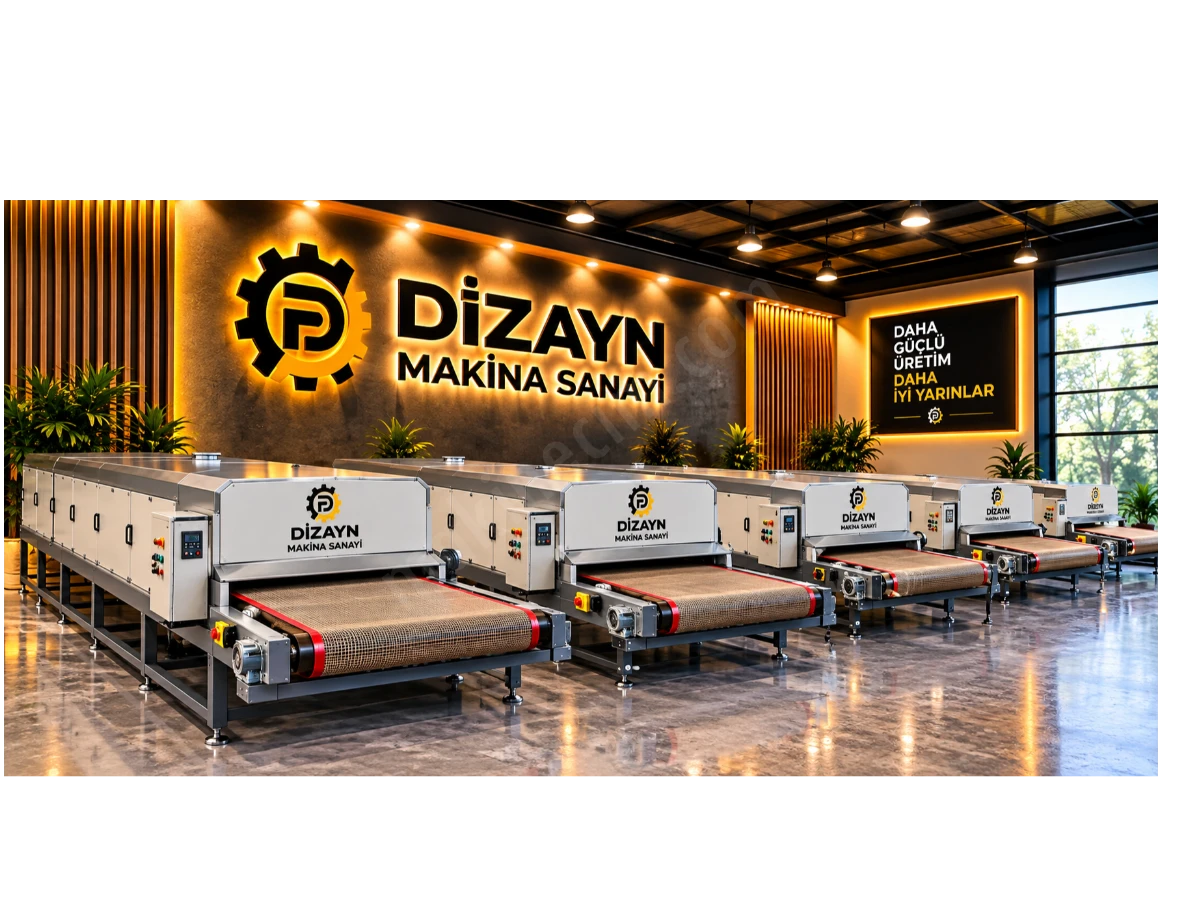

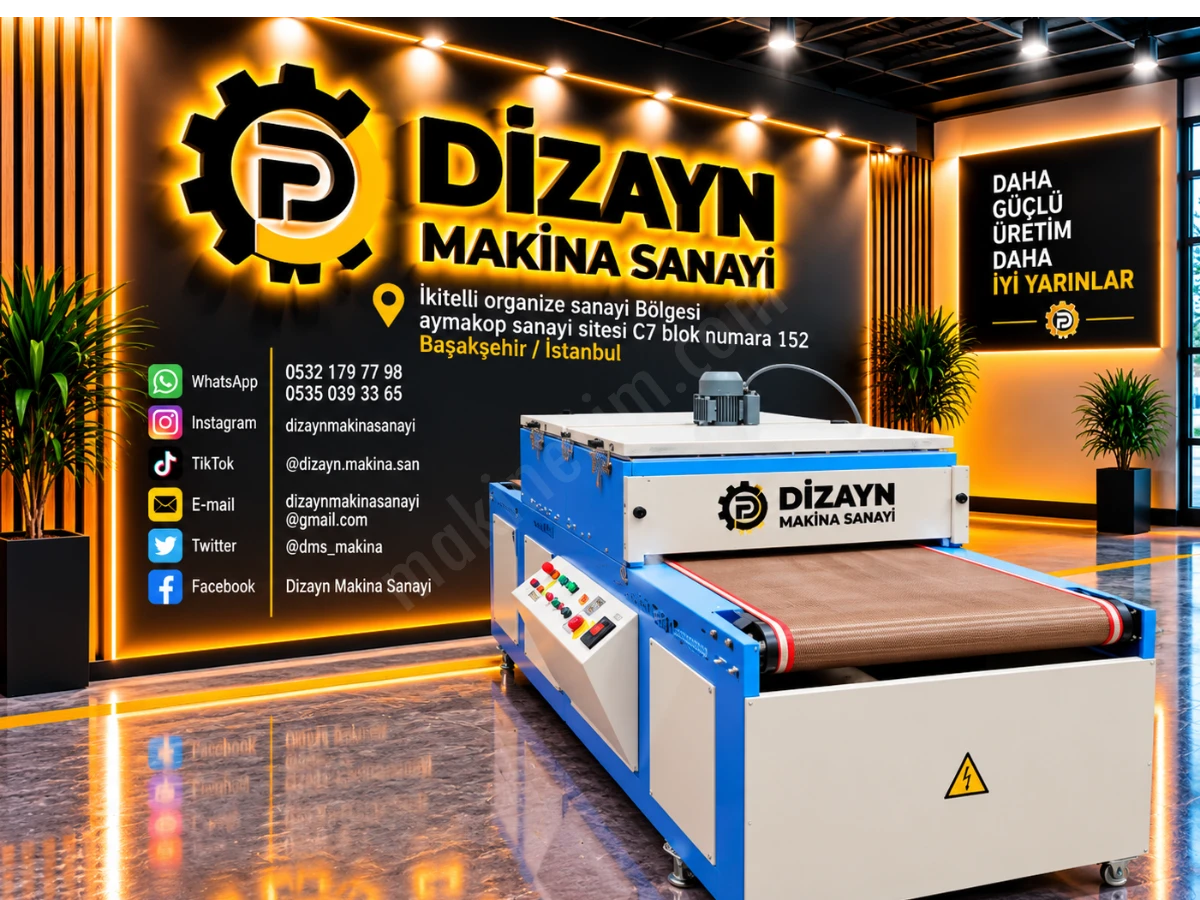

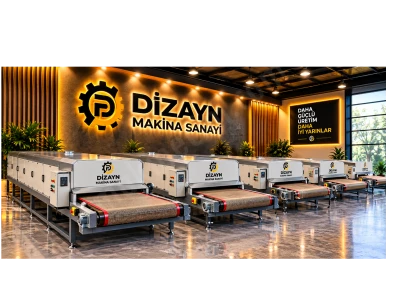

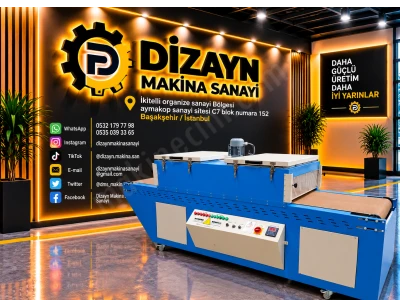

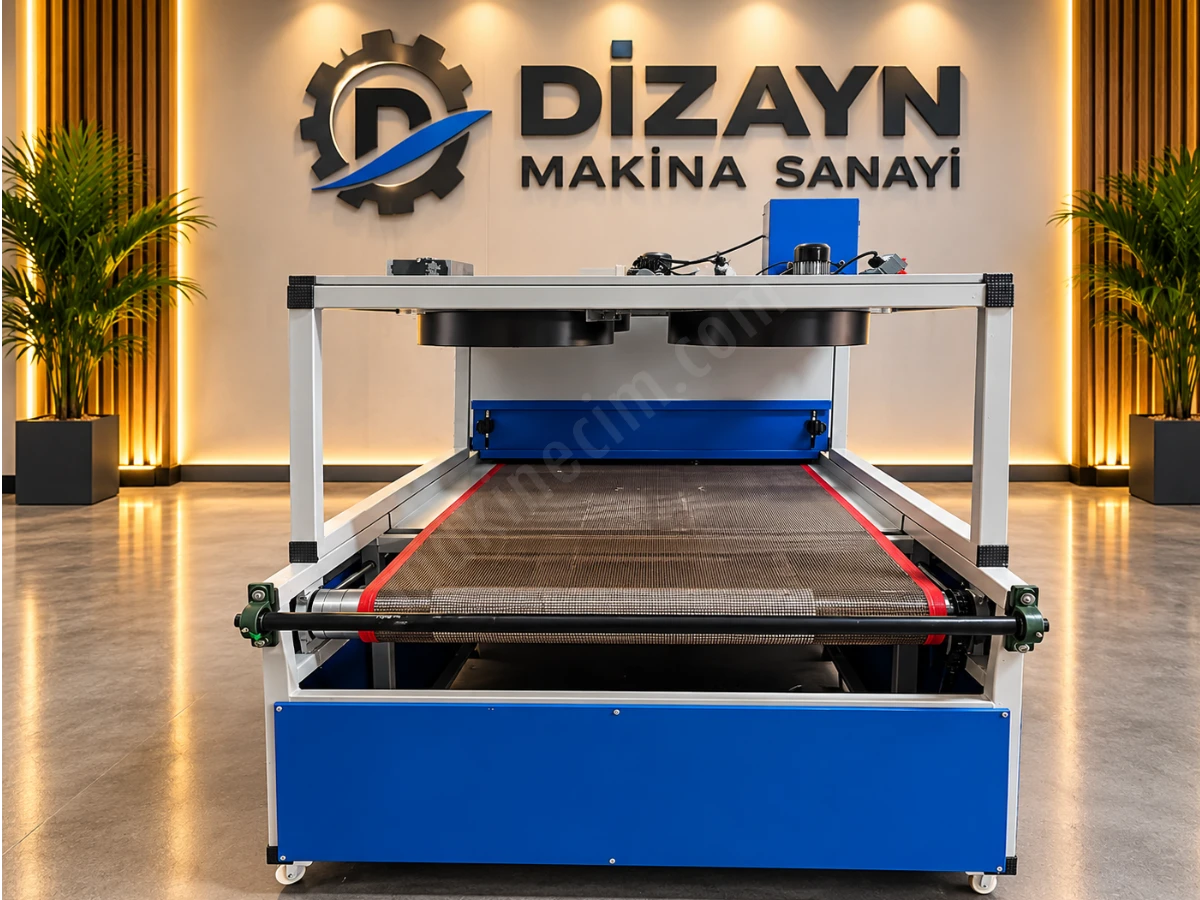

Fix Type Drying Ovens

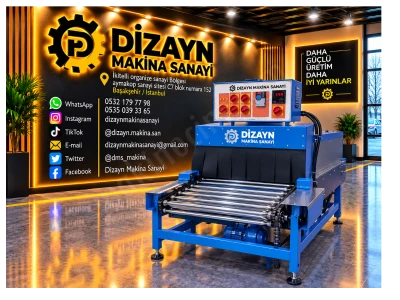

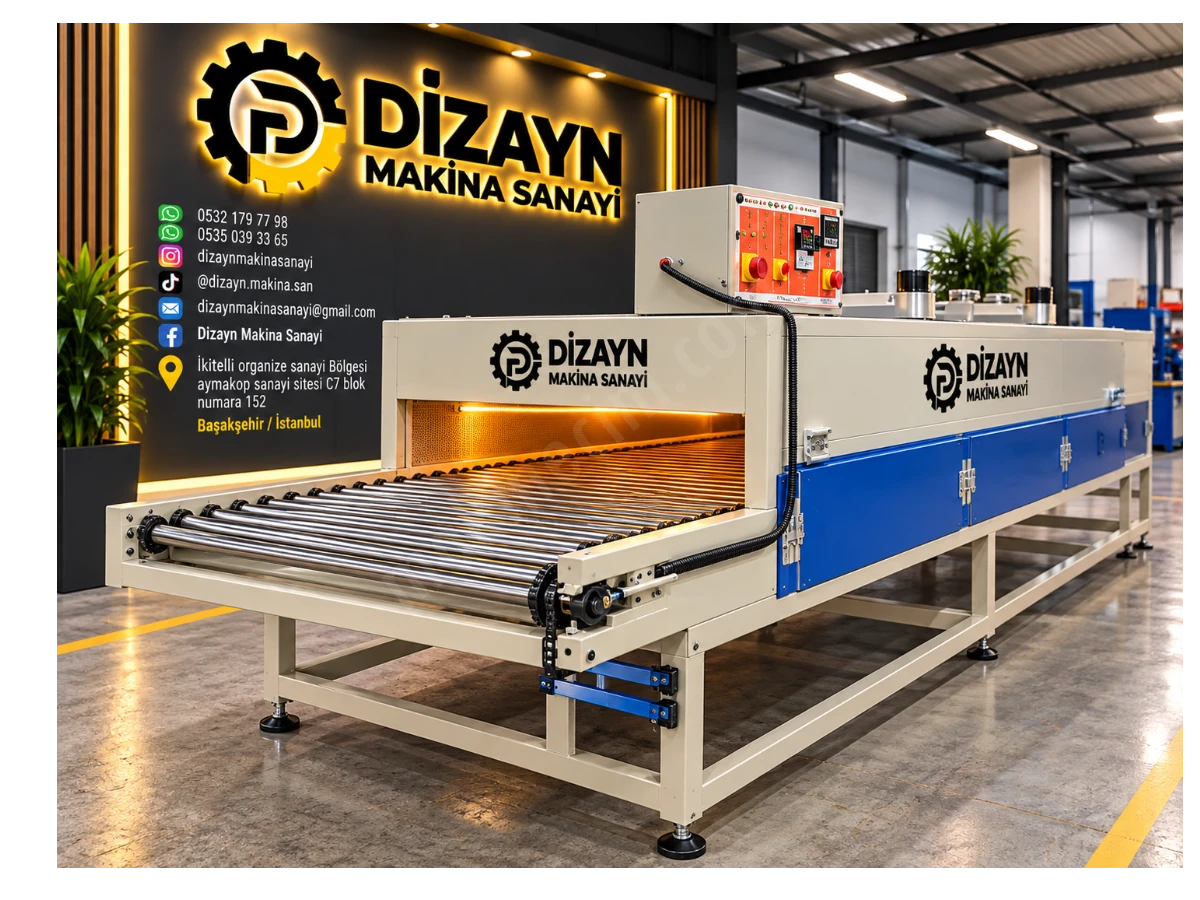

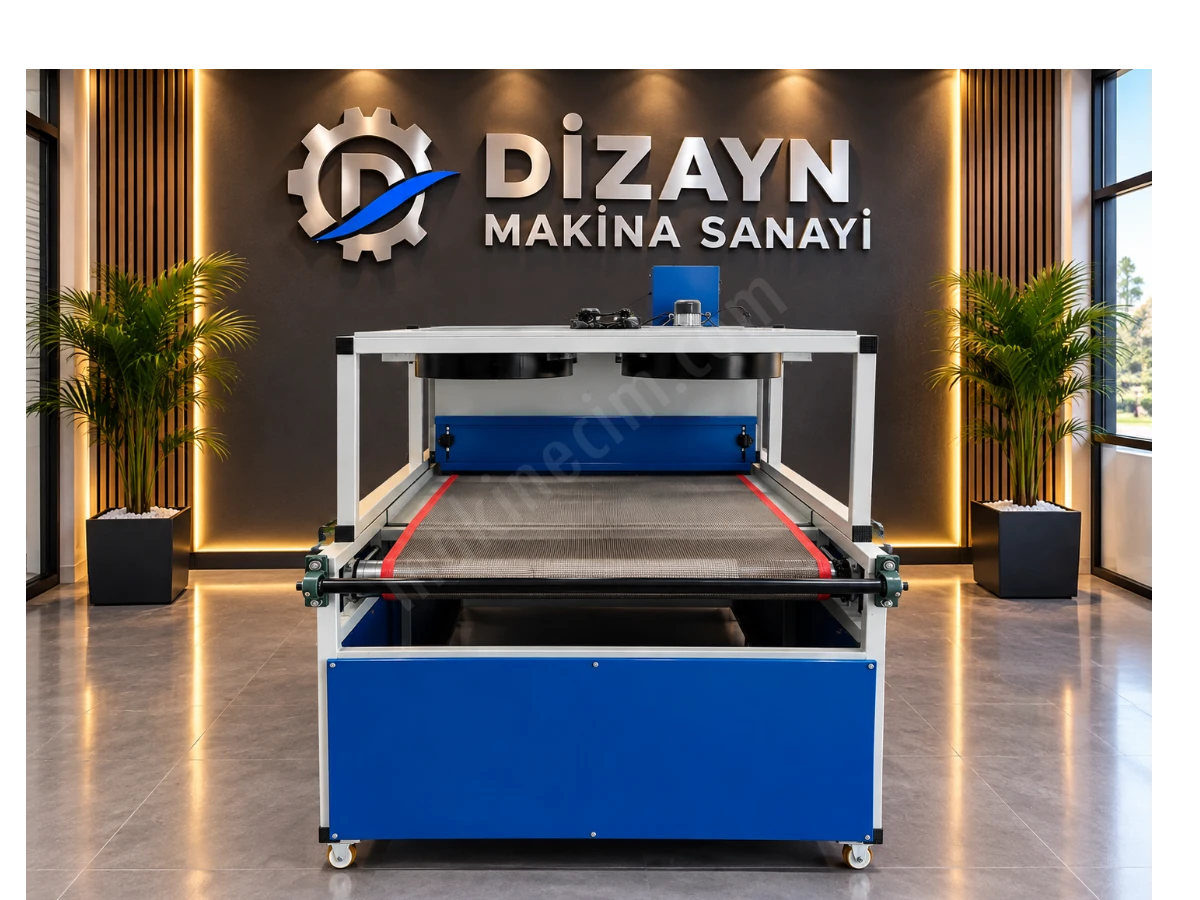

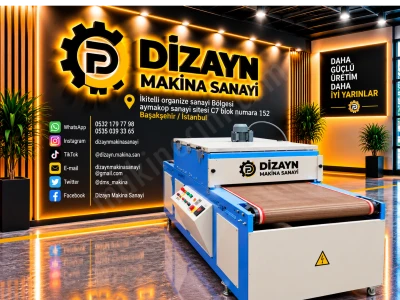

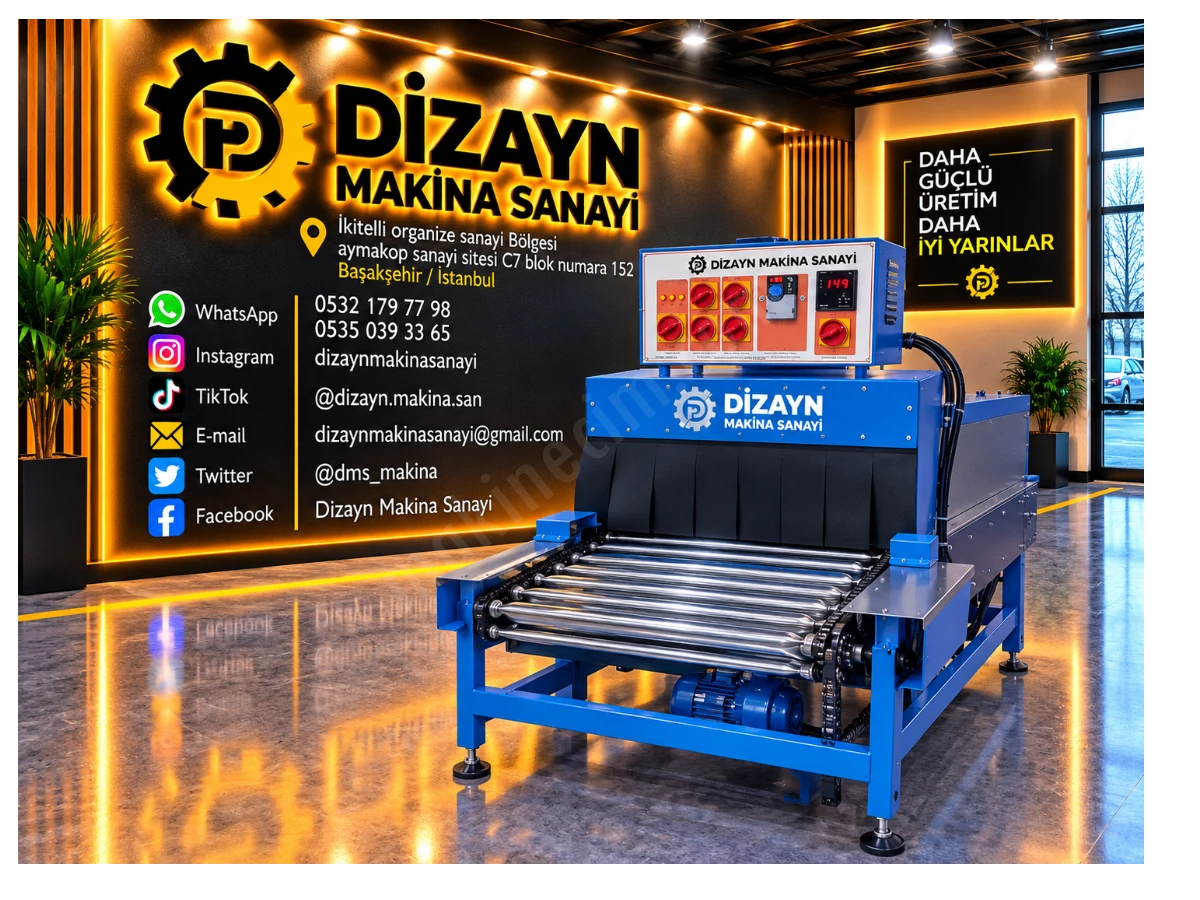

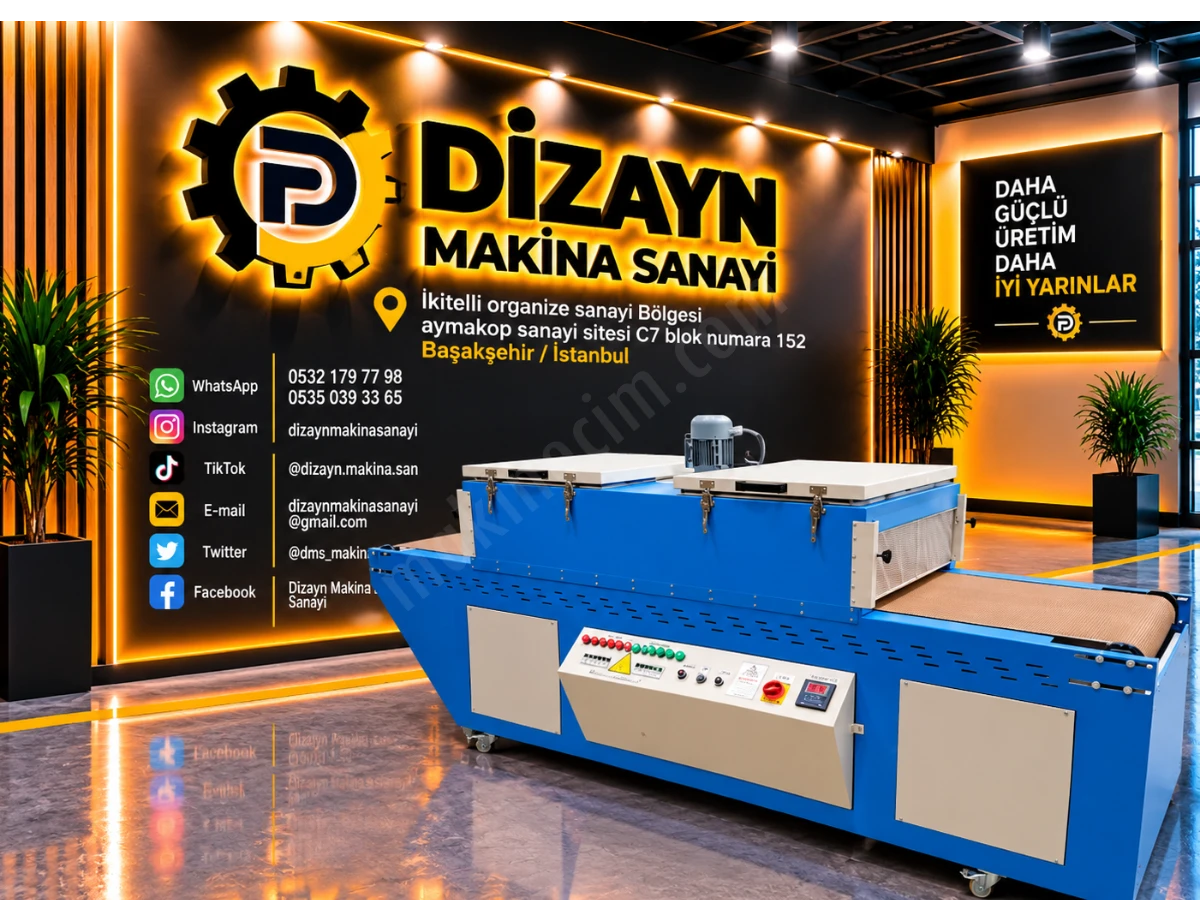

Dizayn Makina Sanayi Tunnel Type Heating Ovens

Dizayn Makina Sanayi manufactures tunnel-type heating ovens designed for the heating, drying, baking, and surface treatment needs of various production sectors. These ovens, which can be integrated into continuous production lines, allow products to be processed under controlled temperatures for a specific duration, helping to achieve efficiency and standard quality in production.

What is a Tunnel Type Oven?

Tunnel-type ovens are industrial ovens operating on a continuous principle where products enter from one point and pass through a controlled temperature environment to exit from the other side. Products can be moved inside the oven using conveyor belts, chain transport systems, or other transport methods suitable for the production structure of the facility.

Working Principle

In Dizayn Makina Sanayi tunnel-type heating ovens, temperature, air circulation, and the product's residence time inside the oven can be controlled.

General working stages:

1. Products are loaded into the oven entrance section via the transport system.
2. Products pass through controlled temperature zones.
3. Hot air is circulated evenly inside the oven by fans and air ducts.
4. The product is heated or dried according to the specified temperature and duration.
5. The processed product is taken out from the oven exit.

Applications

Tunnel-type heating ovens can be used in many sectors:

• Drying after painting and coating
• Heating and drying of metal parts
• Processing of plastic and composite products
• Automotive sub-industry
• Furniture and wood products
• Ceramic and similar industrial products
• Powder coating applications
• Rubber and various industrial parts
• Non-food industrial drying applications
• Continuous heating and drying processes in production lines

Dimensions and Capacity

Tunnel-type ovens are not limited to a single standard size. They are specially designed according to the product size, production capacity, target temperature, and desired residence time inside the oven.

For example, in design:

• Oven width
• Oven height
• Total tunnel length
• Conveyor length and speed
• Operating temperature
• Heating capacity
• Fan and air circulation capacity
• Number of zones
• Energy options such as electricity or natural gas/LPG

are determined.

Production can range from compact systems for small parts to large tunnel ovens integrated into long and high-capacity production lines.

Heat Control and Energy Efficiency

Balanced distribution of temperature inside the oven is important for maintaining product quality. Heat insulation, correct positioning of fans, and temperature control systems aim to reduce unnecessary energy losses.

Independent temperature control in different zones of the oven can also be preferred according to the production process. Thus, every stage of the product inside the oven can be managed in a controlled manner.

Dizayn Makina Sanayi Difference

Dizayn Makina Sanayi aims to design tunnel-type heating ovens according to the customer's production process. Oven dimensions, transport system, heating capacity, temperature range, automation structure, and energy source can be determined according to production needs.

With a robust body structure, effective insulation, controlled air circulation, and automation options, tunnel-type ovens offer an efficient solution for continuous production facilities.

Dizayn Makina Sanayi – Industrial Oven and Machinery Solutions

Oven dimensions and technical specifications can be specially prepared according to your production capacity and product dimensions for tunnel-type heating oven design.
