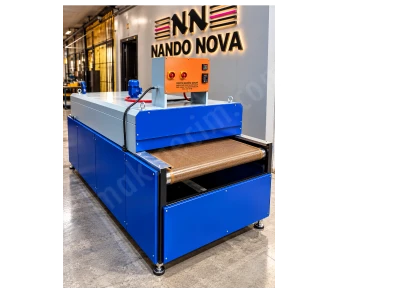

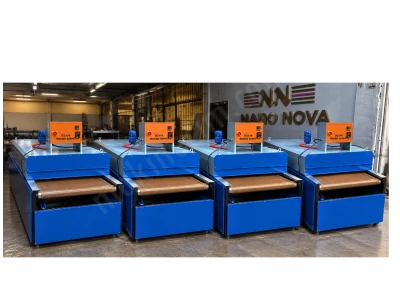

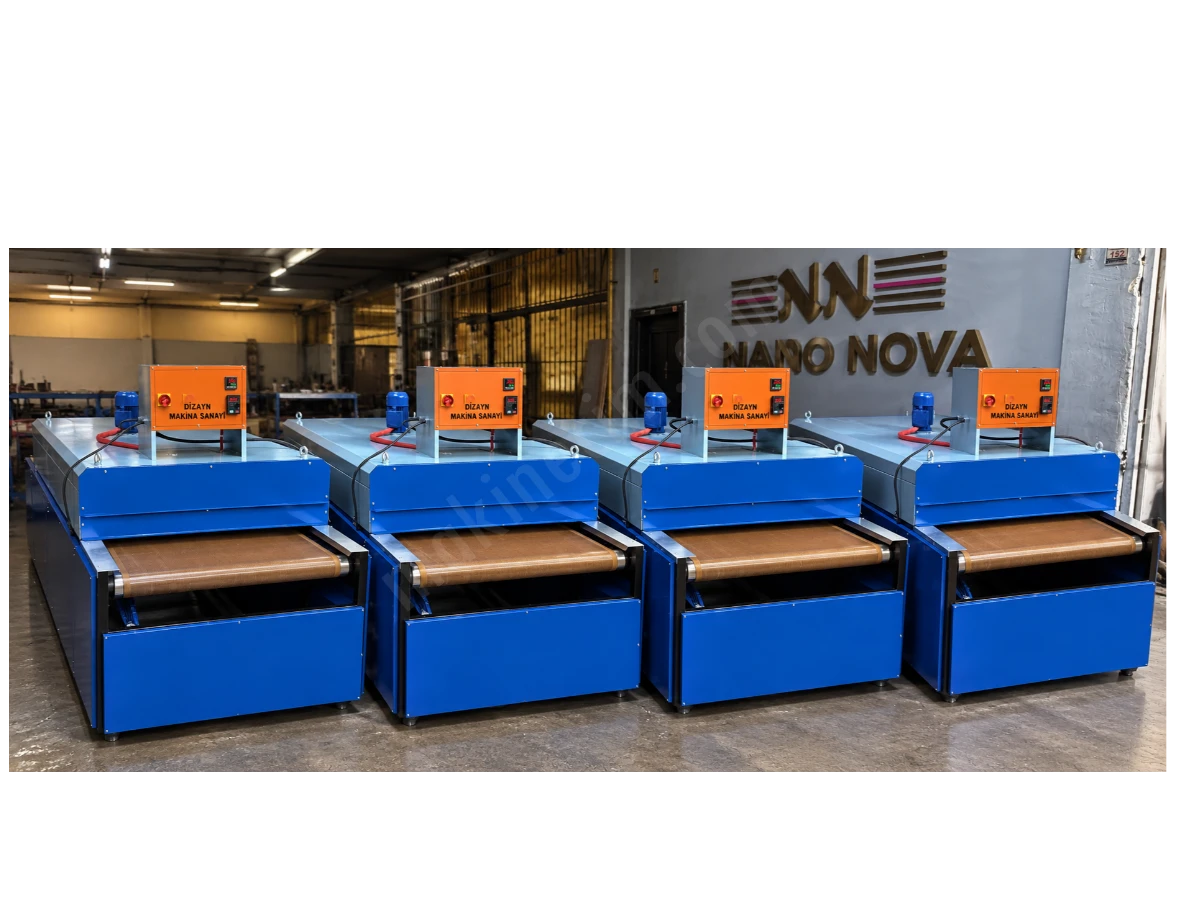

Conveyor Ovens

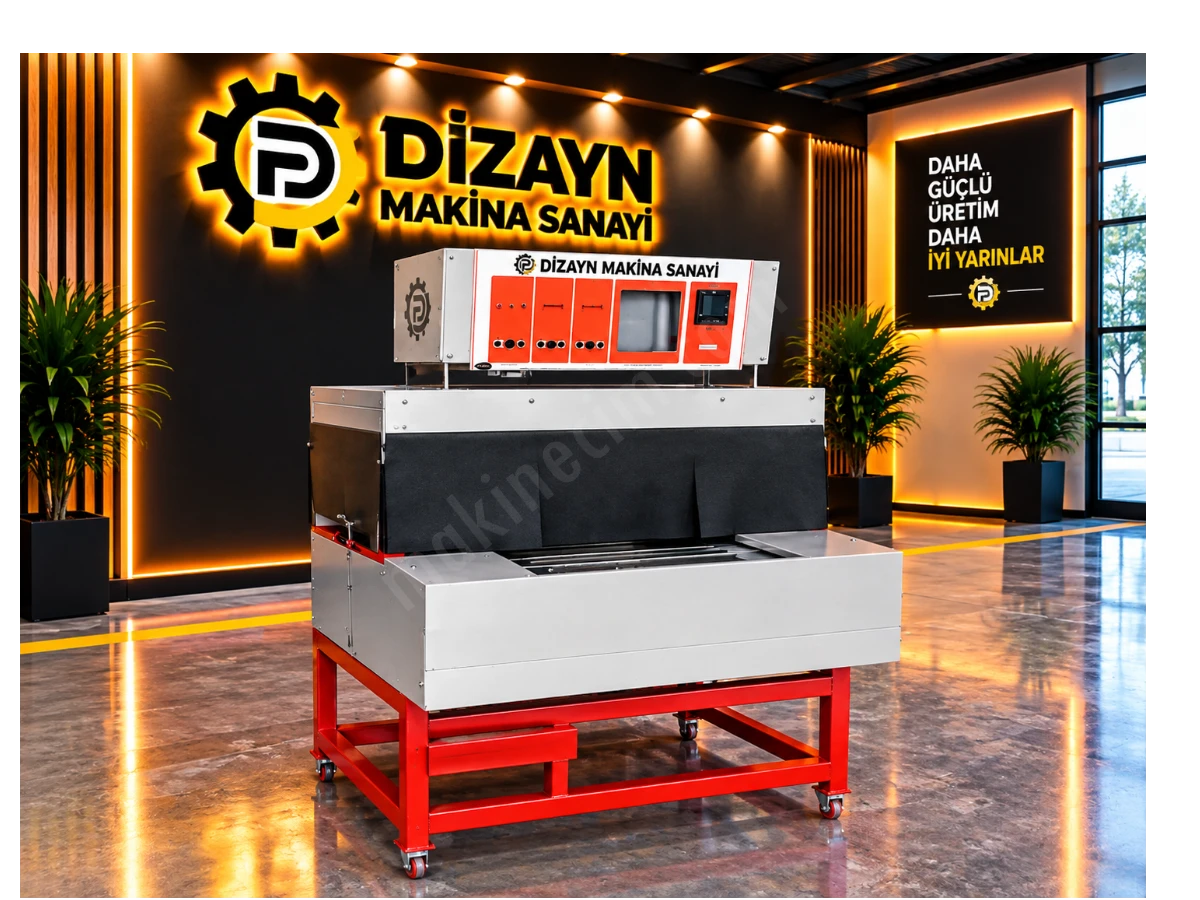

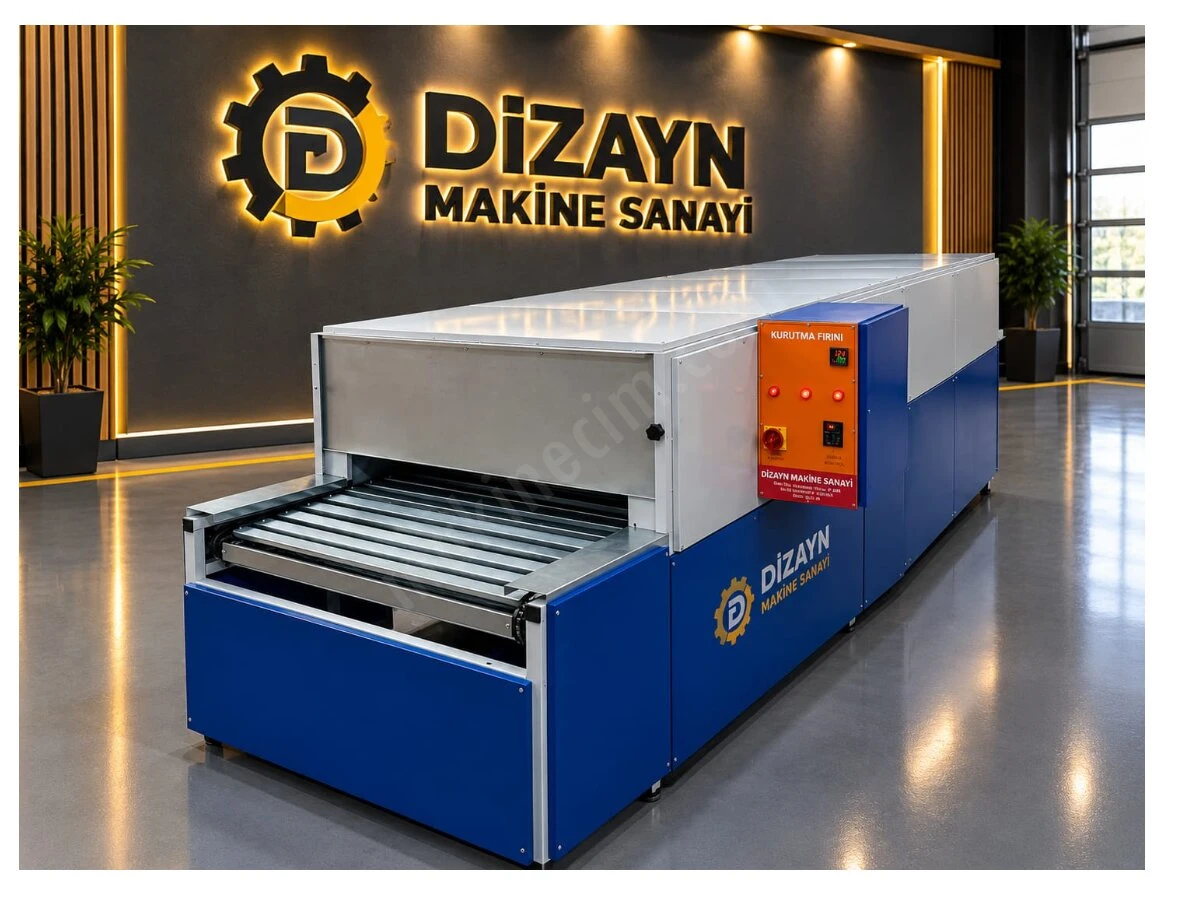

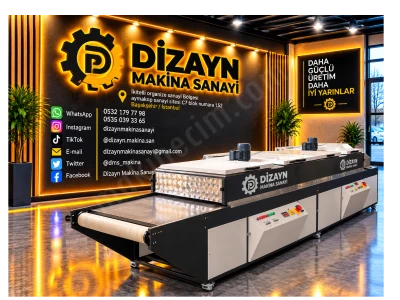

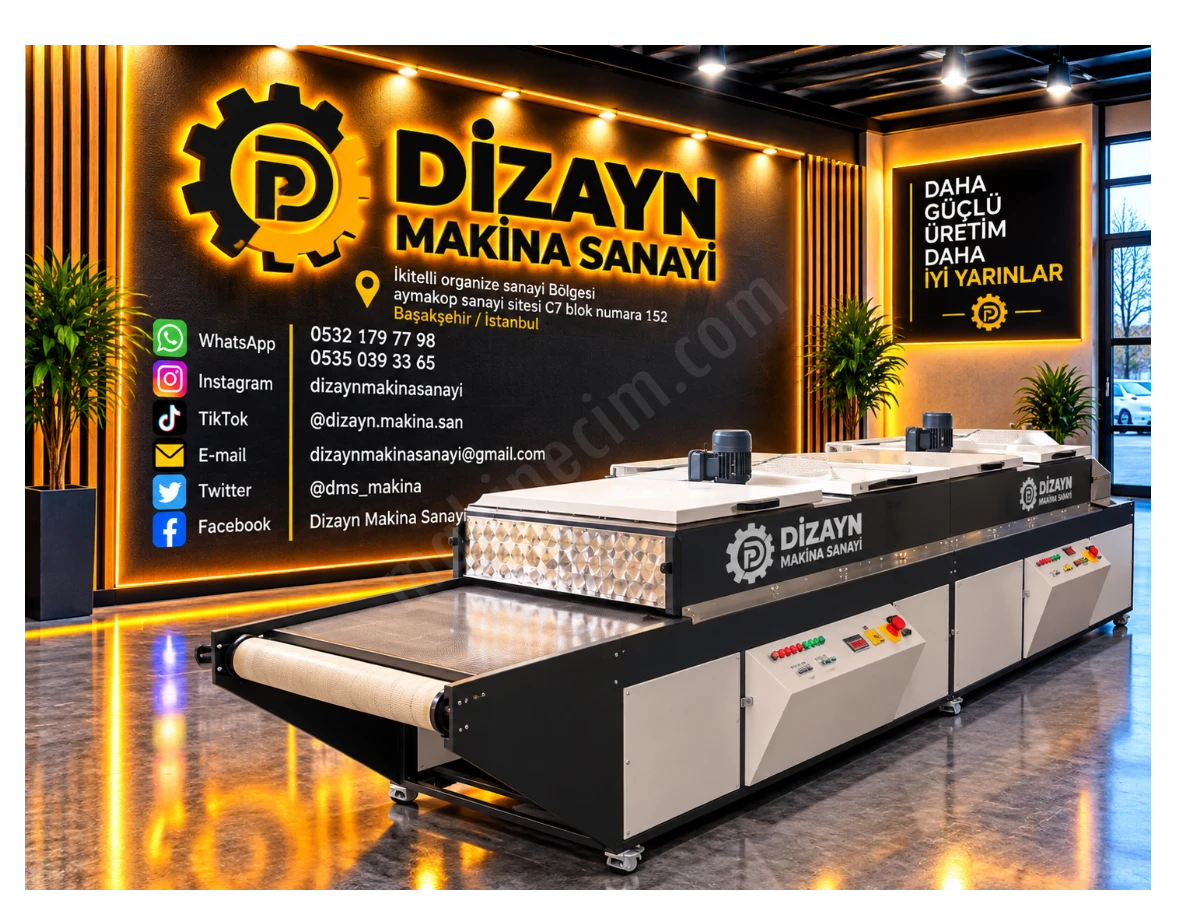

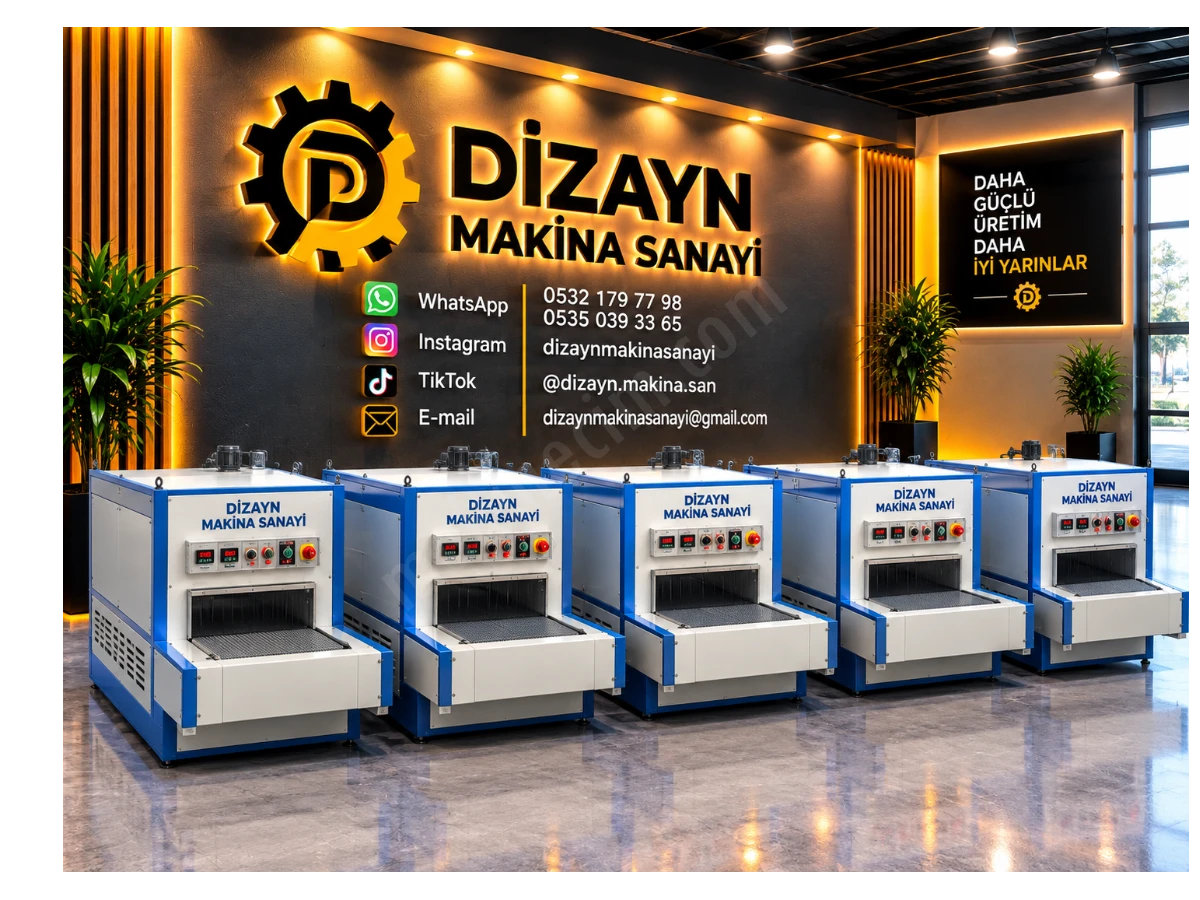

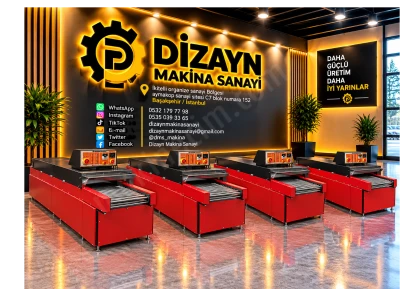

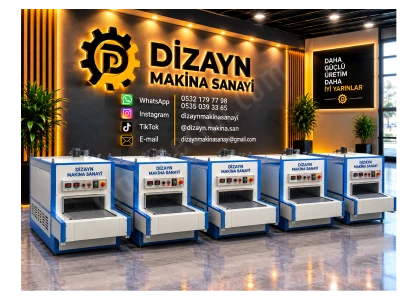

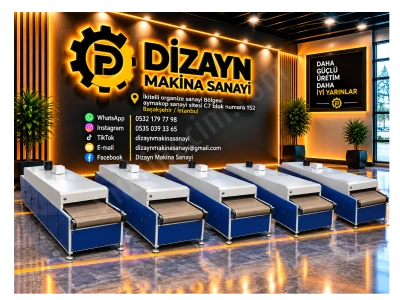

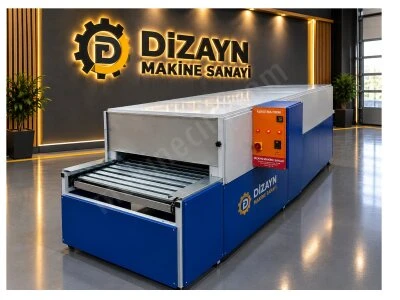

Dizayn Makina Sanayi Tunnel Type Heating Ovens

Dizayn Makina Sanayi manufactures tunnel type heating ovens designed for the heating, drying, baking, and surface treatment needs of various production sectors. These ovens can be integrated into continuous production lines, allowing products to be processed under controlled temperatures for a specific duration, thereby enhancing efficiency and ensuring consistent quality in production.

What is a Tunnel Type Oven?

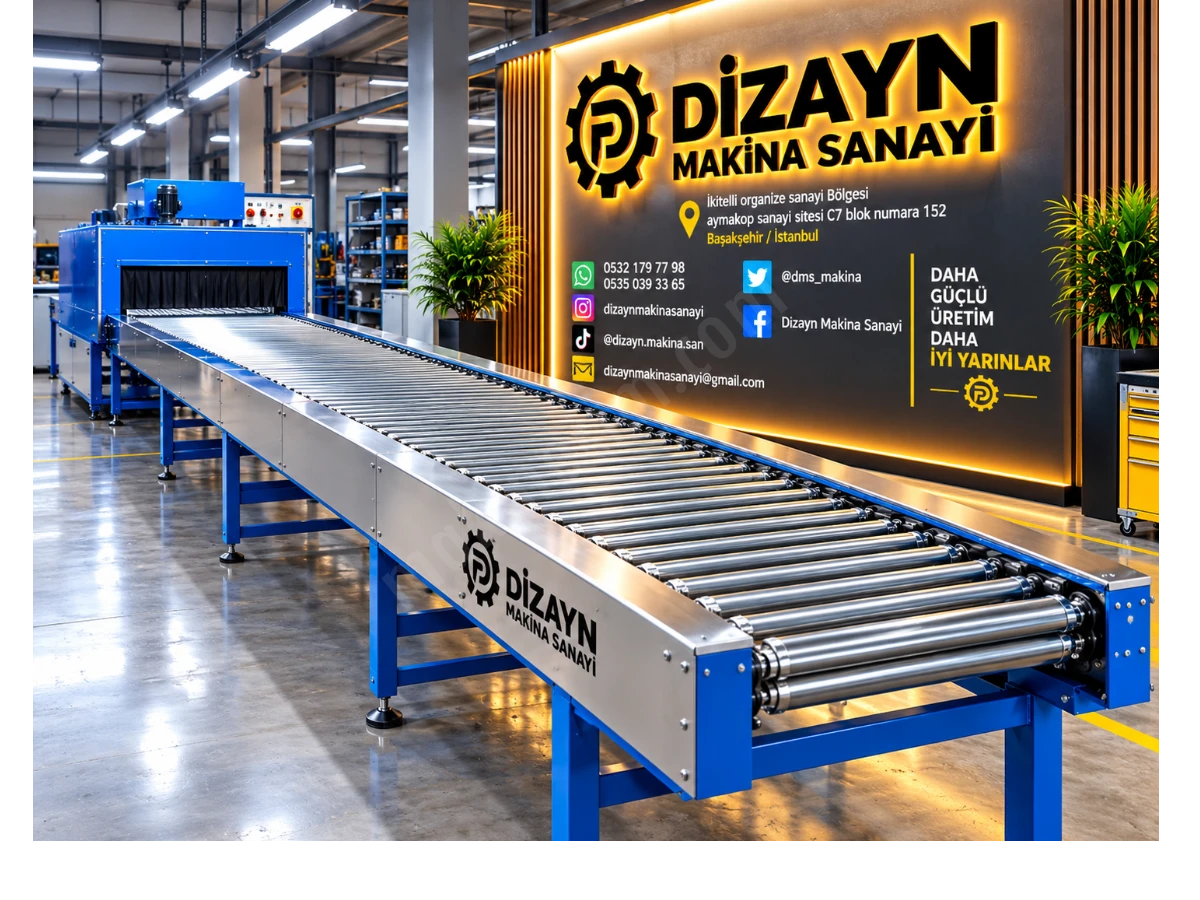

Tunnel type ovens are industrial ovens operating on a continuous principle where products enter from one end and pass through a controlled temperature environment before exiting the other side. Products can be moved inside the oven using conveyor belts, chain transport systems, or other transport methods suitable for the production setup.

Operating Principle

In Dizayn Makina Sanayi tunnel type heating ovens, temperature, air circulation, and the product's residence time inside the oven are kept under control.

General operating steps:

1. Products are loaded into the oven's entry section via the transport system.
2. Products pass through controlled temperature zones.
3. Fans and air ducts ensure balanced circulation of hot air inside the oven.
4. Products are heated or dried according to the set temperature and duration.
5. Processed products are removed from the oven's exit.

Applications

Tunnel type heating ovens can be used in many sectors:

• Drying after painting and coating
• Heating and drying of metal parts
• Processing of plastic and composite products
• Automotive sub-industry
• Furniture and wood products
• Ceramics and similar industrial products
• Powder coating applications
• Rubber and various industrial parts
• Non-food industrial drying applications
• Continuous heating and drying processes in production lines

Dimensions and Capacity

Tunnel type ovens are not limited to a single standard size. They are custom designed based on product size, production capacity, target temperature, and desired residence time inside the oven.

For example, design parameters include:

• Oven width
• Oven height
• Total tunnel length
• Conveyor length and speed
• Operating temperature
• Heating capacity
• Fan and air circulation capacity
• Number of zones
• Energy options such as electricity or natural gas/LPG

Production can range from compact systems for small parts to large tunnel ovens integrated into high-capacity production lines.

Temperature Control and Energy Efficiency

Balanced temperature distribution inside the oven is crucial for maintaining product quality. Heat insulation, proper fan placement, and temperature control systems aim to reduce unnecessary energy losses.

Independent temperature control in different oven zones can be applied according to the production process, allowing controlled management of each stage inside the oven.

Dizayn Makina Sanayi Advantage

Dizayn Makina Sanayi aims to design tunnel type heating ovens tailored to the customer's production process. Oven dimensions, transport system, heating capacity, temperature range, automation structure, and energy source can be customized according to production needs.

With a robust body structure, effective insulation, controlled air circulation, and automation options, tunnel type ovens offer an efficient solution for continuous production facilities.

Dizayn Makina Sanayi – Industrial Oven and Machinery Solutions

Oven dimensions and technical specifications can be specially prepared according to your production capacity and product dimensions for tunnel type heating oven design.
