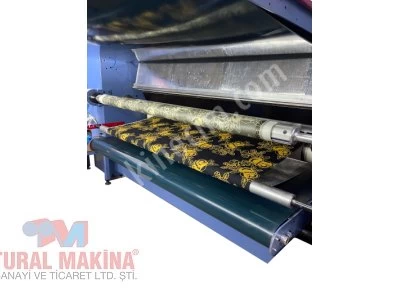

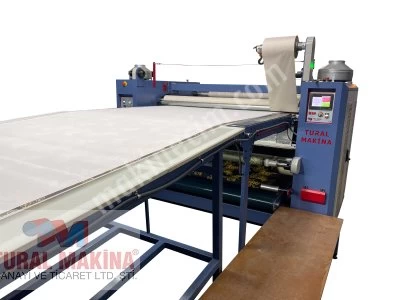

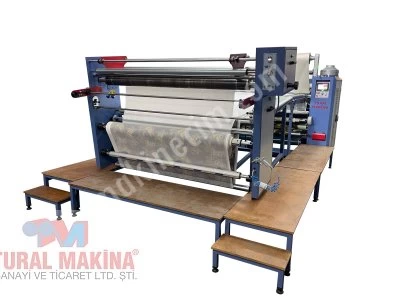

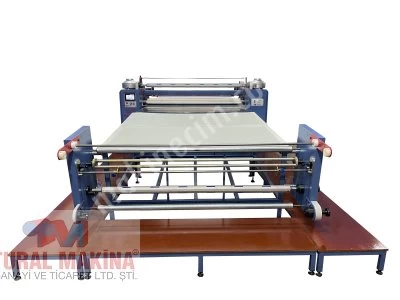

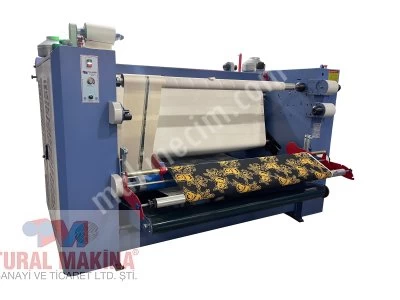

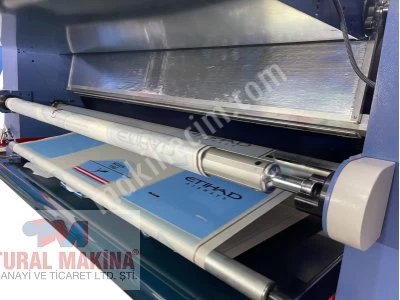

Tural Makina Tm-1800 / Tc-605 Pieces Fabric Paper Transfer Printing Machine

Price : Ask For Price
Ad Code : M-405989
Ad Type : For Sale - New
Views : 2304
Date Updated : 31 Dec 2025
Production Type : Brand
Brand : Tural Makina
Model : TM-1900 / TC-605 PARÇA METRAJ
Production Year : 2022
10
year

TURAL MAKİNA

Türkiye - İstanbul - Eyüp
Topçular Kışla Cad. 3.Emintaş San. Sit. No:28 Eyüp / İSTANBUL
User's Store

Tural Makina Tm-1800 / Tc-605 Pieces Fabric Paper Transfer Printing Machine Ad Description

TM-1800 / TC-605 Piece by Quantity Fabric Paper Transfer Printing

Sublimation Calender Machine Technical Specifications

  • Our cylinder widths are from 1800 mm to 2700 mm, the price increases according to the width of the cylinder.
  • The cylinder system is oil heated and the cylinder diameter is Ø 610mm. is The most important feature that distinguishes this machine from other machines is that it has a system that reduces oil in the cylinder system as a standard feature.
  • Average 220 meters per hour. between production.
  • 1800 meters in 10 hours. production.
  • 35 Kw electrical power (Three-phase).
  • Average electricity consumption for the TM-1900 Series is 17Kw hours based on production.
  • 3.0 / 4.5 m. minute rate.
  • Our felt is Nomex felt.
  • Wrappers with tension adjustment that wraps the paper delivery and the output paper. The machine reaches 220 C 70 minutes after it is turned on.
  • 4 air spindles for reeling and winding paper in the machine.
  • 7-inch LCD control panel and system that instantly displays the electricity burned by the machine during operation and calculates it in kW and TL
  • Machine warning system in possible sudden temperature increase or temperature decrease.
  • There are non-static, milk-laminated, illuminated glass fabric laying table, 3 fabric carrier conveyors and special static receivers that take the static electricity of the paper and fabric, which will help the machine production...
  • Smoke absorbing fan that carries the smoke from the bottom of the converter upwards during the transfer.
  • Felt cooling auxiliary fan and automatic shut-off system.
  • Automatic adjustment of felt centering system with air control.
  • External surface temperature sensing system.
  • Pneumatic crushing system for crushing the curved edges of stitched thick goods.
  • In Emergency Drums, the machine restarts for a short time and stops itself.
  • It has an automatic felt centering system.
  • Tural Makina confirms that there is no temperature difference over the entire surface of the cylinder.

SAFETY AND CONTROL FEATURES

  • For emergencies, 4 Emergency buttons, 1 rope switch, when these switches are activated, the machine runs full back and stops.
  • For safety, the master cylinder works backwards.
  • Barrier preventing hand entry in front of the machine.
  • The machine gives an automatic alarm when the felt is out of control.
  • There is a special precaution system against high heating.
  • There is a manual lever, UPS and Generator connection inlets to be turned for the purpose of cooling the machine for power cuts.
