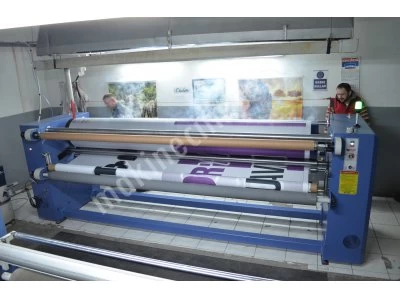

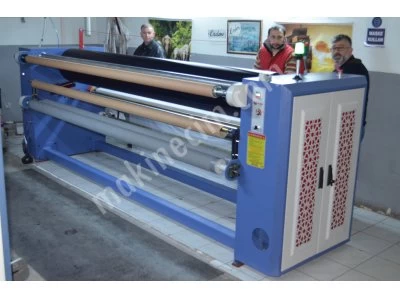

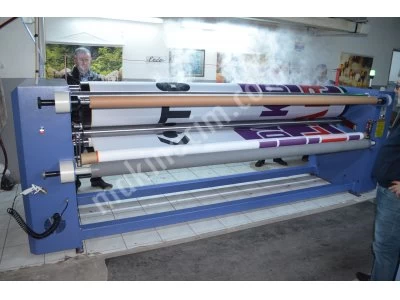

Tm-3200 / Tc-400 Flag Fıxıng Calender Machıne

• The cylinder system is oil heated and the cylinder diameter is Ø 400mm. is
• The width of the cylinder can be produced from 500mm to 3250mm...
• 1200 meters in 10 hours. production. Average production rate of 2.3mt per Minute.
• 2 air spindles for reeling and winding paper in the machine
• 7-inch LCD control panel and system that instantly displays the electricity burned by the machine during operation and calculates it in Kw and TL
• Machine warning system in case of possible sudden temperature increase or temperature decrease
• External surface heat detection system
• It has air shaft and fabric winding system with potency and tension adjustment.
• There is a cylinder with pneumatic system for the fabric to wrap the hot oil cylinder.
• Automatic Opening and Closing Feature is available

• 4 Emergency buttons, 1 rope switch for emergencies, when these switches are entered, the machine runs full back and stops.
• Master cylinder runs backwards for safety
• Barrier preventing hand entry in front of the machine
• There is a special precaution system against high heating
• There is a manual arm, UPS and Generator connection port to be turned for the purpose of cooling the machine for power cuts.

For more detailed information, please contact TURAL MAKİNA Phone: +90 212 613 70 60

Pocket . +90 532 549 70 14 Whatsapp , Viber , We chat
