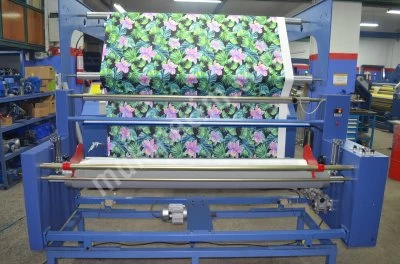

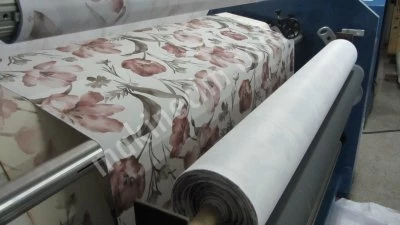

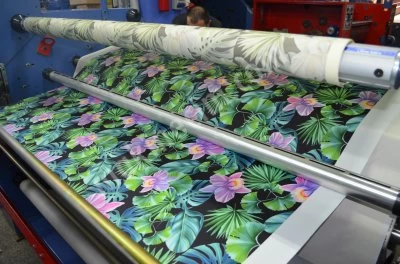

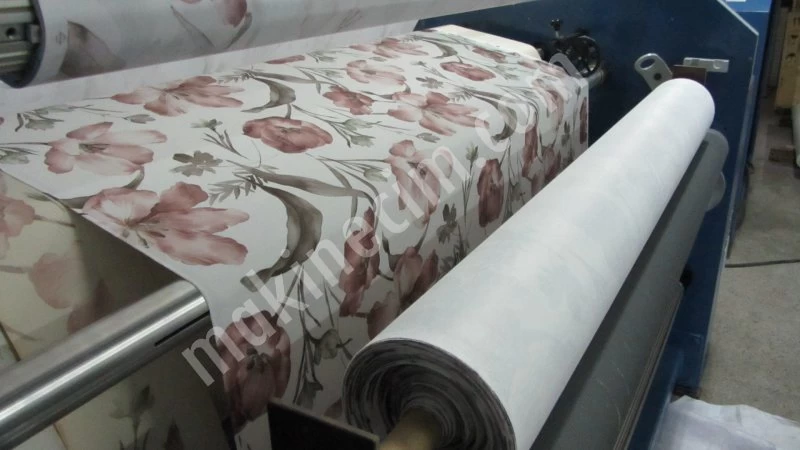

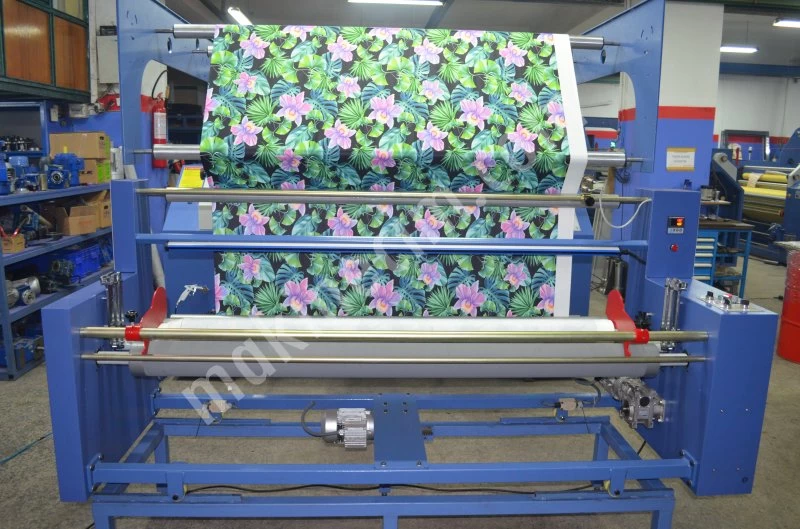

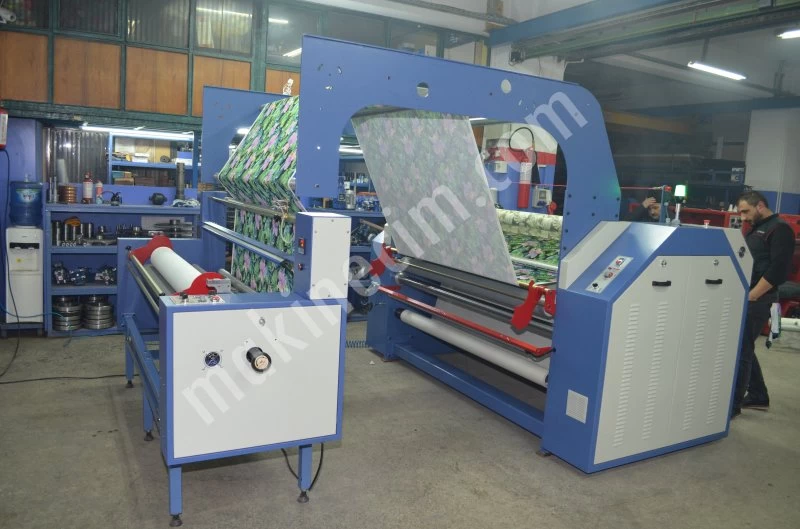

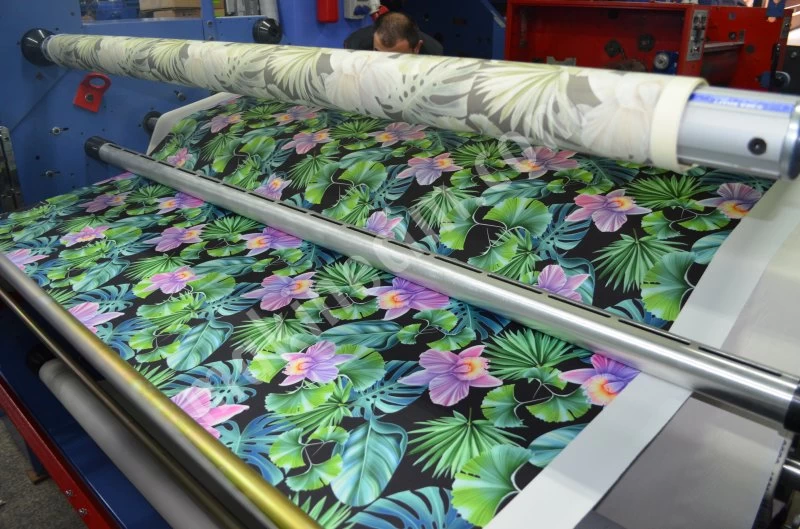

Sublıme Quantıty Prıntıng Calendar

Working Width: 1800 mm
Cylinder Diameter: 405 mm
Heating System: Closed Circuit Oil Heated.
Working Speed: 180 - 400 meters per hour. production between
Max. Electric Power: 23 Kw electric power (Three-phase) 380 V 50-60 Hz
Continuous Consumption: Average 14 Kw hour electricity consumption.
Pressure System: Max. 6 Bar air pressure
Drivers: AC Inverter Machine speed regulation and Cloth Winding speed regulation
Fabric Winding System Tension and Potency Speed Adjustable
Felt: 100% nomex of Italian origin
Net Weight: 1555 Kg.
Coverage Width : 1400 mm
Length : 2800 mm
Height : 1350 mm
The Machine is Double Motorized.
Protective Paper Insert and Wrapper
The machine reaches 230 C 75 minutes after it is turned on.
For safety, the master cylinder can run backwards.
There is a Scraper Tape for safety and stripping the fabric.
It has an automatic felt centering system.
Felt Cooler and Fabric Cooler fan are available.
The usable width of the machine is 1800 mm.
The Cylinder has a manual turning handle to be used in case of power failure. Each machine has a generator to rotate the motor to cool the felt, a UPS Connection system is available.

At the entrance of the machine, there is a safety wire for emergency stop and a barrier that prevents hand pinching on the cylinder.

3 Air Spindles and 1 Conical Paper Compressing Spindle
Extra Paper Ball Attachment from the Top
Spindleless Winding System to Paper Roll
Protective Paper Tension Shaft

OPTIONALLY
Top Pneumatic Crushing System (Top Roller Chrome Bottom Roller Silicone Rubber Coated)
