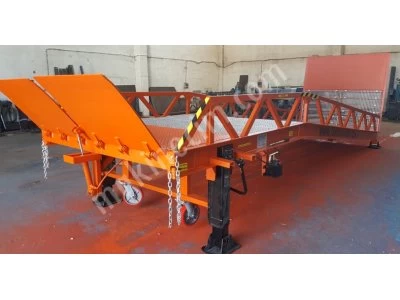

Portable Ramp with Jack Lifting System
year
The price varies according to different tonnage and features. Please get price.
It can be manufactured as tarpaulin/closed, high barrier, full galvanized, electric motor controlled according to the needs.
According to your color preference (Grey / yellow / blue orange / burgundy) colors can be produced.
Technicial Specifications
Loading Capacity; It is produced in 8,000 kg / 10000 kg /12- 15-20 and higher carrying capacities.
Working Level: Our standard system works from 1650 to 1000 mm. The system working in different sizes can be adjusted according to customer requirements.

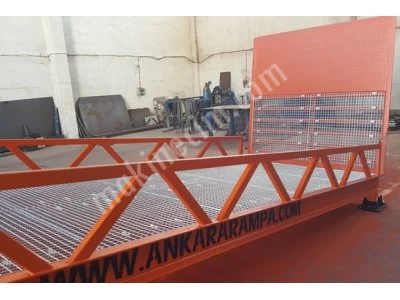

The mobile ramp has side barriers to increase safety

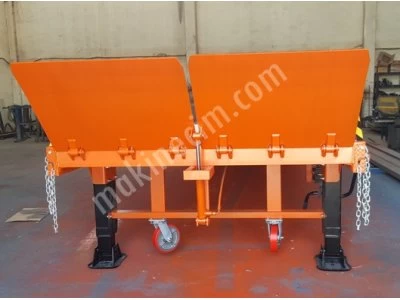

2 700 mm long tongues for safe loading on the front of the ramp.

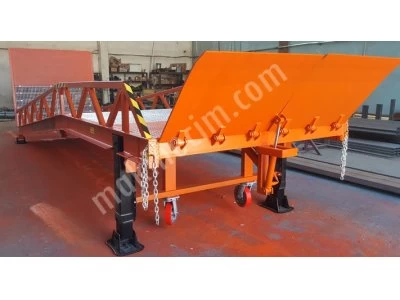

There are 2 wheels that enable the ramp to be transported and maneuvered effectively.

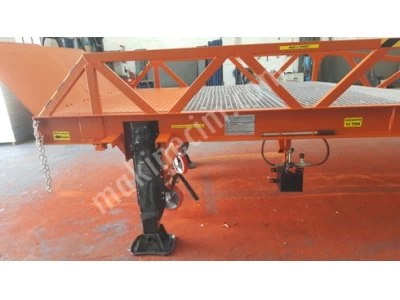

Lifting/lowering operations are done with a specially designed manual hand pump. Optionally, it can be made in an electro-hydraulic controlled system. Thus, the ramp height can be adjusted electrically.

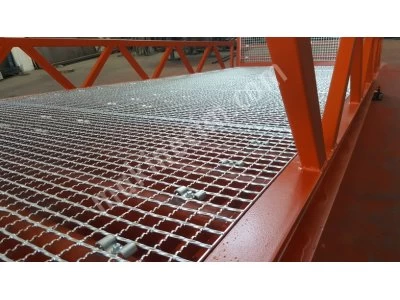

There is a reinforced galvanized grating on the main body of the mobile ramps. (This structure prevents the forklift wheels from damaging the ramp and provides a suitable ground for loading.

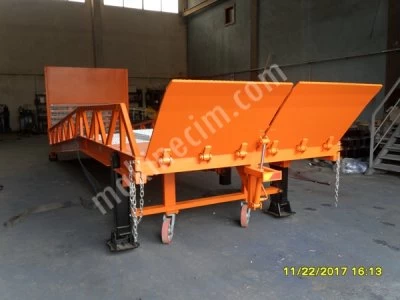

The mobile ramp has tails that are hinged to the main body and reinforced with NPU iron.
Mobile ramp folding rear tails are reinforced with NPU and galvanized grille.
The mobile ramp has 2 heavy-duty wheels with the dimensions of 260x70 and a carrying capacity of 3000 kg. When the ramp load is put on the wheels, the ramp is carried by these maneuverable wheels.
Our mobile ramps are approved by TPI .Patent ID: TR 2006 07571 Y and comply with EEC Directives 93/68 / EEC and 2006/42 / EC.
Dimensions for standard product are below.
Total length 10.15 m (33.301 feet (7.5 m) (24.606 feet). Total width side by side 2.4 mt 7.874' foot width 2.1 m.
Our system is designed as heavy-duty, multi-shift use or 24/7 operation. The system is designed for robust and durable products.
