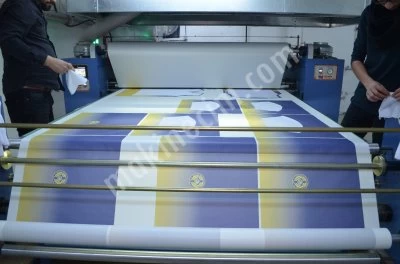

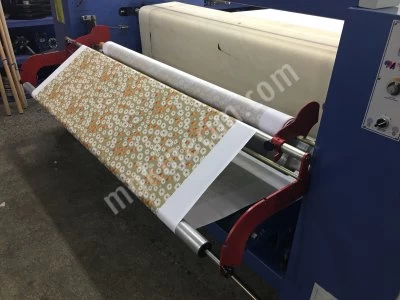

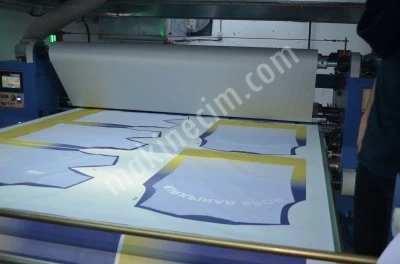

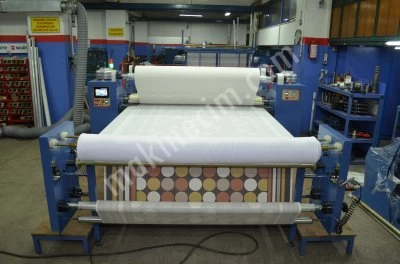

Piece Quantity Transfer Printing Machine TM-1800 / TC-320

TM-1800 / TC-320 PIECE QUANTITY FABRIC PAPER TRANSFER PRINTING SUBLIMATION CALENDER MACHINE

MACHINE AVAILABLE FEATURES

• The cylinder system is oil heated and the cylinder diameter is Ø 320mm. is
• The width of the machine can be from 500mm to 2700mm.
• In our cylinder systems, our heat is stable and homogeneous at the same temperature all over the cylinder.
• 800 meters in 10 hours. production. Average production rate of 2mt per Minute
• Special illuminated glass fabric laying table and special static bars that absorb static electricity on paper and fabric,
• Tension adjustable winders that wrap the paper delivery and output paper
• 4 air spindles for reeling and winding paper in the machine
• There is a 7 inch LCD control panel and a system that instantly displays the electricity burned by the machine during operation and calculates it in Kw and TL, and a system that measures the fabric in meters.
• Machine warning system in case of possible sudden temperature increase or temperature decrease
• Smoke absorbing fan that carries the smoke from the bottom of the converter up during the transfer
• Felt cooling assist fume absorber fan
• Automatic adjustment of felt centering system with air control
• Exterior and interior heat detection system

SAFETY AND CONTROL FEATURES

• 4 Emergency buttons, 1 rope switch for emergencies, when these switches are entered, the machine runs full back and stops.
• Master cylinder runs backwards for safety
• Barrier preventing hand entry in front of the machine
• The machine gives an automatic alarm when the felt is out of control.
• There is a special precaution system against high heating
• There is a manual arm, UPS and Generator connection port to be turned for the purpose of cooling the machine for power cuts.
