Hw Pinned Load Pin - Specially Manufactured For Demanding Applications Such As Ship and Port Cranes Ad Description

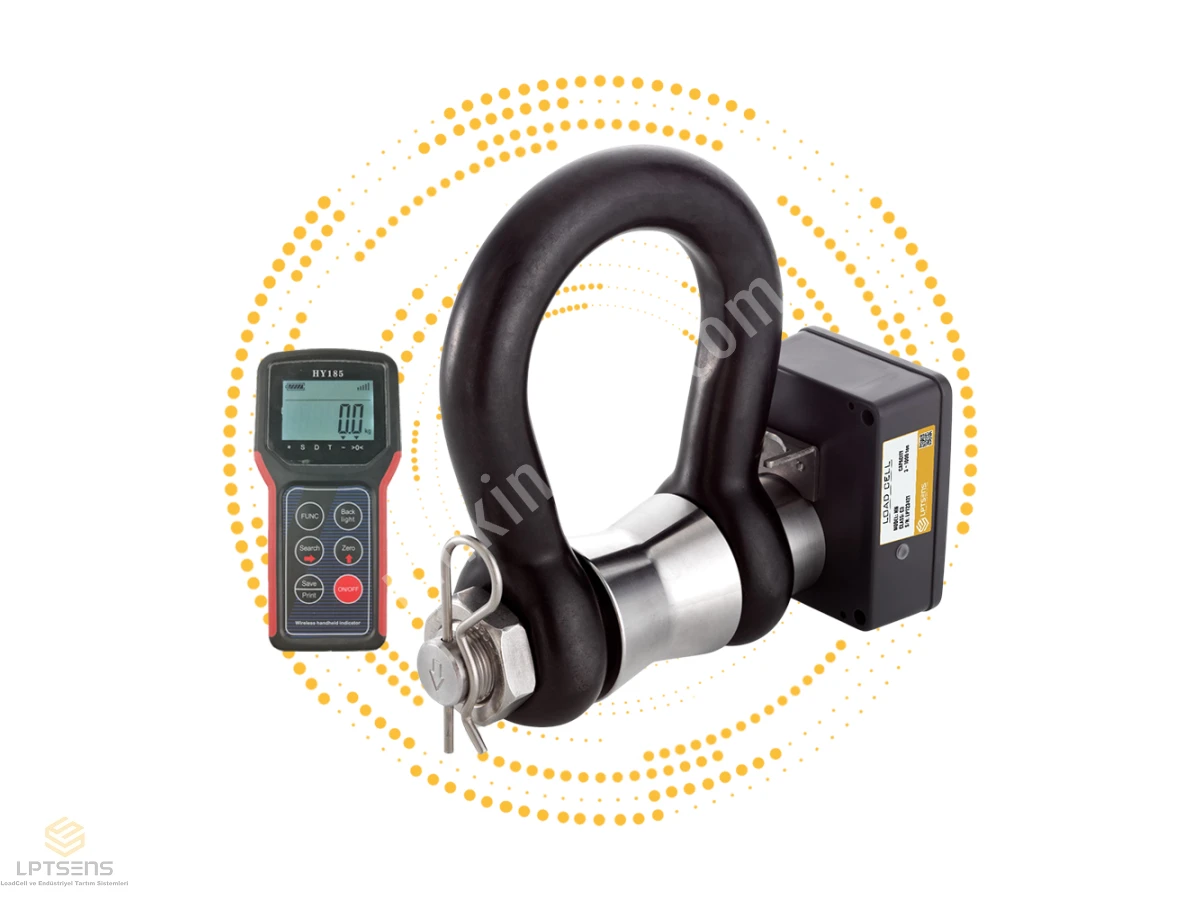

HW Pinned Load Pin 3 ~ 1000 Ton
HW Pinned Load Pin is specially manufactured for demanding applications such as ship and port cranes.
Stock Code: HW
Accuracy in Every Gram, Safety at Every Weight. HW Pinned Load Pin is specially manufactured for demanding applications such as ship and port cranes. Made from high-strength alloy steels, the HW Load Pin can also be optionally manufactured from 17-4PH grade stainless steel. HW Pinned Load Pin is offered in a wide capacity range from 3 tons to 1000 tons. Additionally, it can communicate up to 200 meters with a wireless handheld terminal. It can display weight information from 16 different load pins both individually and as a total.
Application Areas
- Strain Tests
- Tensile Tests
- Force Tests
- Mining
- Transportation
- Logistics
- Shipyards
- Construction
- Port
| Total Error | b10.5 %FS |
| Output Gain (FS) | 1.2 mV/V (4 620mA, RS485) |
| Operating Zero Balance | b1 1 %FS |
| Input Resistance | 380 9 b1 20 9, 720 9 b1 20 9 |
| Output Resistance | 350 9 b1 5 9, 702 9 b1 5 9 |
| Insulation Resistance | b5 5000 M9 (100VDC) |
| Compensated Operating Temperature | -10 ~ +40 b0C (Optional) |
| Operating Temperature Range | -30 ~ +70 b0C |
| Recommended Excitation Voltage | 10 VDC |
| Maximum Excitation Voltage (Umax) | 15 VDC |
| Overload Capacity | 150 %FS |
| Breaking Load | 300 %FS |
| Protection Class (EN60529) | IP 66 |
| Load Cell Material | Alloy steel 6 Stainless steel |
