Transfer Machıne

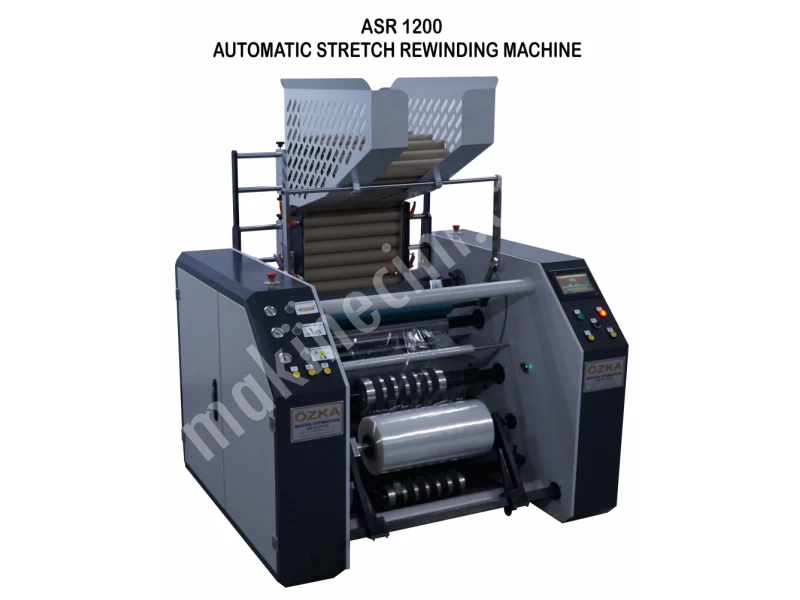

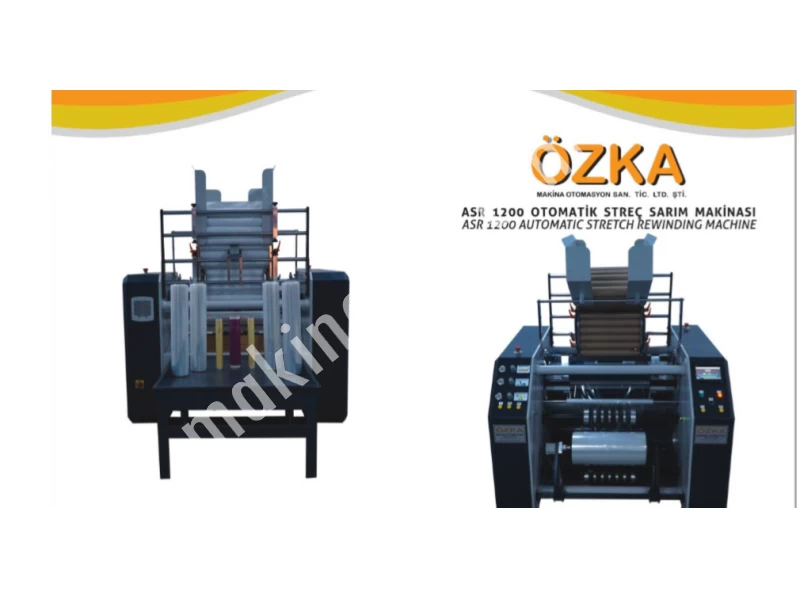

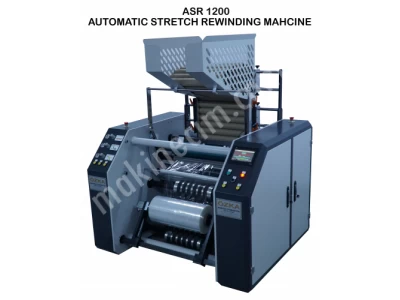

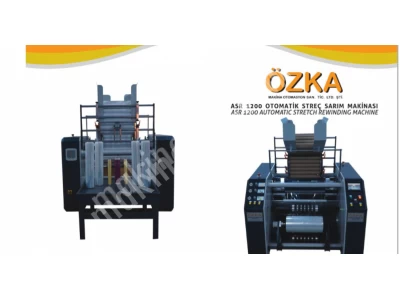

Our machine is a fully automatic stretch wrapping machine. It is preferred by our customers who are looking for a quick solution.
This model works fully automatically. It has a large bobbin chamber. 60 cm diameter Jumbo stretch coil can be loaded. It has optional weighing system. In this way, it can automatically adjust the weight of the winding.

TECHNICIAL SPECIFICATIONS;
• Machine Speed; 1000 rpm;
• Winding Time(300m); 23sec;
• Roller Width ;600 mm;
• Main Engine; 4 kW;
• Bobbin Diameters; Ø38-Ø50-Ø76mm;
• Winding Diameter (Max); 150mm;
• Jumbo Coil Weight (Max); 75 Kg;
• Jumbo Coil Width (Max): 600 mm ;
• Fully automatic winding and bobbin changing;
• Quantity and Quantity reporting;
• Film and core out sensor;
• OMRON Branded PLC Unit;
• OMRON Branded 7'' Touchscreen;
• OMRON Brand Motor Driver;
• Mindman Brand Pneumatic System;
• Cutting with hot wire;
• 100 pcs. bobbin chamber (Ø50);
• Easily adjustable bobbin chamber designed for different bobbin lengths;
• Machine weight;900Kg;
• Machine Dimensions; 1550 x 1275 x 1750mm;

Please contact us to get a price quote.
