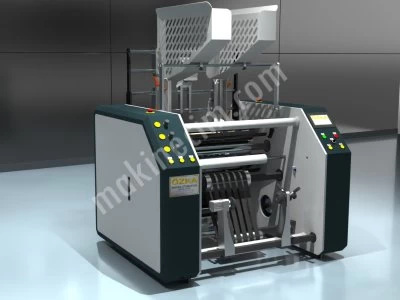

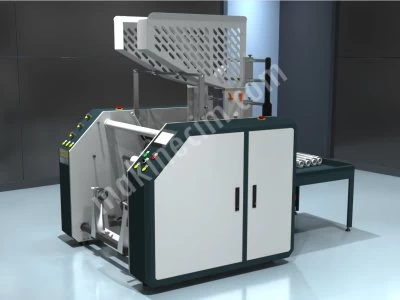

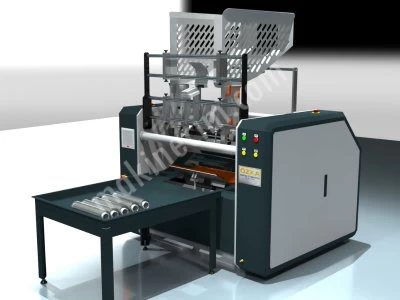

AUTOMATIC STRETCH WINDING MACHINE

TECHNICIAL SPECIFICATIONS;

• Machine Speed: 1000 rpm
• Winding Sustain :(1500m): 90s
• Roller Width: 600 mm
• Main Engine: 5.5 Kw
• Bobbin Diameters: 50- 76mm
• Winding Diameter (Max): 300mm
• Jumbo Coil Weight (Max): 75 Kg
• Fully automatic winding and bobbin changing
• Quantity and Quantity reporting
• Movie end sensor
• Bobbin end sensor
• OMRON Brand PLC Unit
• OMRON Brand 7" Touch Screen
• OMRON Brand Motor Driver
• Midman Brand Pneumatic System
• Cutting with Steak Wire (Adjustable Wire Temperature
• 50 bobbin storage
• Machine weight: 1100Kg
• Machine Dimensions: 1650 x 1650 x 1800 mm

Please contact us to get a price quote.
