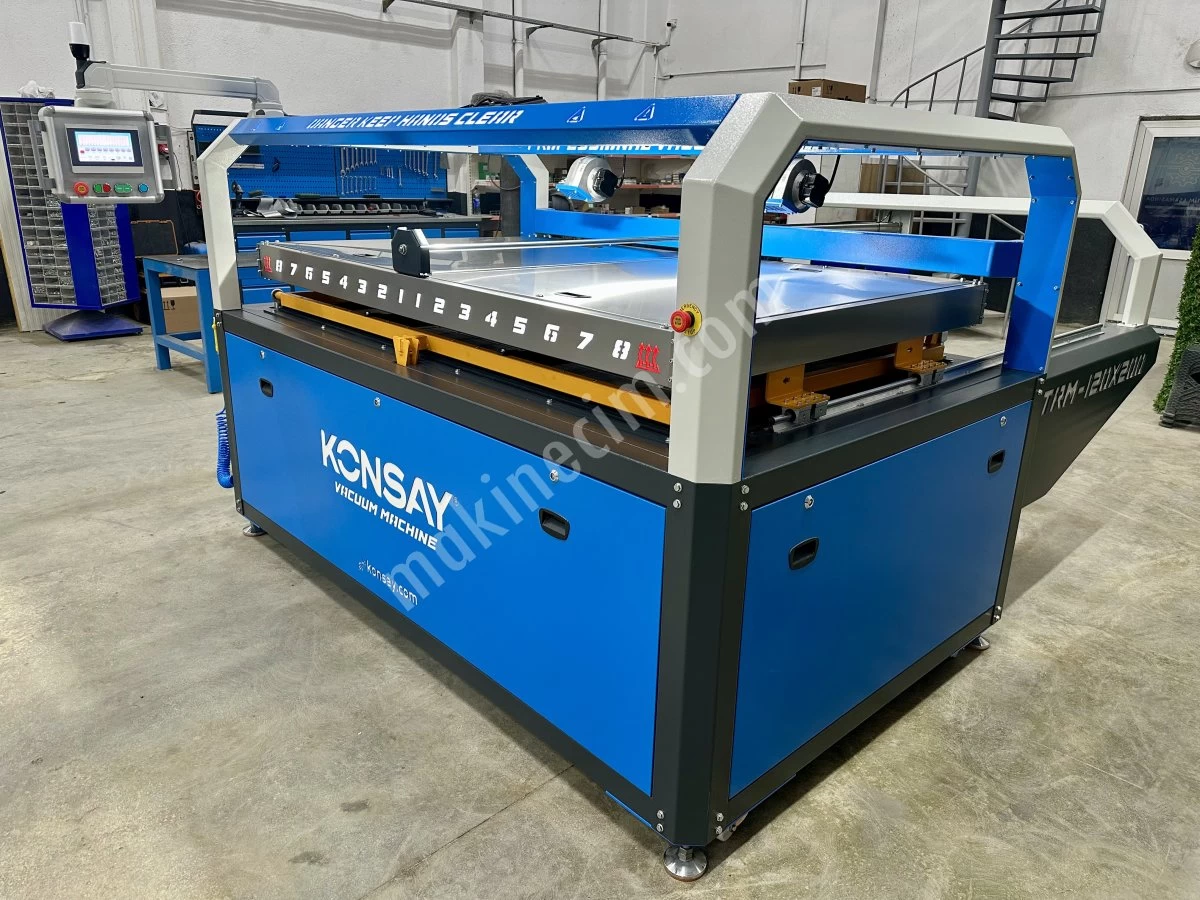

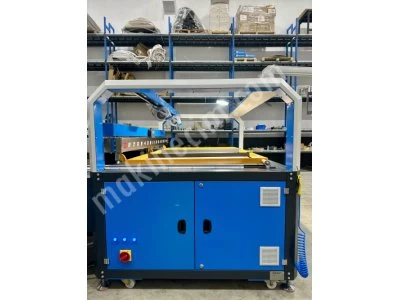

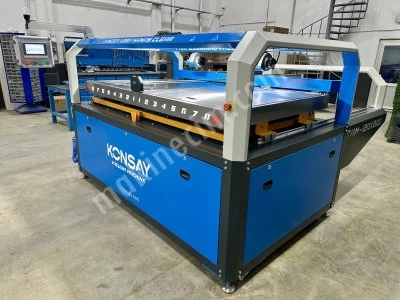

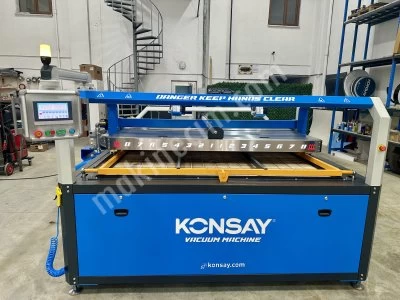

Suitcase Vacuum Production Machine

SUITCASE THERMOFORM SHEET SHAPING MACHINE

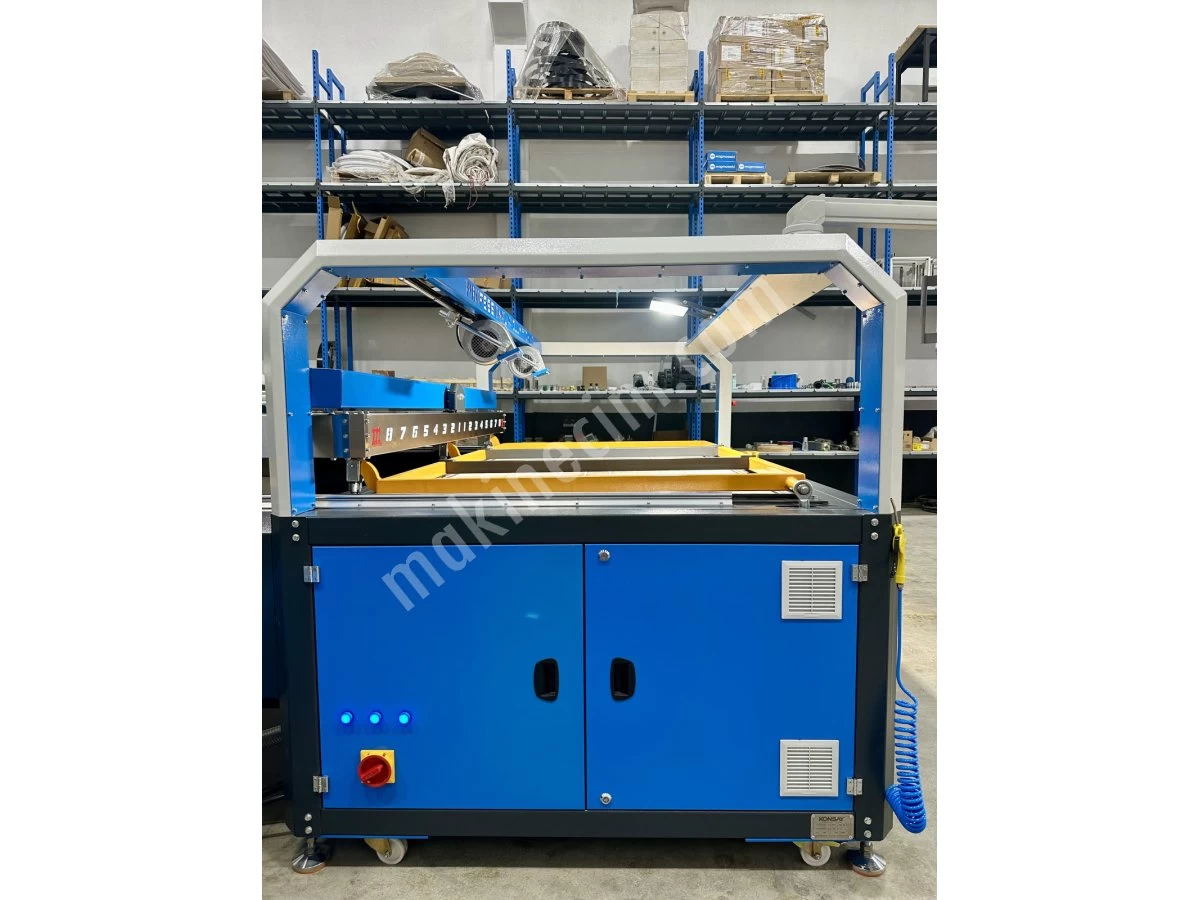

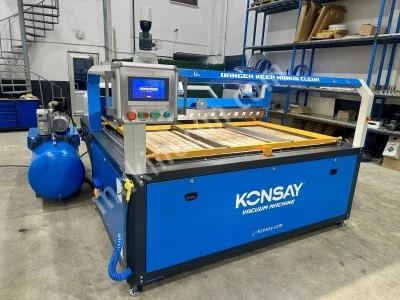

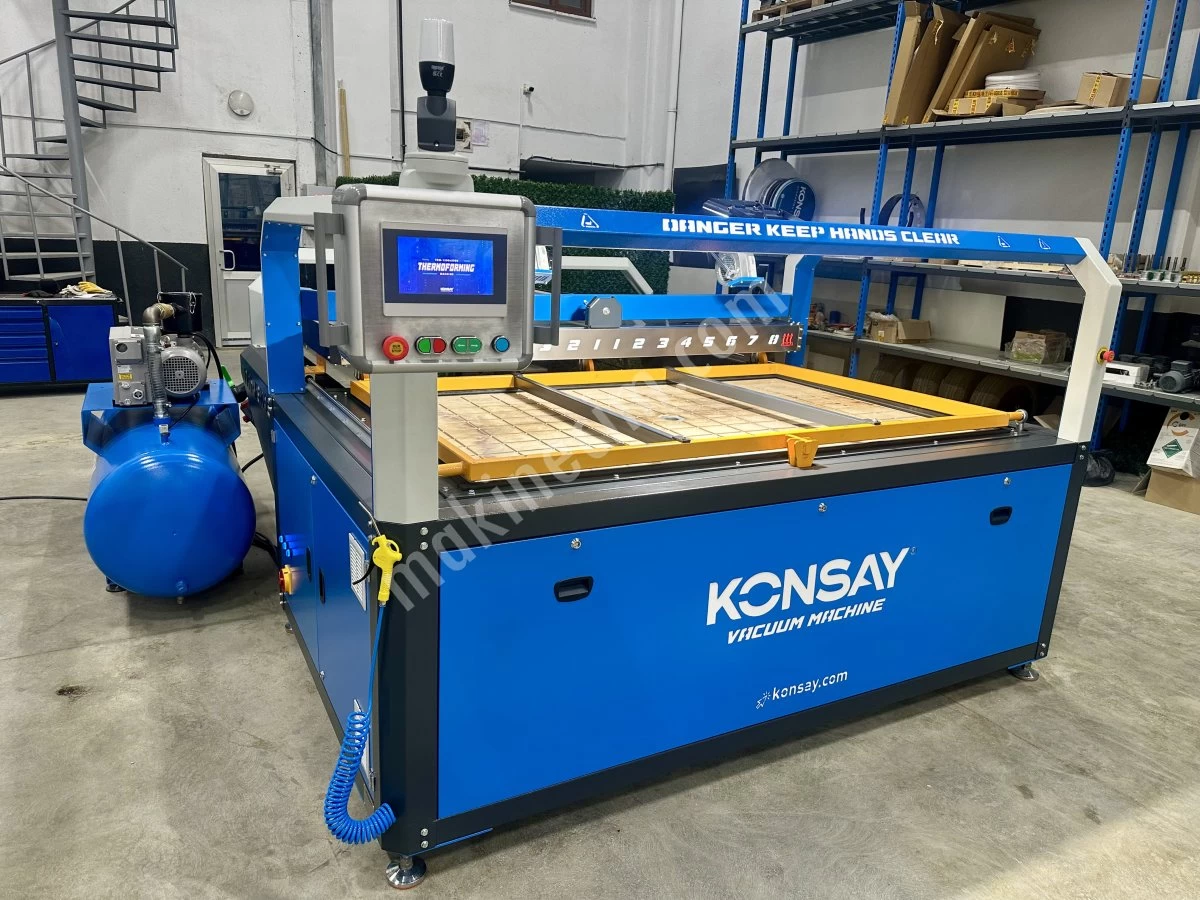

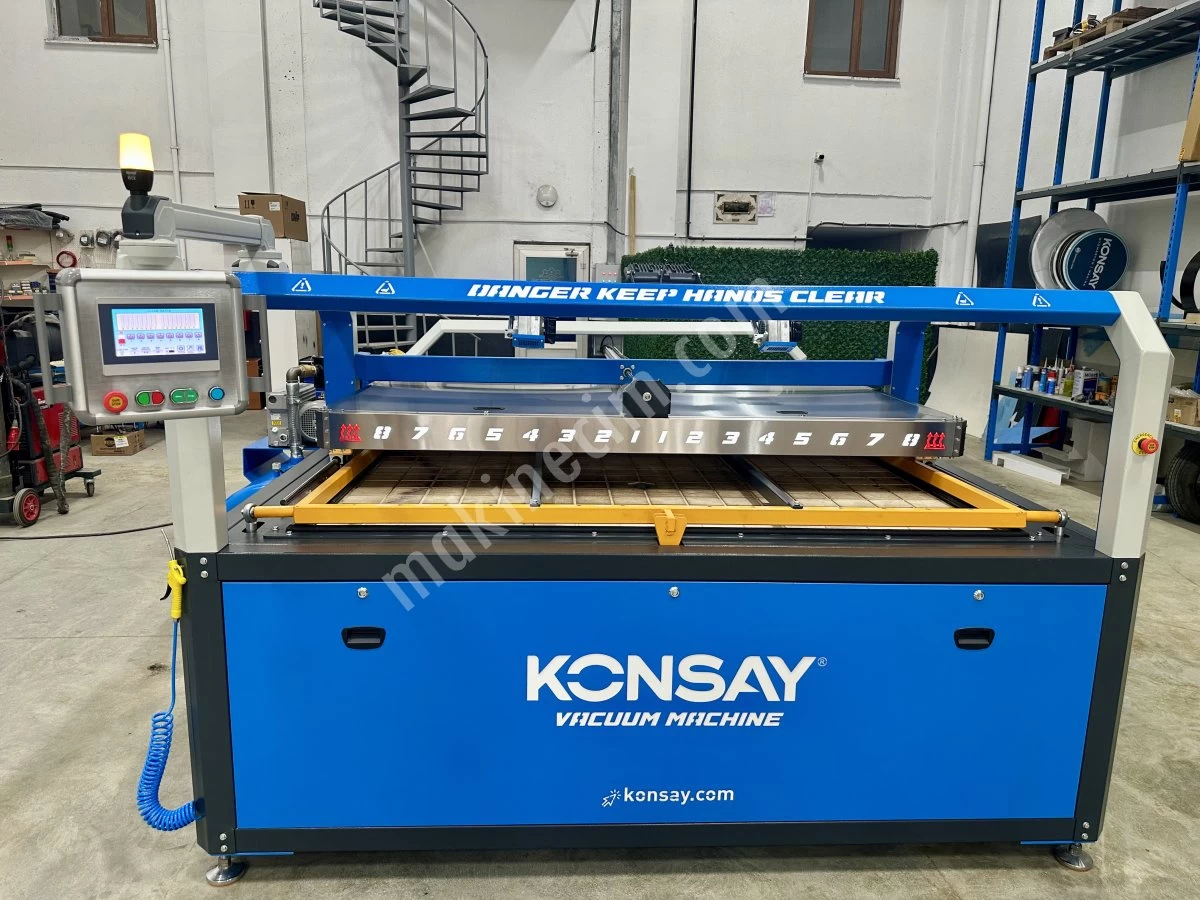

Thermoform vacuum machine used in suitcase production

We produce machines tailored to customer needs! With our expert team and innovative approach, we carefully plan every detail to facilitate our customers' work. Contact us for solutions customized for you!

Features:

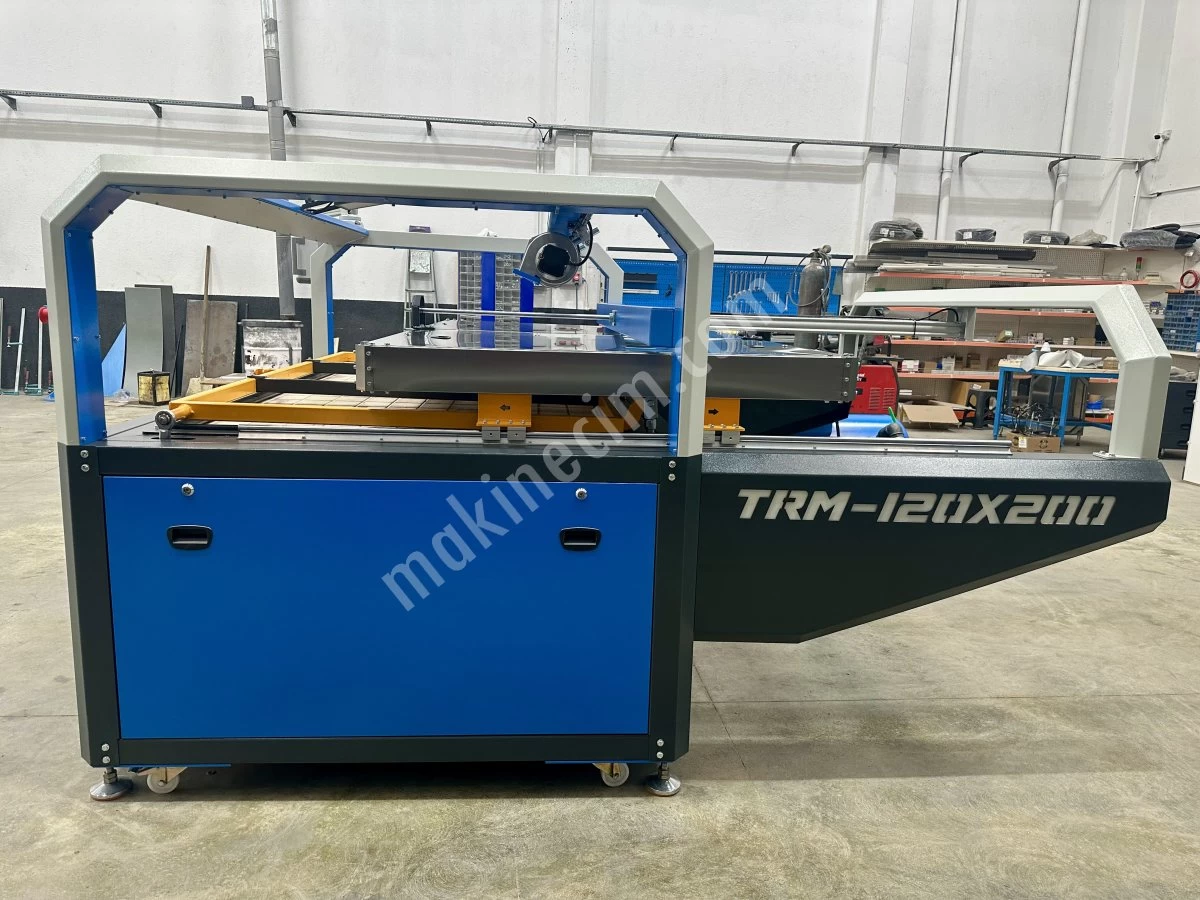

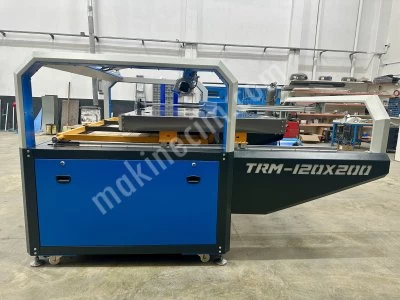

- Model: TRM-1100*2100

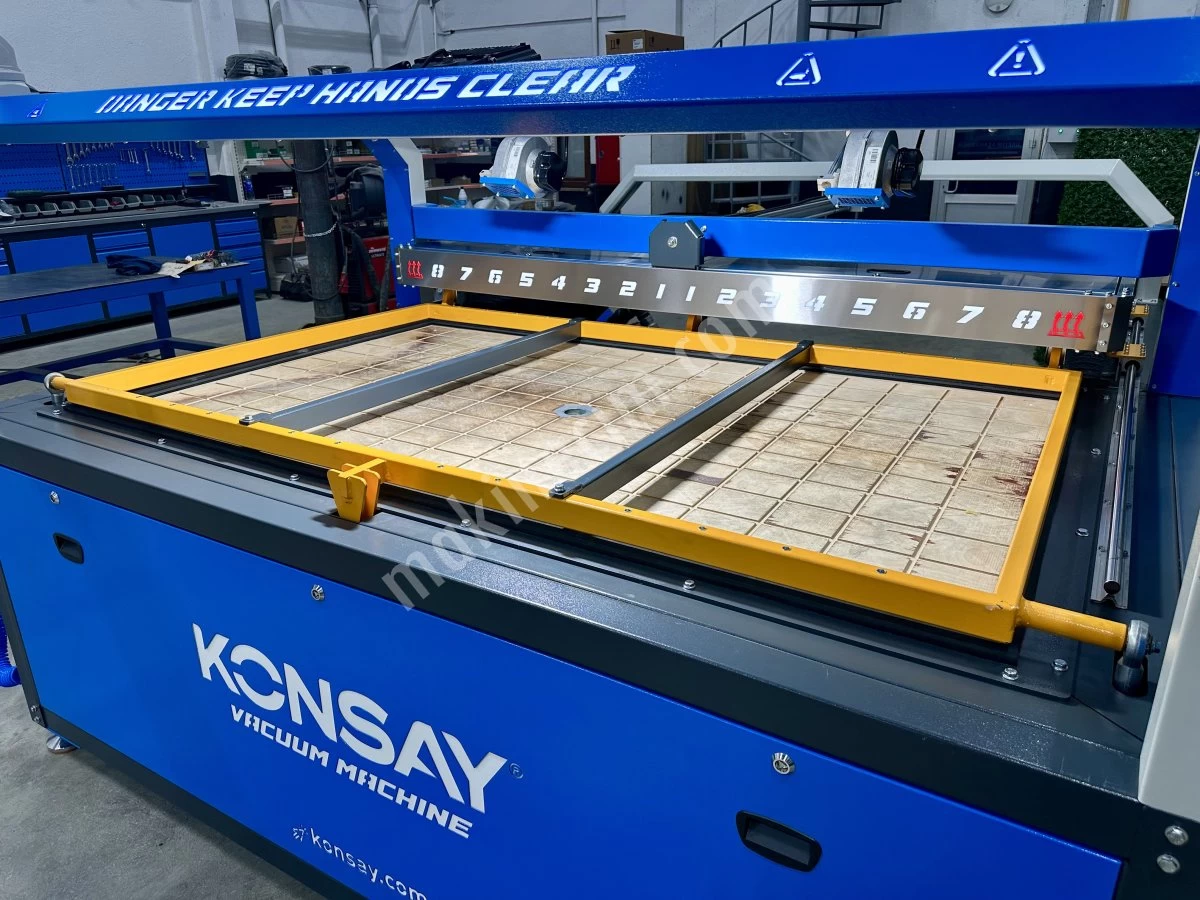

- Vacuum Chrome Sheet Table: 1100*2100 mm, dimensions adjustable.
- Adjustable Sheet Frame: Between 10 cm and 210 cm, prevents material waste.

- Resistance Features:
- 21 resistors, can be activated or deactivated as desired.
- Saves energy and allows heat control suitable for the product.
- Each resistor's active/passive status and temperature can be controlled analogically.

Working Modes:
- Thermocouple Mode: Operation option based on temperature.
- Time Mode: Operation option based on a set duration.
- Material Expansion Mode: Operation option based on material expansion detected by laser sensor.

Other Features:
- Scissor System: Facilitates material connection and tracking.
- Cooling Fans: Two cooling fans, adjustable as desired.
- Reverse Air Time: Makes material removal easier.

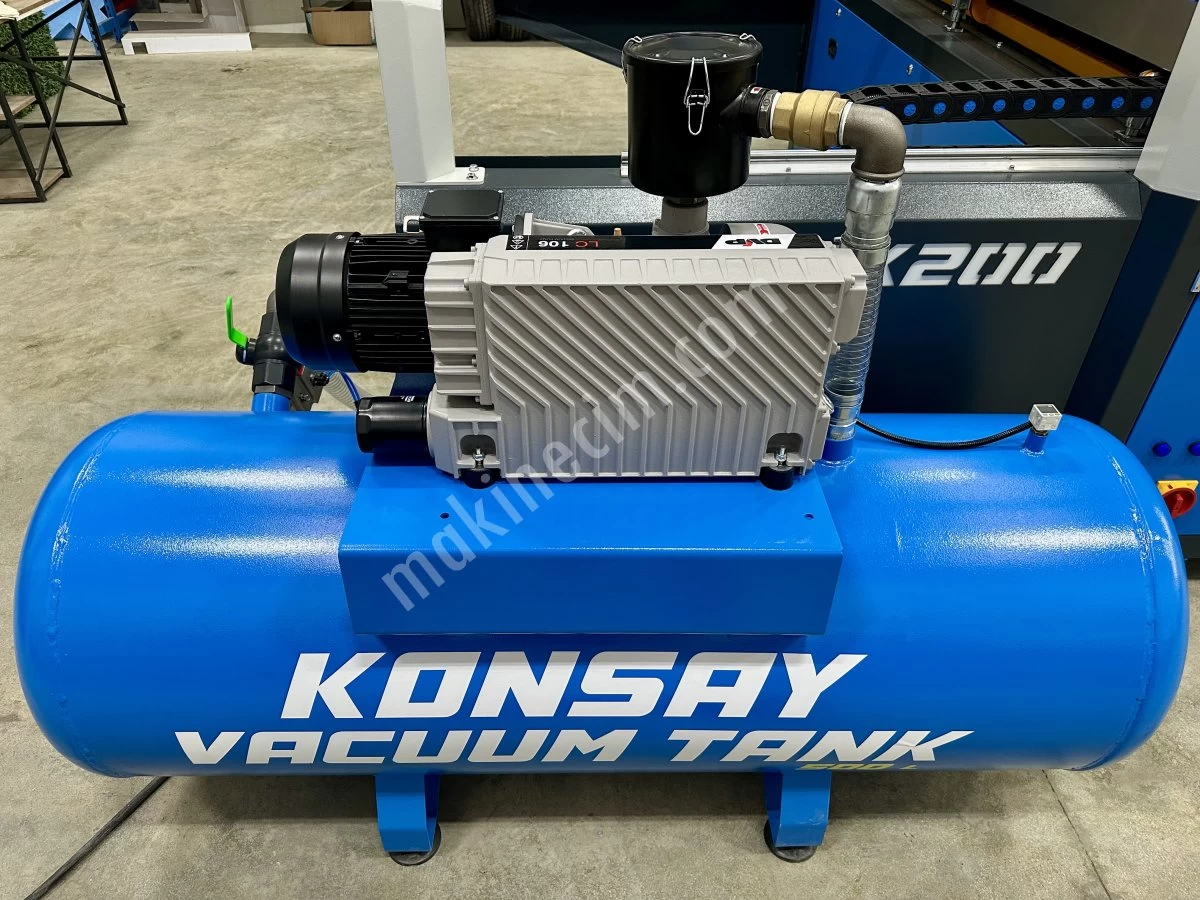

- Powerful Vacuum Pump: 150 m3 oil vacuum pump increases material shaping power.
- Long-lasting Material: Chrome material used in working areas of the machine is durable and long-lasting.

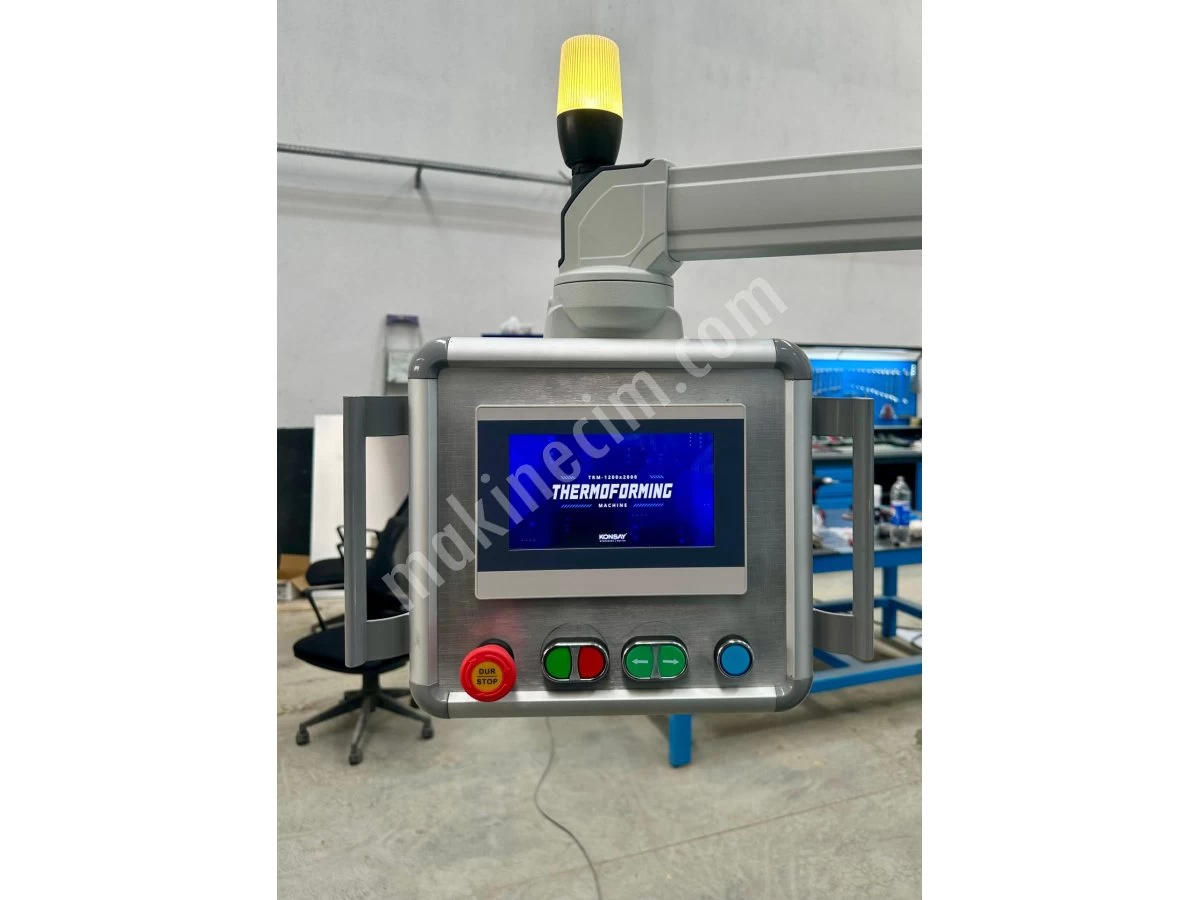

User-Friendly Interface:
- Manual and Automatic Operation: Adjustable according to user preference.
- Customer Recipe Recording System: Saves products for easy reuse.
- Product Counting: Displays number of products made and material quantity.
- Alarm System: Enables easy monitoring in case of faults.
- Movable Screen Arm System: Facilitates use.

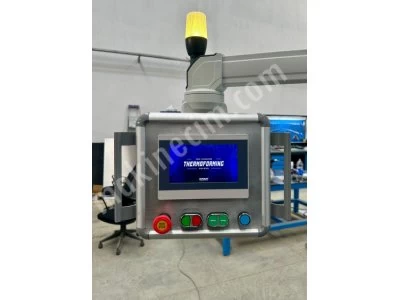

- Capacitive Screen: 10 inch capacitive screen provides ease of use.
