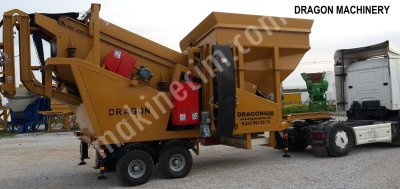

New Generation Mobile crushing plant dragon crushers

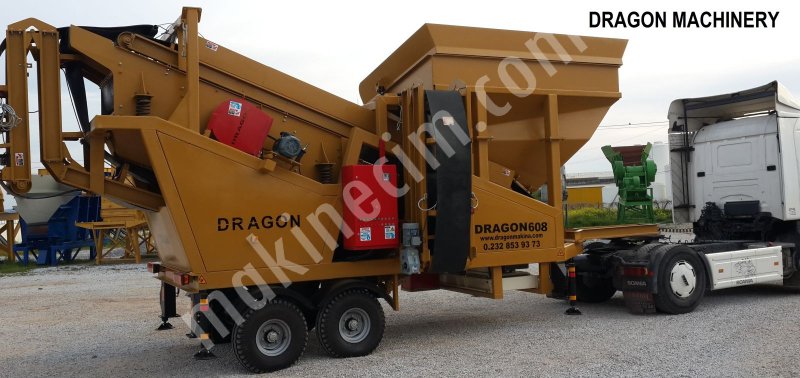

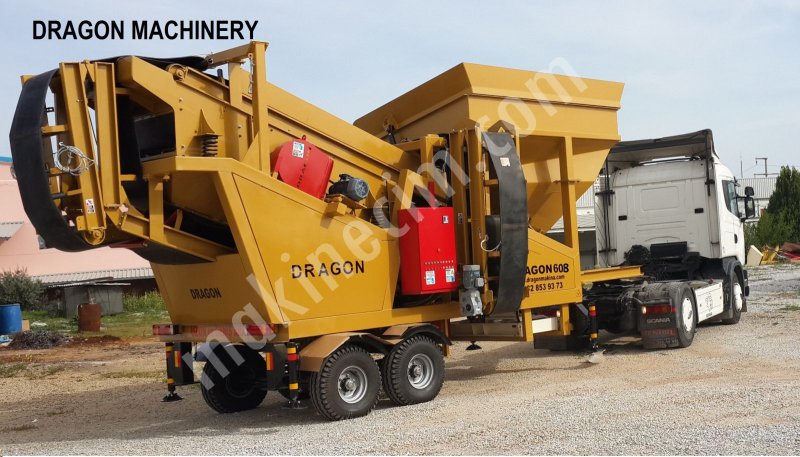

Mobile Screening Plants Dragon 608

Technical Specifications:

Hopper Volume: 6 m³

Hopper Grid: Hydraulic Tilting, Adjustable Slope, Remote Controlled,

Main Belt Conveyor 800x6200 mm, 7.5 kW Gear-Reducer

Special Screening Machine: Forced Vibratory, Eccentric Pivot, 4 Housings, 7.5 kW E-Motor

Screen 2 deck or 3 deck

Screen Dimension:  1300x3300 mm 1. Deck - 1300x3200 mm 2. Deck - 1300x3000 mm 3. Deck

Capacity: max. 130 m3/hour

3 or 4 Units of Collapsible Belt Conveyor Attached To The Plant;

Belt Conveyor for Over-Size Material: 600x6400 mm, 3.0 kW Drum Motor

Control Panel

Chassis: Tandem Axle, Air Brakes, Towing Eye and Taillights

It can be towed up to speed of 60 km/h on highway.

Total Weight : 14.000 Kg

**All our products are CE certified by the European Union.
