Mobile Screening Plants 614

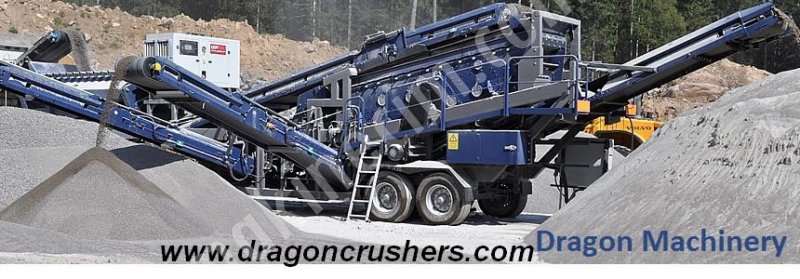

DRAGON 614 MOBILE SCREENING PLANTS

Technical Specifications:

•Hopper Volume: 9 m³

•Hopper Grid: Hydraulic Tilting, Adjustable Slope, Vibro-Motor, Remote Controlled

•Dosage Belt Conveyor: 1000x2700 mm, 4.0 kW Gear-Reducer, Frequency Inverter

•Main Belt Conveyor: 1000x7700 mm, 7.5 kW Gear-Reducer

•Special Screening Machine: Forced Vibratory, Eccentric Pivot, 4 Housings, 7.5 kW E-Motor

•Screen Dimension: 5000x1800 mm / 3 Decks

•Capacity: max. 220 m3/hour

•4 Units of Hydraulic Collapsible Belt Conveyor Attached To The Plant; Belt Conveyor for Fine Material: 800x7000 mm, 5.5 kW Drum Motor Belt Conveyor for Medium-Size Material: 650x6400 mm, 4.0 kW Drum Motor Belt Conveyor for Over-Size Material: 650x6400 mm, 4.0 kW Drum Motor

•Control Panel

•Chassis: Tandem Axle, Air Brakes, Towing Eye and Taillights

•It can be towed up to speed of 60 km/h on highway. Optional Properties:

Total Weight : 26.500 Kg

•Remote Controlled Crawler Set

• Piano Mesh Wire

**All our products are CE certified by the European Union.
