Mobile Screening Plants 609

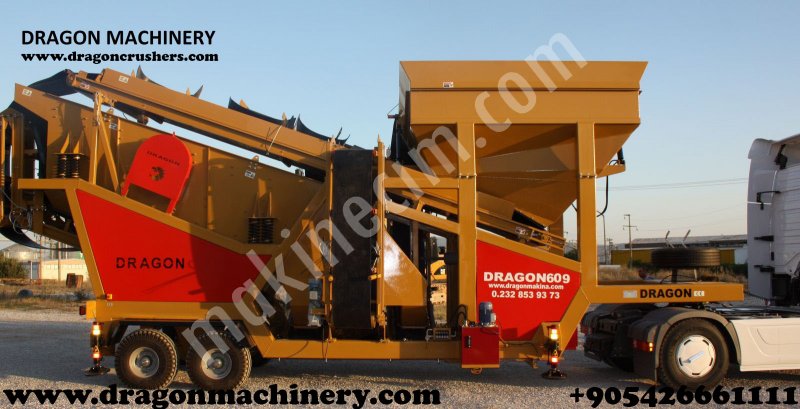

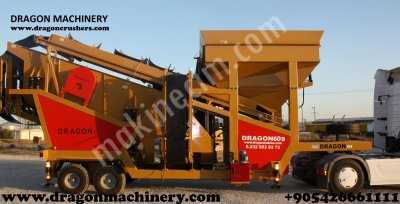

Mobile Screening Plants Dragon 609

Technical Specifications:

Hopper Volume: 6 m³

Hopper Grid: Hydraulic Tilting, Adjustable Slope, Remote Controlled,

Main Belt Conveyor 800x6200 mm, 7.5 kW Gear-Reducer

Special Screening Machine: Forced Vibratory, Eccentric Pivot, 4 Housings, 7.5 kW E-Motor

Screen 2 deck or 3 deck

Screen Dimension:  1500x4360 mm 1. Deck - 1500x4000 mm 2. Deck - 1500x3700 mm 3. Deck

Capacity: max. 130 m3/hour

3 or 4 Units of Collapsible Belt Conveyor Attached To The Plant;

Belt Conveyor for Over-Size Material: 650x6400 mm, 3.0 kW Drum Motor

Control Panel

Chassis: Tandem Axle, Air Brakes, Towing Eye and Taillights

It can be towed up to speed of 60 km/h on highway.

Total Weight : 18.000 kg

Approx fuel consumption 6 Lt / h

**All our products are CE certified by the European Union.
