Hydraulic Filter Press Machine For Sale

Filter Press Machine for Sale

The hydraulic filter press is a machine widely used for the sludge dewatering process. Filter presses are extensively used for sludge dewatering, wastewater treatment, oil purification, and solid-liquid separation processes in the medical, chemical, food, mining, and other industries.

The hydraulic filter press mechanism consists of a piston, piston rod, cylinder, hydraulic motor, and a piston rod connected to the pressure plate. The structural composition includes hydraulic motors, pumps, road valves, manometers, and a pressure relief valve (adjustable pressure) for fuel lines, which consists of a fuel tank.

Our filter press production is available in various sizes. It is manufactured in automatic, manual, and semi-automatic versions.

Our standard plate dimensions are as follows:

• At least 5 plates and a maximum of 40 plates can be attached to 250x250 mm dimensions.

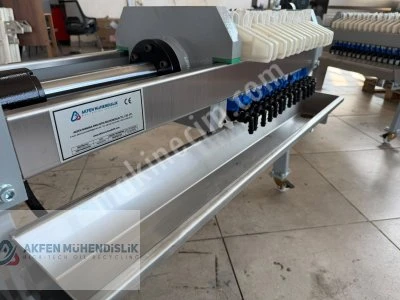

• Minimum 5 plates and a maximum of 40 plates can be attached to 400x400 mm dimensions.
• At least 5 plates and a maximum of 55 plates can be attached to 500x500 mm dimensions.
• At least 5 plates and a maximum of 60 plates can be attached to 630x630 mm dimensions.
• At least 5 plates and a maximum of 100 plates can be attached to 800x800 mm dimensions.
• At least 5 plates and a maximum of 100 plates can be attached to 1000x1000 mm dimensions.

General Usage Areas of the Filter

• Oil Filter Press
• Wastewater Treatment Filter Press
• Sludge Dewatering Filter Press
• Solid-Liquid Separation Filter Press
• Liquid Fertilizer Filter Press
• Chemical Filter Press
• Recycle Filter Press
• Painted Bathroom Filter Press
• Pharmaceutical Filter Press
• Mine Filter Press

We have second-hand filter presses in stock. Filters with plastic plates or cast plates are revised and ready for sale. Please contact us for detailed information.
