Fiber Laser Machine Table Top 20-30-50-100W

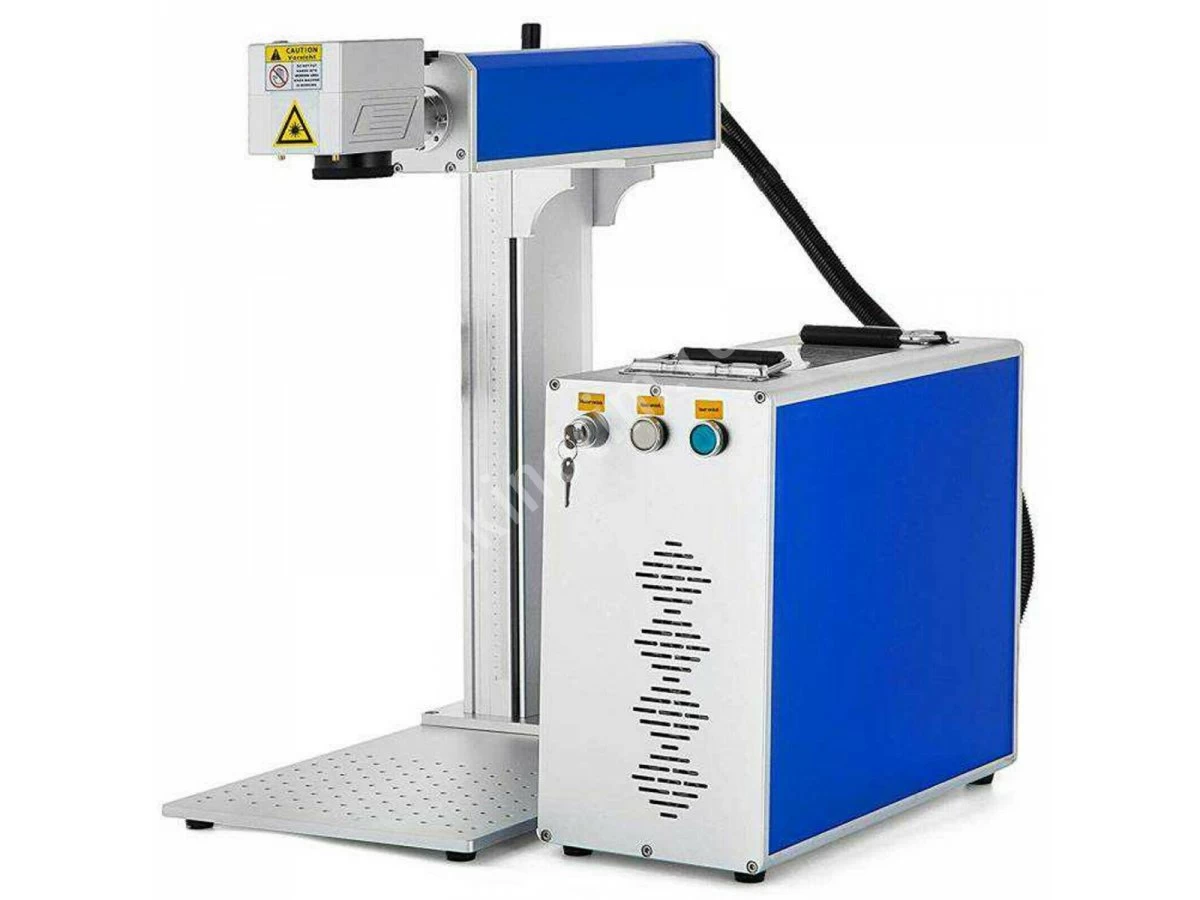

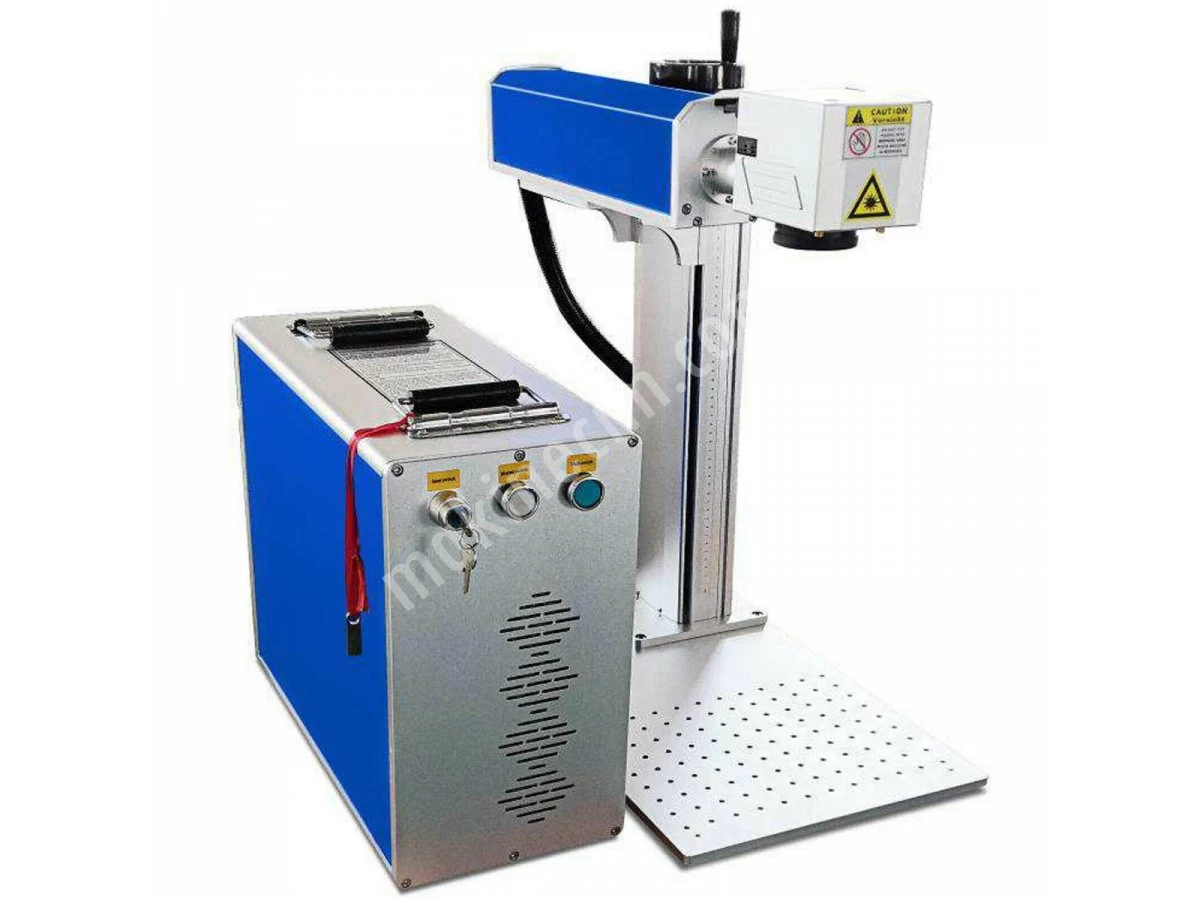

Table Top Fiber Laser Marking Machine

Abp laser table top fiber laser marking machine can engrave and engrave metal or different materials.

Metal, Stainless Steel, Carbon Steel, Alloy Steel, Spring Steel, Copper Plate, Aluminum Plate, Gold, Silver, Titanium, Leather, Wood, Ring and other plate products.

Painted acrylic, Density Board, Plastic, Acrylic acid, Rubber, Bamboo, Marble, Painted Glass, TPU (Thermo Plastic Poly Urethanes) Writing Desk tools, Accessories, Precision Instruments, Watches, Glasses, Jewelry Accessories, Auto Parts, Plastic Buttons, Construction materials, PVC Pipes and other industries products.

We can optionally increase the laser power between 20w, 30w, 50w, 100w according to your demand.

2.The higher the laser power, the deeper the marking depth.

3.The lens determines the working surface area of the machine.

4.The overall size of the field lens is 100 x 100mm, 200 x 200mm, 300 x 300mm 400 x 400mm.

5.The larger the overall laser power, the larger the selected area lens needs to realize.

6. The machine is equipped with two rotary spindles, one is a rotary spindle with a diameter of 50 mm, which is widely used for marking rings and metal pens.

7.Laser goggles prevent or reduce laser damage to the human eye. Laser glasses are comfortable, beautiful, and highly effective and safe glasses.

8.Optical safety performance fully meets GJB1762-93 standard.

9.Suitable for various laser devices with visible light transmittance over 70% and optical density 5.0 or more.

Features:

Brand : Raycus - German - International famous brand, wide selectivity in working wavelengths, ultra low amplitude noise, high stable and ultra long life

Lens and reflectors: Singapore - Fast and High precision

Galvanometer laser scanning head: Germany - abroad popular brand, fast response ability 0.7ms, can realize high-speed marking and high precision.

Working area : 100 * 100 mm / 200 * 200 mm / 300 * 300 / 400 * 400

Control Software: EZCAD 2.0

Laser Power : 20w / 30w / 50w /100w

Marking Line Speed: 7000 mm/s

Minimum Line Width: ± 0.01 mm

Supported Graphics Format: AI, BMP, DST, DWG, DXF, DXP, LAS

Minimum Character: 0.15mm * 0.15mm

Working Voltage: 220 V / 50 HZ, 110 V / 60 HZ

Repeatability Accuracy : ± 0.01 mm

Laser Wavelength: 1064 nm

Cooling mode: Air cooling
