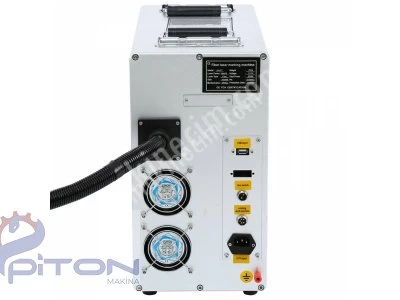

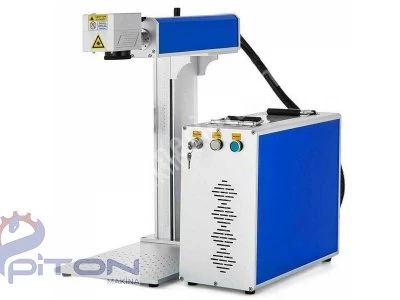

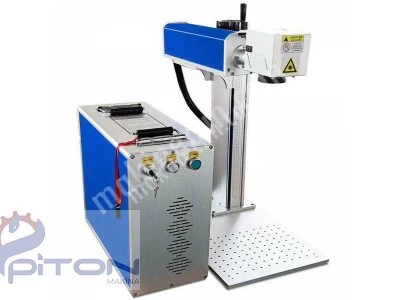

Laser Marking Machines Same Day Payment At The Door and Installation Included!
year
TRAINING - SHIPPING AND INSTALLATION IS FREE
You can contact us for detailed technical information, references and sales information.
We would be happy to welcome you in our Istanbul Office
2 YEARS WARRANTY
Raycus QS Source - JCZ Ezcad2 Control Board ( Turkish ) - Sino Galvo
12 Months Installment Opportunity for Credit Card
usage areas
All Types of Metals (Silver, Gold, Platinum, Copper, Aluminum etc.) Key Restoration, MDF, Parquet, Leather, Many Plastic Types, Circuit Boards, Plate Cards, Promotional Products, Mirrored and Acrylic Plexiglasses, Phone Cases, Painted Products , Bank Cards, Carbon Based Materials etc.

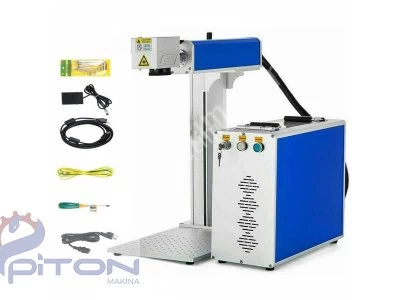

GENERAL FEATURES AND INSTALLATION CONTENT
More than 15,000 Patterns and Drawings
Professional Drawing Program
Goggles
Foot Pedal
MAX Q Series Source
175X175 MM Working Area
Manual Focus
Sino Galvo
Tale Model
100,000 Hours Laser Life
Low Energy Consumption
Turkish Software
24/7 Free Service and Spare Parts Support All Over Turkey
Get Price for Divisor and Additional Equipment
5 Year Spare Parts Warranty
DETAILED TECHNICAL INFORMATION
Laser Power: 20W
Supported Graphics Format: PLT, BMP, JPG, PNG, AI, PCX, TGA, ICO, DXF
Beam Quality: M2<2
Power Stability : (8)<+1% rms
Pulse Repetition Frequency: 20KHZ---100KHZ
Consumption Power: <800W
Minimum Character: 0.1mm
Laser Wavelength: 1064nm
Working Area: 175x175mm
Whole Machine Power: 500W
Cooling Way: Air Cooled
Operating Voltage: 110/220V + 10%, 50/60Hz
Ambient Operating Temperature: -35°C + 50°C
Red Marker: Dual Laser Marker
Galvanometer: Sino Galvo
Laser Source: Raycus QS Series
Control Card: EzCad2 Turkish Software
