Evakim Paint Sludge Scraper & Treatment System For Water-Wash Spray Booths

EVAKIM Paint Sludge Scraper & Treatment System for Water-Wash Spray Booths

EVAKIM Paint Sludge Scraper & Treatment System is designed and manufactured for the separation and removal of paint sludge from the circulating water of industrial water-wash paint spray booths.

During liquid painting operations, paint overspray that does not reach the workpiece is captured by the booth's water-wash system. If this residual paint is not properly treated and removed, it can accumulate in tanks, pumps, piping and water circulation systems, resulting in reduced system performance and increased maintenance requirements.

In the EVAKIM system, the circulating booth water is conditioned using appropriate paint detackification and flotation chemicals. The paint overspray loses its adhesive properties, is separated from the process water and floated to the surface.

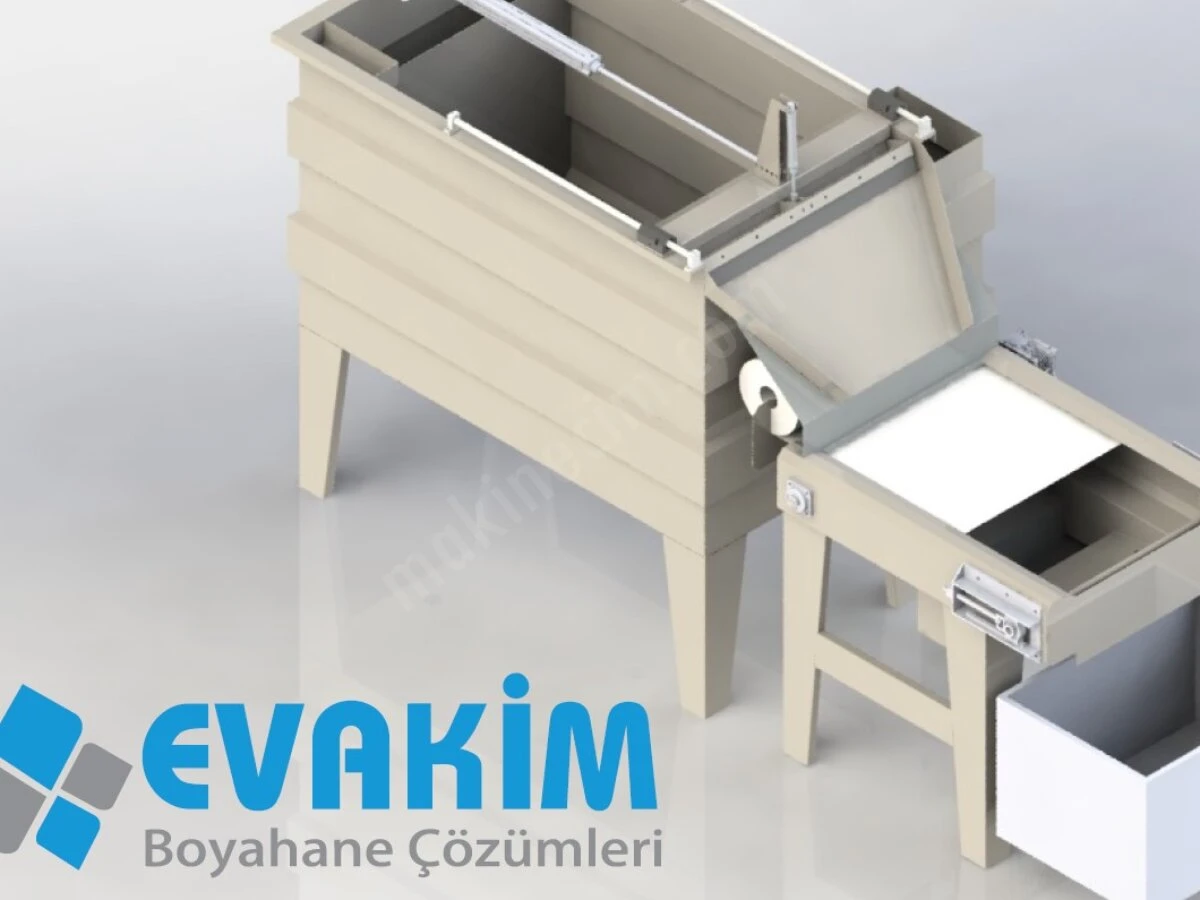

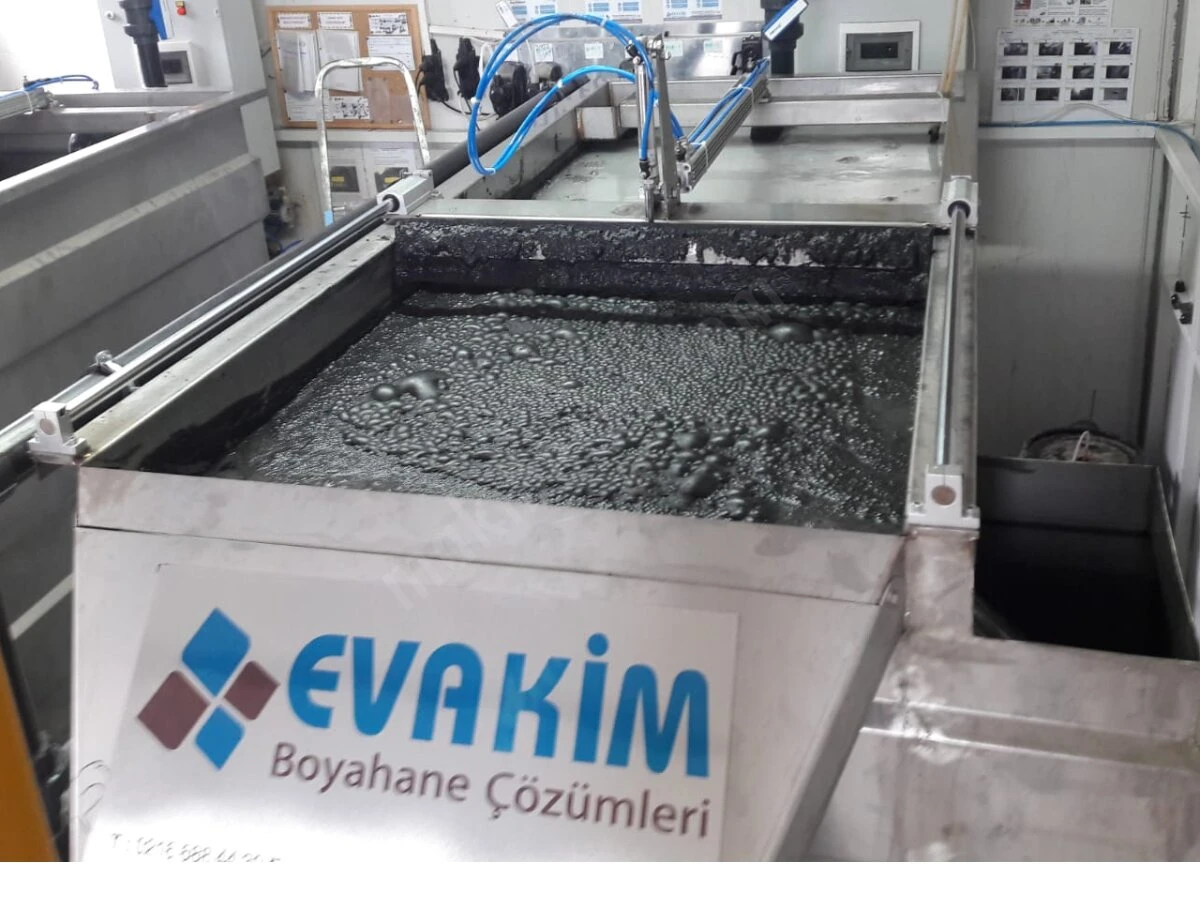

The floating paint sludge is then continuously removed from the water surface by the mechanical scraper system and discharged into a sludge collection area.

This process helps reduce paint sludge accumulation inside the booth tank, maintain stable water circulation conditions and extend the usable life of the process water.

Main Features

• Designed for industrial water-wash paint spray booths
• Automatic and continuous paint sludge removal
• Mechanical removal of floated paint sludge
• Suitable for integration with existing spray booth water circulation systems
• Suitable for new paint shop installations
• Helps reduce sludge accumulation in booth tanks
• Helps protect pumps, piping and water circulation equipment
• Reduces manual tank cleaning and maintenance requirements
• Heavy-duty construction for industrial operation
• Easy access for cleaning and maintenance
• Optional automatic chemical dosing system
• Custom-designed dimensions and capacity according to application requirements

Integrated Chemical Treatment

EVAKIM also manufactures the process chemicals used for water treatment in water-wash paint spray booths.

Depending on the application, the complete treatment system can include:

EVAC – Paint Detackifier
EVAFLOC – Paint Sludge Flotation Agent
EVAP – pH Control Agent
EVAF – Silicone-Free Defoamer

Automatic chemical dosing equipment can also be integrated into the system.

By combining the mechanical sludge removal equipment with the chemical treatment process, EVAKIM can provide a complete and integrated paint booth water treatment solution rather than a stand-alone sludge scraper.

Applications

EVAKIM Paint Sludge Treatment Systems are suitable for industrial liquid painting operations including:

• Automotive and automotive components
• Plastic parts
• Metal products
• Agricultural machinery
• Industrial equipment
• General industrial painting lines

Custom Engineering

Each system is engineered according to the technical conditions of the existing or new paint booth, including water tank capacity, circulation system, paint consumption, coating type and expected sludge generation rate.

The system can be retrofitted to existing water-wash spray booths or integrated into newly designed manual, automatic or robotic painting lines.

EVAKIM has been designing and manufacturing water treatment systems for water-wash paint spray booths since 2006 and also manufactures the specialty process chemicals used in these systems.

Price: Determined according to system capacity, tank dimensions, paint consumption, automation level and chemical dosing equipment. Please contact us with your paint booth specifications for technical evaluation and a project-specific quotation.
