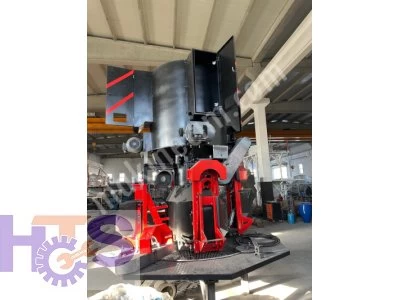

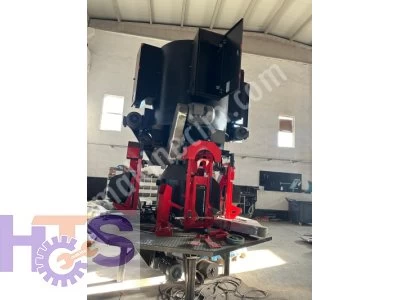

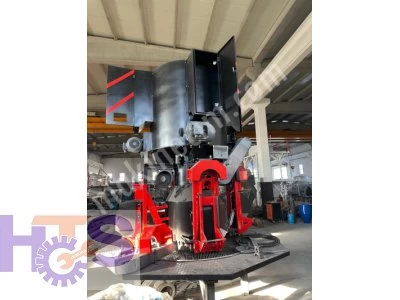

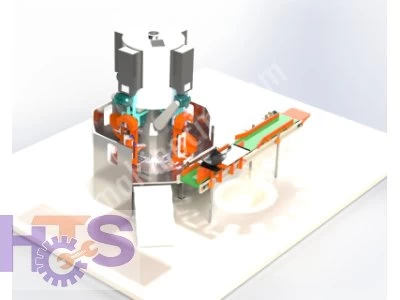

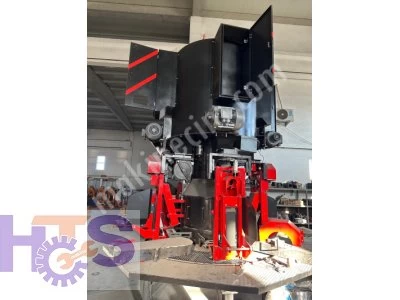

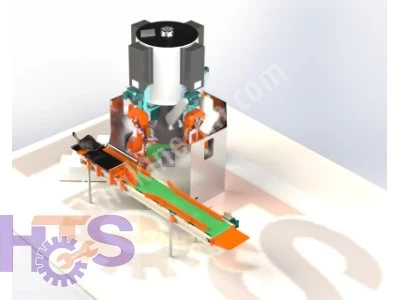

Construction Chemicals Rotary Type Packaging Machine

ROTARY PACKAGING MACHINE
Rotary filling machine, which is being made within the body of HTS GROUP MAKINE, is made as 4-6-8-10-12. There are two variants of these, and the air type is recommended for thin materials. Turbine type is recommended for products such as normal (cement, sand, adhesive).
These machines are suitable for filling valve bags. Feeding is done by rotary valve or auger. Electronic weighing is done. The device checks the previous bag and accordingly slows or speeds up the filling speed. An empty bag is placed at the first station. This process is done automatically or manually by the operator. 360° rotating fast and slow filling takes place. When the bag comes to the unloading station, it leaves the bag on the belt and finally the filling takes place.

• Ease of maintenance
• Small footprint and compact
• lower costs
• Product change (Different bagging or different material filling feature)
• Reporting feature
• It offers the most suitable solution for the packaging of fine and ground products with its medium and high density fluidity.
• There are models with filling nozzles from 4 nozzles to 12 nozzles, depending on the capacity requirement.
• Machine filling speed varies according to the density and fluidity of the product.

TECHNICIAL SPECIFICATIONS

• It is produced as 4-12 nozzles according to the capacity.

• Driver Controlled Adjustable Rotation Speed

• 10-50 kg Filling Range

• ±/-1% Filling Accuracy

• Two Stage Filling System

• Dust Suction and Filtering System

• Filling controller with special software

• Hardox Turbine Blades

• Heavy Duty body

• Nozzle Cleaning System

• Pneumatic Control System

• Adjustable Bag Height

SECTORS USED

• Plaster

• Lime

• Calcite

• Cement

• Construction chemicals

• Chemical fertilizers

• Granular
