Chiller Water Cooling 10,000 Kcal/H Capacity

From the Cooling Expert...

Chiller water cooling units with PT, CE, and TÜV certifications.

READY FOR DELIVERY FROM STOCK...

Our devices are certified with CE, PT, and TÜV.

• 4 Hp Scroll compressor
• 10,000 kcal/h Cooling Capacity
• Friterm Air-Cooled Condenser
• Long-lasting immersion type evaporator
• 2-year warranty

PRICE IS REPRESENTATIVE

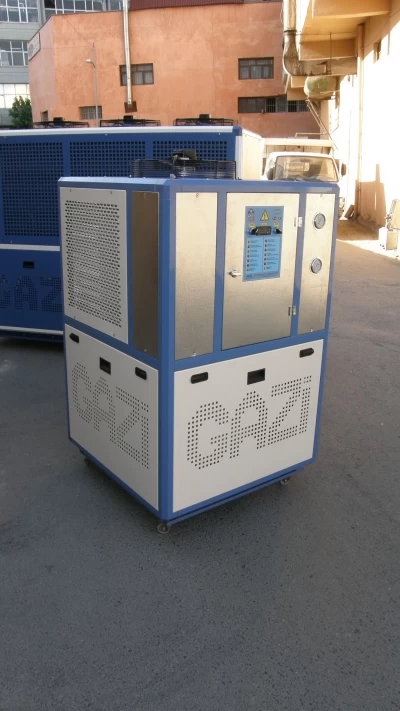

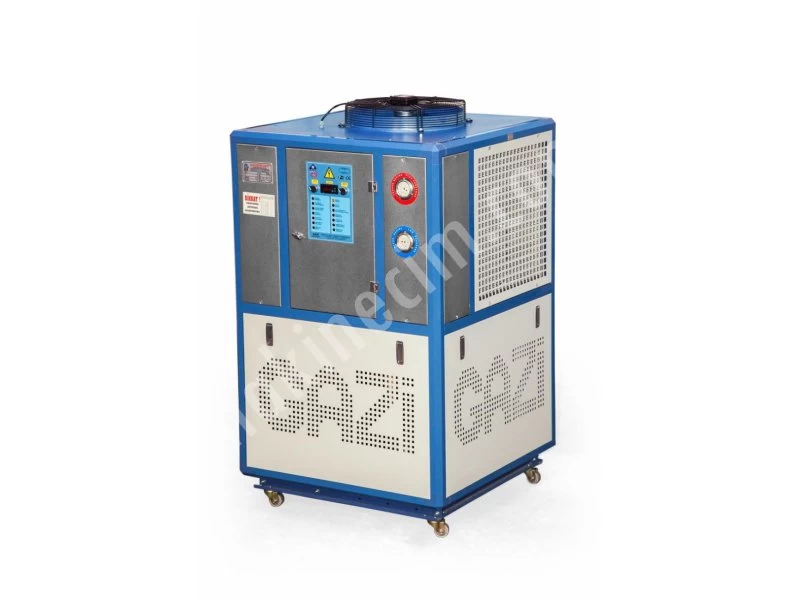

Gap-SU 004

Air-Cooled Package Type Chiller

10,000 kcal/h cooling capacity.

General Features:

• Hermetic Scroll compressor
• High-efficiency shell&tube or immersion type evaporator
• Stainless steel water tank AISI 304 SS
• Low and high pressure switch
• Phase protection relay
• Thermostatic expansion valve
• High-efficiency air-cooled condenser, enhanced heat transfer surface with 4-row internally grooved copper tubes

Technical Specifications

• Scaled and Measured Drawings
• Documents

• Cooling Capacity: 10,000 kcal/h / 11.6 kW
• Refrigerant: R407 C
• Operating Range: +5˚C/+35˚C
• Condenser: Condenser equipped with aluminum fins over copper pipes, designed with a large surface area for high ambient temperatures to increase cooling efficiency.
• Evaporator: Immersion type coil
• Compressor: Hermetic Scroll DAIKIN
• Compressor Power: 4 Hp / 2.9 kW
• Number of Fans: 1 unit x 450mm
• Pump: Sumak SM5
• Pump Flow Rate: 1 m³/h 30 mWC
• Pump Pressure: 2-3 bar
• Pump Power: 0.75 kW
• Tank Capacity: 250 L (304-grade stainless steel, insulated)
• Electrical Components: LG

SOME OF OUR REFERENCES

KAPTANOĞLU PLASTİK - MERSIN - 2014

KAPTANOĞLU PLASTİK meets the cooling water needs of its injection devices with our GYS 080 chiller with screw compressor.

CAN KIMYA - MERSIN - 2014

CAN KIMYA, producing under the TAMTUT brand in the Mersin – Tarsus region, has preferred our long-lasting Gap-Su series chillers for 14 years.

ZEKİLER GIDA - AFYON - 2014

ZEKİLER GIDA meets its +4˚C cold water needs in production with our GYS 100 screw compressor chiller.

UNTAD - AKSARAY - 2014

UNTAD meets its +4˚C cold water needs in production with our Gap-Su 015 chiller.

DENKİM - DENİZLİ - 2014

DENKİM meets its cooling needs in production with our Gap-Su 225 chiller.

EVEREST A.Ş - GEBZE - 2013

EVEREST İNŞAAT A.Ş meets its cooling needs in production with our Gap-Su 215 chiller.

TRAKYA POLATLI GLASS INDUSTRY - ANKARA - 2014

Meets its cooling needs on the production line with 2 units of our ER-04 mini chillers.

ÖRNEK DIAMOND SAW - DİLOVASI - 2014

Meets its cooling needs with 2 units of our ER-02 mini chillers.

EDEM ICE CREAM - IZMIR - 2014

EDEM ICE CREAM meets the cold water needs of its Telme ice cream machine with the ER-04 mini chiller.

KALE KILIT - ISTANBUL - 2013

Kale Kilit meets the cooling needs of its barrel machines with the ES-02 mini chiller.

OTSA AUTOMOTIVE - ISTANBUL - 2013

Meets its production cooling needs with our Gap-Su 025 chiller.

REŞAT CONSTRUCTION - ANKARA - 2011

Meets its cooling needs with our Gap-Su 215 chiller.

KAYALAR PRES LTD. CO./K.A.S - ISTANBUL - 2012

Kayalar Pres Ltd. Co. meets the cooling needs of its extruder and injection lines with our GYS 080 screw chiller. Since 2001, our Gap-Su 008 chiller has been in service for their Flex group production line.

HACISAYİD - ISTANBUL - 2012

Hacı Sayid chose the ER-04 mini chiller and GSK 532 cooling tower to meet production cooling needs.

MANÇİ FOOD - ISTANBUL - 2013

Kayalar Pres Ltd. Co. meets the cooling needs of its extruder and injection lines with our GYS 080 screw chiller. Our Gap-Su 008 chiller from 2001 continues to serve the Flex group production line.

AKA AUTO - BURSA - 2004-2014

AKA AUTOMOTIVE meets the cooling needs of robots, fixed and hanging type spot welding machines, and cathodic painting line with our chillers since 2003.

• 8 units of Gap-Su 004 (for hanging, fixed, and robot spot welders)
• 1 unit of Gap-Su 225 (for cathodic line)
• 1 unit of Gap-Su 012 (2004 hanging spot)
• 1 unit of Gap-Su 008 (2013 robot & fixed spot line)

VITAL KIMYA - ISTANBUL - 2014

VITAL KIMYA procured its chiller from our company.

SIEMENS - ISTANBUL/KARTAL - 2004

VITAL KIMYA procured its chiller from our company.

ADG PROFILE - ISTANBUL - 2014

In 2014, ADG Profil Kauçuk San. ve Tic. Ltd. Şti. selected a 20,000 kcal/h Gap-Su 008 chiller group for their production line.

TEVERPAN MDF PANEL INDUSTRY - ÇERKEZKÖY

Meets the cooling needs of production machinery at its Çerkezköy and Veliköy plants with our chillers.

• 2 units of Gap-Su 225 (125,000 kcal/h chiller)
• 2 units of Gap-Su 025 (62,000 kcal/h chiller)
• 1 unit of Gap-Su 212 (62,000 kcal/h chiller + AHU for panel room cooling)
• 1 unit of Gap-Su 015 (40,000 kcal/h chiller + AHU for panel room cooling)
• 2 units of Gap-Su 012 (30,000 kcal/h chiller for Veliköy plant)
• 1 unit of Gap-Su 212 (62,000 kcal/h chiller for Veliköy plant)

SERSÜT - KARS - 2013

Ser-Süt A.Ş chose the GYS 240 chiller for its project to reclaim whey into the economy.

BALSU - SAKARYA

Balsu meets its cooling needs with the Gap-Su 225 chiller. A +8˚C cold room was also installed by our company.

ÇELPİ ÇELEBİ PLASTIK - ISTANBUL

Çelpi Çelebi Plastik met its cooling needs with Gap-Su 015 (2003) and Gap-Su 215 (2005). Additionally, their Russia facility uses 2 units of Gap-Su 225.
