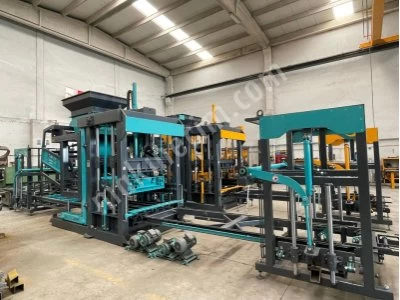

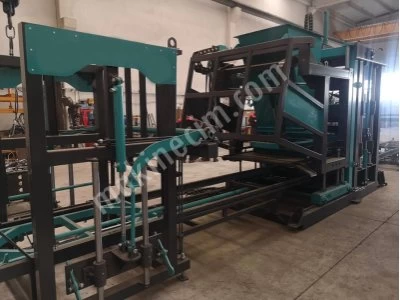

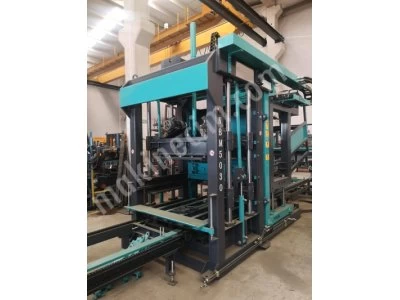

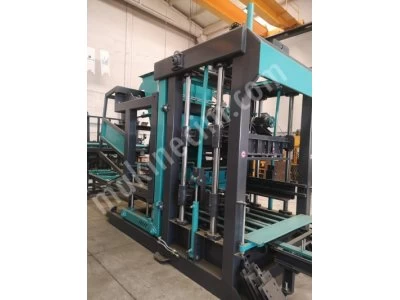

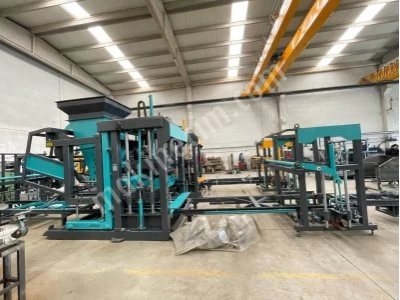

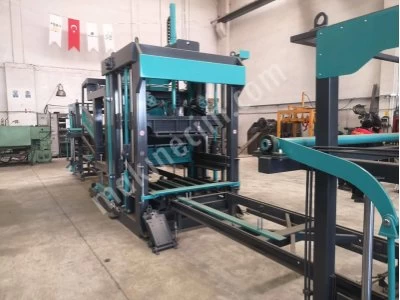

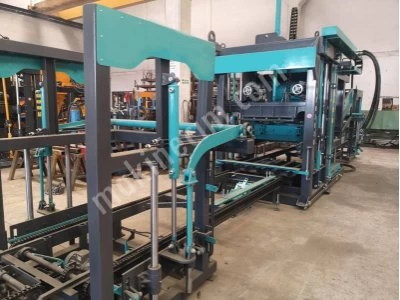

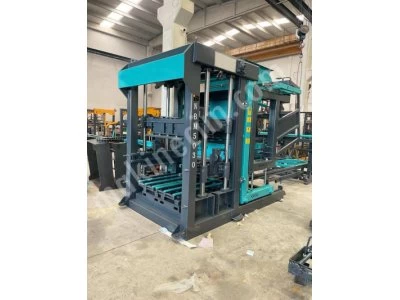

Bs-30 Briquette Making Machine (Concrete Block Machine) Fast Delivery

Price : Ask For Price
Ad Code : M-445627
Ad Type : For Sale - New
Views : 13
Date Updated : 12 Jul 2024
Production Type : Special Production
Brand : Constmach
Model : Bs-30 Briket Yapma Makinası
Production Year : 2024
1
year
CONSTMACH Konkasör Tesisi ve Beton Santrali
Türkiye - İzmir - Kemalpaşa
Halilbeyli Bayosb Anadolu Cad. No:1 Bağyurdu Organize Sanayi Bölgesi Kemalpaşa / İzmir / TÜRKİYE
Ad Description

Concrete Block Making Machine (Brick Machine) For Sale - Call Us 24/7

The BS-30 concrete block making machine revolutionizes the production of building materials efficiently. This advanced technology machine combines innovation with speed and reliability, perfectly facilitating the production process of interlocking blocks and bricks.

At the core of the BS-30's capabilities is its ability to produce 30 interlocking pieces per pallet in just 30 seconds and 10 block pieces in just 23 seconds. These features make it a powerhouse in productivity. The powerful hydraulic pump provides a consistent performance with a flow rate of 60 liters per minute and is supported by a compact yet powerful 0.18 kW motor with a cooling capacity of 90 liters per minute.

Precisely engineered, our machine features a Tellus 46 brand hydraulic system with a 250-liter oil capacity, supported by an operating pressure of 120 bar. This is complemented by a vibration compression power of 15,000 kg, designed to effectively compress materials.

Structurally, the BS-30 is built for durability; measuring 2.2x7x2.5 meters and weighing 9,000 kg, the machine is equipped with a 650 kg lock mold produced through oxygen cutting and CNC milling, and a 500 kg block mold featuring a corrosion plate with a laser cutting system.

Control is simplified through a Schneider PLC system with a 7-inch touchscreen, providing easy operation and precise control over every aspect of the production process. The durability of our machine is further enhanced by the mixer section, made of corrosion-resistant ST52 steel sheet metal, ensuring long-term reliability under all conditions.

The BS-30 concrete block making machine not only delivers superior performance but also promises a smooth operational experience, making it an ideal choice for anyone looking to enhance their production capabilities without specifically mentioning the construction industry. Invest in the BS-30 today and step into a new era of building material production where efficiency meets innovation.

BS-30 Brick Making Machine Technical Specifications

Machine Features

  • Interlock Quantity and Press Time: 30 interlocks, 30 seconds press time
  • Block Pieces and Press Time: 10 blocks, 23 seconds press time
  • Pump Power: 60 lt/min, Efficiency: 0.98
  • Hydraulic Cooler Capacity: 90 lt/min, 0.18 kW
  • Hydraulic System Brand and Oil Capacity: Tellus 46, 250 lt
  • Machine Operating Hydraulic Pressure: 120 bar
  • Vibration Compression Power: 15,000 kg
  • Machine Dimensions and Weight: 2.2 x 7 x 2.5 m, 9000 kg
  • Lock Mold Features: Oxygen cutting and CNC Milling, 650 kg
  • Block Mold Features: Corrosion plate, laser cutting system, 500 kg

Stacking Robot

  • Pump Power: 21 lt/min x 2
  • Robot Dimensions and Weight: 1.45 x 3 x 1.5 m, 1500 kg

Electrical Control

  • PLC, Module, and Screen: Schneider, 7-inch touchscreen
  • Thermal and Conductor Brand: Schneider (France), Weid Moeller (Germany)

Mortar Conveyor

  • Dimensions and Weight: 8 m length, 70 cm width, 1000 kg

Mixer

  • Mixer Capacity: 7500 dm³
  • Mixing Process: 1200 kg sand, 190 kg cement, 75 kg water; Average time: 2.5 minutes
  • Corrosion Protection Sheet: 15 mm thickness, ST52 steel
  • Mixer Motor Power and Torque: 18.5 kW, 40 rpm x 2 pcs, 11500 Nm

Sand Conveyor

  • Dimensions and Weight: 10 m length, 60 cm width, 1000 kg

Aggregate Hopper and Weight Band

  • Hopper Capacity and Weight: 15 m³ x 4 pcs, 6200 kg
  • Valve Type and Power: Vibration system, 0.5 kW x 4
  • Belt Dimensions and Weight: 10 m length, 60 cm width, 1000 kg

Cement Silo and Equipment

  • Silo Capacity and Weight: 45 tons, 5500 kg
  • Silo Dimensions: Diameter: 2250 mm, Height: 11500 mm
  • Cement Weight Features: 300 kg
  • Load Cell Brand and Capacity: ESIT, 500 kg
  • Additional Features: Safety valve, 24 m² open area filter (airjetplus)
