Box Type Oven (Electrostatic Powder Coating Oven)
year

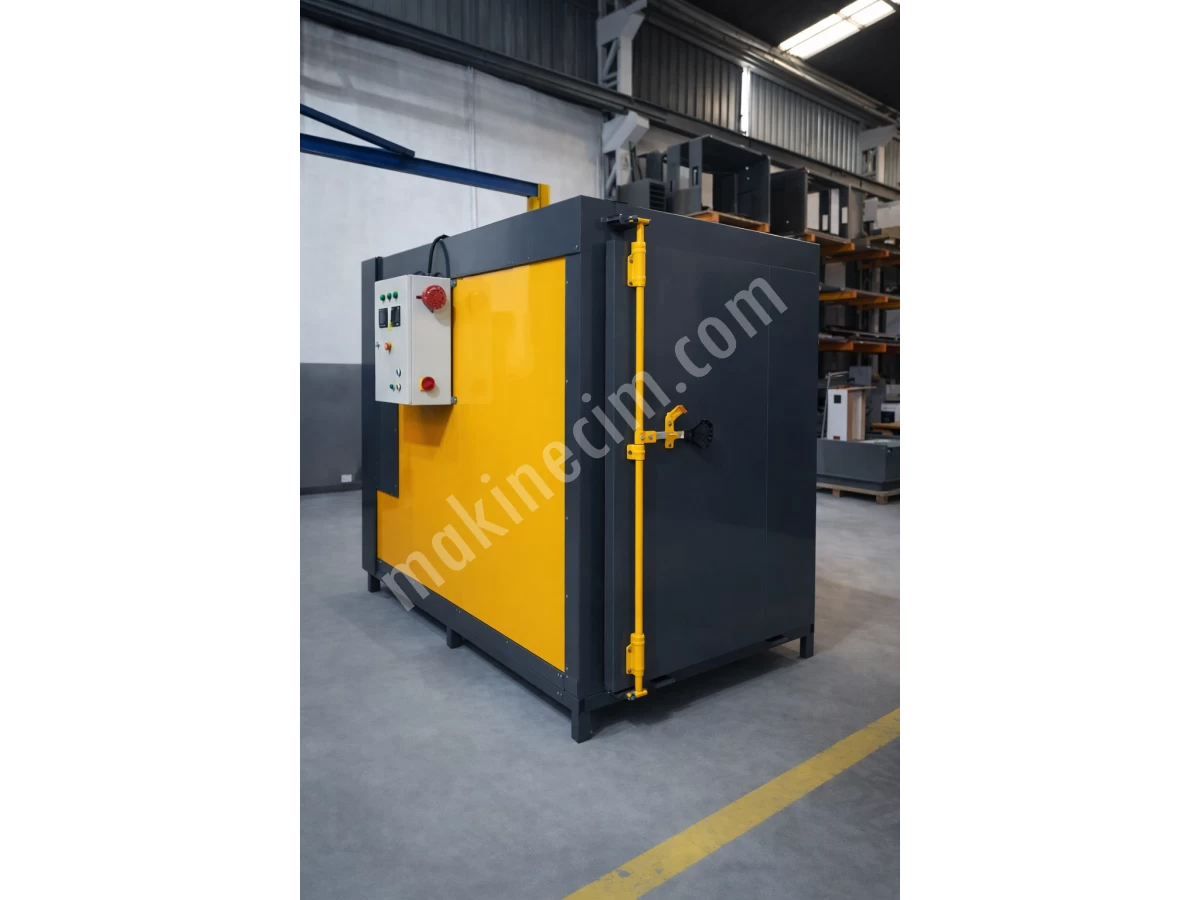

Spray Metal SM-BF Box Type Electrostatic Powder Coating Oven
-
Chassis in sandwich panels with Box Type Oven

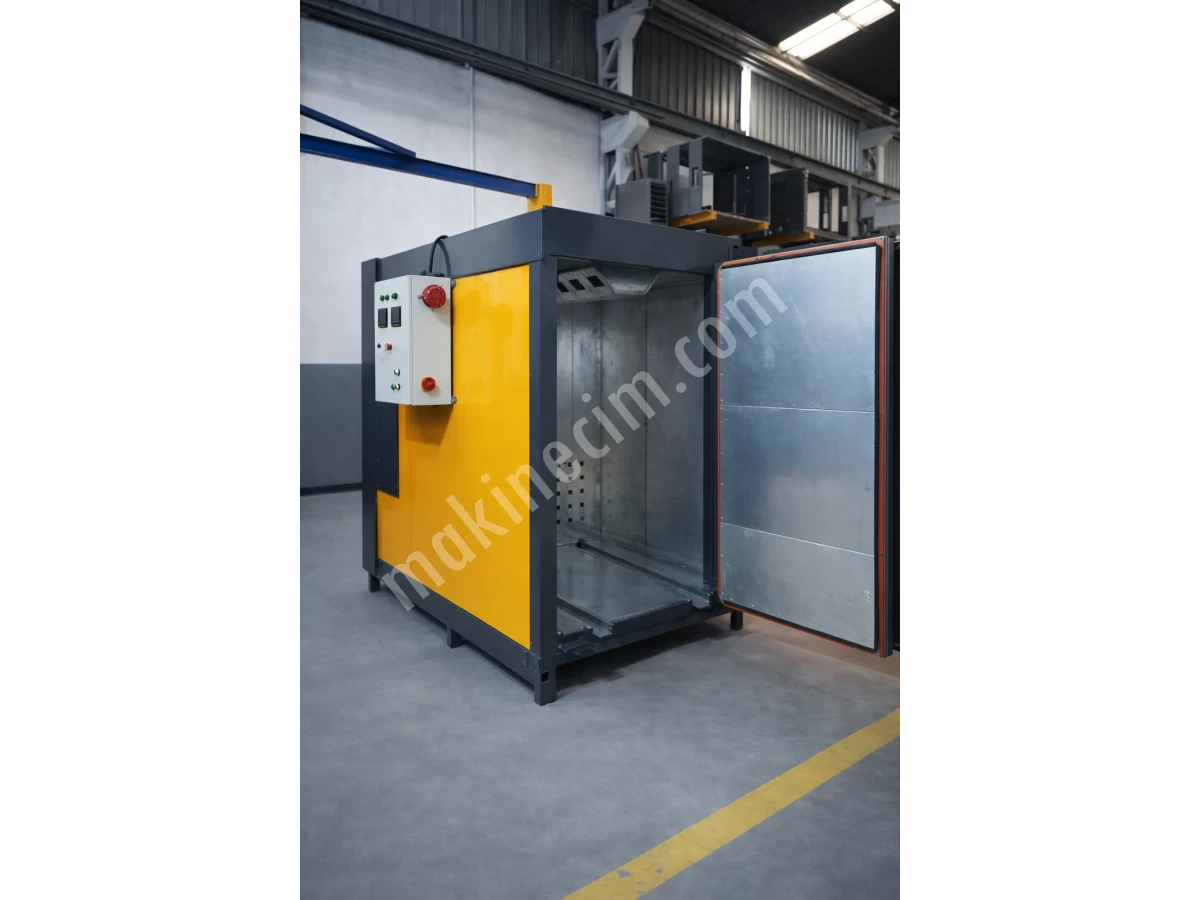

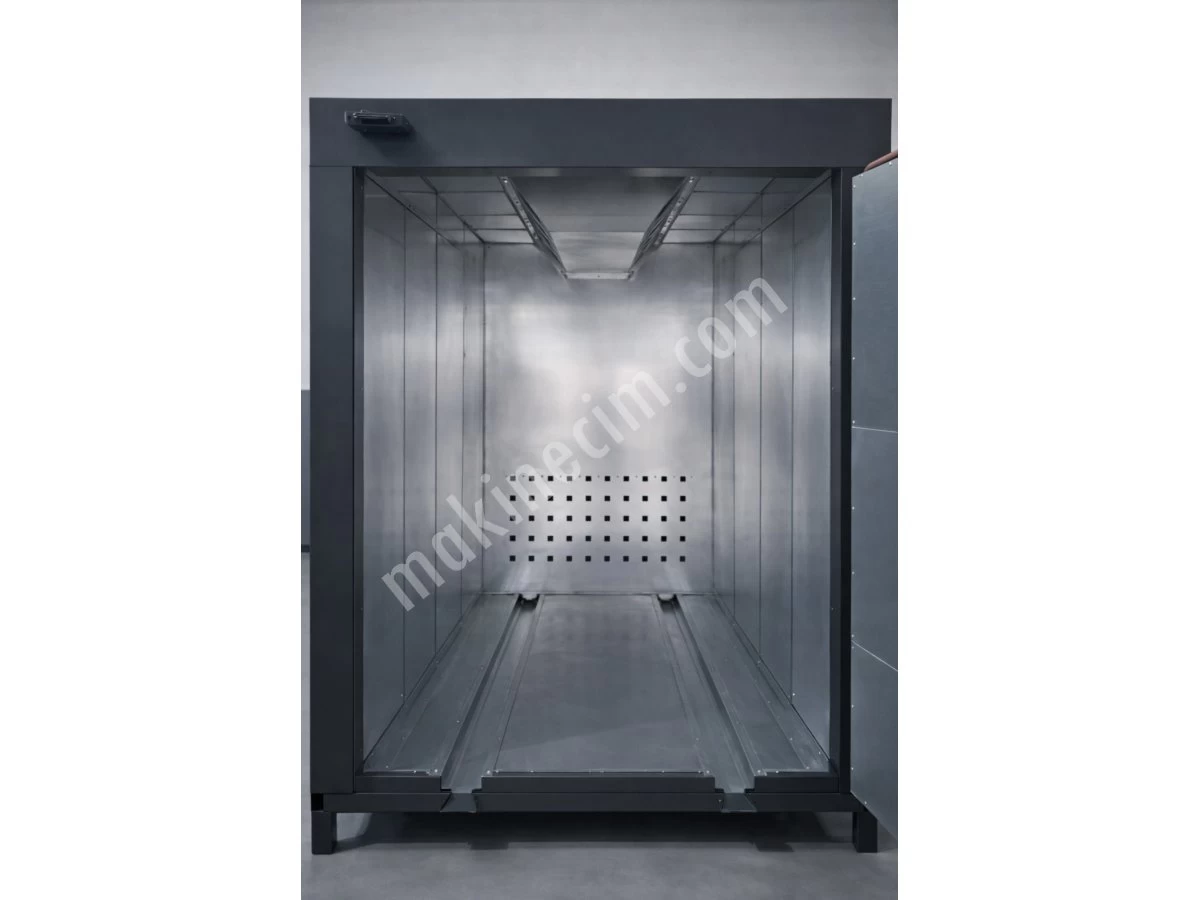

It is manufactured in disassembled form. Inside of Baking Oven
1.2mm Galvanized part coming to the outer part 1.2mm ST
37 It is manufactured from Dyed Hair. Oven outer sheet electrostatic powder
It is coated with paint and corrosion resistance is increased. -
Baking oven panels 150mm as standard
insulated with insulating material. Interior of oven panels
The part coming to the part is 50mm Rock Wool, the part coming to the outer part is 200mm glass.
The wool is compressed and insulated. This insulation in the baking oven
Due to its characteristic, heat losses are lower than ambient temperature ( + – 10)
does not rise above it. In this way, our cooking ovens use less fuel.
consumes and does not heat the working environment more than necessary. -
Air circulation in the baking oven
There is a radiant type fan that provides

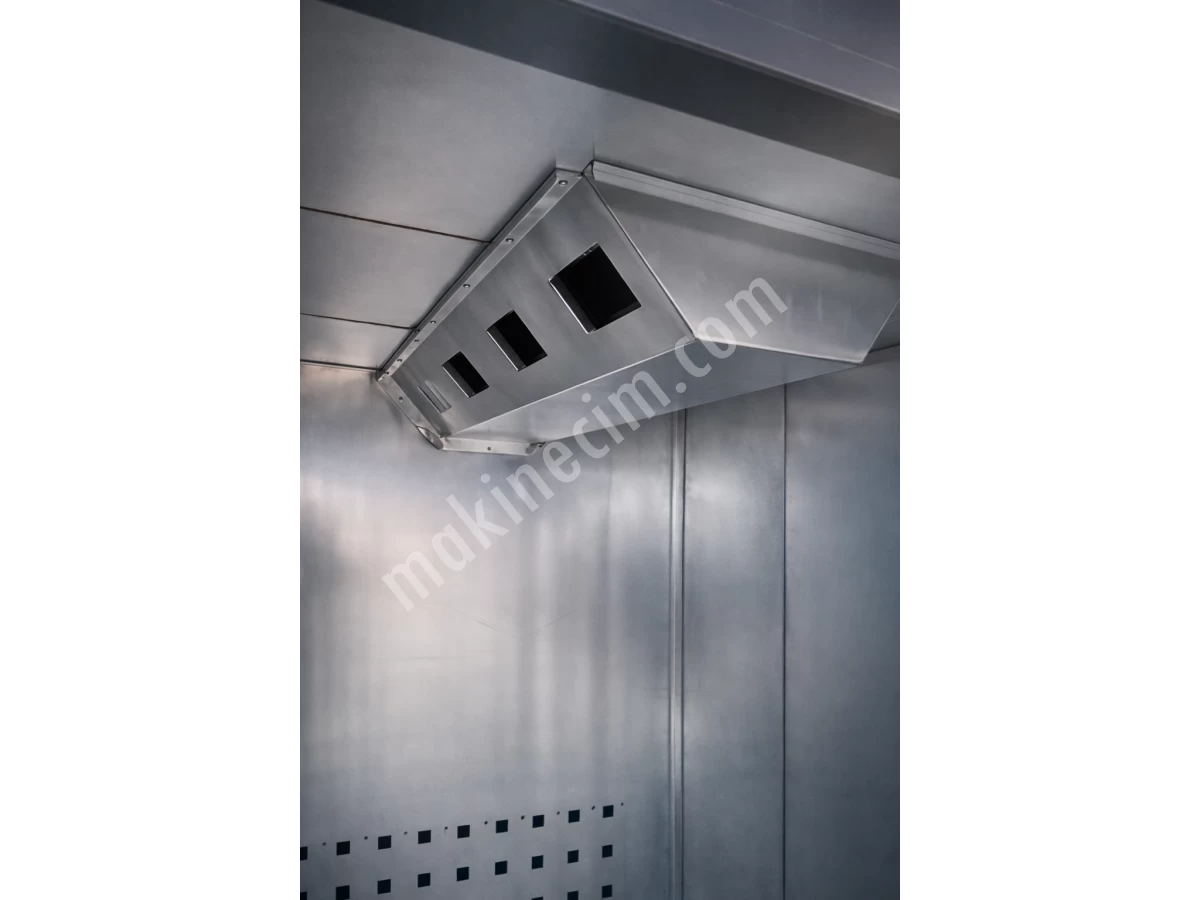

and inside the furnace thanks to the vents placed on the channels.
homogeneous heat distribution is achieved. -
The temperature control is placed inside the oven.
done by means of a thermocouple. Box Type Ovens, desired
When it reaches the temperature, it signals automatically and the cooking oven
0 – 230 by means of the digital clock on the temperature control panel.
It can be adjusted up to ºC.
HEATING UNIT
Heating Unit (Thermoblock) maximum efficiency minimum fuel consumption
is designed on the basis of Heating mounted on the back of the oven
Unit (Thermoblock) Keeps the oven temperature from ambient temperature to +250 ºC.
can extract. Heating Unit made of 310 quality stainless steel
It is manufactured and durable up to 1450 ºC.
Heating Unit (Thermoblock) is placed inside the combustion chamber and surrounded
It is insulated with 150mm rock wool and glass wool. combustion chamber,
There is an intervention cover against the malfunctions of the Heating Unit (Thermoblock).
Distribution of heat in the combustion chamber into the furnace with Circulation Fans
is provided.
