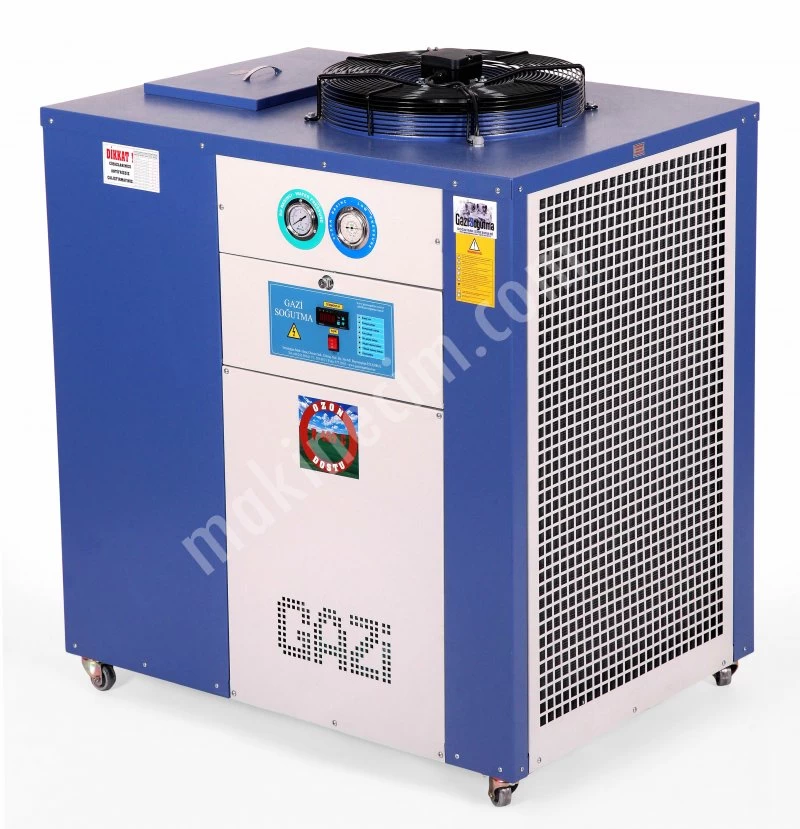

Air Cooled Mini Chiller 17.4 Kw Cooling Capacity

Türkiye - İstanbul - BAYRAMPAŞA

Güntaş Sanayi Sitesi RAMİ/İST

General Specifications;

It can easily be moved with built-in wheels wherever needed
The system consists of cooling water pump, water tank and piping system, which makes straightaway implementation just after connecting to the machine with water inlet-outlet.
In the system running, water supplied only once thus scale and contamination risks are eliminated
Since it is a compact equipment and has optimized physical dimensions, it doesn’t occupy much space in the facility and can be placed near or next to the machine to be cooled

UTILIZATION AREAS;

Jaw and transformer cooling of portable or fixed type of spot welding machines
Seam welding machines for jaw and transformer cooling
Oil cooling for hydraulic press machines
Cooling of wire erosion machines
Cooling of process water in industrial bread making
Acid (galvanic) coating plants for keeping the acid temperature at operation level
Laboratories and testing equipments

Cooling Capacity	:	15.000 kcal/h / 17,8 kW
Refrigerant Fluid	:	R407 C
Operation Range	:	+5˚C/+35˚C
Condenser	:	Condenser is made of aluminium finned copper tube. Its surface area has been increased by considering high ambient temperature, thus cooling efficiency is increased.
Evaporator	:	Submerged type
Compressor	:	Hermetic type scroll or Hermetic type piston
Compressor Power	:	6 Hp / 4,4 kW
Number of Fans	:	1ad. x 500mm
The Pump	:	German Wilo
Pump Flow Rate	:	1 m³/h 30 mSS
Pump Pressure	:	2-3 bar
Pumping power	:	0,50 kW
Tank Volume	:	350 LT (304 quality stainless and insulated)
Electrical components	:	Schneider Electric
