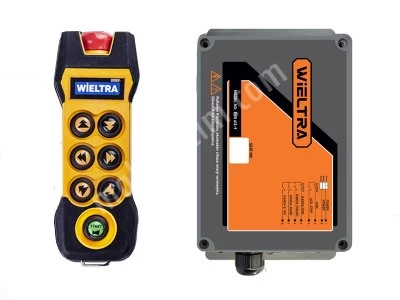

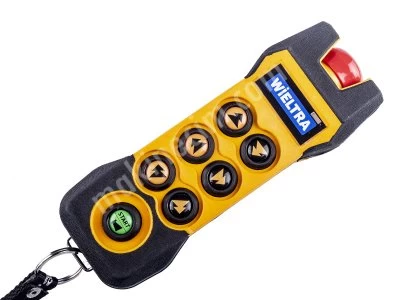

6 Button Double Speed Domestic Production Crane Control

Remote control systems can be integrated with overhead cranes, gantry cranes, monorail cranes and all other systems.

As a result, we have sales all over Turkey, both during the initial installation and at the point of supplying the crane remote control that you are currently using but has failed.

Remote technical support is provided for the connection of these controls.

6 Button Double Speed Set

• Model : EVO612
• Button Speed : Double Speed
• Supply : 12V / 24V / 220V / 380V
• Production Year : 2021
• Origin : Turkey

Transmitter Unit General Features

• Operating Temperature Range: -35 to 80 C˚
• Plastic body structure: GFR
• Protection Class: IP65
• Weight (Including Battery): 325 Gr
• Low Battery Warning: YES
• Working Distance : 150 meters
• Radio Frequency Power: 10dbm
• Number of Channels: 80
• Command Response Time: 30 ms
• Average Battery Consumption: 8mA
• Dimensions: 180*60*46 mm

Receiver Unit General Specifications

• Operating Temperature Range: -35 to 80 C˚
• Plastic body structure: ABS
• Protection Class: IP65
• Weight : 1.35 kg
• Working Voltage: 180-230V AC 50 Hz
• Relay Contacts: 5A 250VAC/30VDC
• Dimensions: 210*123*56 mm
