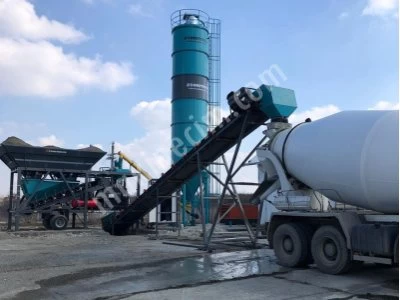

45 M3 Mini Mobile Concrete Batching Plant Mobile and Compact Type

Price : Ask For Price
Ad Code : M-445599
Ad Type : For Sale - New
Views : 9
Date Updated : 12 Jul 2024
Production Type : Special Production
Brand : Constmach
Model : Model Adı
Production Year : 2024
1
year
CONSTMACH Konkasör Tesisi ve Beton Santrali
Türkiye - İzmir - Kemalpaşa
Halilbeyli Bayosb Anadolu Cad. No:1 Bağyurdu Organize Sanayi Bölgesi Kemalpaşa / İzmir / TÜRKİYE
Ad Description

Mobile Concrete Batching Plant For Sale - Call Us 24/7

The mobile and compact concrete batching plant represents the pinnacle of innovation, offering maximum mobility with minimal investment.

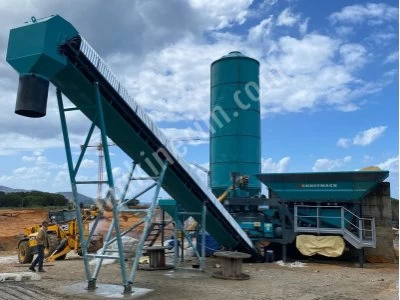

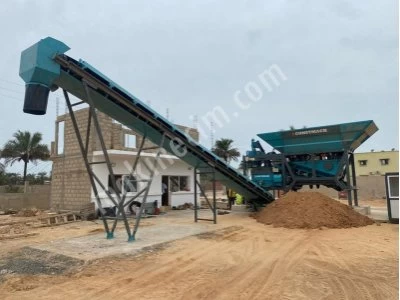

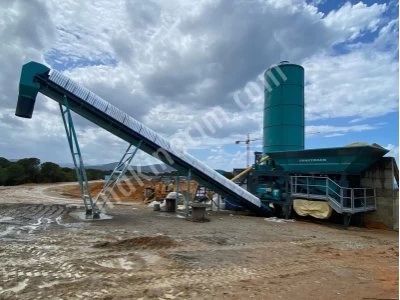

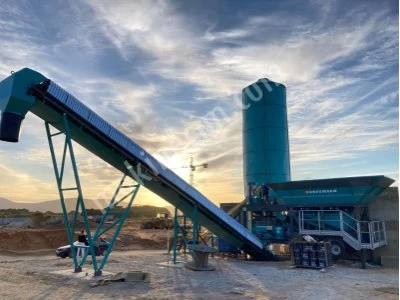

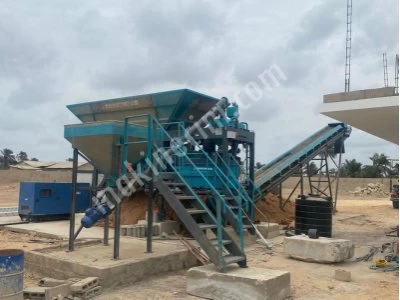

Unlike traditional mobile concrete batching plants, the MOBICOM 45 has a unique feature of being entirely transportable within a single 40 ft. container. This unique characteristic greatly simplifies logistics, allowing the entire plant to be transported by just one truck without the need for extensive site preparation or a mobile crane. This plant remains in the same configuration during both production and transportation, ensuring a smooth transition and allowing for continuous operation without interruptions.

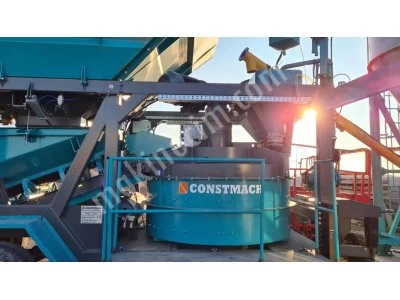

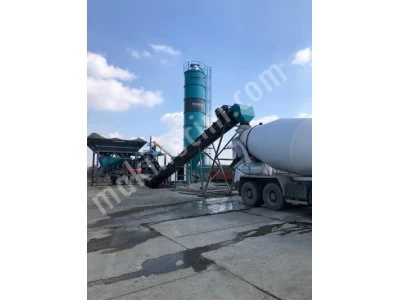

MOBICOM 45 is not limited to easy portability. Its design ensures that operational efficiency is never compromised. Since the mixer is positioned close to the ground, the produced concrete is directly transferred to a transit mixer via a conveyor belt; this accelerates the flow from production to application, increases efficiency, and reduces labor requirements.

The technical specifications of MOBICOM 45 include a production capacity of 45 m³/h and a compact space requirement of only 200 m², making it an ideal solution when space and efficiency are critical. With a total motor power of 55 kW and a required generator capacity of 80 kVA, it delivers robust performance in various environments. With different mixer options such as Pan, Single Shaft, and Planetary, MOBICOM 45 offers flexibility to meet diverse project requirements.

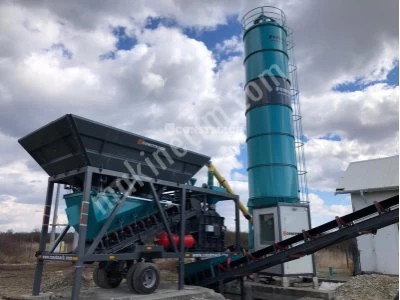

Additionally, MOBICOM 45 is designed with sustainability and cost-effectiveness in mind, offering cement silo capacities ranging from 50 to 200 tons suitable for various project scales and durations.

Mobicom 45 Mobile Concrete Batching Plant Technical Specifications

GENERAL FEATURES

  • Production Capacity: 45 m³/h
  • Transport Dimensions: 8 (L) x 2.3 (W) x 2.5 (H) meters
  • Weight: 9.5 tons
  • Total Motor Power: 55 kW
  • Required Electrical Generator: 80 kVA
  • Mixer Options: Pan, Single Shaft, Planetary
  • Space Required for Operation: 200 m²

TECHNICAL SPECIFICATIONS

  • Aggregate Storage Bunker: 4 x 6 m³
  • Aggregate Weighing Bunker: 1 m³
  • Aggregate Transfer Conveyor: 800 x 15,250 mm
  • Mixer Fresh Concrete Volume: 0.75 m³
  • Cement Weighing Bunker: 450 kg
  • Water Weighing Bunker: 300 liters
  • Additive Weighing Bunker: 20 liters
  • Air Compressor: 300 liters, 4 kW
  • Cement Silo: Capacity options from 50 to 200 tons
  • Control Type: FULLY AUTOMATIC
