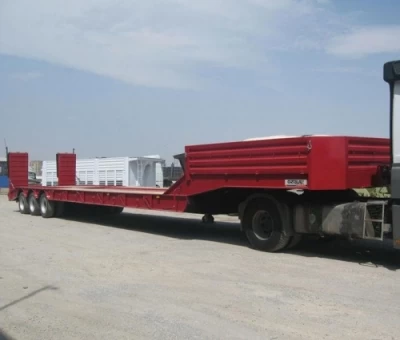

3-Axle Lowbed

3-Axle Lowbed Technical Specifications

Chassis

• The Lowbed chassis consists of four “I”-section beams made of 20 mm x 150 mm (ST 52.3 A grade) top and bottom flanges and 10 mm ST 52.3 web plates, welded using a submerged arc welding machine.
• The chassis is reinforced throughout its length with 160 NPI crossbeams for additional durability.

Axles

• Equipped with 3 axles, each with a 12–14–16 ton capacity.
• Air suspension, leaf spring, and tandem suspension system.
• Brake linings and heavy-duty brake levers conform to TSE standards.

Suspension

• Parabolic double-leaf Z springs, multi-leaf springs, and tandem suspension.

Front Axle Lift

• Front axle lifting system controlled from the cabin.

Tires and Rims

• 235/70 R 17.5
• 245/70 R 17.5
• 295/60 R 22.5
• 12 R 22.5
• 315/80 R 22.5 — total of 12 + 1 tires.

Electrical System

• Complies with SAE standards and TÜV general regulations.
• Electrical connection via a 7-pin socket from the towing vehicle.
• Equipped with required traffic signal and lighting systems on both sides.
• Rear includes park, stop, signal, and license plate lights, trailer reflectors, and amber side indicators.

Brake System

• EC-standard 71/320/EWG FF braking system.
• Automatic brake adjusters, 2 emergency and 4 service brake chambers.
• 2S/2M ABS system.
• Swedish-patented Ruffels coupling system prevents potential air leaks in the trailer.

King Pin

• 2" (DIN 74080) or 3½" (DIN 74083) king pin made of 42 CRMO4 steel.

Support Legs

• Front: 24-ton mechanical trailer support legs.
• Rear: Manual support legs.

Rear Ramp

• Manufactured from 160 NPU profile, air-hydraulic piston-operated rear legs.

Floor

• Sides and wheel arches made of diamond-patterned steel sheets and hardwood flooring.

Paint

• Chassis and superstructure are washed, sandblasted, and painted in an oven using a 2+1 coat acrylic paint system.

Color

• Determined according to customer preference.

Standard Accessories

• 2 x 7 extension brackets (300 + 300 mm)
• 2 x 7 load lashing rings
• 1 x toolbox (under the gooseneck)
• 2 x side protection rails
• 1 x wheel chock and holder
• 1 x 60-liter plastic water tank

Optional Features

• Pool-type lowbed loading area
• EBS brake system
• European axle group and related equipment
• Aluminum rims
• Double spare wheel holder
• Fire extinguisher cabinet and cylinder
• Optional tire brands
• Optional RAL color codes
