2-Axle Lowbed

2-Axle Lowbed Technical Specifications

Chassis

• The Lowbed chassis consists of four "I"-section beams made from 20 mm x 150 mm (ST 52.3 A grade) top and bottom flanges and 10 mm ST 52.3 web plates, welded with a submerged arc welding machine.
• The chassis is reinforced along its length with 160 NPI crossbeams.

Axles

• Equipped with 2 axles, each with a capacity of 12–14–16 tons.
• Air suspension, leaf spring, and tandem suspension system.
• Brake linings and heavy-duty brake levers comply with TSE standards.

Suspension

• Parabolic double-leaf Z springs and tandem suspension system.

Front Axle Lift

• Front axle lifting system controlled from the cabin.

Tires and Rims

• 235/70 R 17.5
• 245/70 R 17.5
• 295/60 R 22.5
• 12 R 22.5
• 315/80 R 22.5 — 8+1 tires in total.

Electrical System

• Complies with SAE standards and TÜV general regulations.
• Electrical connection is made via a 7-pin socket from the towing vehicle.
• Both sides include required traffic warning lights.
• Rear parking, stop, signal, and license plate lights, as well as trailer reflectors and side amber indicators, are included.

Brake System

• EC-standard 71/320/EWG FF brake system.
• Equipped with automatic brake adjusters, 2 emergency and 2 service brake chambers.
• 2S/2M ABS system.
• Swedish-patented Ruffels fitting system prevents air leaks in the trailer.

King Pin

• 2" (DIN 74080) or 3½" (DIN 74083) king pin made of 42 CRMO4 steel.

Support Legs

• Front: 24-ton mechanical trailer support legs.
• Rear: Manual support legs.

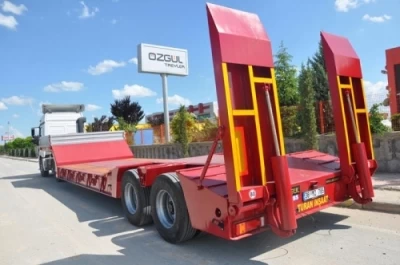

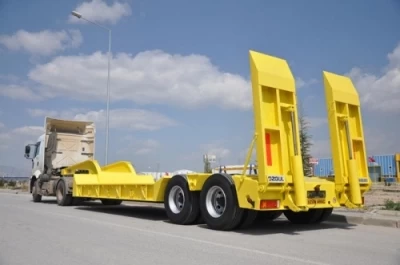

Rear Ramp

• Manufactured from 160 NPU profile, equipped with air-hydraulic pistons.

Floor

• Sides and wheel arches are covered with diamond-patterned steel sheets and hardwood flooring.

Paint

• The chassis and superstructure are cleaned, sandblasted, and painted in a booth with a 2+1 coat acrylic paint system.

Color

• Determined according to customer preference.

Standard Accessories

• 2 x 5 extension brackets (300 + 300 mm)
• 2 x 5 load lashing rings
• 1 x toolbox (mounted under the gooseneck)
• 2 x side protection rails
• 1 x wheel chock and holder
• 1 x 60-liter plastic water tank

Optional Features

• Pool-type lowbed loading area
• EBS brake system
• European axle group and all related equipment
• Aluminum rims
• Double spare wheel holder
• Fire extinguisher cabinet and cylinder
• Optional tire brand selection
• Optional RAL color codes
