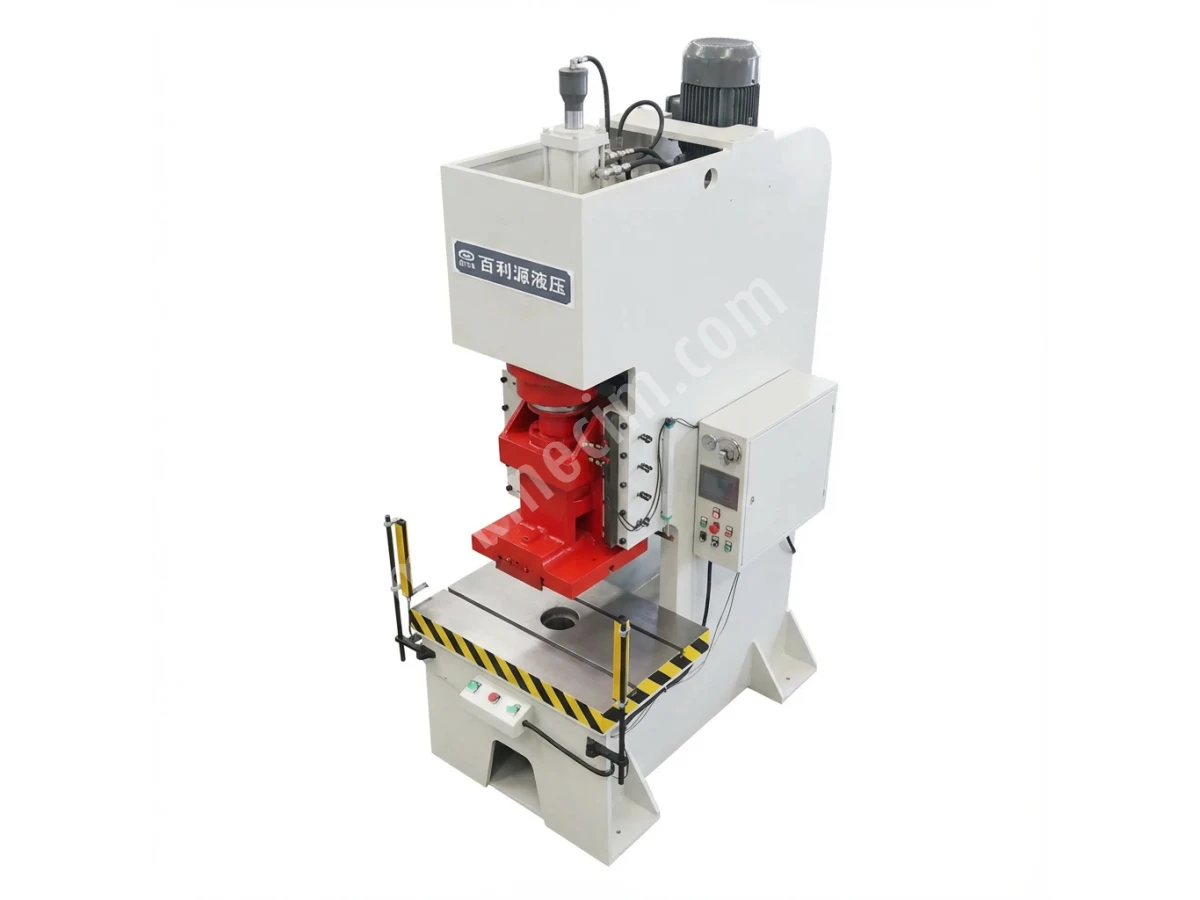

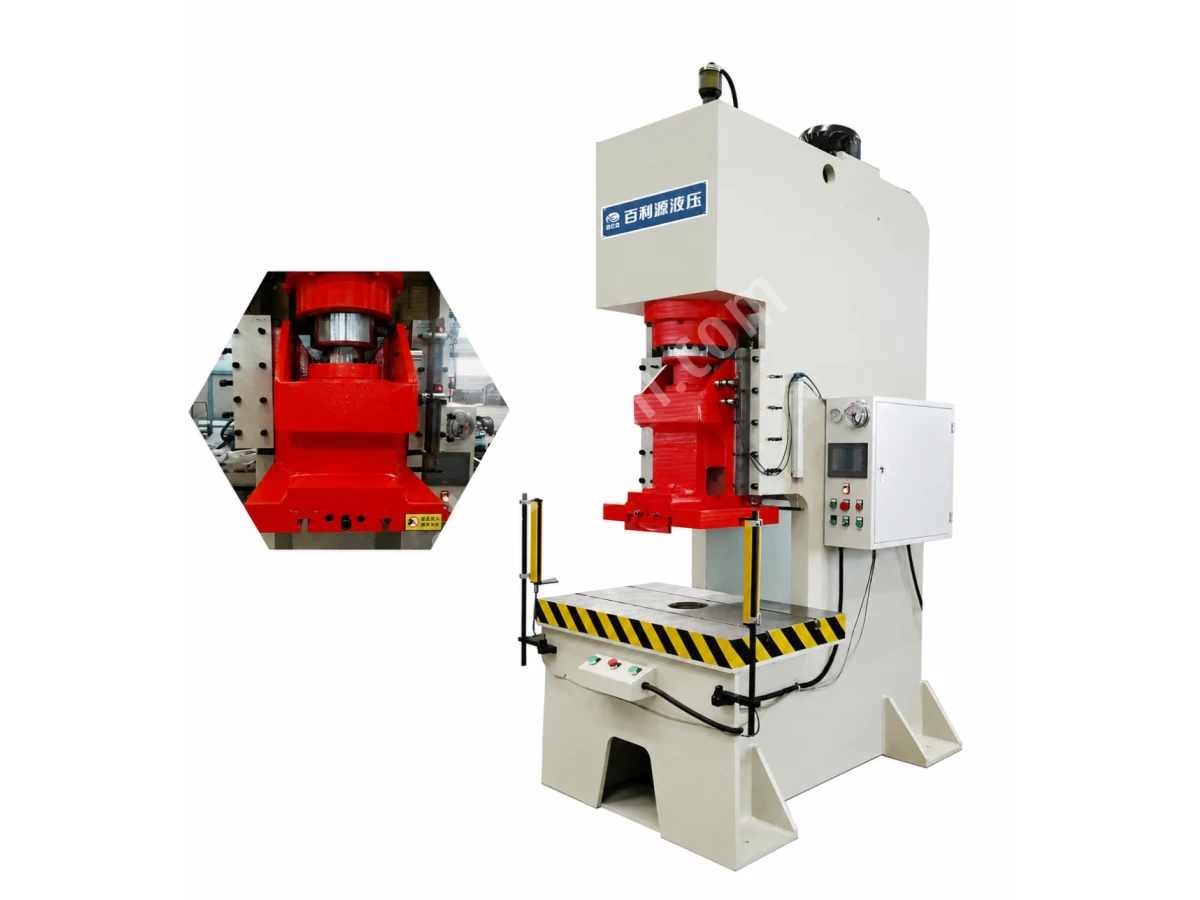

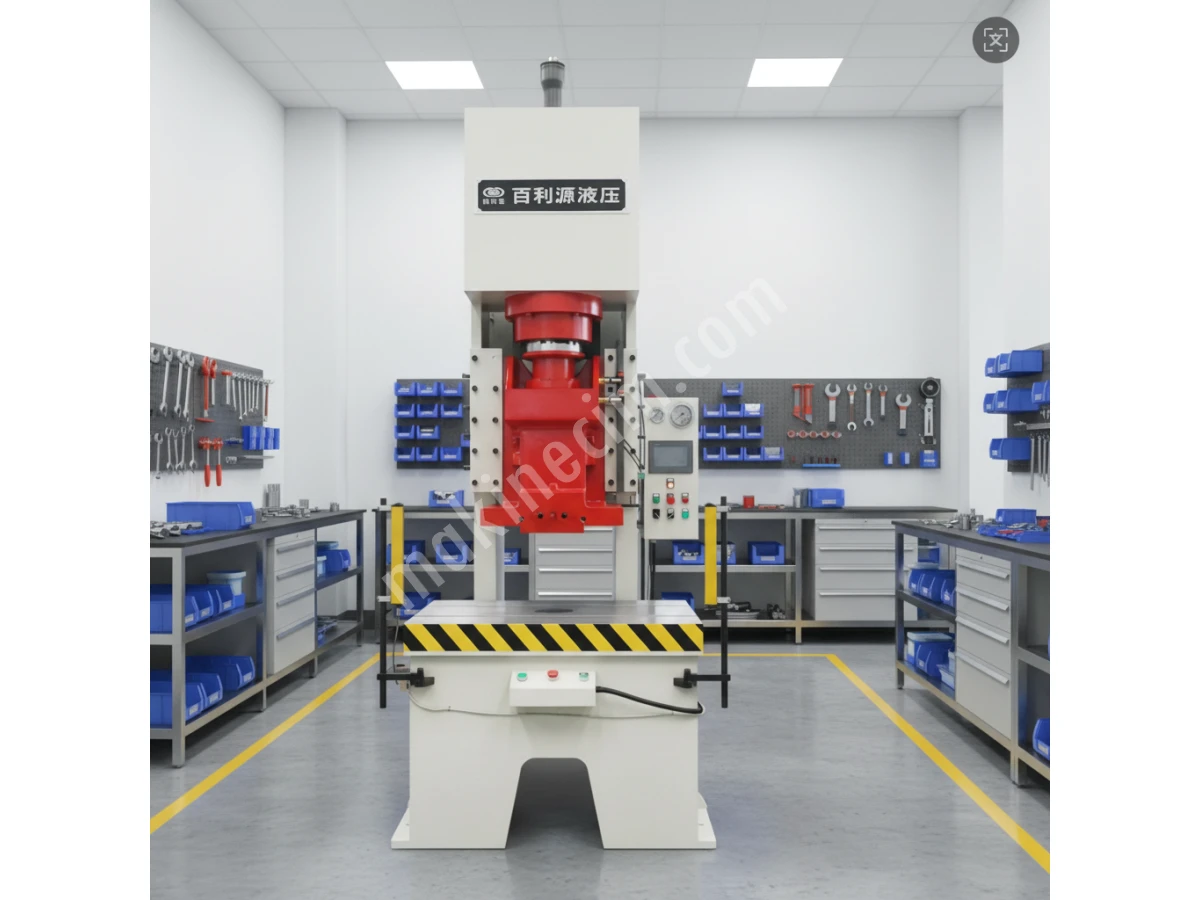

YB41 Series Single-Column Straightening and Press-Fit Hydraulic Press

A versatile solution specifically engineered for the straightening of shafts and the precise press-fitting of bushings, bearings, and sleeves.

Applications

The YB41 Series is designed for the straightening of shafts and other similar components. It is also suitable for the press-fitting of shafts, bushings, bearings, sleeves, and similar parts, as well as for deep drawing, forming, and blanking operations on simple sheet metal components.

This machine is widely used in machinery manufacturing, automotive components, hardware products, and general industrial assembly applications.

Key Features

• Specially designed for straightening and press-fitting applications

• Suitable for shaft alignment, component assembly, and sheet metal forming operations

• Simple and reliable hand-and-foot coordinated control system

• Easy operation with stable and reliable performance

• Technical Specifications

  Item	Unit	YB41-10T	YB41-20T	YB41-40T	YB41-63T	YB41-100T	YB41-160T	YB41-200T
  Nominal Force	kN	100	200	400	630	1000	1600	2000
  System Pressure	MPa	20	25	26	25	26	26	25
  Max Daylight Opening	mm	500	550	550	600	800	-	-
  Slide Stroke	mm	300	300	300	400	500	-	-
  Throat Depth	mm	220	220	220	260	320	-	-
  Rapid Approach Speed	mm/s	45	60	50	38	35	20	28
  Pressing Speed	mm/s	15–45	10–30	8–25	8–22	8–25	5–15	6–18
  Return Speed	mm/s	95	60	50	55	50	55	55
  Table Dimensions	mm	450×400	550×400	550×400	600×500	700×600	-	-
  Motor Power	kW	2.2	3	4	5.5	7.5	7.5	11
