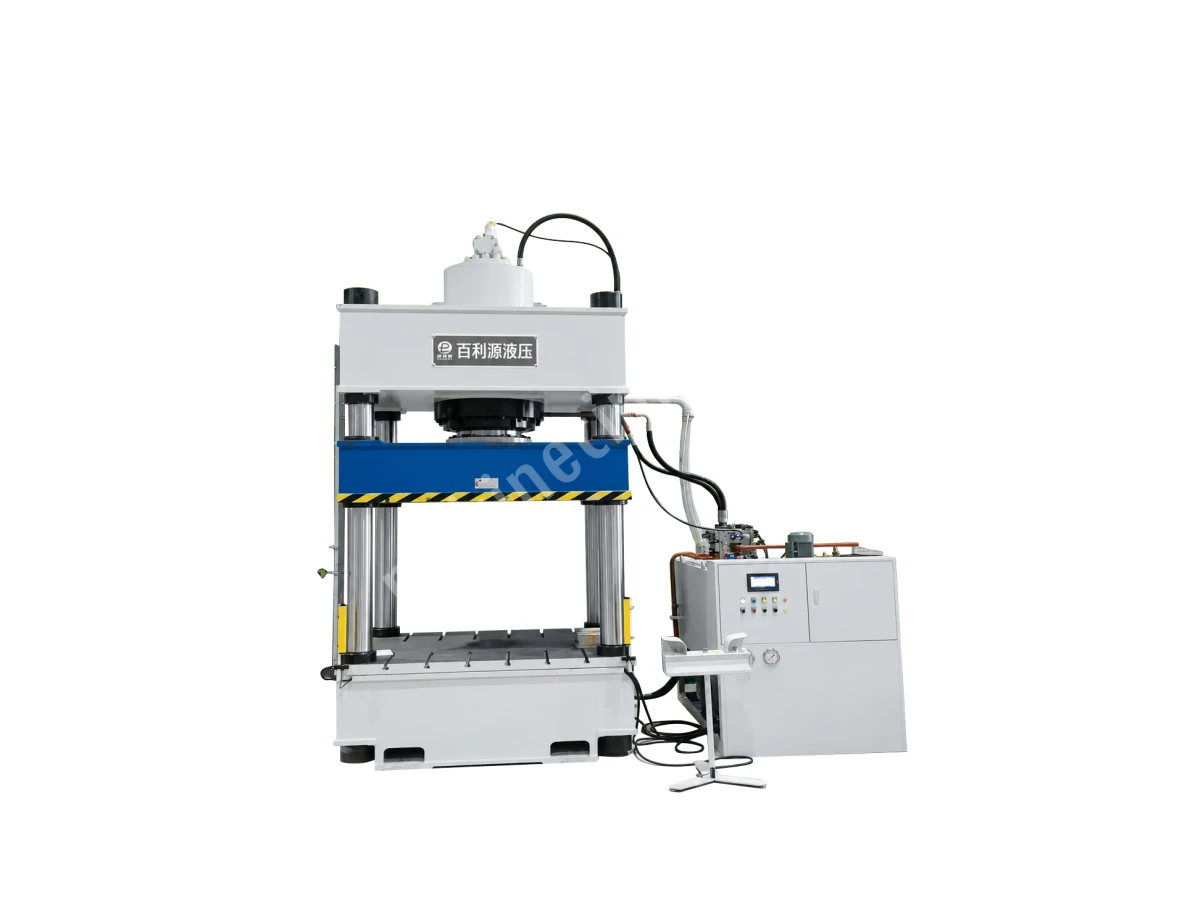

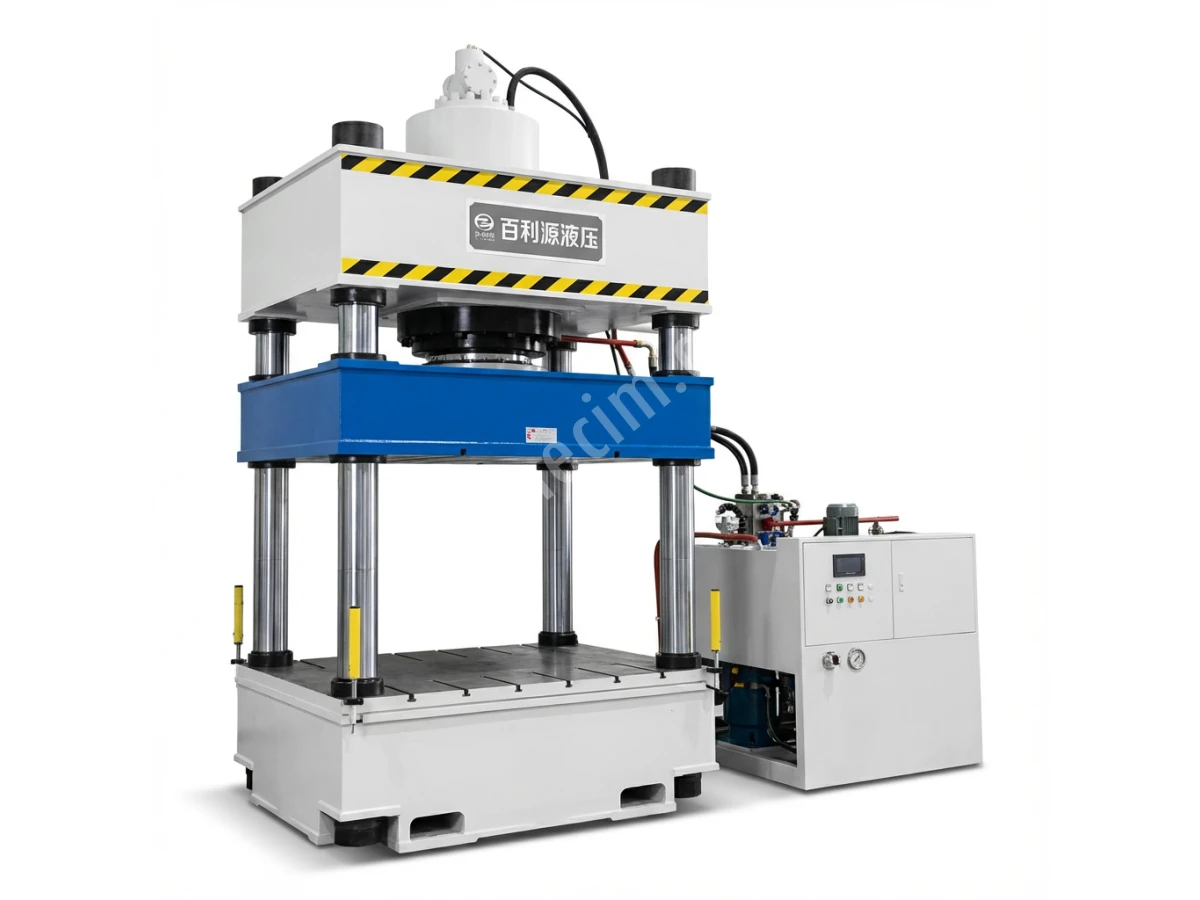

YB32 Series Universal Hydraulic Press

Standard Technical Features

• Main cylinder integrated with a rapid approach cylinder

• Independent hydraulic oil cooling system

• PLC control system with Human-Machine Interface (HMI)

• Infrared light curtain safety protection system

• Applications

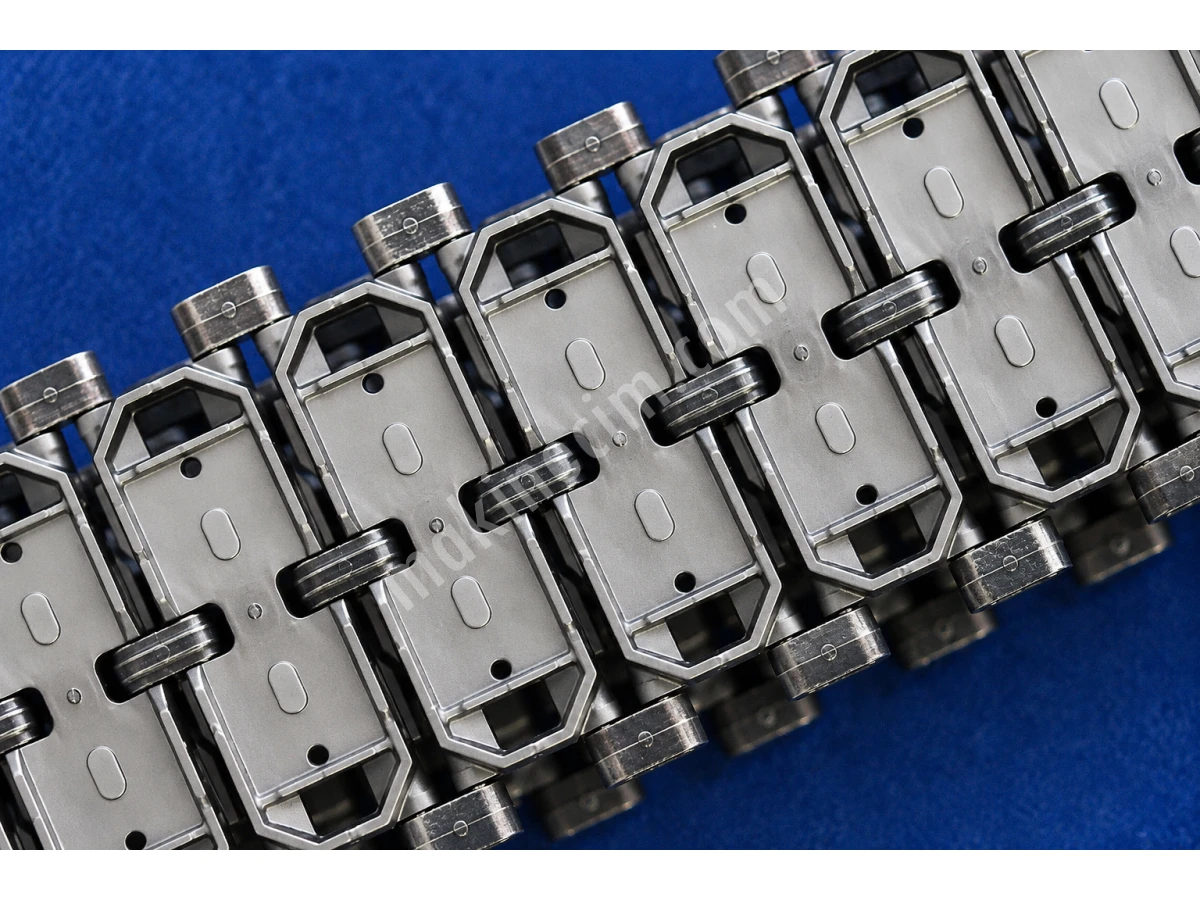

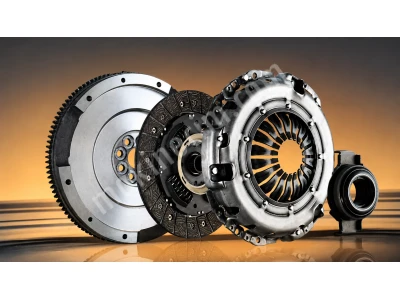

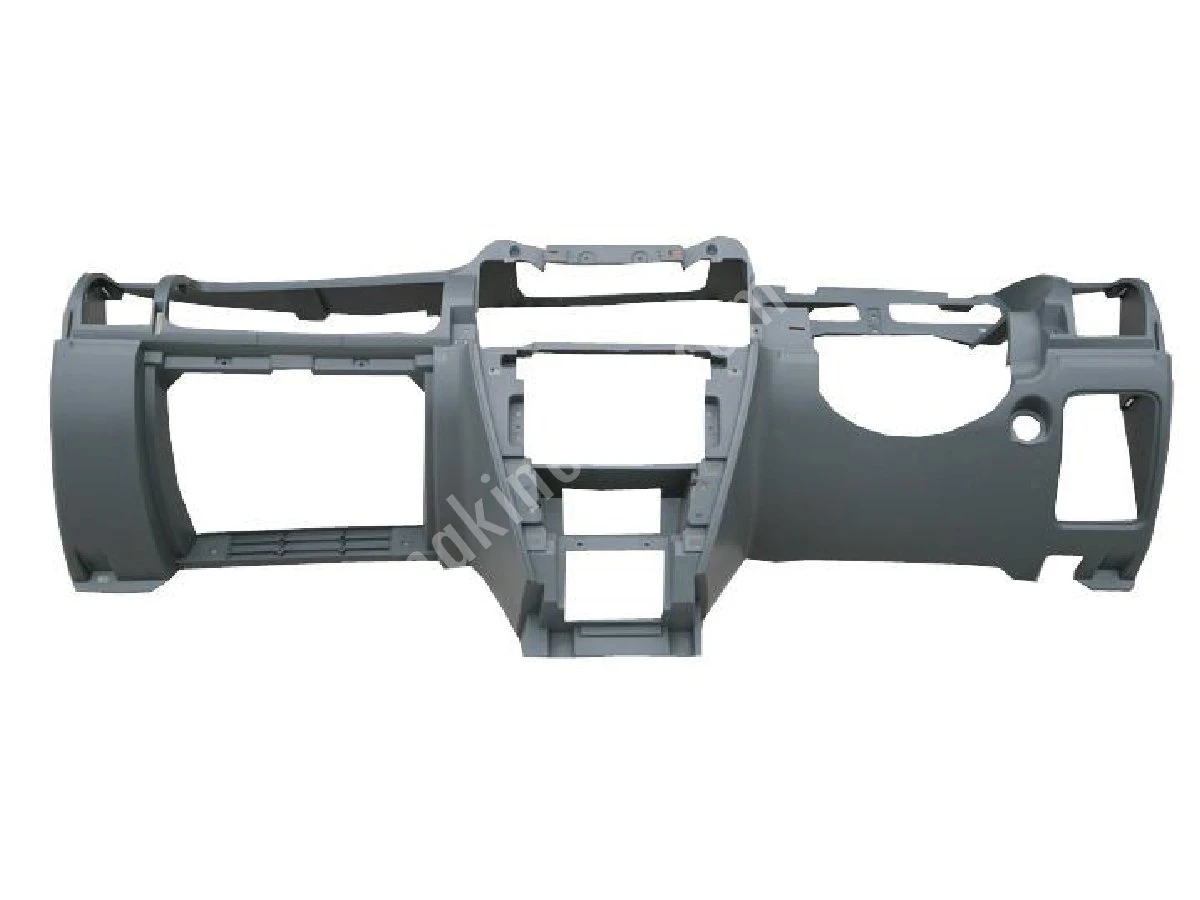

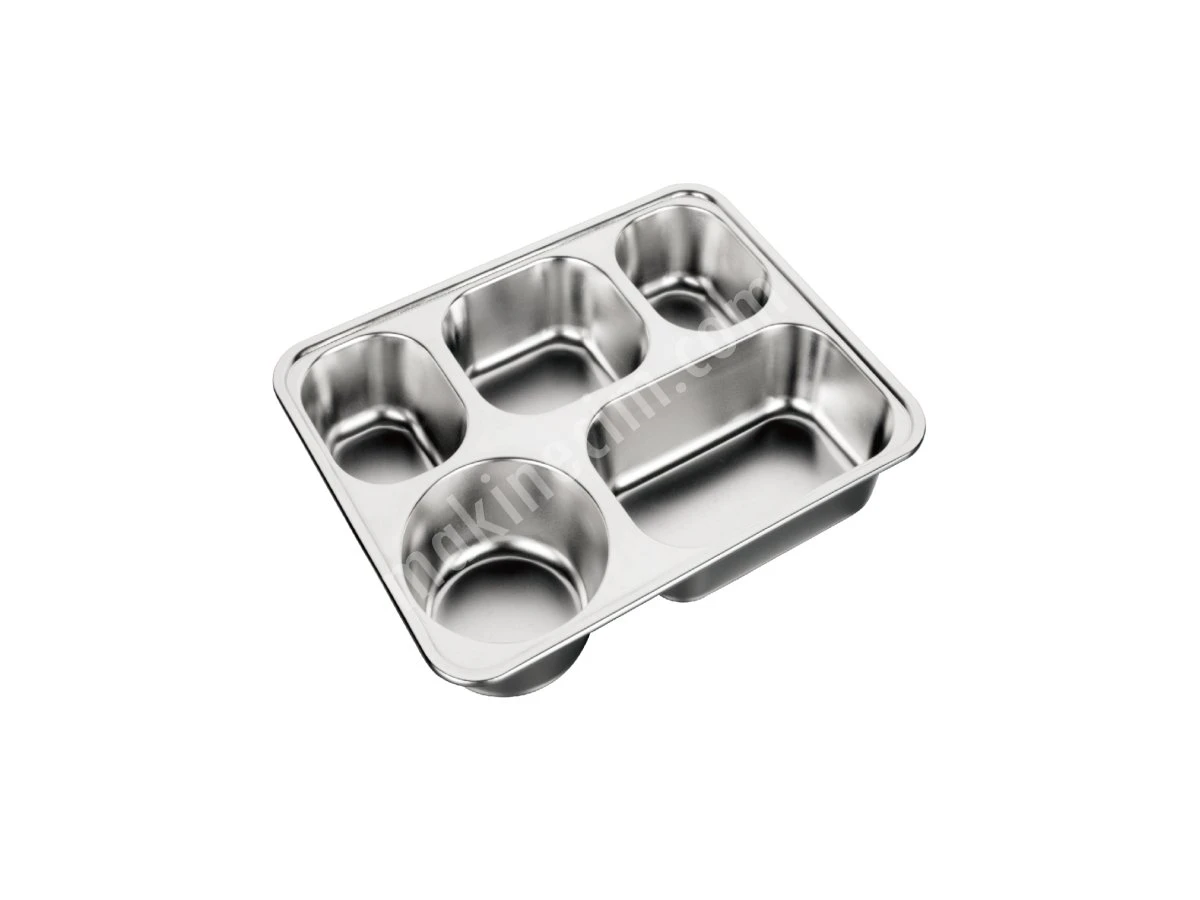

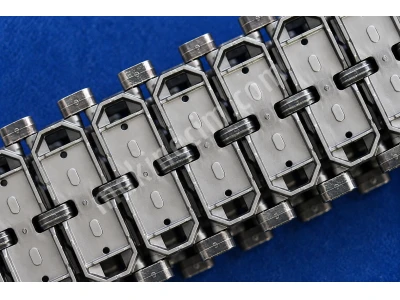

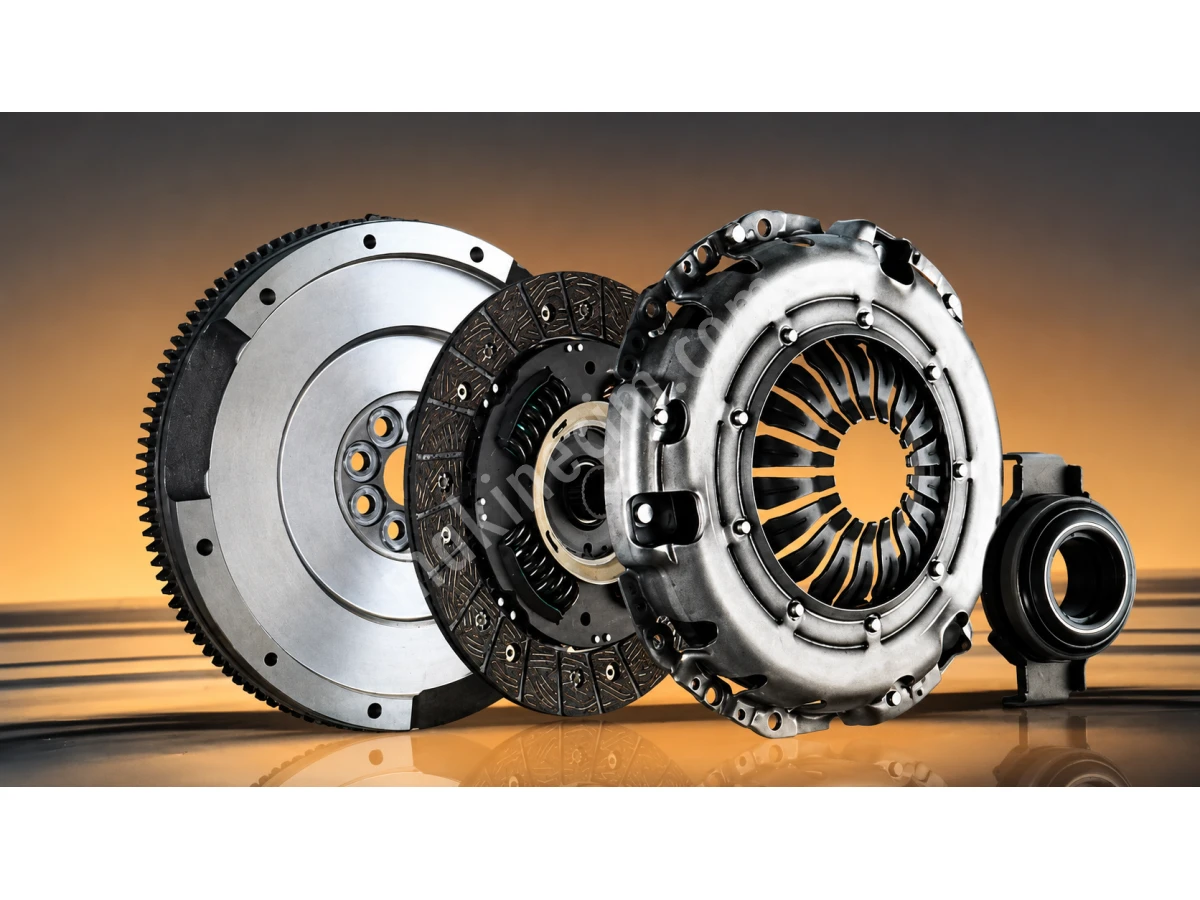

  The YB32 Series Universal Hydraulic Press is widely used in the manufacturing of automotive components, hardware products, aerospace components, electrical and electronic products, molds, and other industrial applications.

  The machine is specially designed for precision blanking, deep drawing, and other metal forming processes, providing excellent forming accuracy and production efficiency. It features rapid approach, slow pressing, and return operating modes for optimized energy consumption and stable performance.

  Key Features

  • Advanced high-speed servo control technology for outstanding energy efficiency

  • Precise digital control of pressure, stroke, and forming parameters

  • Mold data storage and instant recipe recall for fast production changeovers

  • Real-time display of process motion curves for process monitoring and optimization

  • Technical Specifications

    Item		YB32-200T	YB32-315T	YB32-500T	YB32-630T	YB32-800T
    Main Cylinder Nominal Force	2000 kN	3150 kN	5000 kN	6300 kN	8000 kN
    Maximum Working Pressure	25 MPa	25 MPa	25 MPa	25 MPa	25 MPa
    Main Cylinder Stroke	400 mm	400 mm	500 mm	500 mm	500 mm
    Maximum Daylight Opening	800 mm	800 mm	1000 mm	1000 mm	1000 mm
    Effective Table Size	(L–R)	900 mm	1120 mm	1200 mm	1300 mm	1500 mm
    (F–B)	1000 mm	1120 mm	1200 mm	1200 mm	1500 mm
    Rapid Approach Speed	220 mm/s Adj.	230 mm/s Adj.	260 mm/s Adj.	260 mm/s Adj.	260 mm/s Adj.
    Pressing Speed	8–20 mm/s	8–21 mm/s	8–22 mm/s	8–20 mm/s	8–20 mm/s
    Return Speed	230 mm/s Adj.	230 mm/s Adj.	240 mm/s Adj.	240 mm/s Adj.	240 mm/s Adj.
    Ejector Force	300 kN	300 kN	500 kN	630 kN	800 kN
    Ejector Stroke	200 mm	200 mm	250 mm	250 mm	250 mm
    Servo Motor Power	Approx. 25 kW	Approx. 30 kW	Approx. 37 kW	Approx. 48 kW	Approx. 53 kW
    Hydraulic Oil Cooling	Continuous plate-type water cooling or industrial oil chiller
