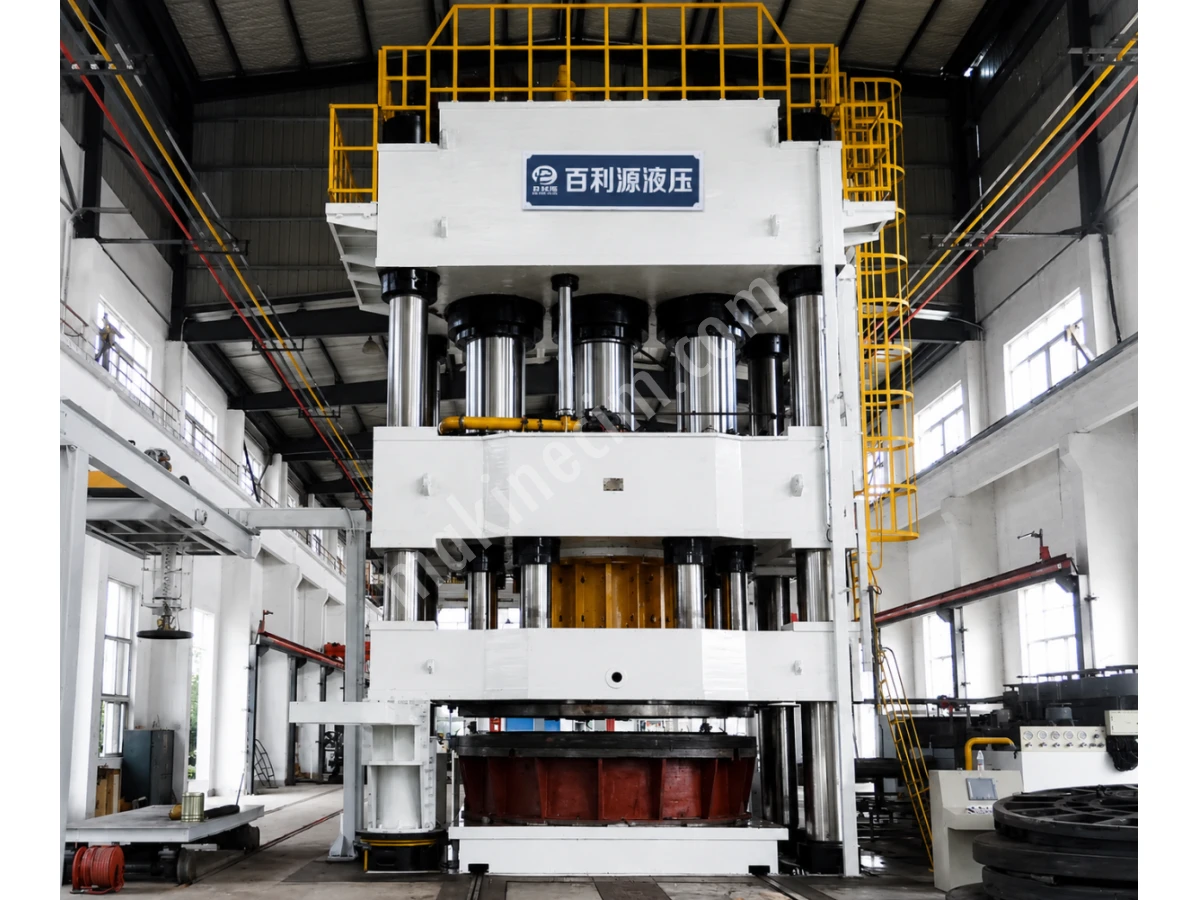

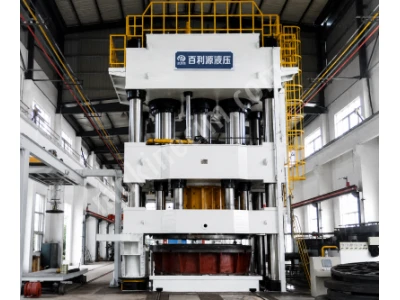

Yb28L Series Hydraulic Press For Dished Head Forming

Applications

The YB28L Series Hydraulic Press for Dished Head Forming is specially designed for the cold and hot forming of various ductile materials. It is suitable for bending, flanging, and deep drawing processes, providing high forming accuracy and excellent production efficiency.

The machine features an independent hydraulic system and electrical control system. It is equipped with a PLC-based centralized control system and computer-assisted operation, allowing both Manual Adjustment Mode and Semi-Automatic Operation Mode.

During semi-automatic operation, a displacement sensor is used for precise positioning. Both pressure and displacement are simultaneously monitored and protected at the lower limit position to ensure safe and reliable operation.

Key Features

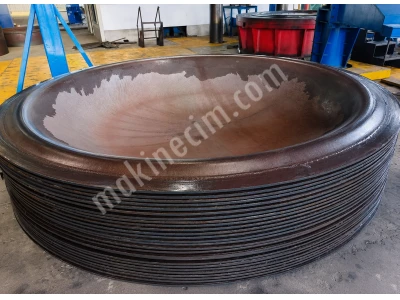

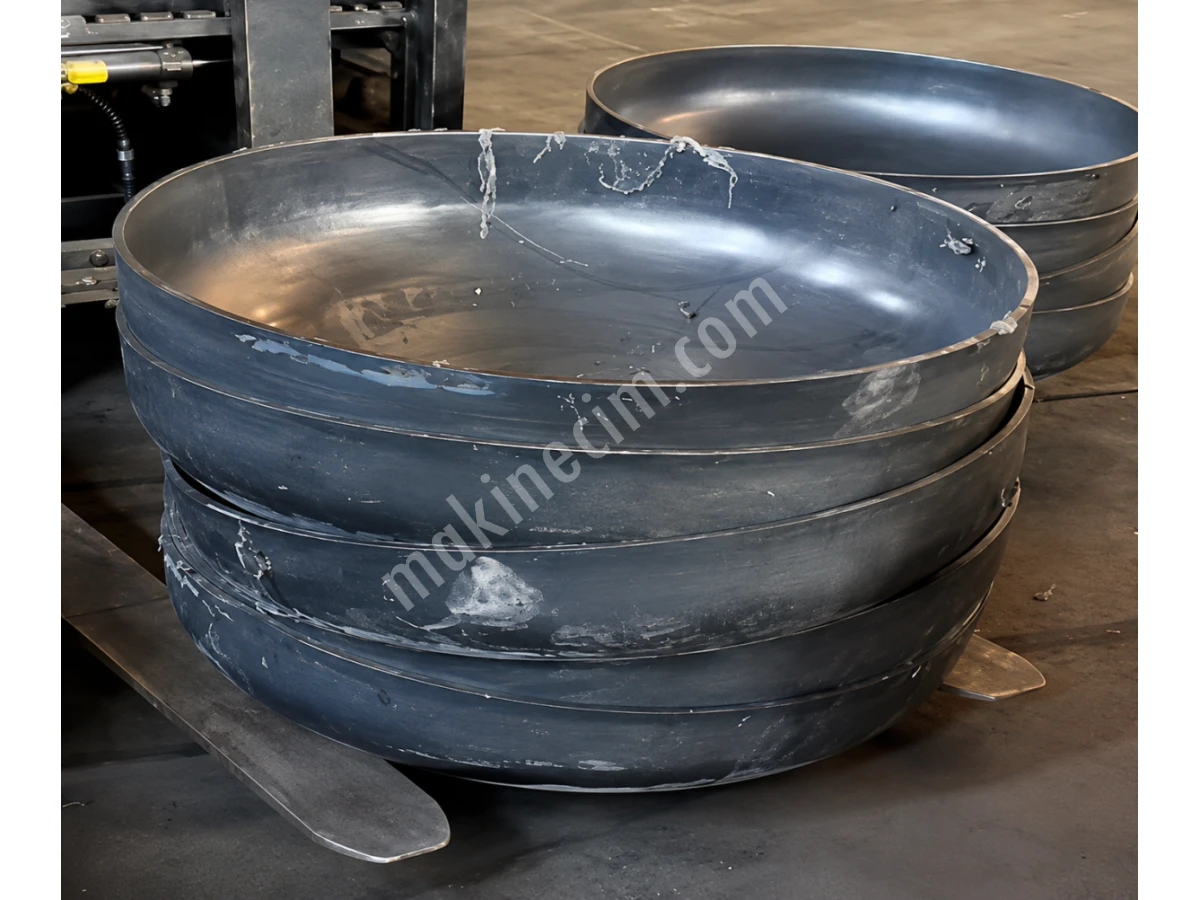

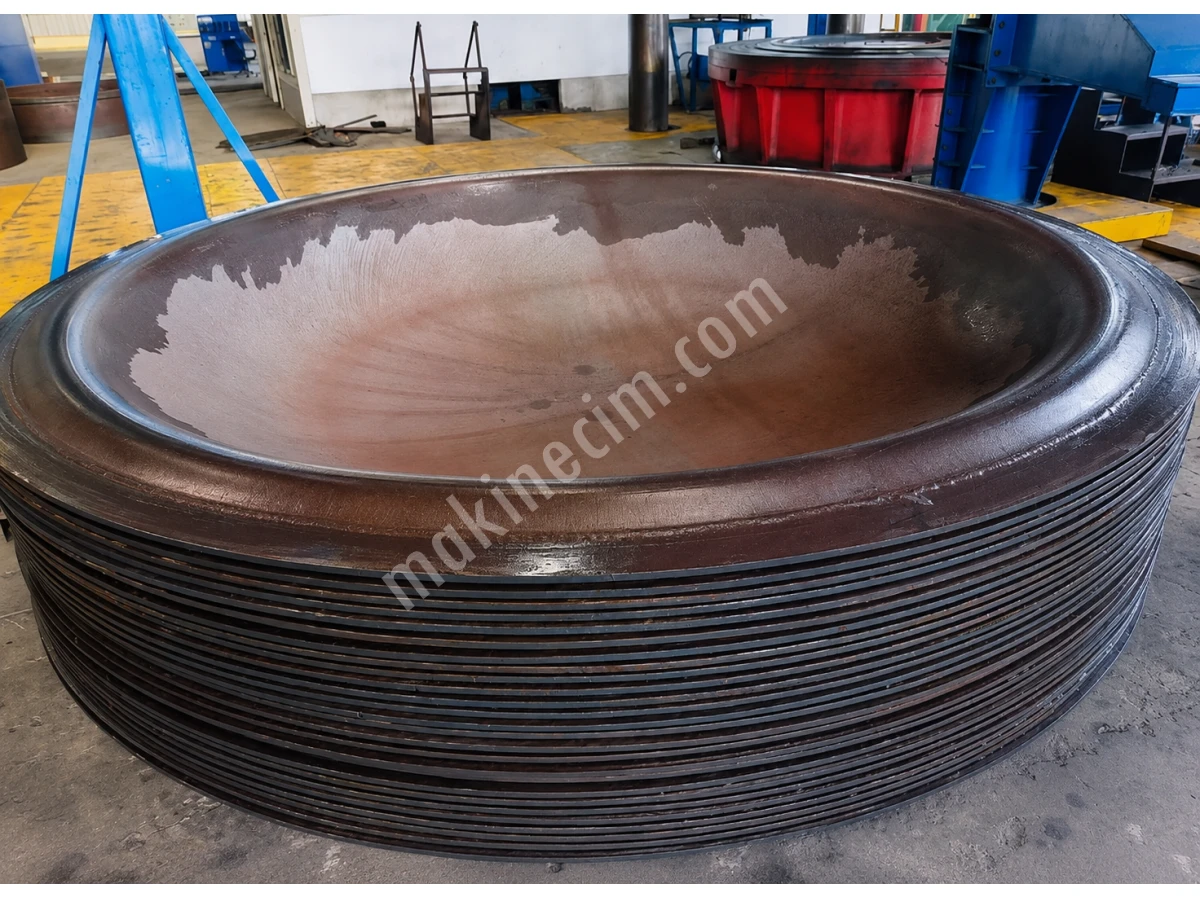

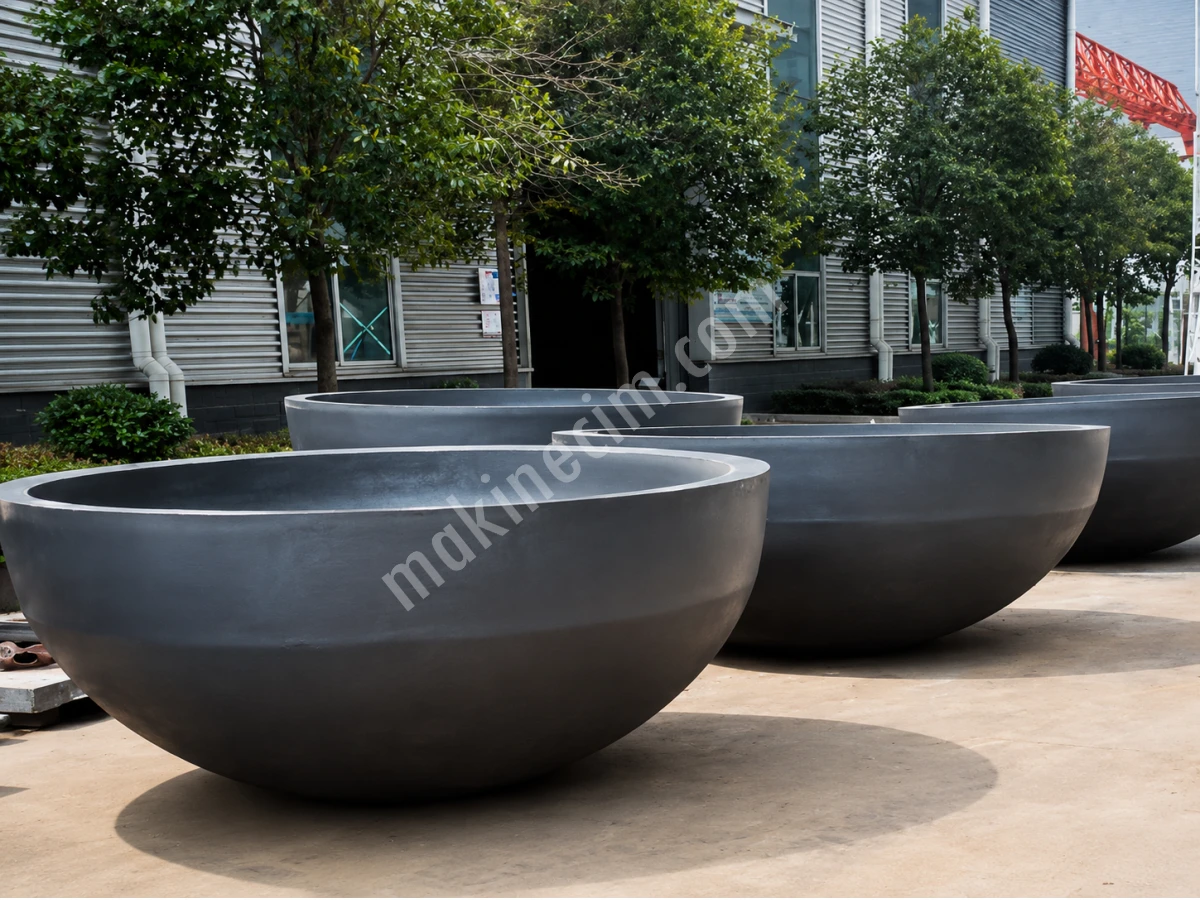

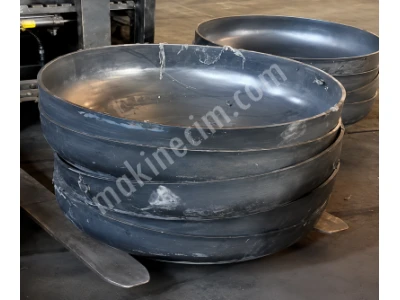

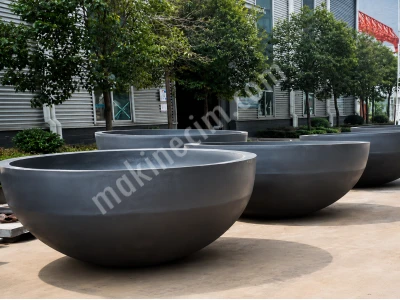

Designed for the cold and hot forming of dished heads and other large formed components

Suitable for bending, flanging, and deep drawing applications

Independent hydraulic and electrical control systems

PLC centralized control with Human-Machine Interface (HMI)

Manual Adjustment Mode and Semi-Automatic Operation Mode

High-precision positioning using displacement sensors

Simultaneous pressure and displacement protection at the lower limit position

Stable operation with high forming accuracy and excellent production efficiency
