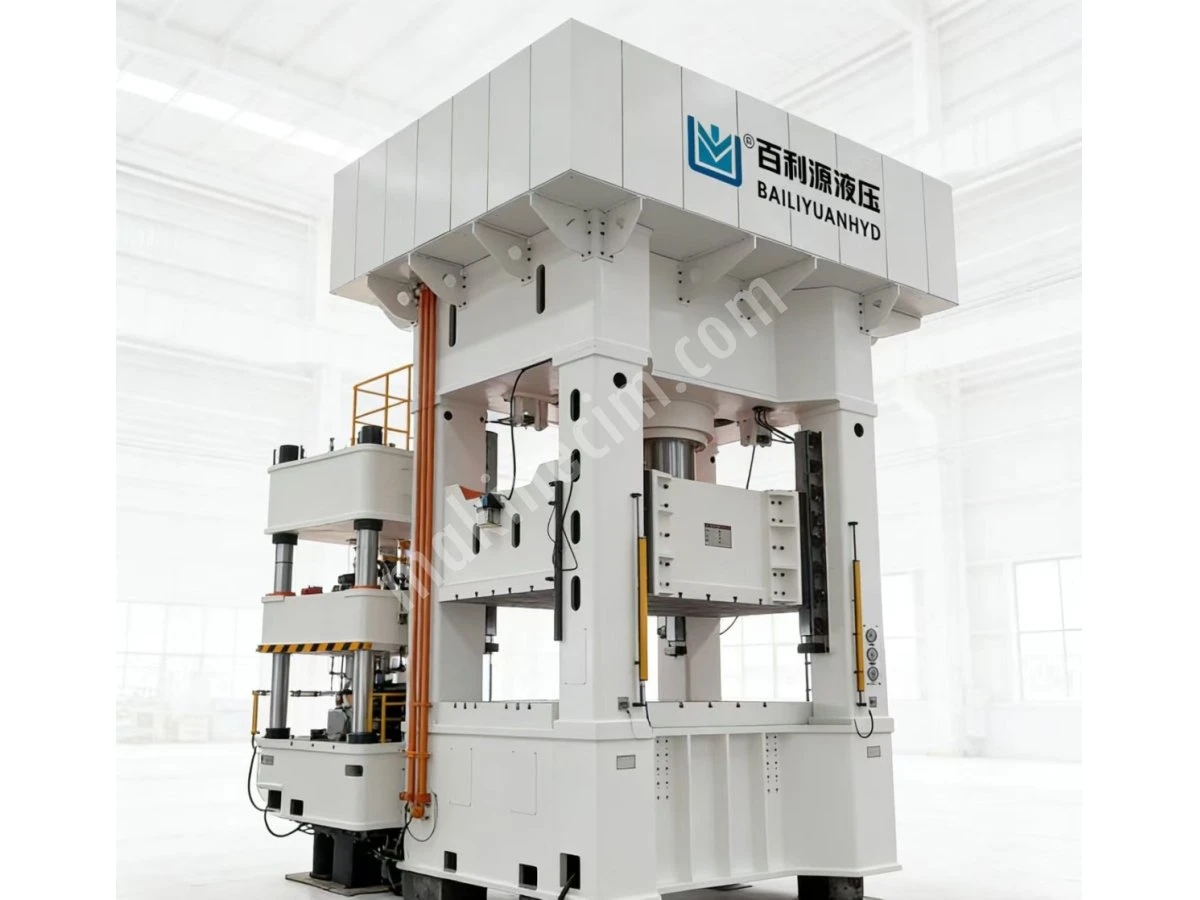

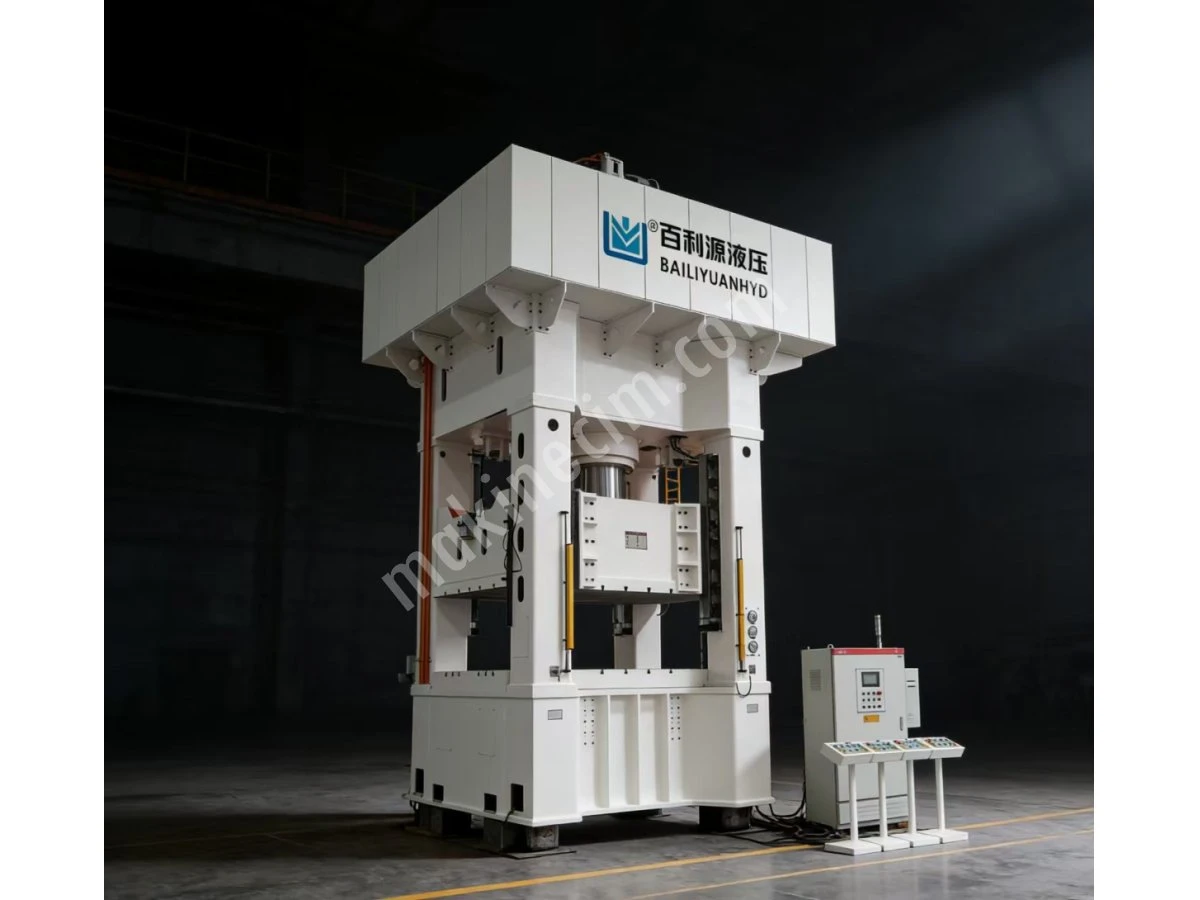

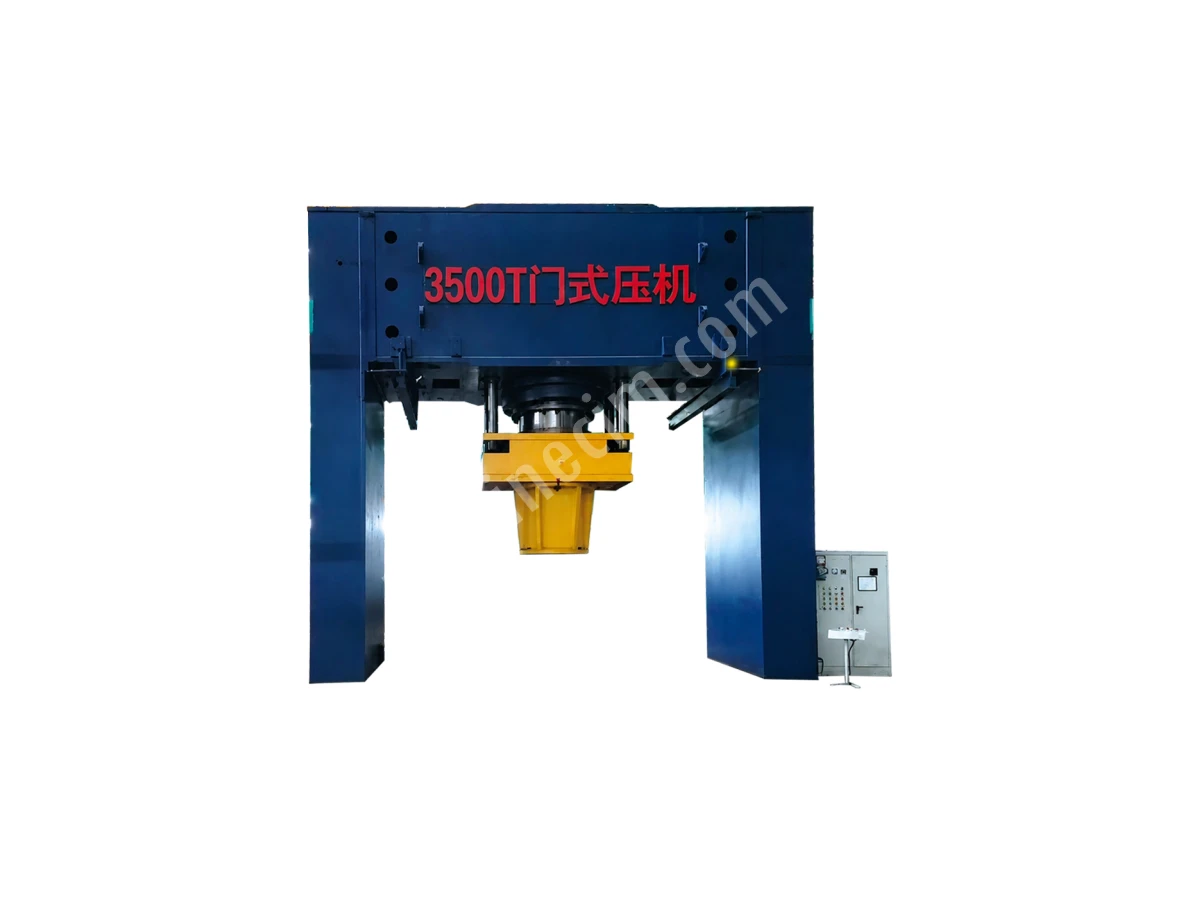

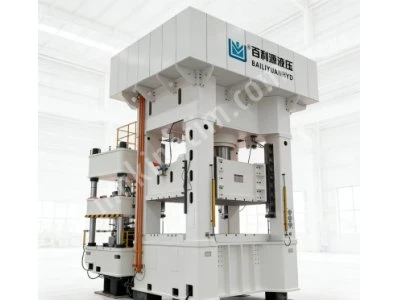

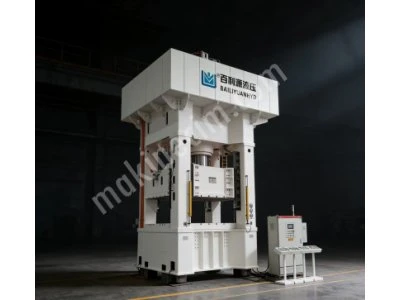

Yb26 Series Frame-Type Gantry Hydraulic Press
| Price : | 75.000 $ |
| Ad Code : | M-464272 |
| Ad Type : | For Sale - New |
| Views : | 3 |
| Date Updated : | 06 Aug 2026 |
| Production Type : | Brand |
| Production Year : | brand new |
Bailiyuan
Yb26 Series Frame-Type Gantry Hydraulic Press Ad Description
Applications

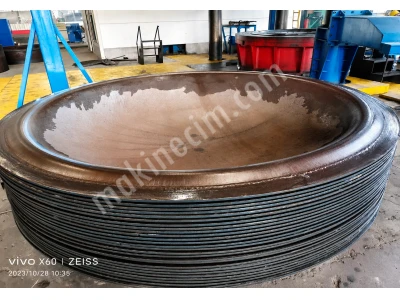

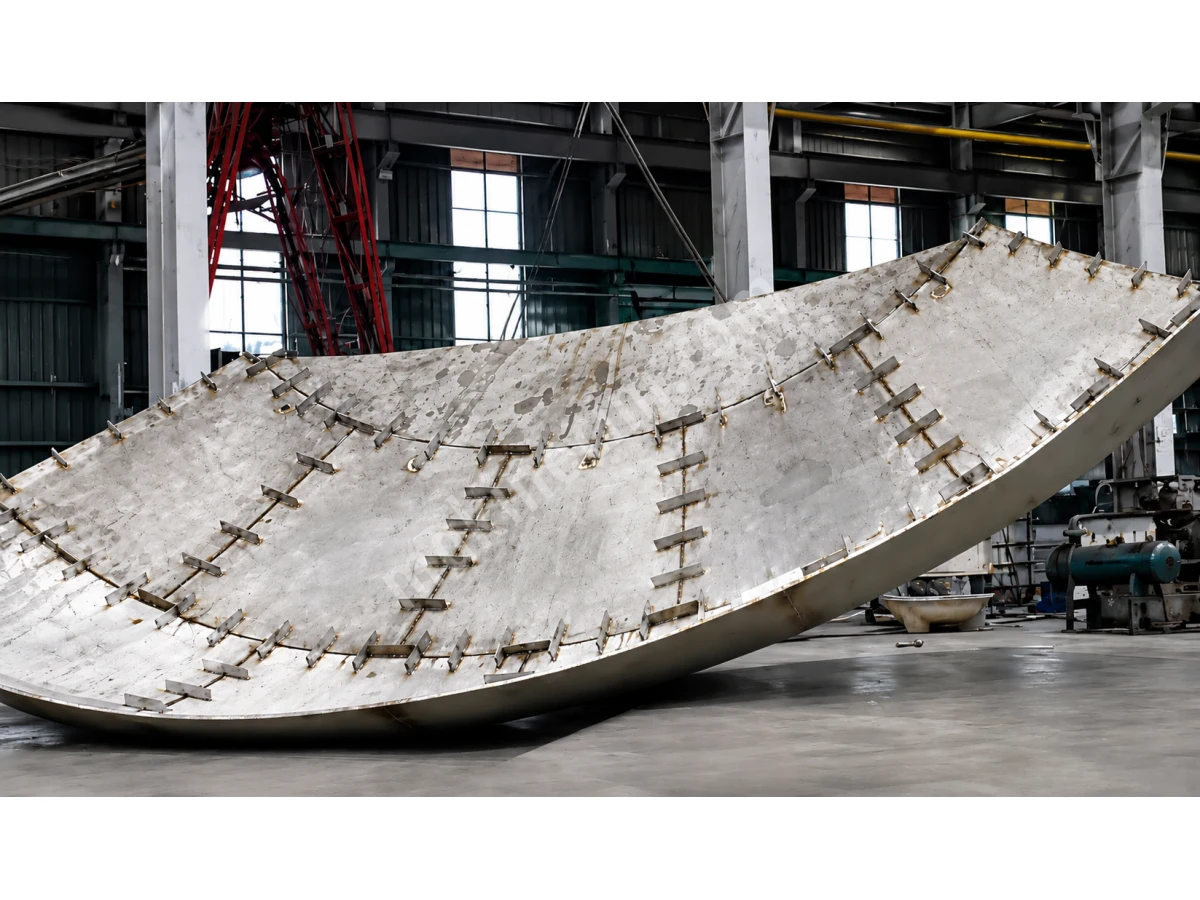

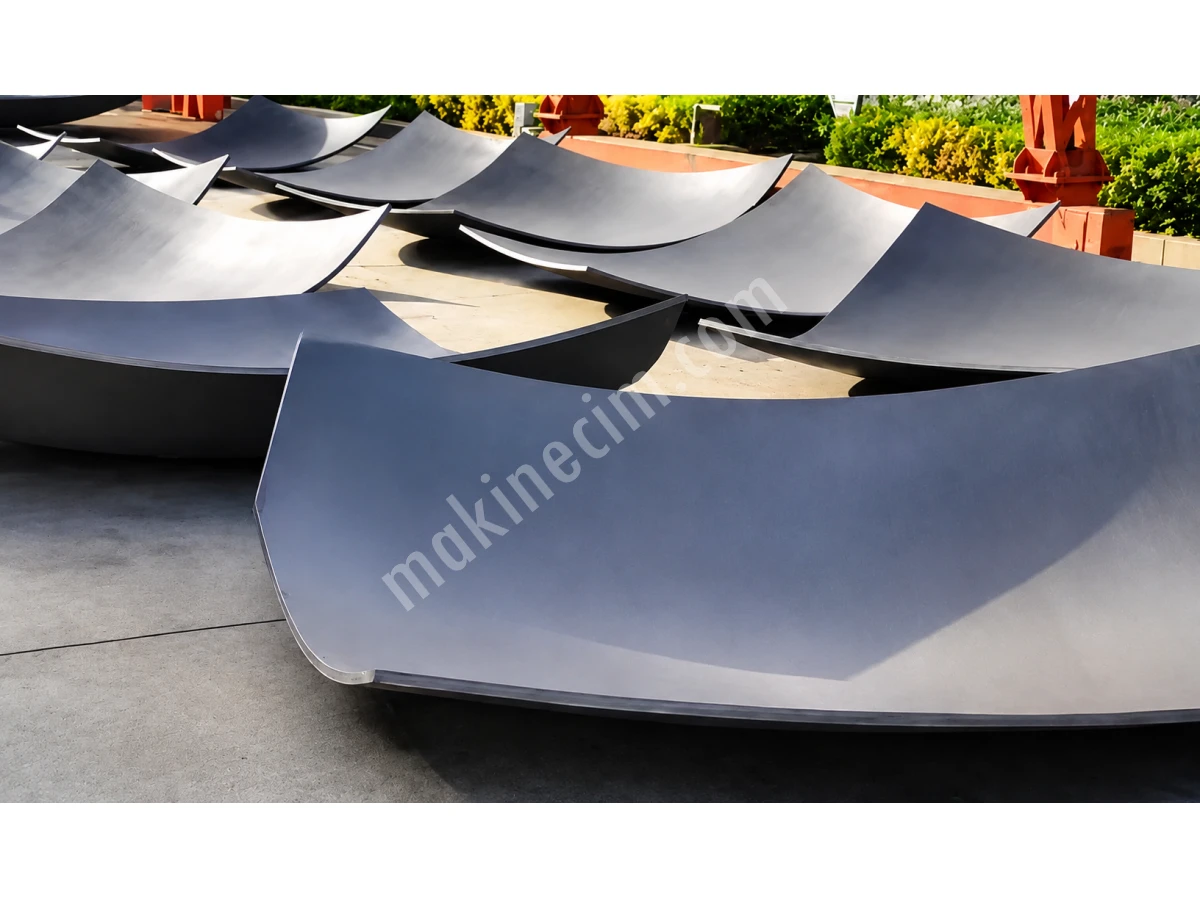

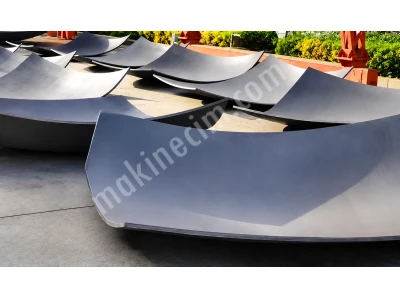

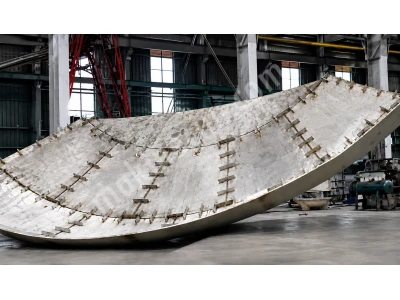

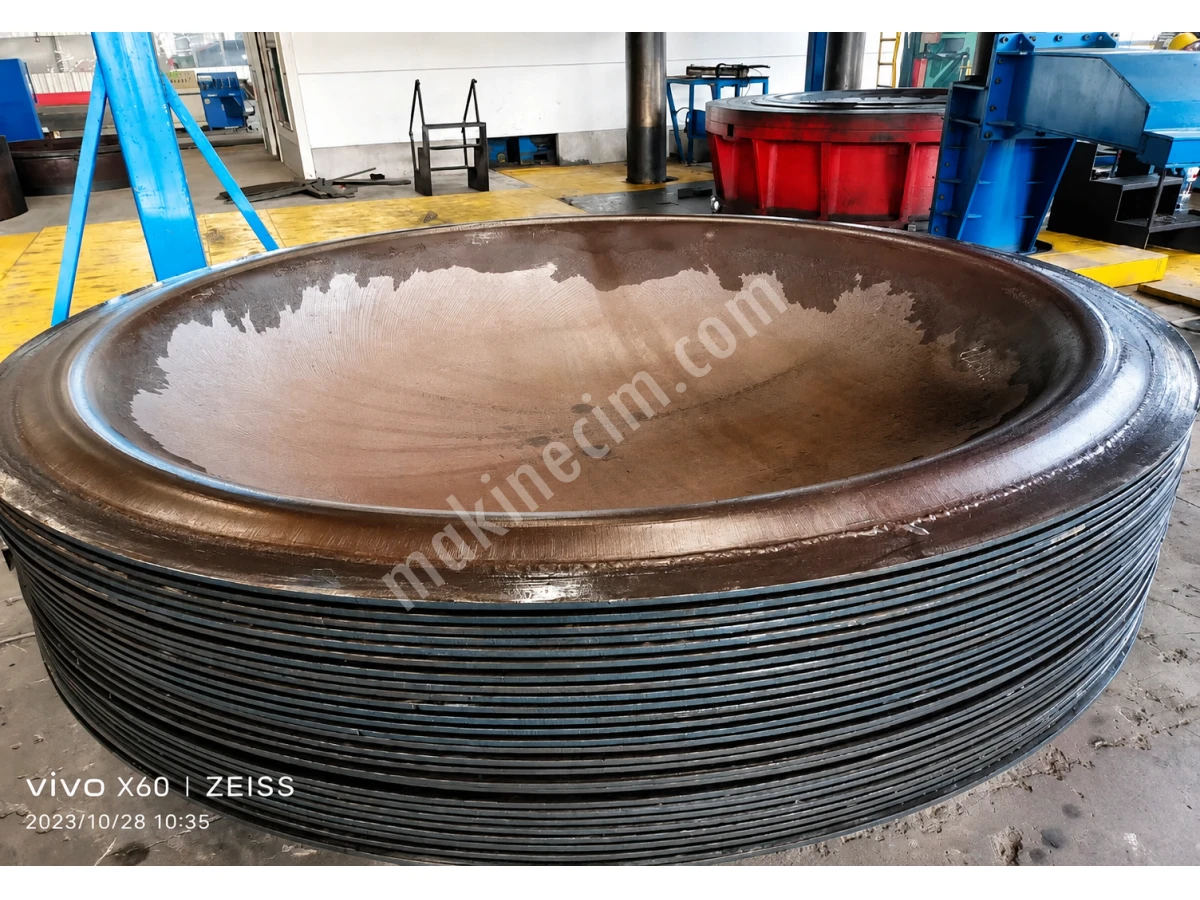

The YB26 Series Frame-Type Gantry Hydraulic Press is designed for the straightening and bending of ductile materials.
The machine is equipped with an independent hydraulic system and electrical control system and adopts a PLC-based centralized control system to ensure stable, reliable, and efficient operation.
It provides both Manual Adjustment Mode and Semi-Automatic Operation Mode to meet various production requirements.
During semi-automatic operation, the slide movement is controlled by non-contact limit switches for accurate positioning. Both pressure and stroke are simultaneously monitored and protected at the bottom dead center, ensuring precise control throughout the straightening and bending processes.
Applications
The YB26 Series Frame-Type Gantry Hydraulic Press is designed for the straightening and bending of ductile materials.
The machine is equipped with an independent hydraulic system and electrical control system and adopts a PLC-based centralized control system to ensure stable, reliable, and efficient operation.
It provides both Manual Adjustment Mode and Semi-Automatic Operation Mode to meet various production requirements.
During semi-automatic operation, the slide movement is controlled by non-contact limit switches for accurate positioning. Both pressure and stroke are simultaneously monitored and protected at the bottom dead center, ensuring precise control throughout the straightening and bending processes.
Key Features
Heavy-duty frame-type gantry structure with high rigidity
Independent hydraulic and electrical control systems
PLC-based centralized control with Human-Machine Interface (HMI)
Manual Adjustment Mode and Semi-Automatic Operation Mode
Precise slide positioning using non-contact limit switches
Simultaneous pressure and stroke protection at the bottom dead center
Stable operation with excellent forming accuracy and high production efficiency
| Item | YB26-500 | YB26-1000 | YB26-1500 | YB26-3000 | YB26-5000 | YB26-10000 |
| Nominal Force | 5000 kN | 10000 kN | 15000 kN | 30000 kN | 50000 kN | 100000 kN |
| Return Force | 500 kN | 1000 kN | 15000 kN | 20000 kN | 25000 kN | 30000 kN |
| Hydraulic System Pressure | 25 MPa | 25 MPa | 25 MPa | 28 MPa | 28 MPa | 28 MPa |
| Slide Stroke | 1000 mm | 1300 mm | 1700 mm | 1800 mm | 2000 mm | 2700 mm |
| Maximum Daylight Opening | 1800 mm | 2200 mm | 2700 mm | 2000 mm | 3800 mm | 4500 mm |
| Rapid Approach Speed | 70 mm/s | 100 mm/s | 100 mm/s | 1500 mm/s | 1500 mm/s | 1500 mm/s |
| Pressing Speed | 6–12 mm/s | 6–12 mm/s | 6–12 mm/s | 6–12 mm/s | 5–10 mm/s | 5–10 mm/s |
| Return Speed | 60 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s | 100 mm/s |
| Slide Dimensions (Left–Right × Front–Back) | 5000×1200 mm | 5500×2000 mm | 6000×2000 mm | 7000×2300 mm | 7000×2800 mm | 7000×3000 mm |
| Movable Table Dimensions (Left–Right × Front–Back) | 4800×2000 mm | 5000×2000 mm | 5500×2300 mm | 5500×2300 mm | 5500×2500 mm | |
| Movable Table Travel | 2200 mm | 2200 mm | 2500 mm | 2500 mm | 2800 mm | |
| Movable Table Speed | 50 mm/s | 50 mm/s | 50 mm/s | 50 mm/s | 50 mm/s |
