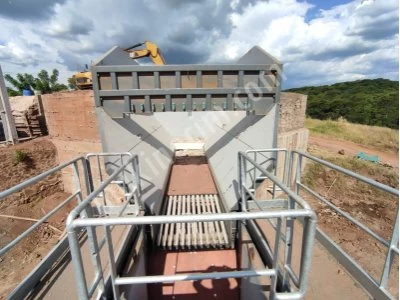

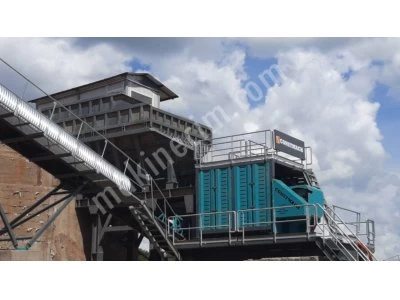

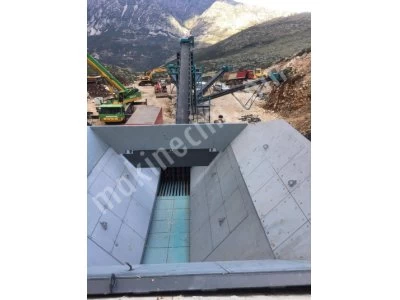

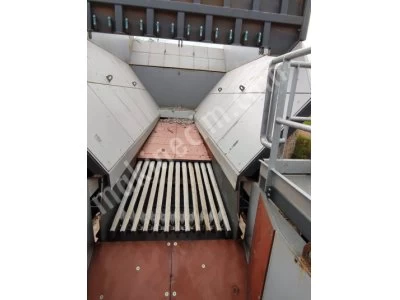

Vibrating Feeder Bunker Delivered From Stock

For Sale: Vibrating Feeder Bunker - Contact Us 24/7

Vibrating feeder bunkers are the most effective way to increase the efficiency of your processing operations. CONSTMACH vibrating feeders ensure homogeneous material distribution, maximizing the capacity of your crushers and reducing intermediate crusher costs. Our feeder bunkers eliminate issues caused by sudden loads, ensuring uninterrupted system operation. This feature prevents productivity loss and reduces maintenance costs.

Our CPG models, with their wide body dimensions and high capacities, can feed materials at rates ranging from 80 t/h to 500 t/h. With weights ranging from 8,000 kg to 26,000 kg and various motor power options, they offer a suitable solution for every business's needs. The grizzly length and bunker capacity options perfectly match your specific requirements. For example, the CPG-09 model provides an ideal solution for small to medium-scale operations with a capacity of 80-100 tons per hour, while the CPG-13 model is suitable for larger projects with a capacity of 350-500 tons per hour.

The advantages of our vibrating feeder bunkers go beyond increased efficiency. They minimize thermal blowouts and equipment wear caused by overloads, extending the lifespan of your equipment. Additionally, by ensuring smooth material flow, they eliminate unexpected stoppages and the associated costs. All these features ensure that your operations continue uninterrupted and at high efficiency.

Manufactured from high-quality and durable materials, CONSTMACH vibrating feeder bunkers optimize every type of material flow. They are the best choice for increasing your business's efficiency and reducing maintenance costs. Choose CONSTMACH vibrating feeder bunkers to perfect your workflow and maximize your productivity.

CPG-09 Model Vibrating Feeder Bunker Technical Specifications

• Body Dimensions: 2,500 x 520 mm
• Grizzly Length: 820 mm
• Motor Power: 2 x 3 kW
• Bunker Capacity: 8 - 10 - 15 m³
• Capacity: 80 - 100 t/h
• Weight: 8,000 kg

CPG-10 Model Vibrating Feeder Bunker Technical Specifications

• Body Dimensions: 3,000 x 850 mm
• Grizzly Length: 1,160 mm
• Motor Power: 2 x 4.5 kW
• Bunker Capacity: 10 - 15 - 20 m³
• Capacity: 150 - 200 t/h
• Weight: 12,000 kg

CPG-11 Model Vibrating Feeder Bunker Technical Specifications

• Body Dimensions: 4,600 x 1,100 mm
• Grizzly Length: 1,400 mm
• Motor Power: 2 x 9.2 kW
• Bunker Capacity: 15 - 20 - 30 m³
• Capacity: 200 - 300 t/h
• Weight: 18,000 kg

CPG-13 Model Vibrating Feeder Bunker Technical Specifications

• Body Dimensions: 4,880 x 1.370 mm
• Grizzly Length: 1,840 mm
• Motor Power: 2 x 11 kW
• Bunker Capacity: 30 - 45 - 50 m³
• Capacity: 350 - 500 t/h
• Weight: 26,000 kg
