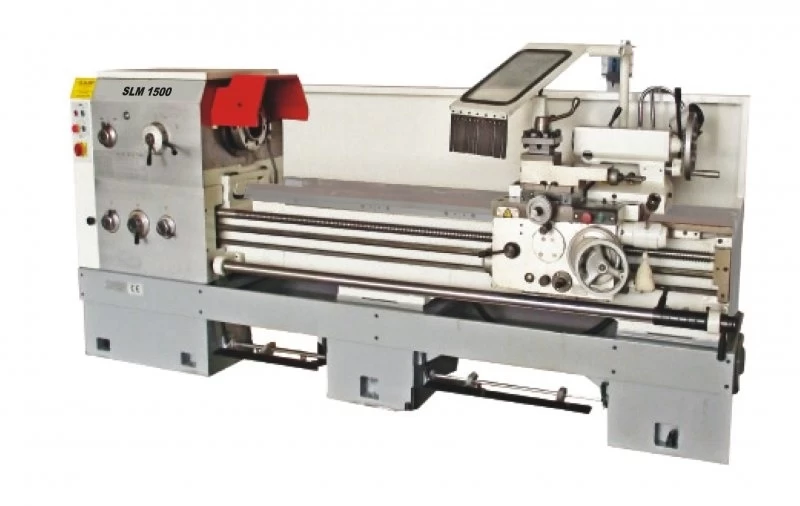

Universal Lathe Machine Slm 1000-1500

Türkiye - Konya - SELÇUKLU

2. ORGANİZE SANAYİ LALEHAN CAD. NO.5 SELÇUKLU/KONYA

TECHNICAL SPECIFICATIONS	SLM 1000	SLM 1500
Maximum swing over bed	500 mm	500mm
Maximum swing over carriage	300 mm	300 mm
Maximum swing in gap	710 mm	710 mm
Maximum distance between centers	1000 mm	1500 mm
Diameter of spindle bore	82 mm	82 mm
Front spindle taper	ISO 702/II NO:8	ISO 702/II NO:8
Spindle rotation speeds	36-1600 r/min	36-1600 r/min
Spindle speed	12 steps	12 steps
Maximum travel of cross slide	320 mm	320 mm
Maximum travel of top slide	145 mm	145 mm
Longitudinal feed	0.063-2.52 mm/rpm	0.063-2.52 mm/rpm
Cross feed	0.027-1.07 mm/rpm	0.027-1.07 mm/rpm
Metric thread (48 kinds)	0,5 - 224 mm	0,5 - 224 mm
White worth thread (48 kinds)	72 - 1/4 t.p.i.	72 - 1/4 t.p.i.
Module thread (42 kinds)	0.5 - 112 mm	0.5 - 112 mm
Diameter metrical pitch thread (42 kinds)	56 - 1/4 d.p.	56 - 1/4 d.p.
Diameter of tailstock quill	75 mm	75 mm
Taper bore of tailstock quill	5 mors	5 mors
Travel of tailstock quill	150 mm	150 mm
Spindle motor power	7.5 kw	7.5 kw

STANDARD EQUIPMENTS	QUANTITY	QUANTITY
STD 386 Self centering chuck three legged	1	1
STD 387 Self centering chuck four legged	1	1
STD 388 Self centering chuck shuttered	1	1
STD 389 Flange	1	1
STD 390 Self centering chuck protection	1	1
STD 391 Fixed support	1	1
STD 392 Floating support	1	1
STD 393 Coolant system	1	1
STD 394 Foot brake assembly	1	1
STD 395 Lubricator	1	1
STD 396 Dead center and case	1	1
STD 397 Live center	1	1
STD 398 Tool kit	1	1
STD 399 Operating manual	1	1
