TWIN CHASSIS
| Price : | Ask For Price |
| Ad Code : | M-177625 |
| Ad Type : | For Sale - New |
| Views : | 272 |
| Date Updated : | 05 Dec 2024 |
| Production Type : | Brand |
Nursan Treyler
Türkiye - Konya - SELÇUKLU
Konya Organize Sanayi Bölgesi 20. Sk. No: 14
Selçuklu/Konya/ TÜRKİYE

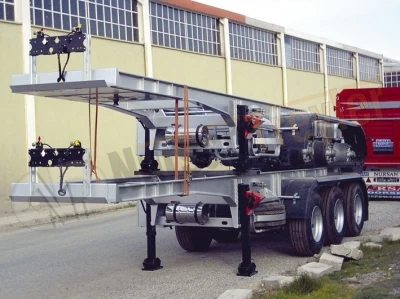

TWIN CHASSIS Ad Description
TECHNICAL SPECIFICATION
CHASSIS
It is manufactured by using inert-gas welding machinery from/out of high durable steel as cross sectional “I” Overloadings had been taken into consideration at the durability calculations.
AXLE
It is manufactured in accordance with the European standards. It has a carrying capacity of 3-12 tons and donated with an automatic adjusting break lever.
KING-PIN
2" SIt is made of forged steel (42 Cr Mo 4) which is coherent to 2”SAE/DIN” norms and durable against high level stretching and breakings. It can be replaceable via screw connections.
TYRE
6+1 tubeless tyres with the dimensions 385/65 R 22,5
BRAKE
Brake is designed in accordance with the European standards. WABCO products are used as Equipments. Automatic break ratchets, break ventil, break bellow, break lining pads and the axle brakes are equipped with ABS system. There are two replaceable and protected break sockets in front of the trailer.
AIR SUSPENSION
It consists of of raising and lowering and highness adjusting system; parabolic z trusses and shock absorber elements which limiting overloading axle movement.
LANDING GEAR
Mechanic gears (feet), which are double revolution and each has a capacity of bearing 25 tons.
DYE(paint)
All the surfaces are cleaned under high pressure with water and bonder chemical liquid. Then it is dyed with one coat of epoxy die, and a last coat of acrylic die. It
